3D Viewer

  • Updated

Objective

  1. Icons & Features
  2. File Format



Details

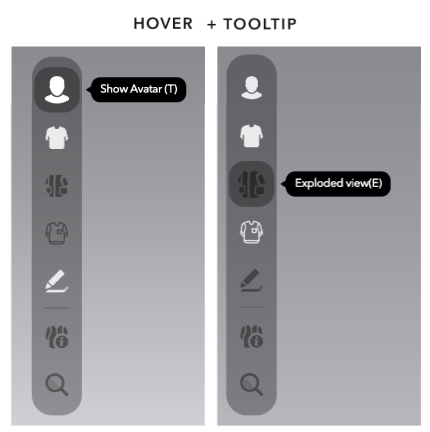

1) Icons & Features



If the icon is crossed out, it means there is no data within your content.






2) File Format

Type Format Description
Garment *.zpac Contains information on garments, patterns, sewing, and fabrics.
Project *.zprj

Compressed version of multiple files used for garment creation.
The Project file contains the AVT file that has avatar-related data (Avatar, Accessories, Arrangement Bounding Volumes, Arrangement Points, Avatar size, Poses), the ZPac file that contains garment-related data (3D Garments, 2D Patterns, Fabrics, subsidiary Material), as well as an animation file if there is any.
Avatar *.avt, .avte Contains all the information related to Avatars (Model, Sizing data, Poses, Motions, Accessories, Bounding Volumes, Arrangement Points).
OBJ *.obj Contains geometry and material information. Primarily used for importing avatar and related sources into the program.
FBX *.fbx Contains mesh, material, joint, animation, and camera information.

GL Transmission Format

 *gltf / glb Contains scene and material information using the JSON standard. Primarily used for importing avatar and related sources into the program.
COLLADA *.dae This file can be exported from other 3D softwares such as 3ds Max, Maya, Pose, and DAZ Studio.
These files contain geometry and material information, as well as rigging, skinning, and animation data
When exporting COLLADA files from 3ds Max or Maya, install “OpenCOLLADA plugin (http://www.opencollada.org/download.html) and export to use the avatar
Fabric *.zfab Contains the property values (texture + physical properties) of the set fabric.
Button *.btn Contains the type, size, and color of Buttons.
Buttonhole *.bth Contains the type, size, and color of the Buttonholes.
Trim *.trm Contains material information
Zipper Puller *.zpl Contains the type, size, and color of Zipper Pullers.
Zipper Slider *.zsd Contains the type, size, and color of Zipper Sliders.
Zipper Stopper *.zsp Contains the type, size, and color of Zipper Stoppers.
