Permission:
Admin
Collaborator
Editor
Objective
Upload Color Presets to be used in Configurator. Upload your team's color palette for a faster & smoother Colorway creation in CLO-SET.
Details
1) Adding Color Preset
• Admin only / in Company Settings
Upload an .aco/.ase file in your Company Settings page. If you do not have access, contact your Company Space's Admin.
1. Enter your Company, and click on 'Setting' > 'Configurator' > 'Add Color Preset'
| ► |
2. Upload an .ASE/.ACO file. Enter the title and description, and click 'Save'.
*Max number of color in each file is 2000
*You may upload up to 3 Preset per Company.
-------------------------------
3. To delete the preset, click the X icon on the top right corner. Please note that the deleted Color Preset will NOT be stored on your Trash tab.
2) Using Color Preset (Configurtaor)
• Admin, Collaborator, Editor / in Content page
1. Open your Content and click on Configurator > Color > CUSTOM. Select the Palette from dropdown.
| ► | ► |
2. From the 'Material List', select the Fabric or Graphic you'd like to change > select a Color Chip.
*Optional: Delete or Desaturate your Fabric from the 'Texture' tab to apply/view the true color.
| (Optional) | |
3. Go to 'Picker' to find similar Pantone colors from your selection or copy the HEX code.
|
Go to 'Picker 'tab 1. Shows the Color chip selected from 'CUSTOM' tab 2. Find the HEX code of the selected color 3. Find similar Pantone colors |
4. Click 'Create' on top. You can find the new Colorway on the right pane with icon.
| ► |

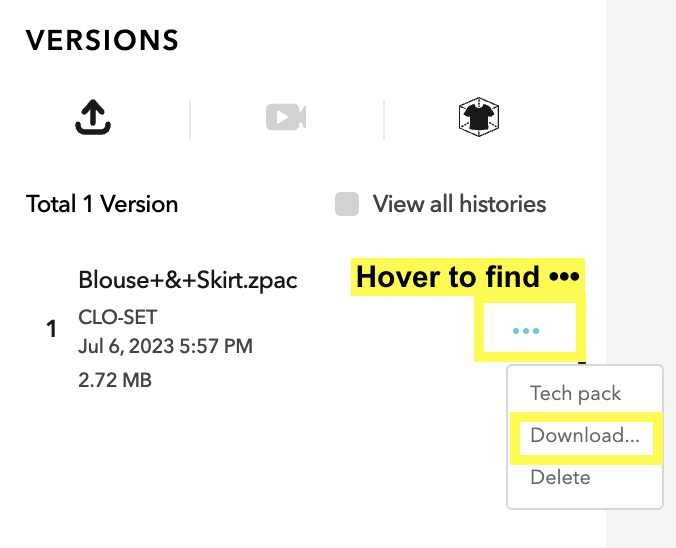

5. Download a new .zprj file with 'All Colorways' option.
| ► |
