Compatibility: ZPRJ/ZPAC files uploaded from Dec 3rd, 2024. Please re-upload older files.
Updates
CLO-SET now supports 2D Viewer for ZPRJ/ZPAC files.
Details
1) 2D Pattern Viewer (Default Display)

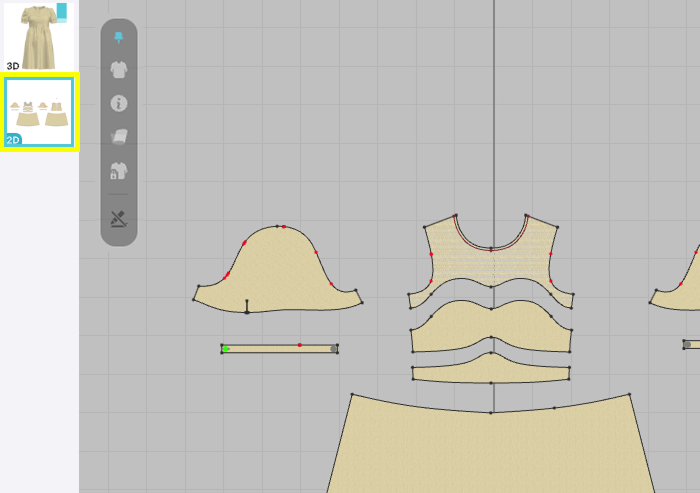

- On the Content page, click the '2D' thumbnail button to begin.
*Compatible with ZPRJ/ZPAC files uploaded from Dec 3rd, 2024. Please re-upload older files.

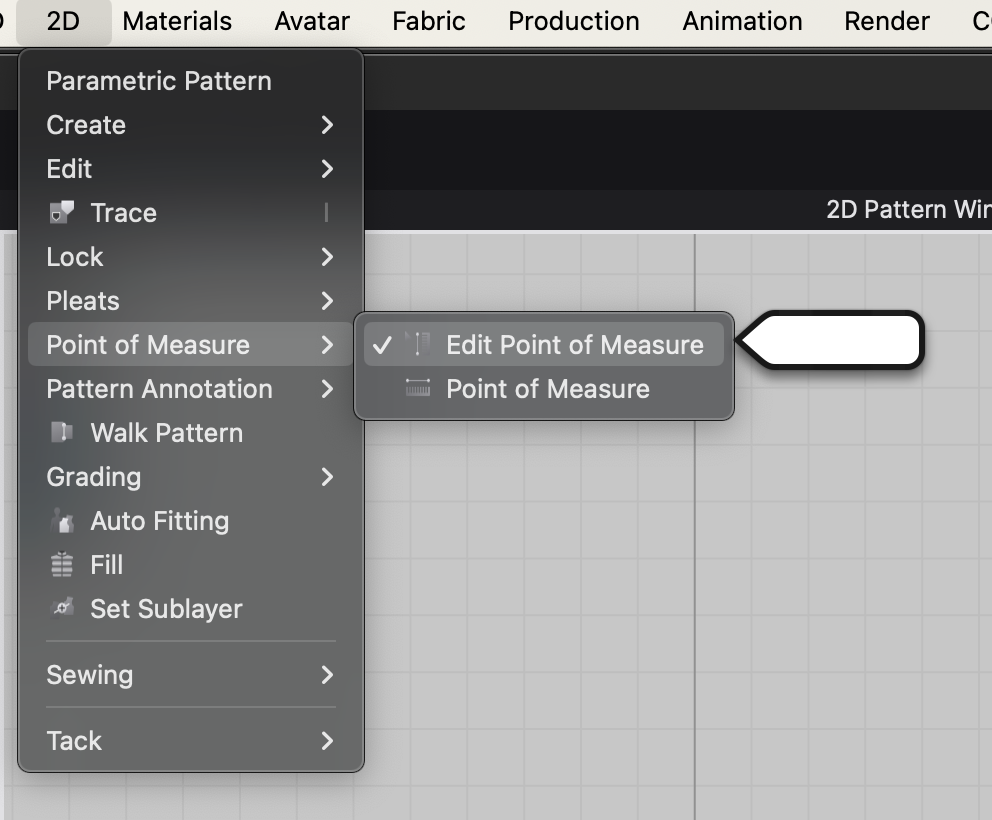

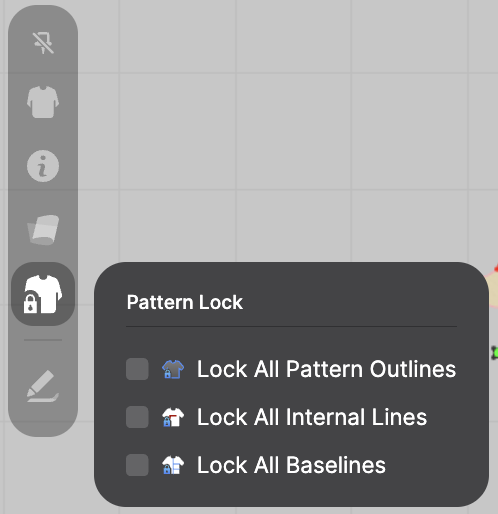

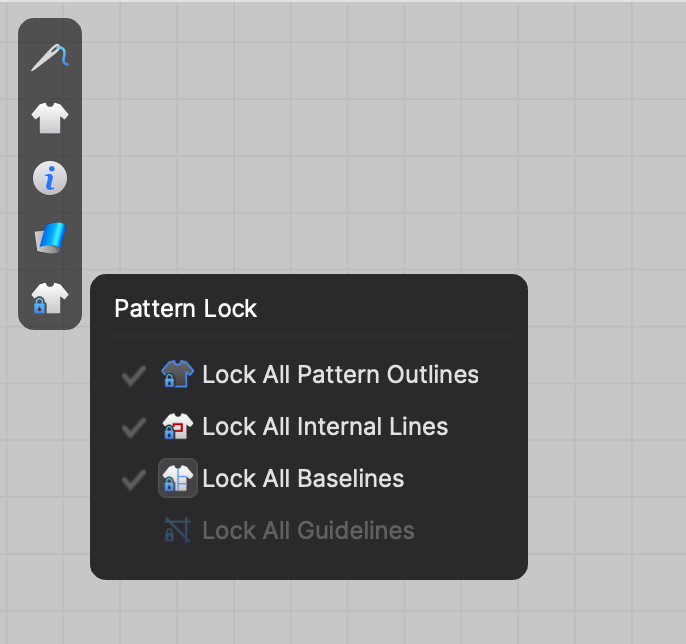

- By default, the 2D Viewer will match what is displayed in CLO3D software when the '2D > Point of Measure > Edit Point of Measure' option is selected & Pattern Outlines unlocked.
- All information display fields are turned off by default.
2) Show/Hide Toolbar
- On the 2D Viewer, find the display toolbar to control the view
- Selective menus available at the moment. More to be released in near future.
-

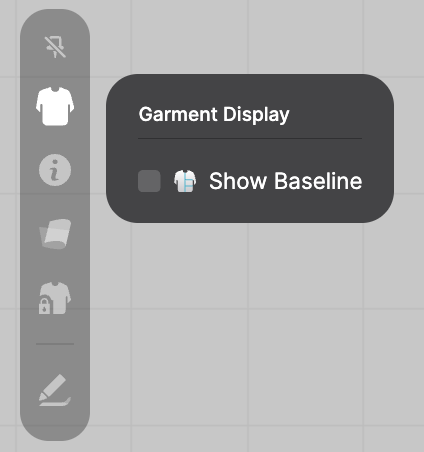

Garment Display (default: off)
- Show Baseline
-

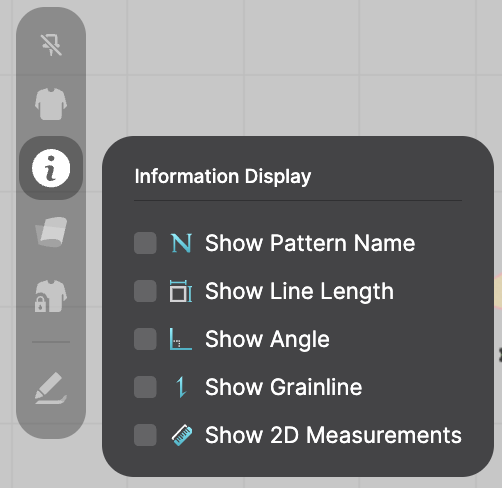

Information Display (default: all off)
- Show pattern name
- Show line length (displayed in mm only)
- Show angle
- Show grainline
- Show 2D measurements (displayed in mm only)
-

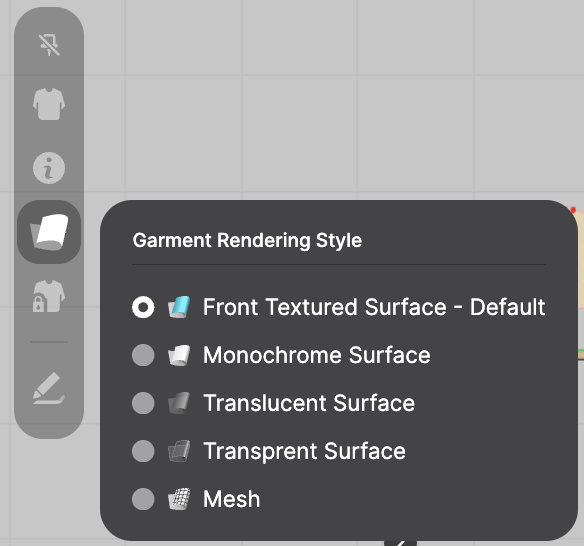

Garment Rendering Style
- Front Textured Surface - Default
- Monochrome Surface
- For more details on each menu, visit the CLO3D article on 2D Window Display Icons
3) Mouse Navigation (Zoom/Panning)
- Zoom: Scroll up & down to zoom in & out
-
Panning: 2 options available
- Wheel Click + Move Mouse
- Alt (Option) + Left Mouse Button + Move Mouse
4) Annotation on 2D Viewer

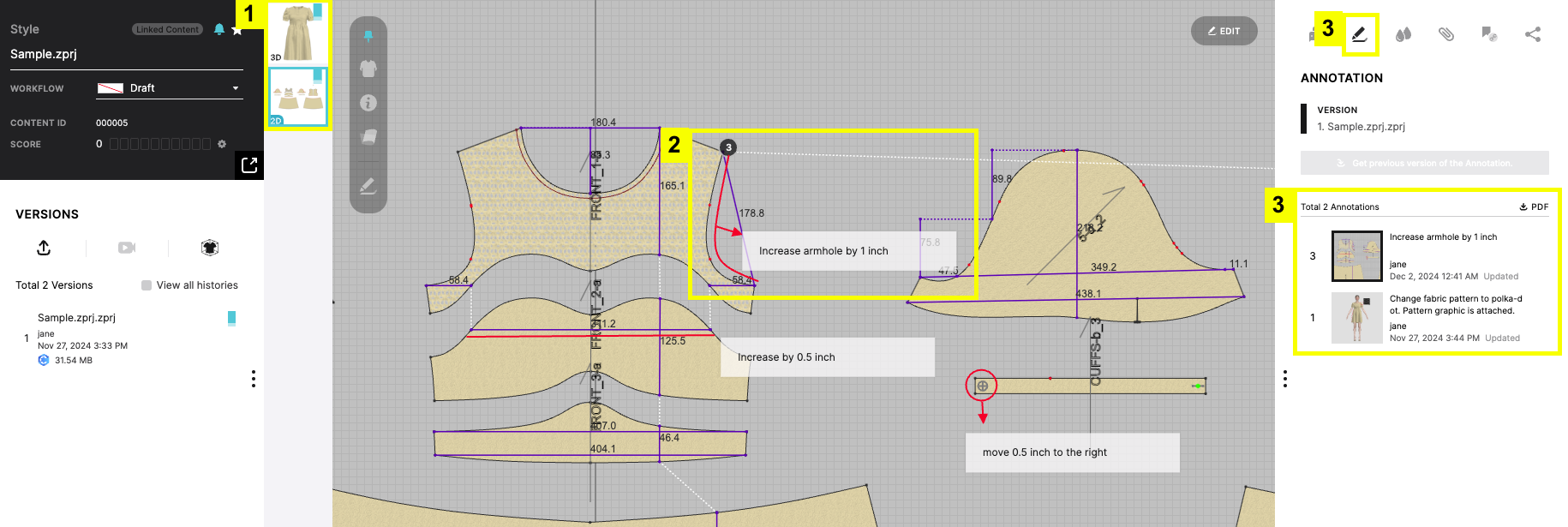

- You can create Annotations on the 2D Viewer to communicate with your team
- Thumbnail: Once Annotations are created, a blue label icon will be displayed on the Thumbnail & Version

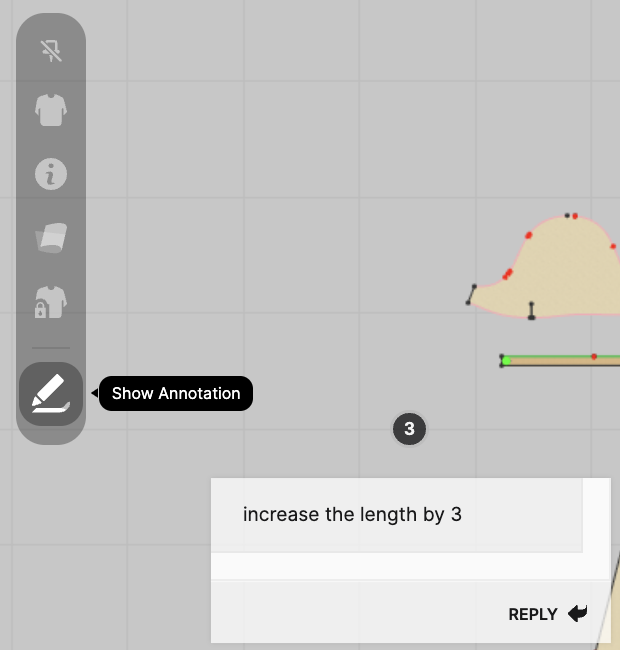

- Annotation: Find the Annotations
- Annotation Tab: On the right pane of the screen, click on the Annotation button at the top to view the full list of Annotations created on the Content. Please note that the numbering will be shared between viewer types. That is, Annotations will be numbered in order of creation, regardless of the viewer type (3D or 2D).
