2D Pattern Viewer

  • Updated

Permission: admin.pngAdmin, Collaborator.pngCollaborator, Editor.pngEditor, Viewer.png Viewer

Compatibility: ZPRJ/ZPAC files uploaded from Dec 3rd, 2024. Please re-upload older files.



Updates

CLO-SET supports 2D Viewer for ZPRJ/ZPAC files.

  1. 2D Pattern Viewer
  2. Show/Hide Toolbar
  3. Mouse Navigation (Zoom/Panning)
  4. Comment & Annotation
  5. Deactivate 2D Pattern Viewer



Details

1) 2D Pattern Viewer

  • On the Content page, click the '2D' thumbnail button to begin.

2D Viewer on the Content Page

  • In Legacy Content Page



  • In New Content Page

    *Compatible with ZPRJ/ZPAC files uploaded from Dec 3rd, 2024. Please re-upload older files.

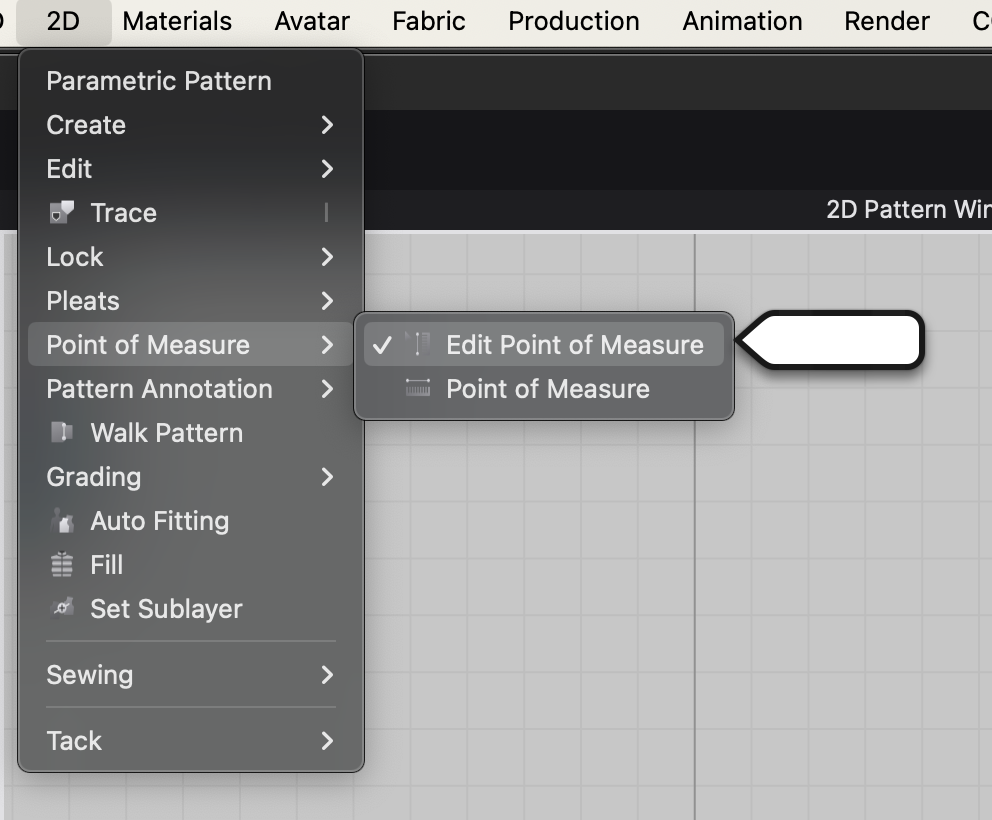

  • By default, the 2D Viewer will match what is displayed in CLO3D software when the '2D > Point of Measure > Edit Point of Measure' option is turned off & Pattern Outlines unlocked.

  • All information display fields are turned off by default.

    Screenshot 2024-11-26 at 1.43.46 PM.png



2) Show/Hide Toolbar

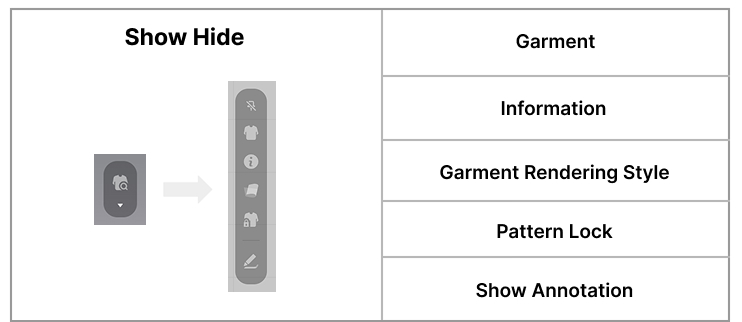

  • On the 2D Viewer, find the display toolbar to control the view
    • Selective menus available at the moment. More to be released in near future.

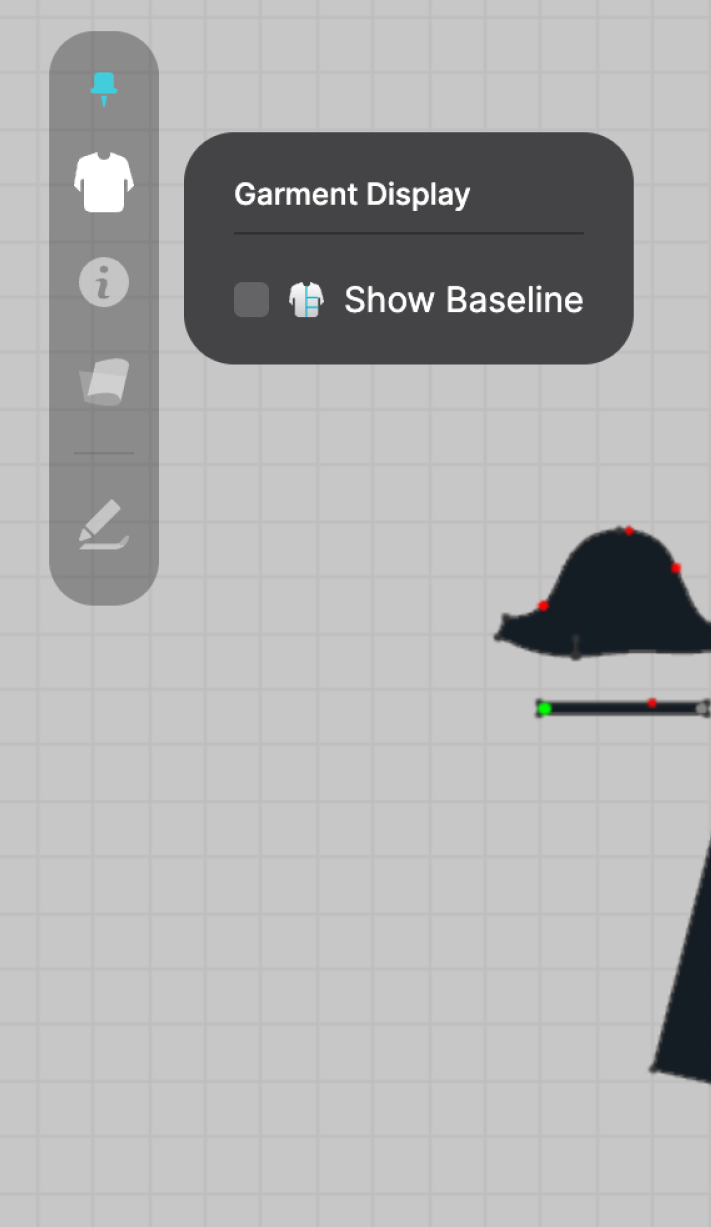

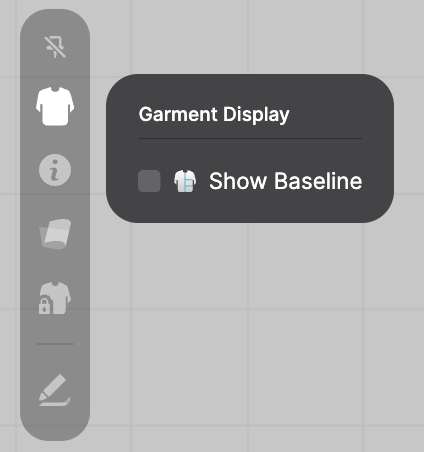

  • Garment Display (default: off)
    • Show Baseline

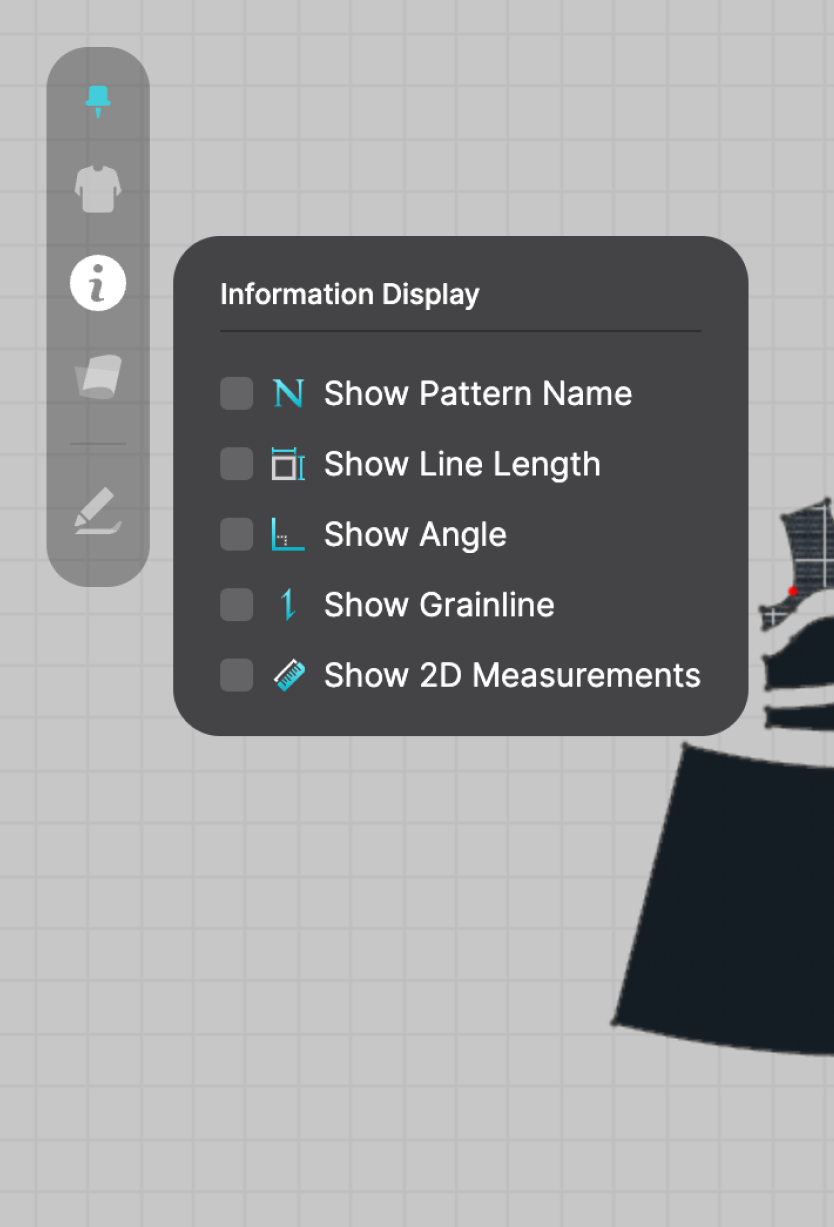

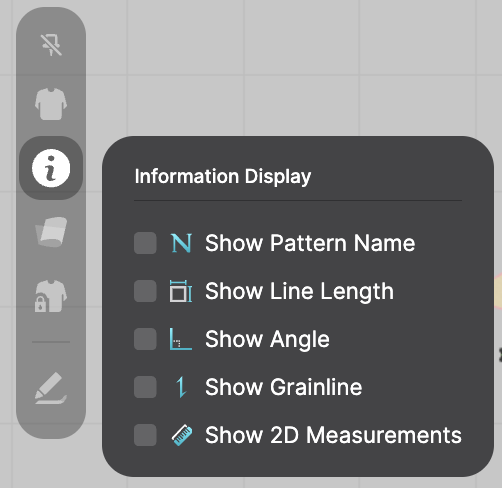

  • Information Display (default: all off)
    • Show pattern name
    • Show line length (displayed in mm only)
    • Show angle
    • Show grainline
    • Show 2D measurements (displayed in mm only)

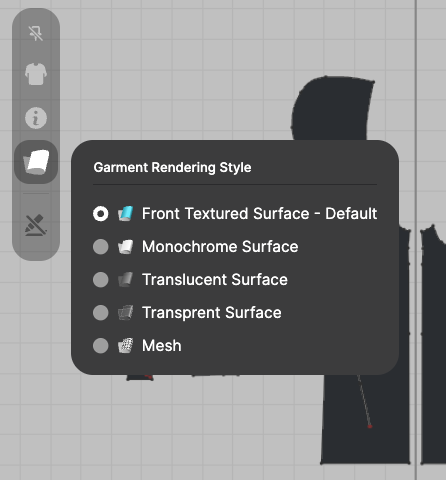

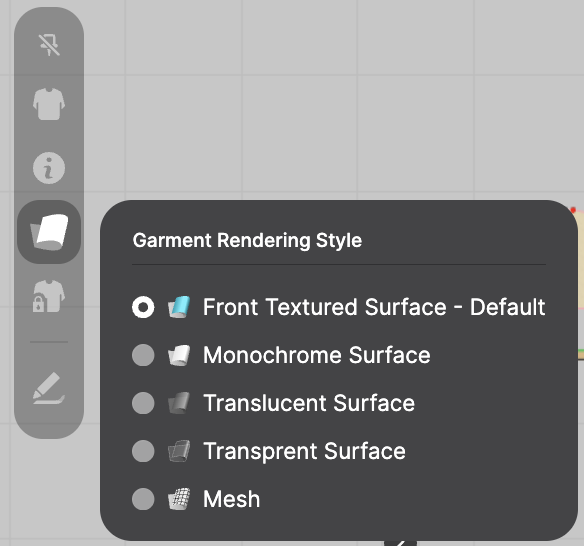

  • Garment Rendering Style
    • Front Textured Surface - Default
    • Monochrome Surface
    • Translucent Surface
    • Transparent Surface
    • Mesh

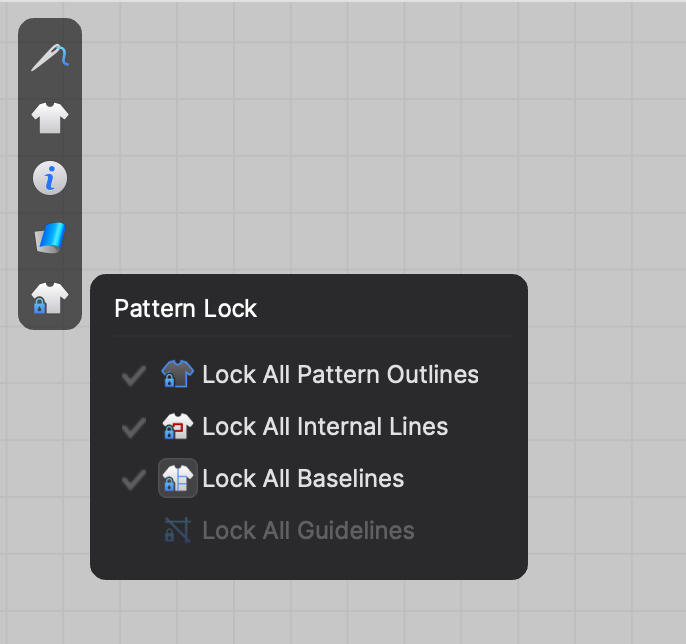

  • Pattern Lock
    • Lock all pattern outlines
    • Lock all internal lines
    • Lock all baselines
  • For more details on each menu, visit the CLO3D article on 2D Window Display Icons



3) Mouse Navigation (Zoom/Panning)

  • Zoom: Scroll up & down to zoom in & out
  • Panning: 2 options available
    1. Wheel Click + Move Mouse
    2. Alt (Option) + Left Mouse Button + Move Mouse



4) Comment and Annotation on 2D Viewer

  • Share your feedback by creating Annotations or leaving Comments. Both options compatible with all viewer types (3D / 2D Pattern / Render).

    ▶ Create Annotation

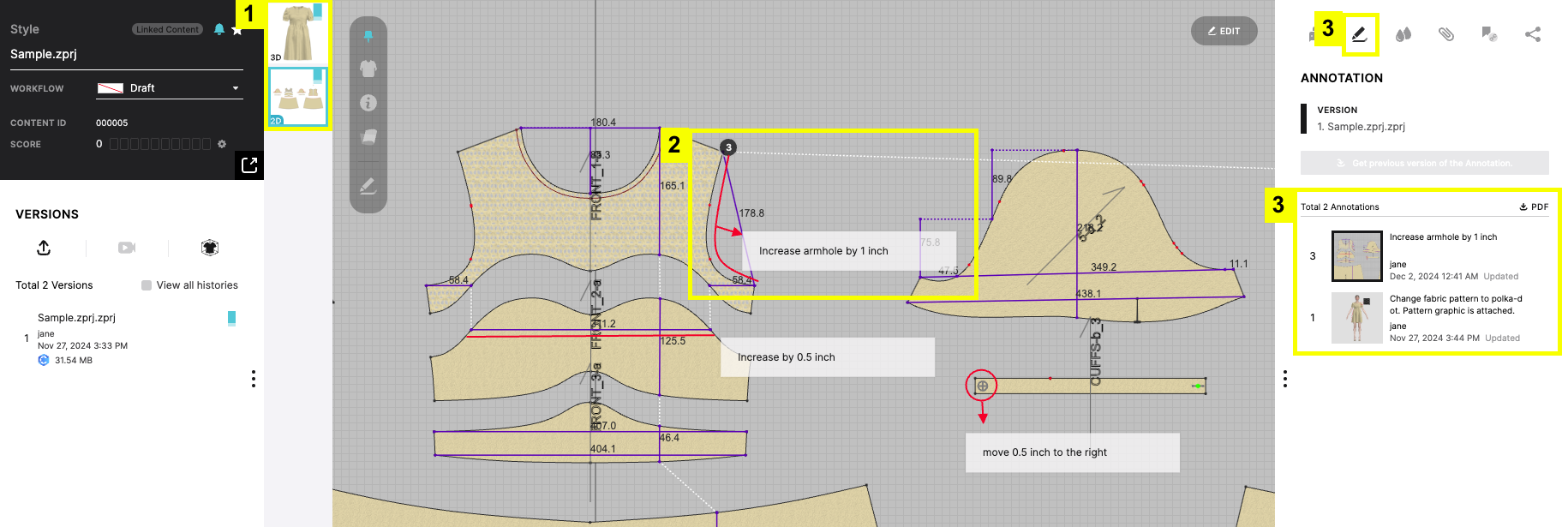

Annotation on the Content Page

  • In Legacy Content Page

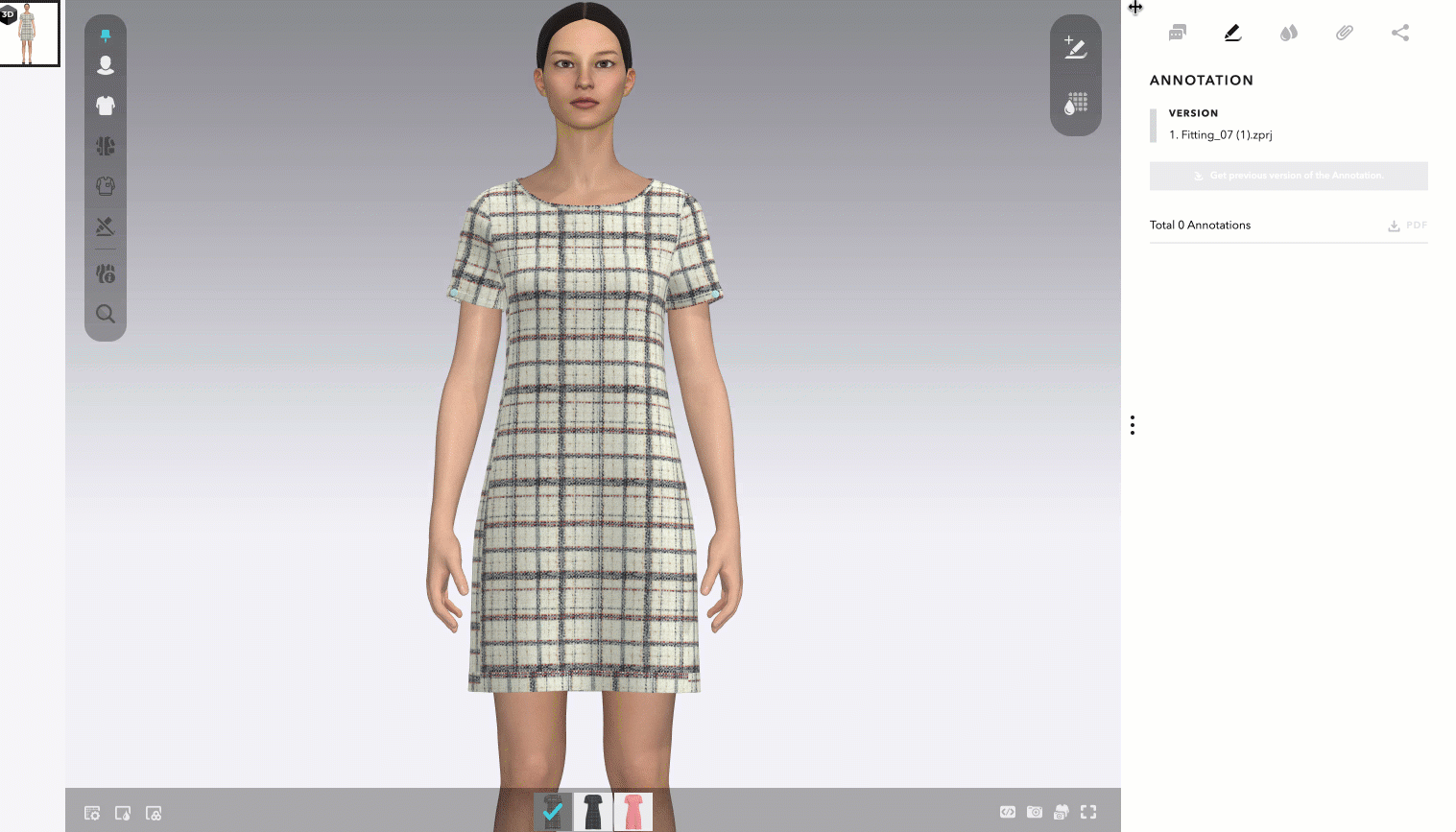

    Click on the Annotation icon () at the top right corner of the 3D Viewer or 2D Pattern Viewer

    Click 'Complete' to save the annotation

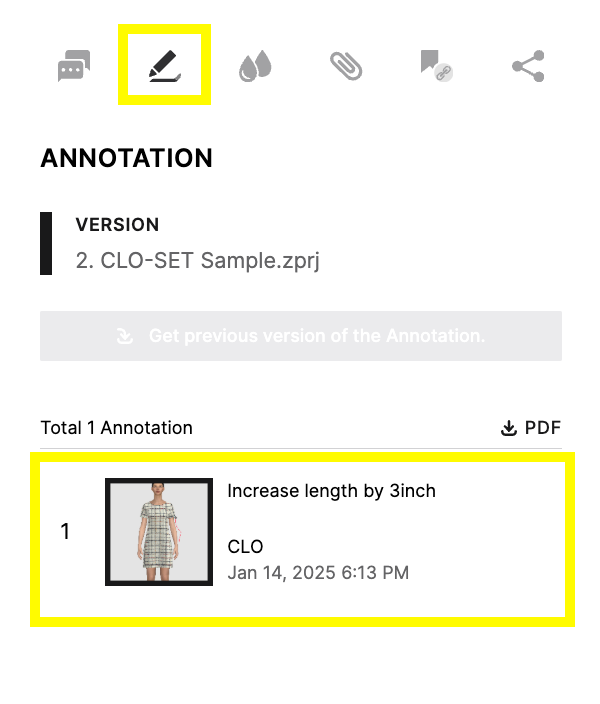

    Once saved, click the Annotation icon () on the right pane to view the list of Annotations




  • In New Content Page

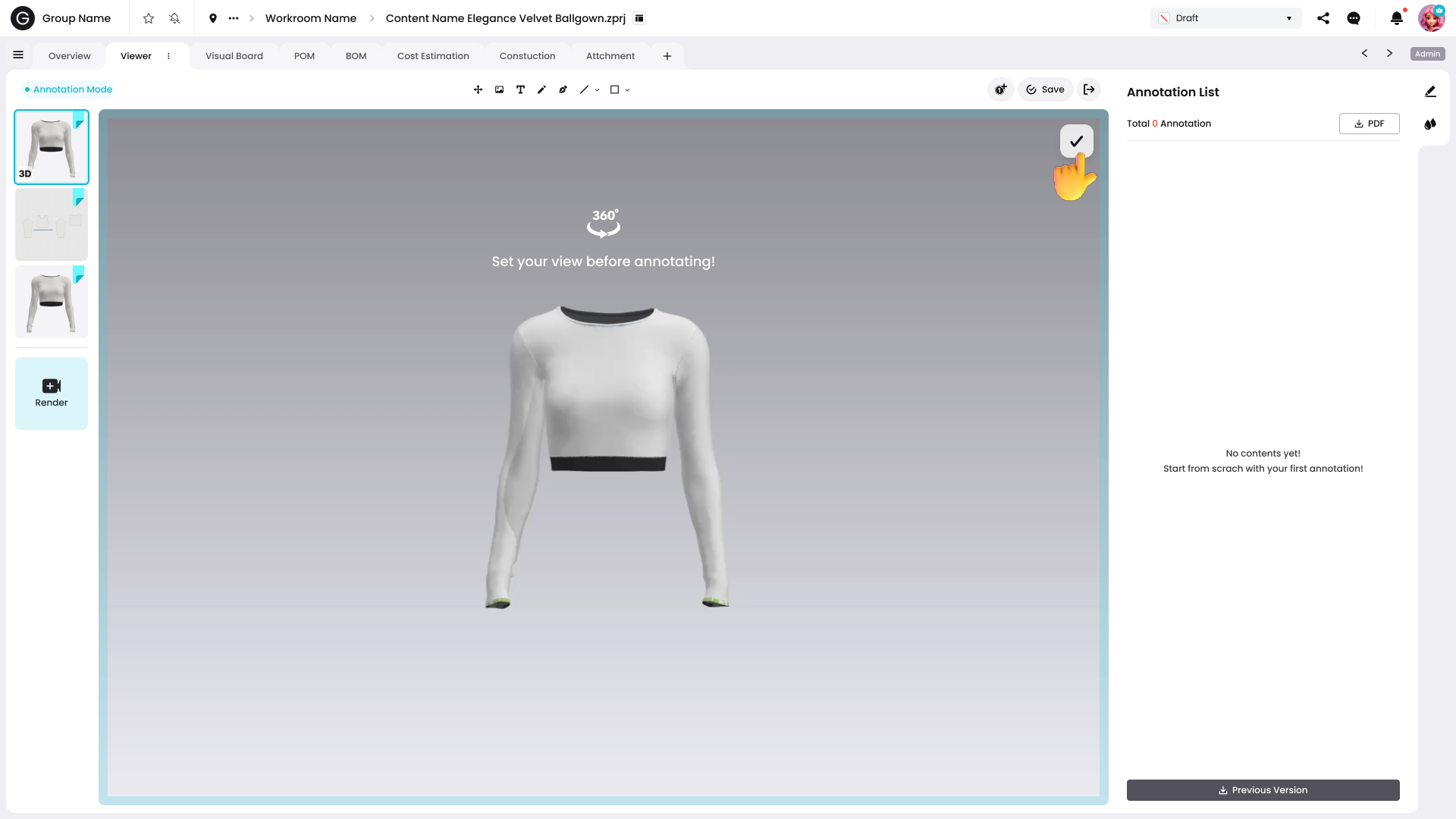

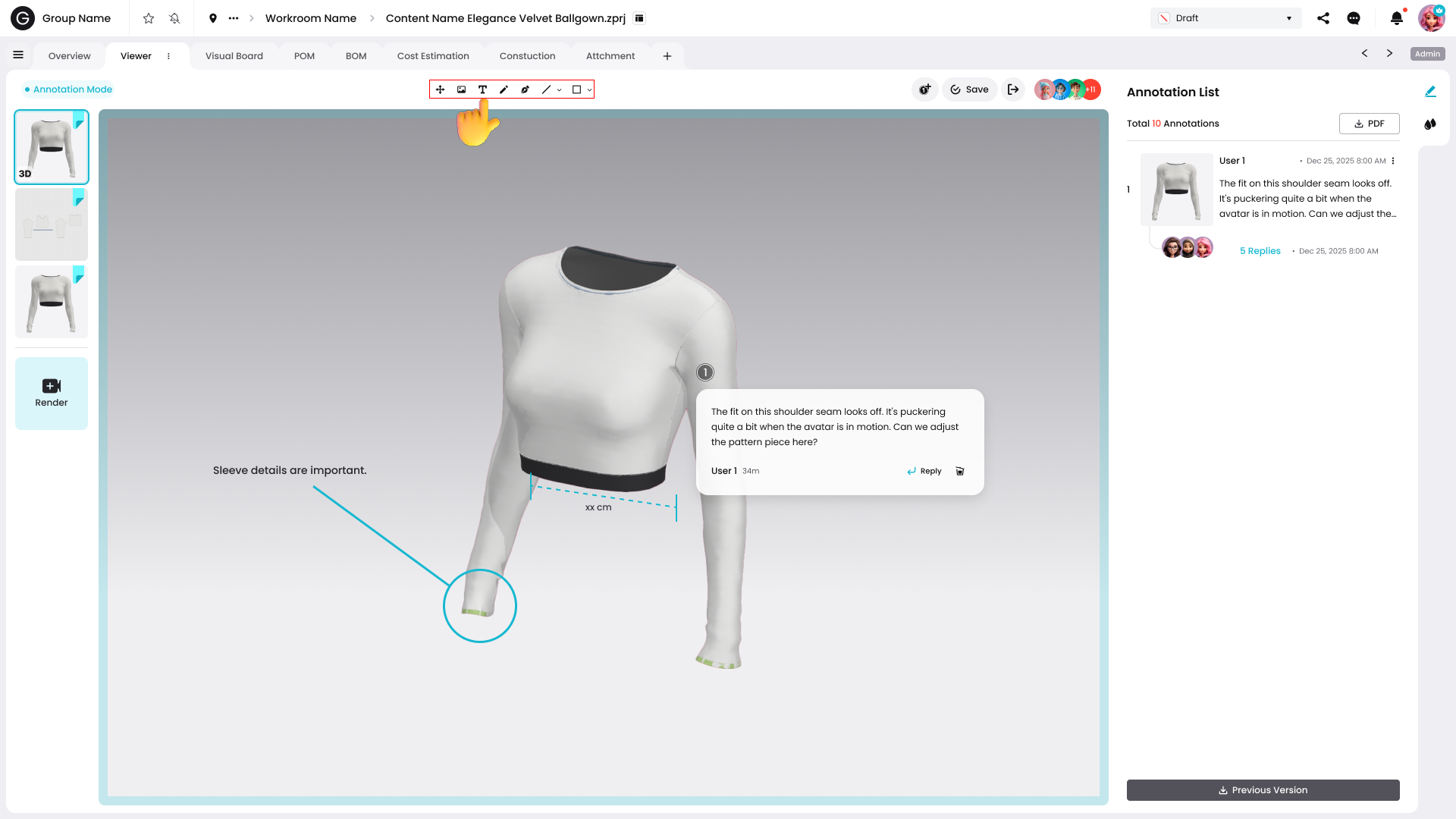

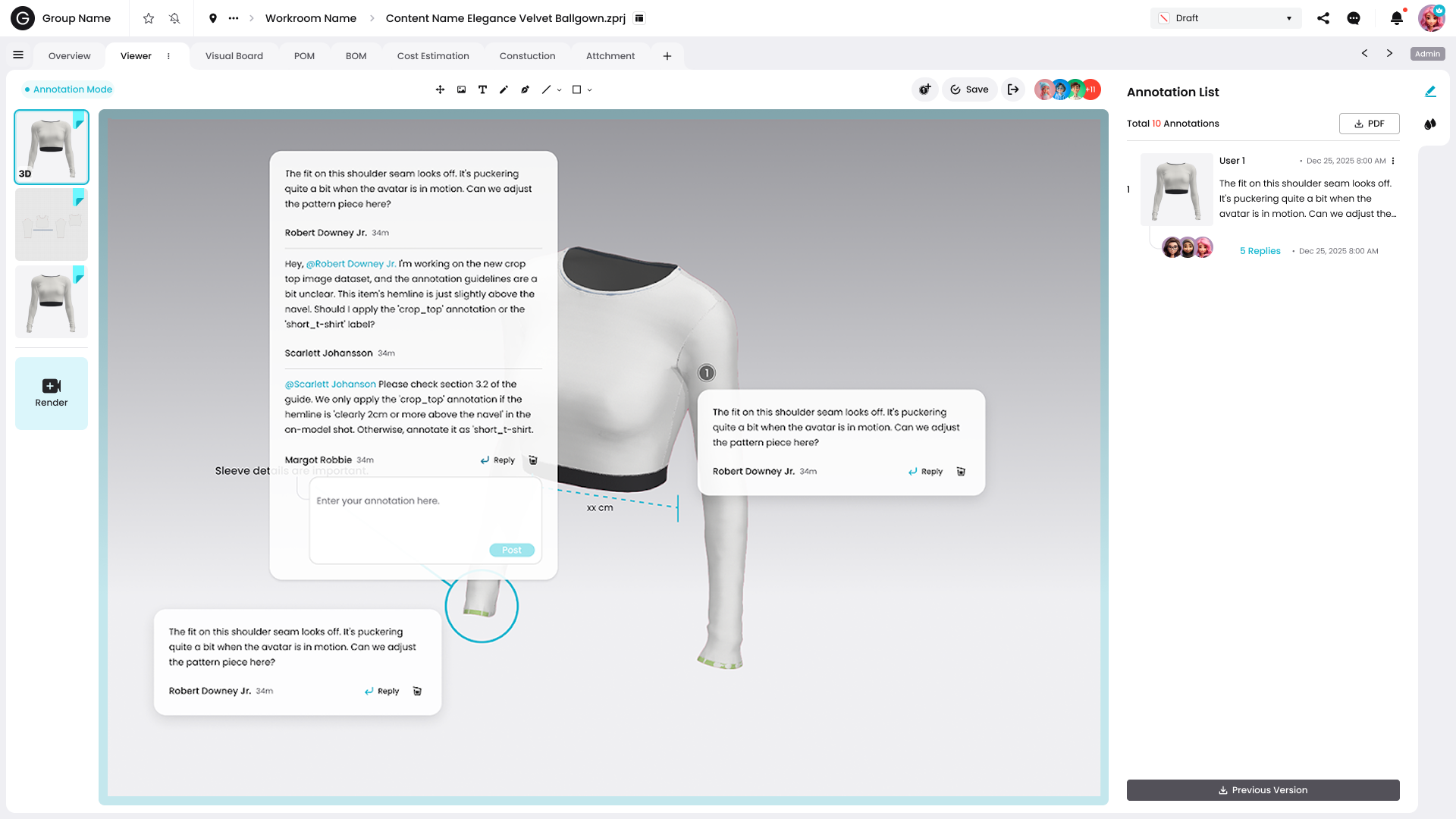

    View Point Setting Before Creating an Annotation : Before creating an annotation, you can first set the desired viewpoint.

    Add New Marker : A new Add New Marker to add markers continuously while creating annotations.

    Drawing & Editing Tools : Utilize the features in the toolbar to add annotaitions.

    Text and Pen tools are supported to provide a more advanced editing experience.

    Annotation List : View all annotations for the content. Replies and Nested Replies are visible in the Annotation List.



▶ Leave Comment

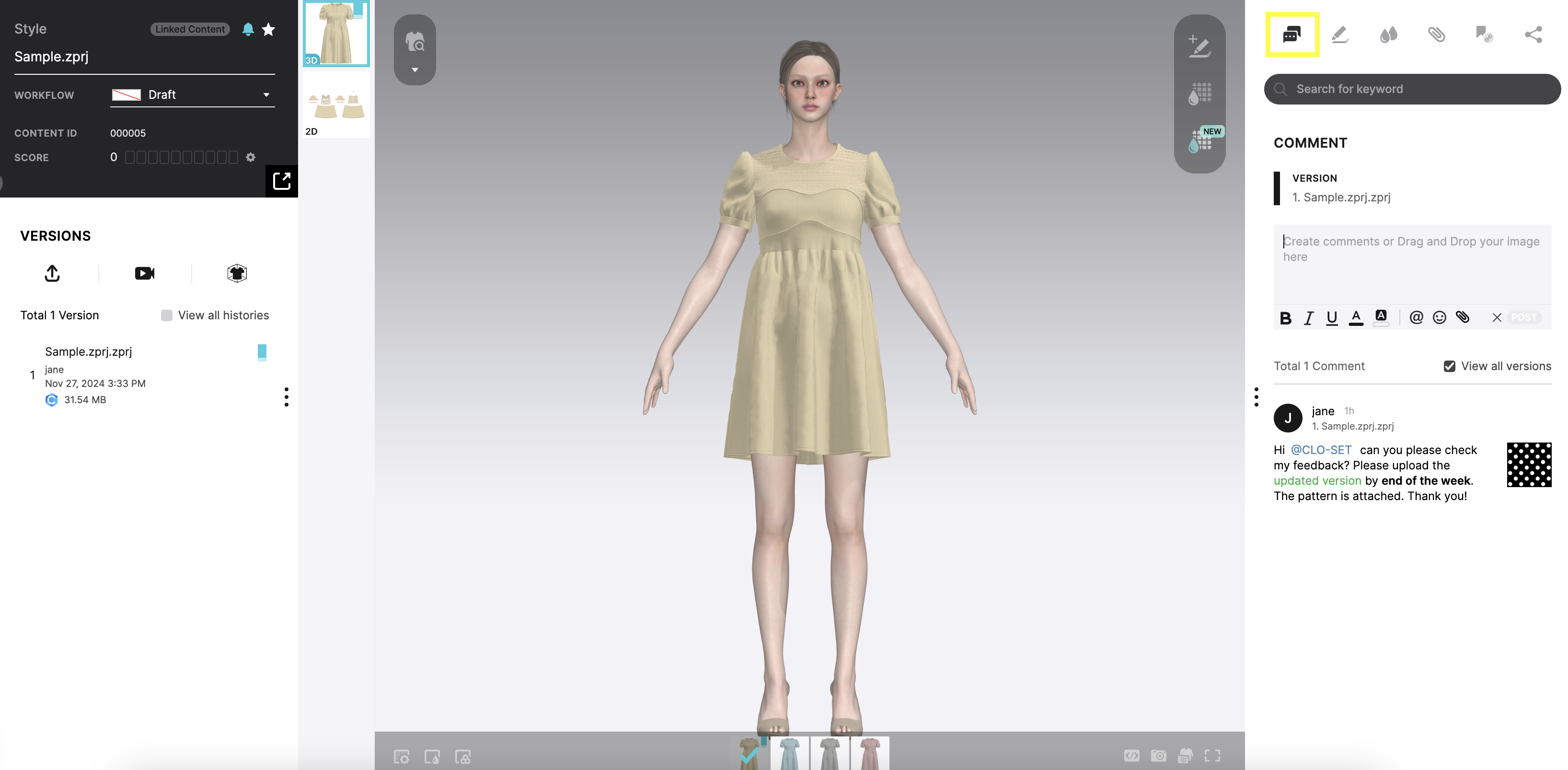

  • Click the Comment icon () from the right pane
  • Type in comments, and tag teammates with "@" (You must first invite the teammate for tagging)

Comment on the Content Page

  • In Legacy Content Page



  • In New Content Page

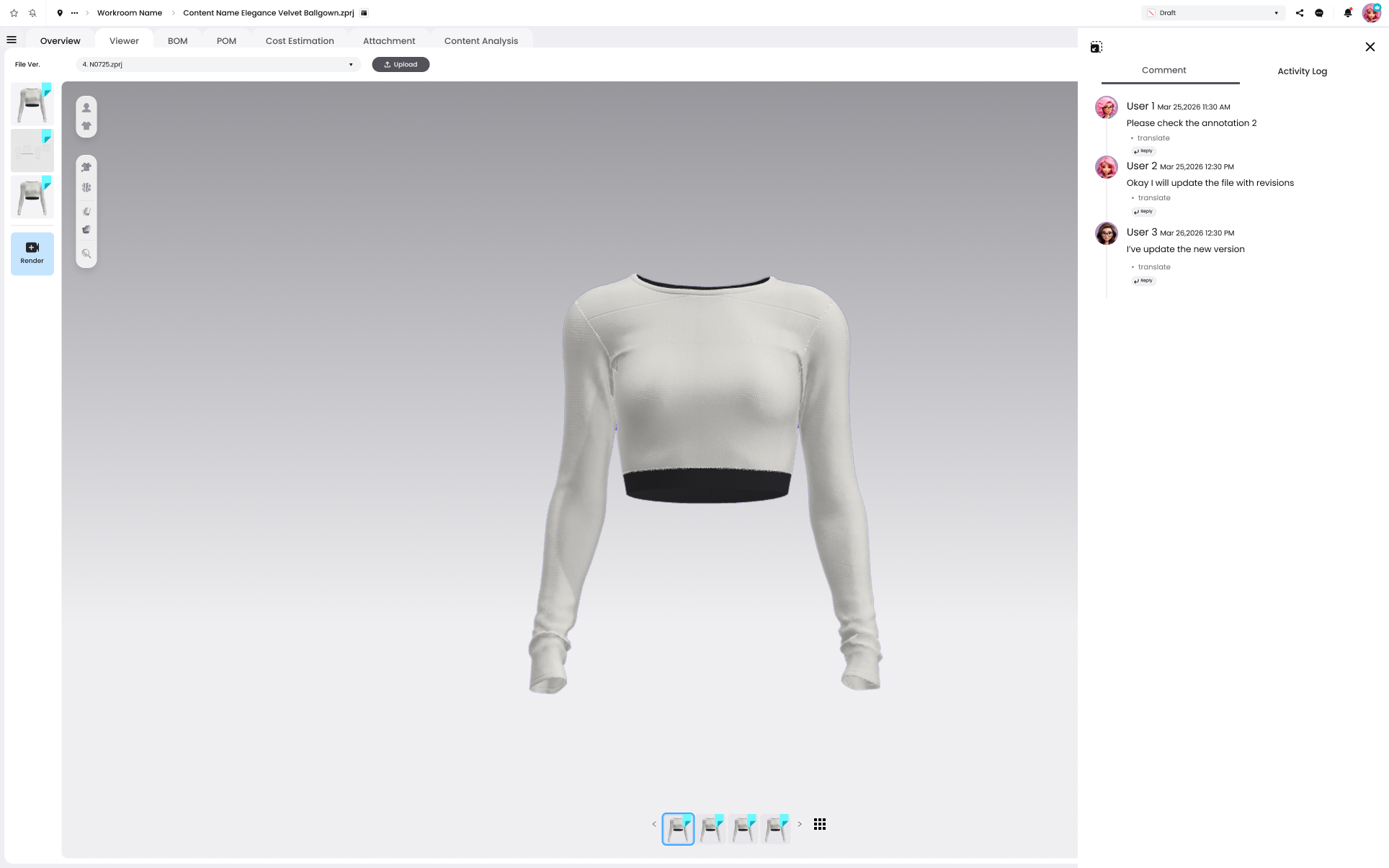

    The Comment feature has been expanded to the content level, allowing comments to be added while reviewing different tabs.

    An activity log is also available for review.
    (Note: The activity log is only accessible to users with Editor-level permissions or higher.)



5) Deactivate 2D Pattern Viewer

Permission: Group Admin, Company Admin

  • 2D Pattern Viewer is activated by default for .zprj/.zpac files

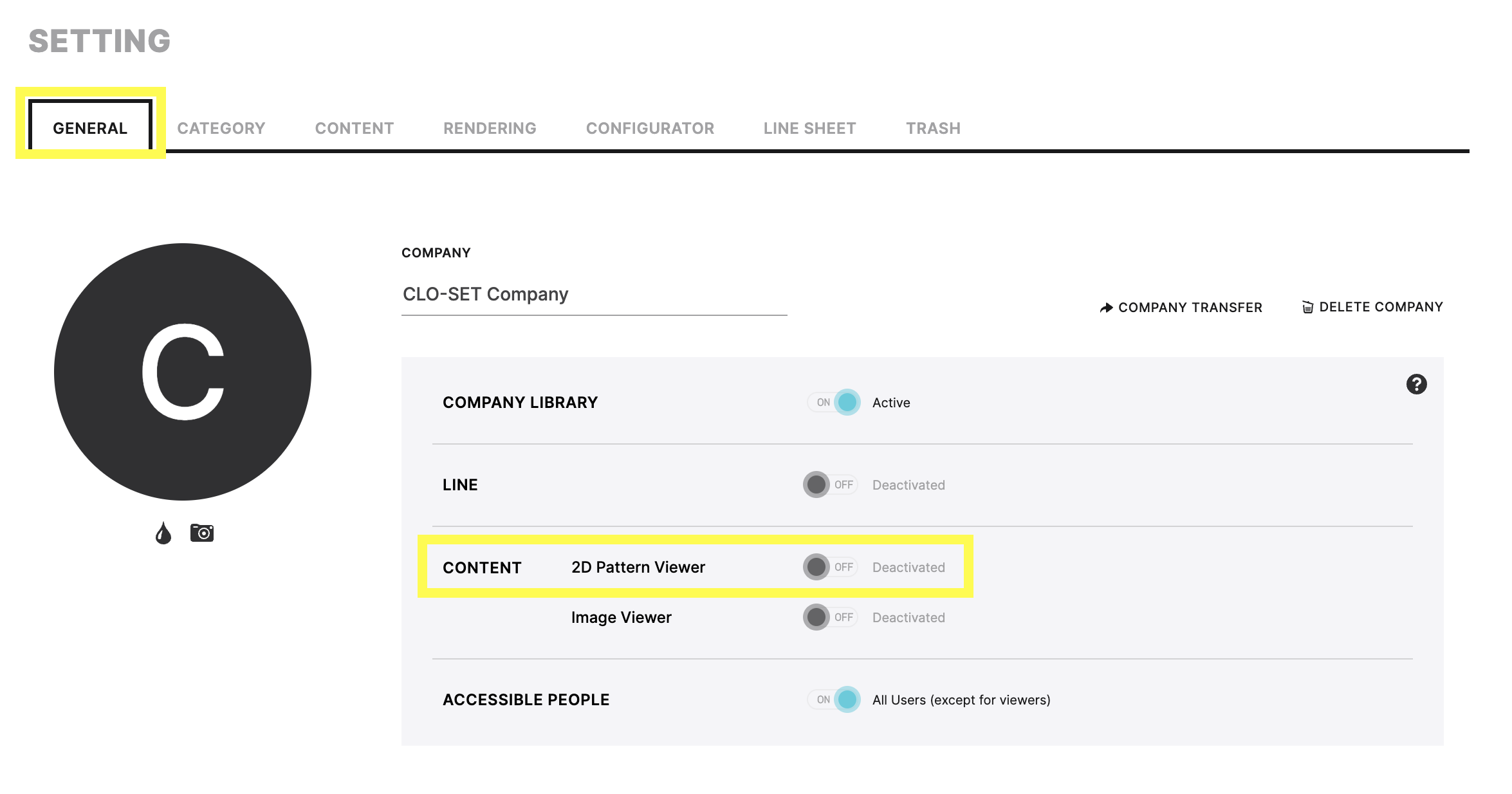

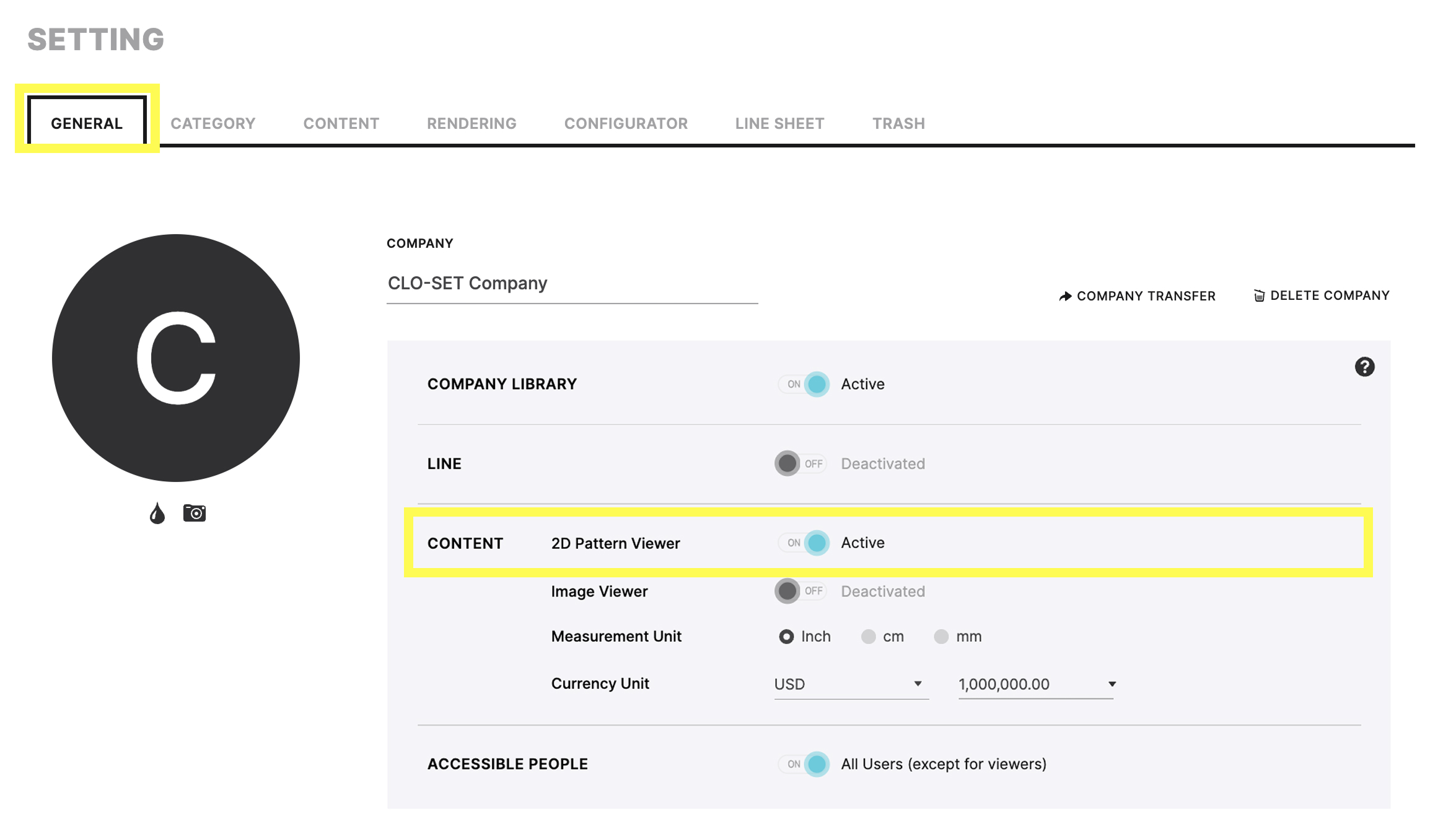

  • To deactivate the 2D Pattern Viewer, visit Company Settings page > General > Deactivate 2D Pattern Viewer toggle
