📝 List of Contents

📍 Review your 3D designs in CLO-SET

• 3D Viewer
• 2D Pattern Viewer
• Render Viewer
• Share Feedback (Annotation / Comment)

📓 Details

1. From your Dashboard, click the Content to open the Content page, where you can view the 3D Viewer.

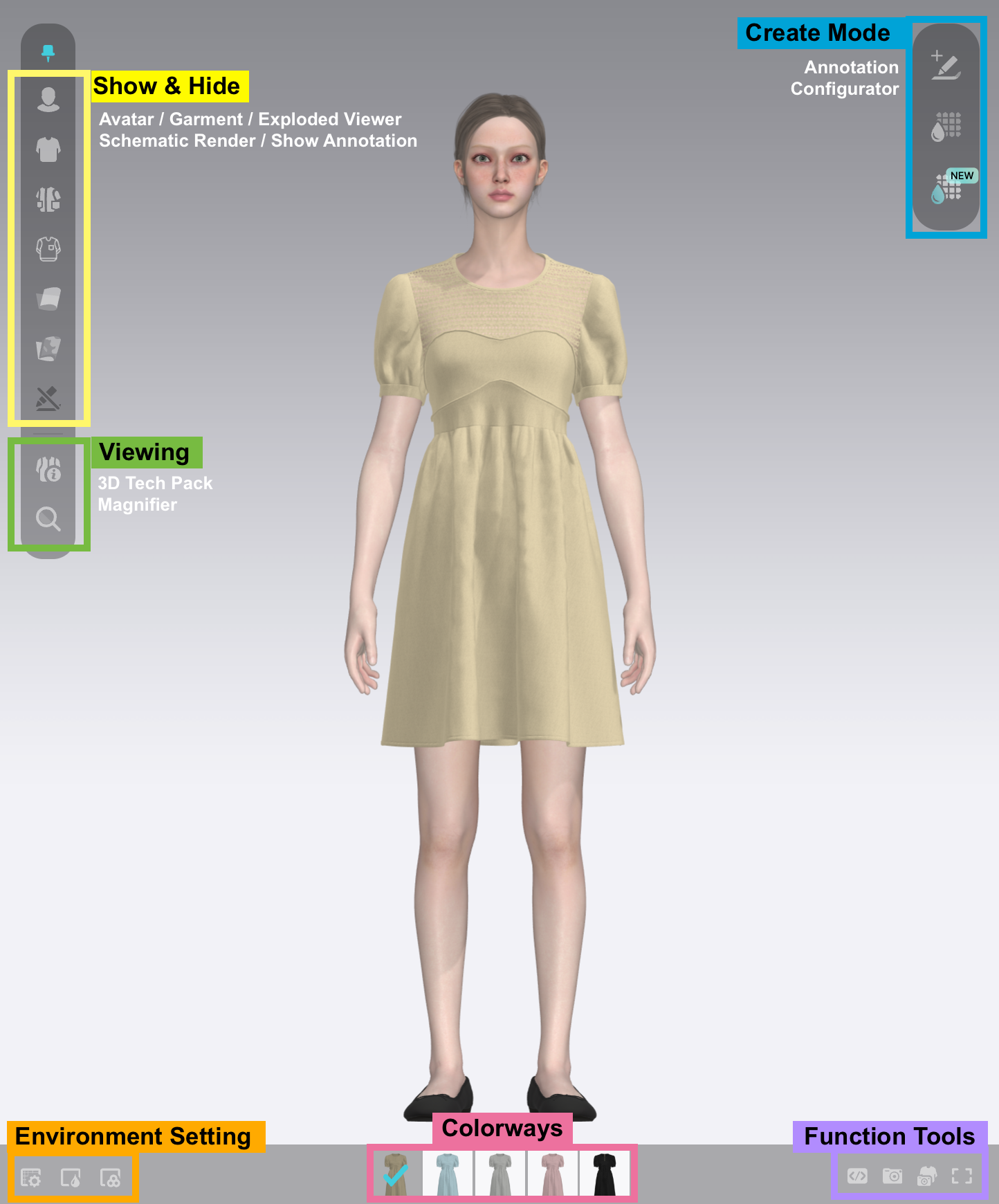

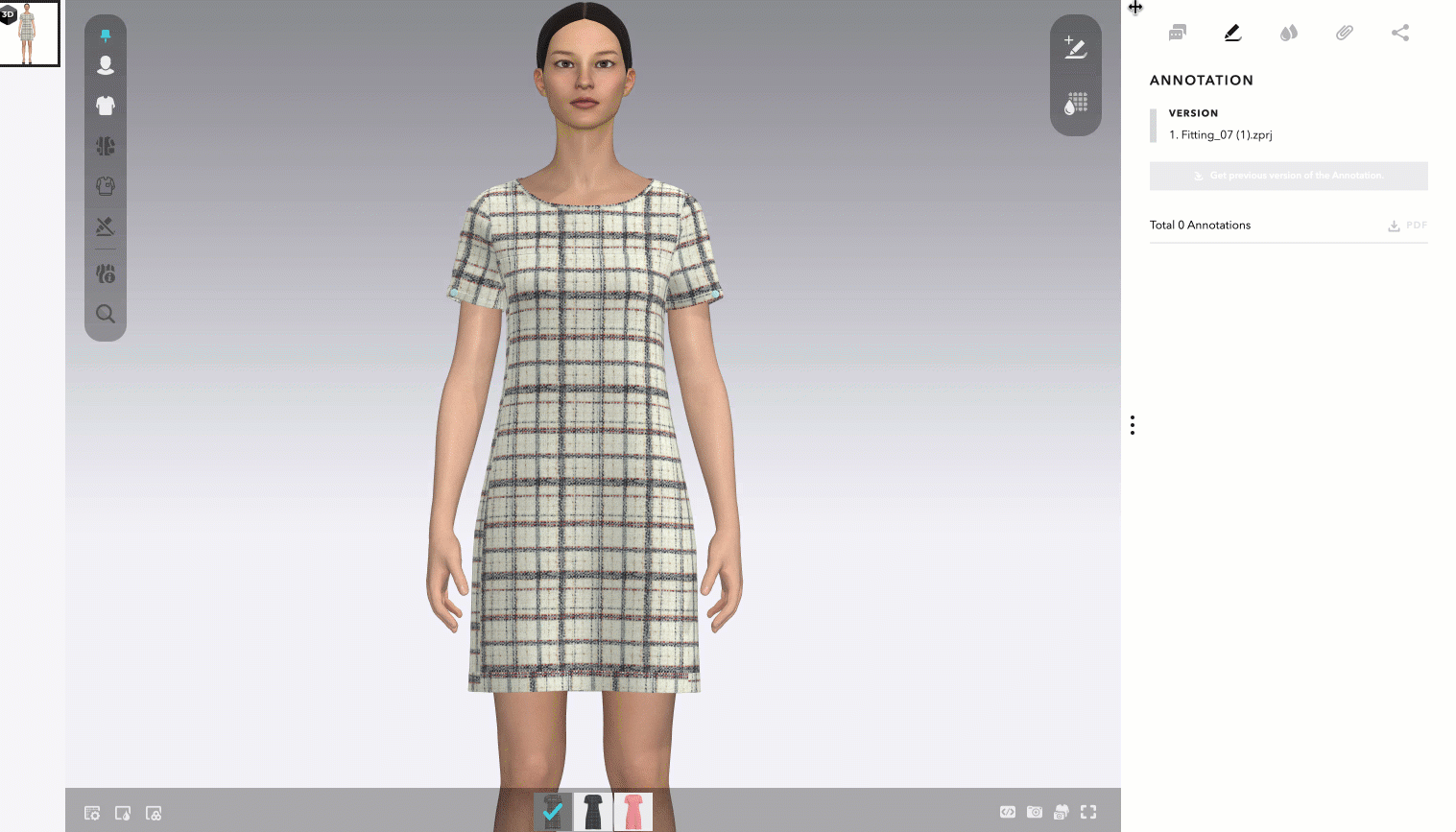

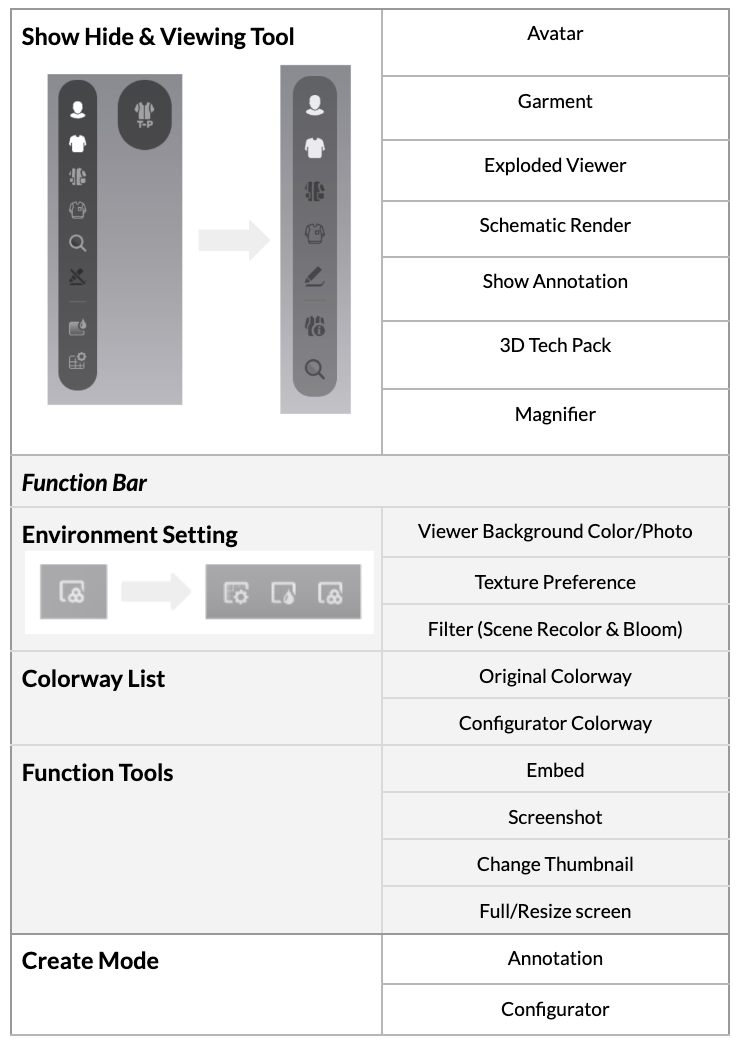

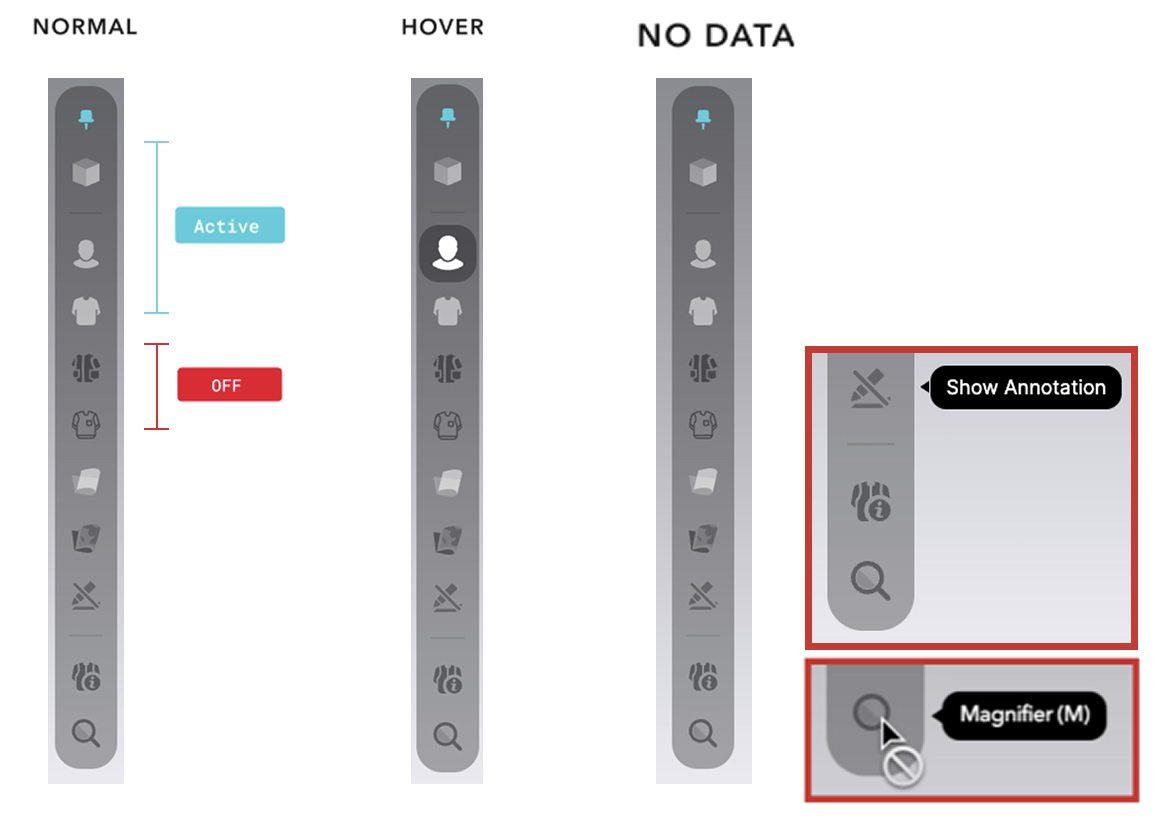

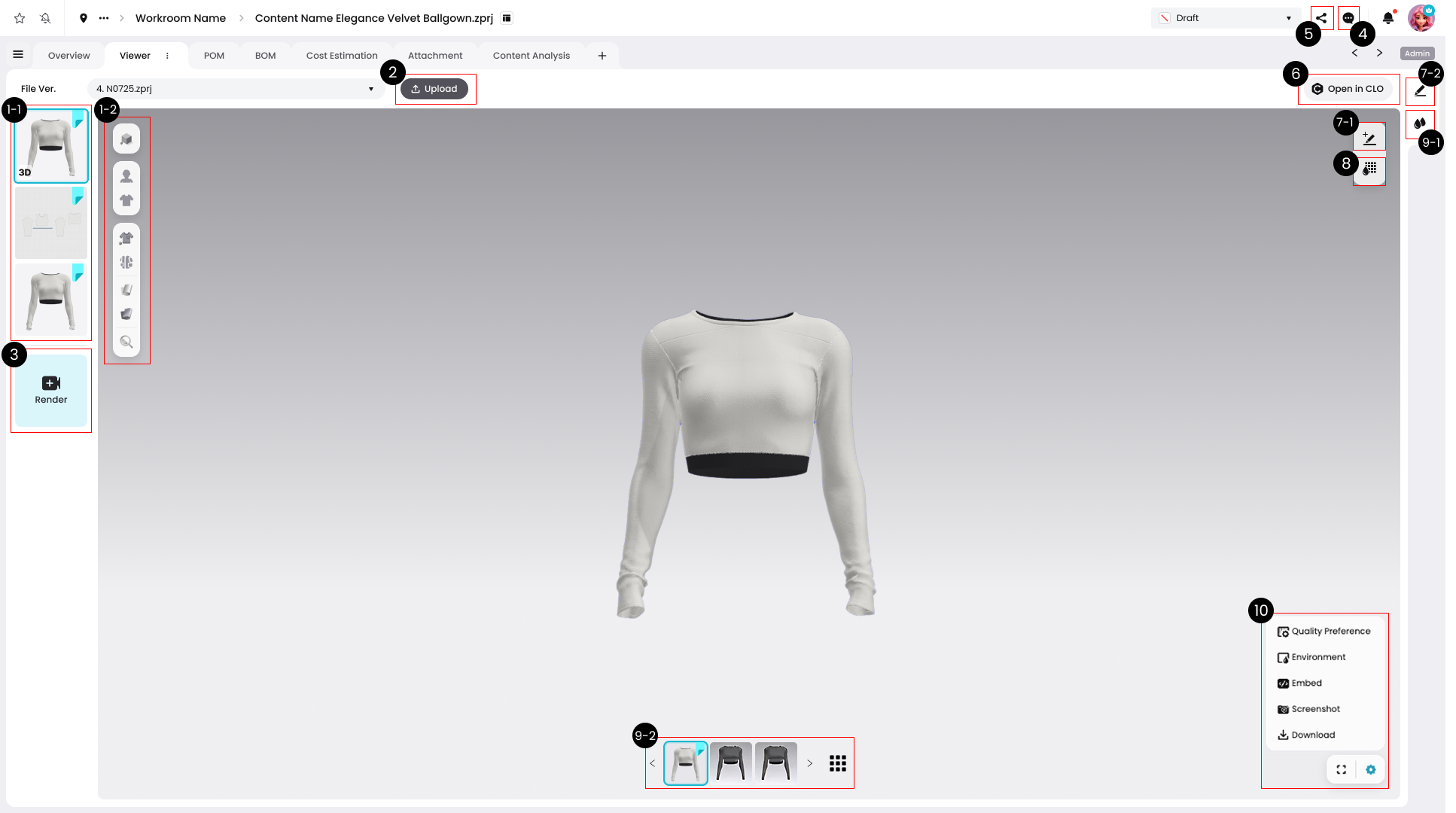

Viewer on the Content Page

• In Legacy Content Page







• In New Content Page





2. Rotate the garment, or zoom in & out to view the design in detail

	Mouse / Keyboard		3D Viewer

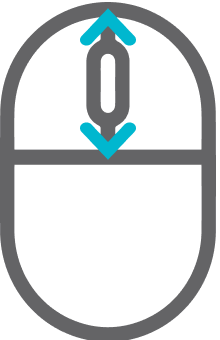

	Roll up/down the Cursor		Zoom in / Zoom out
	Hold down the cursor wheel and drag		Pan 3D View

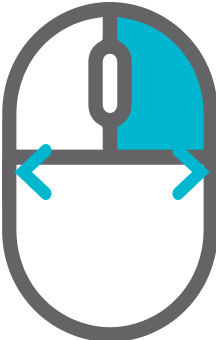

	Hold down the right click and drag		Rotate 3D View

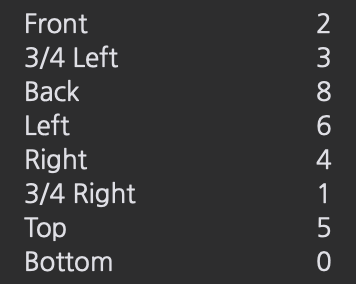

	Number keys	🔢

*For details on Mac Navigation, please find the attached PDF file

1. On the Content page, click the '2D' thumbnail button to begin

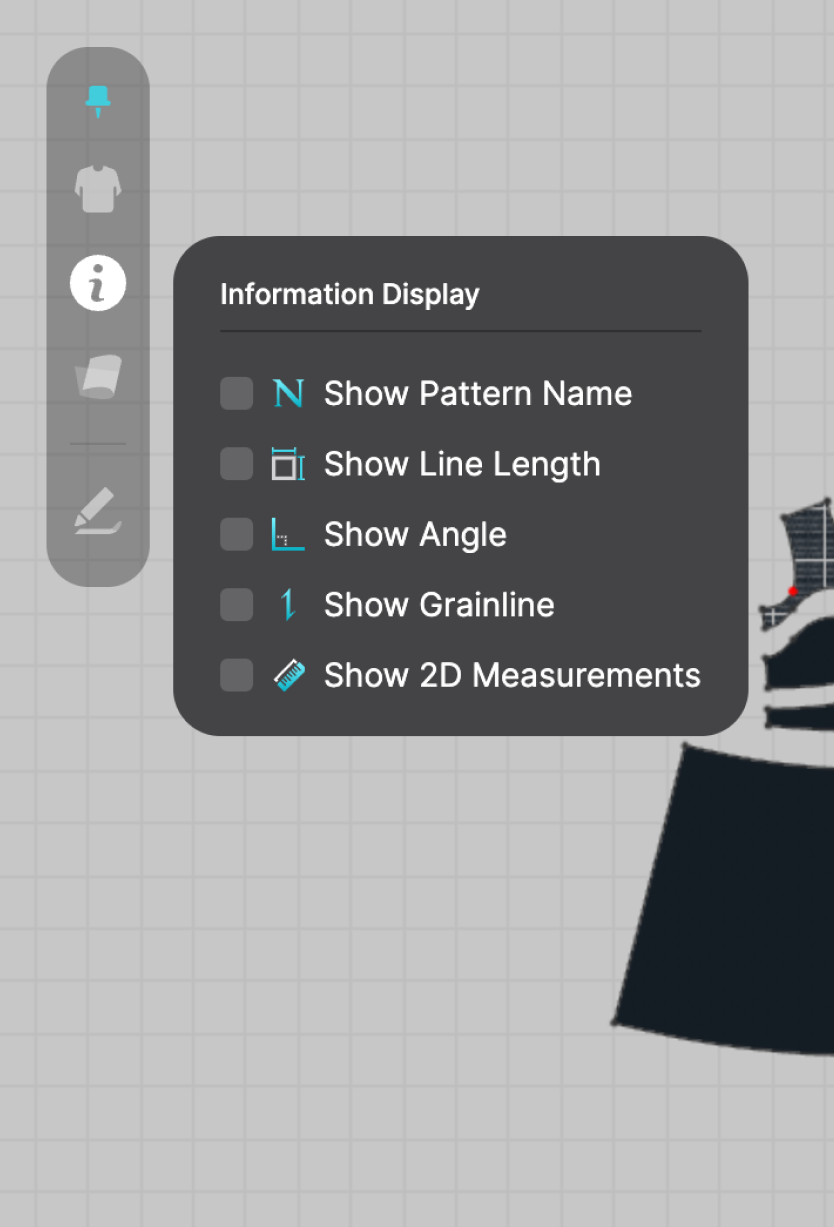

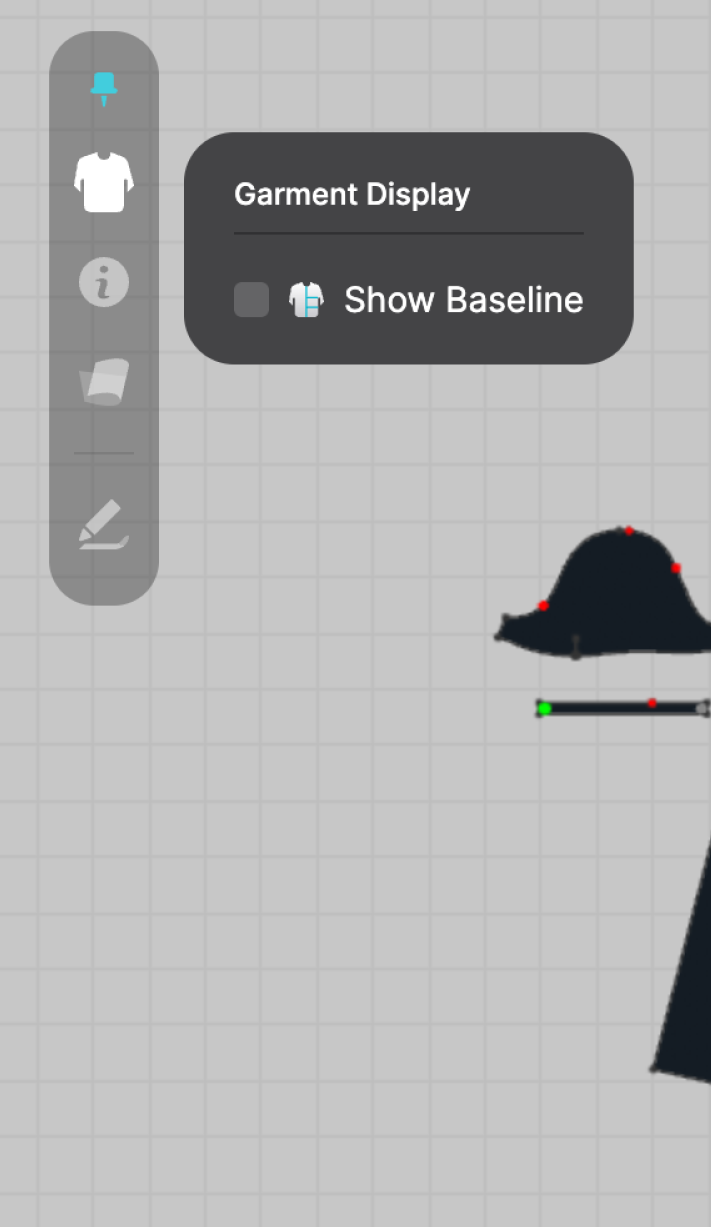

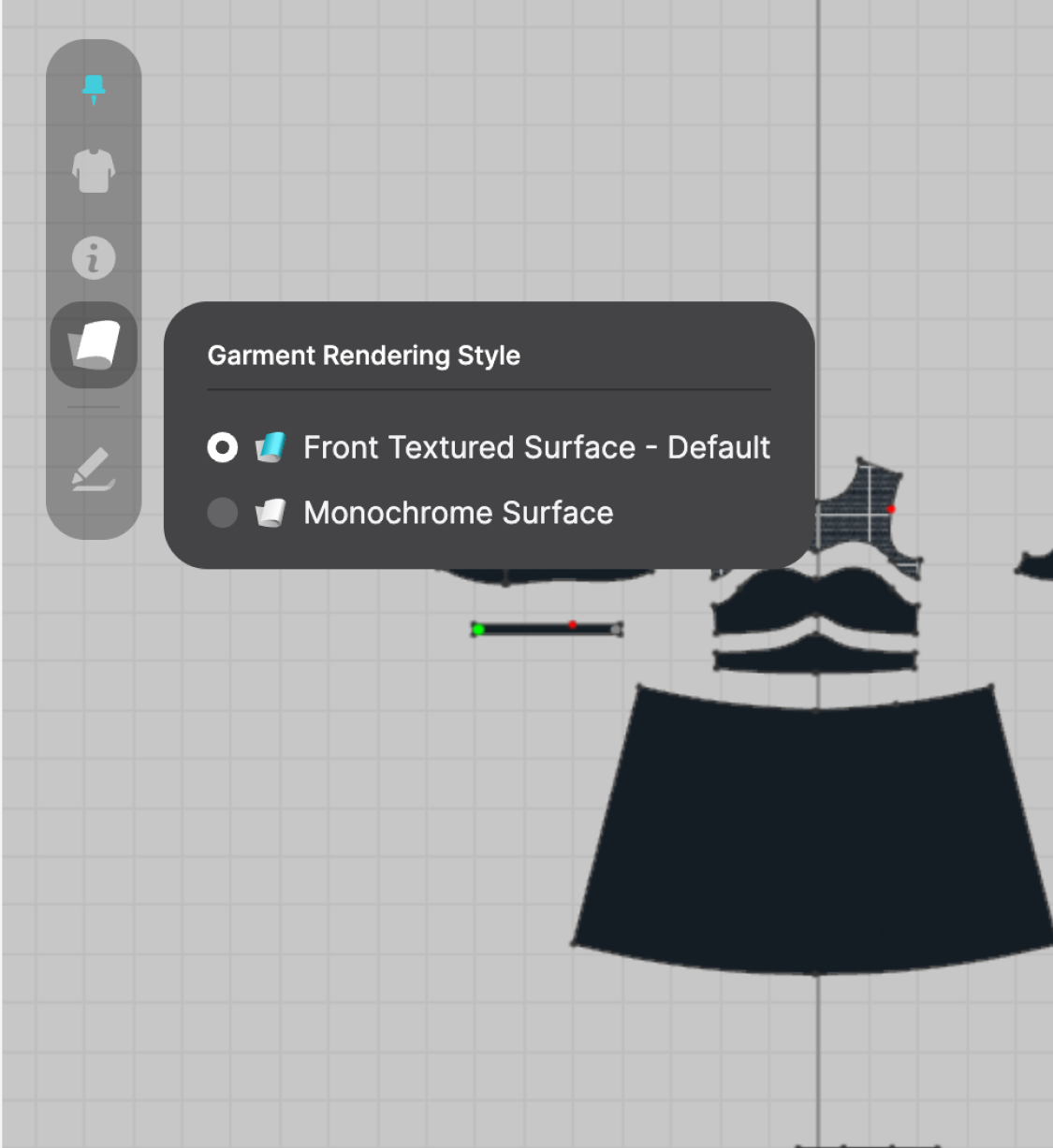

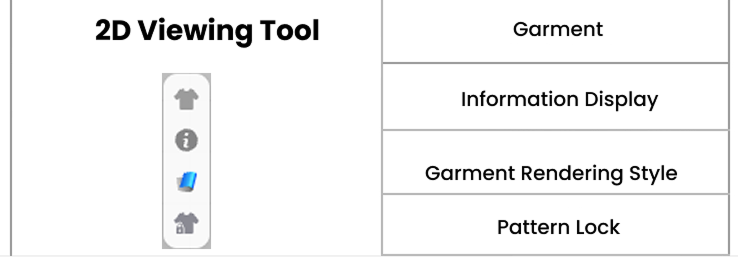

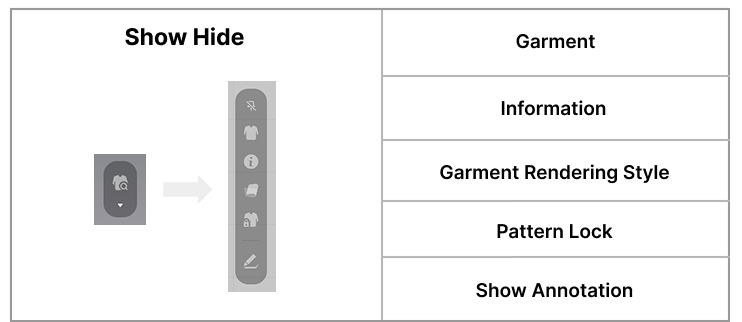

2. On the Viewer, find the display toolbar to control the view

3. Pan or zoom in & out to view the 2D patterns in detail

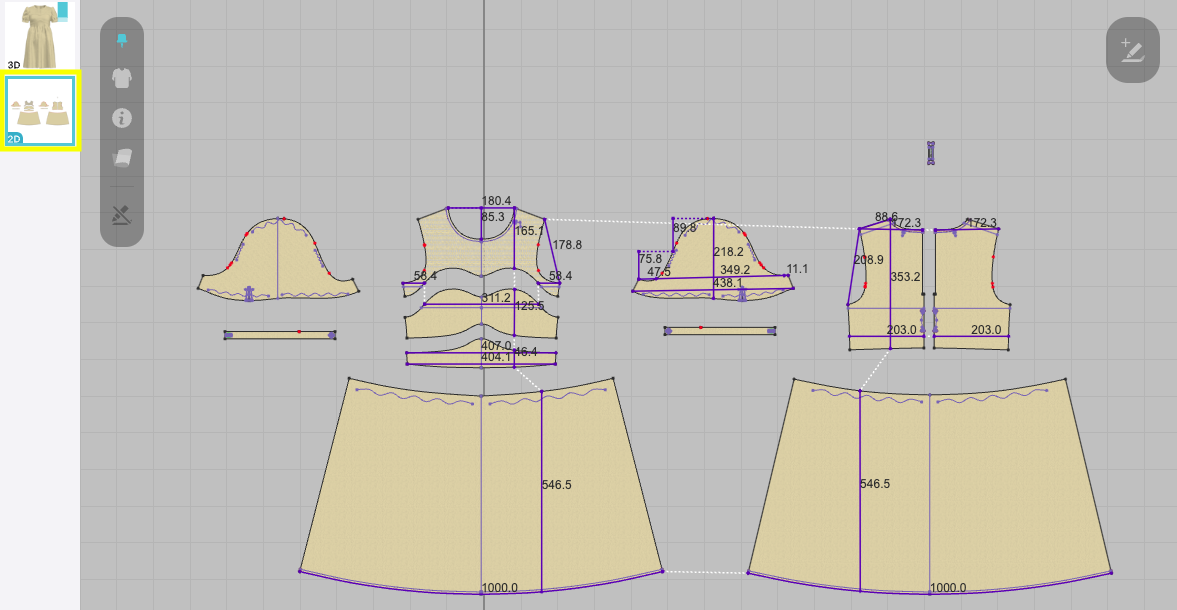

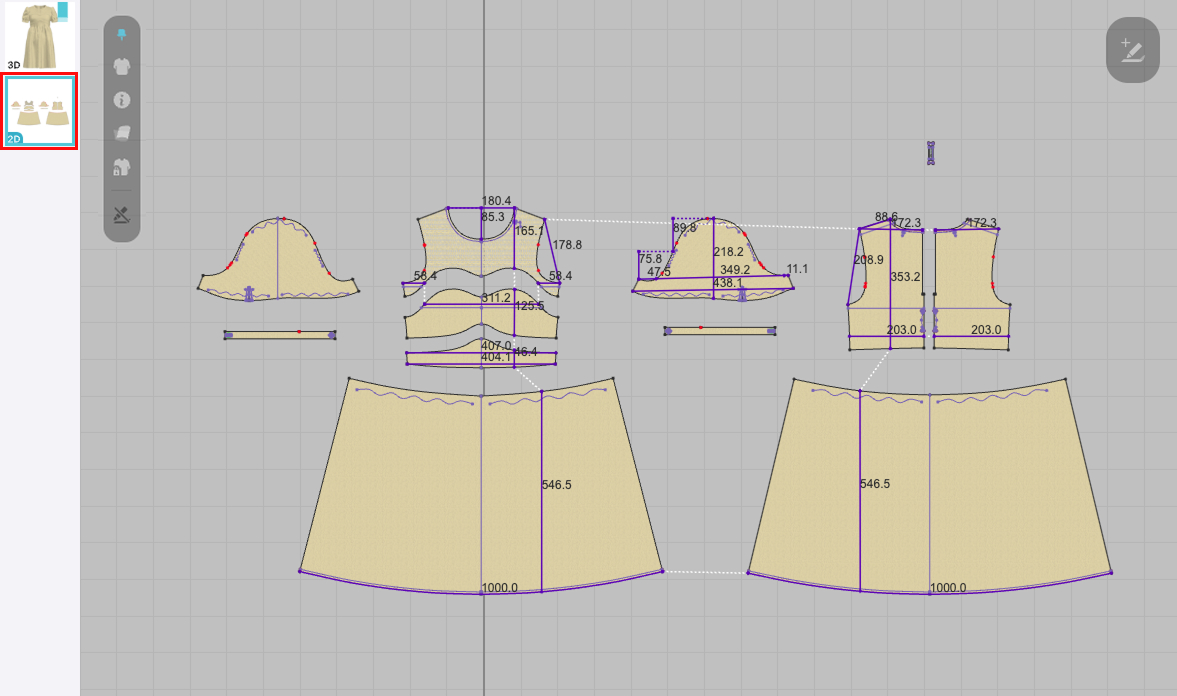

2D Viewer on the Content Page

• In Legacy Content Page





• In New Content Page

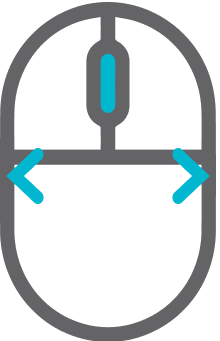

• Mouse Naviagtion

	Mouse / Keyboard		3D Viewer
	Roll up/down the Cursor		Zoom in / Zoom out
	1) Wheel Click + Move Mouse OR 2) Alt (Option) + Left Mouse Button + Move Mouse		Pan 2D Pattern View

• For Contents that have been Rendered in CLO-SET, you can review the Render online.
• On the content page, click the Render viewer from the viewer list to enter
• Click the Colorways at the bottom to switch the view

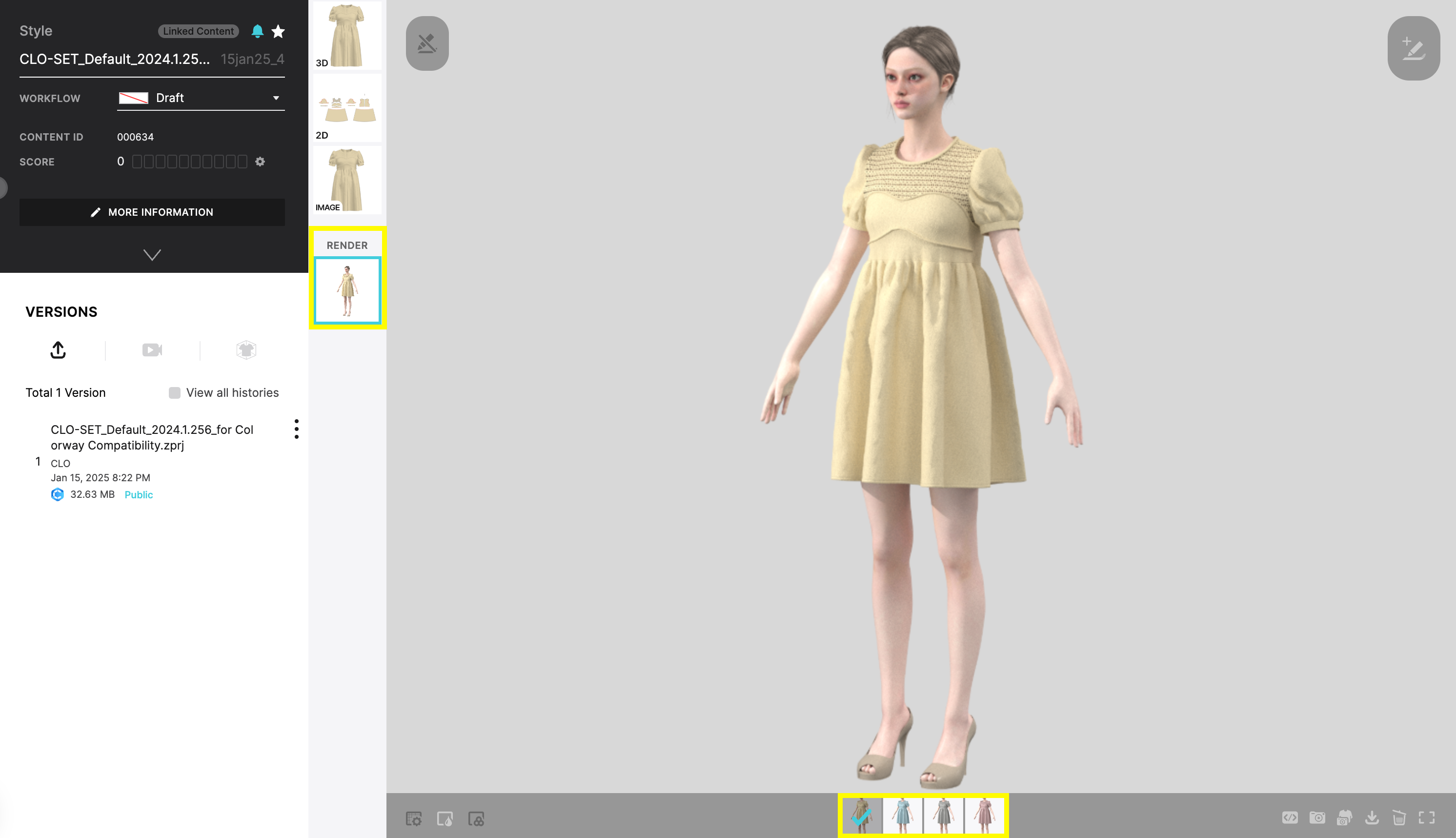

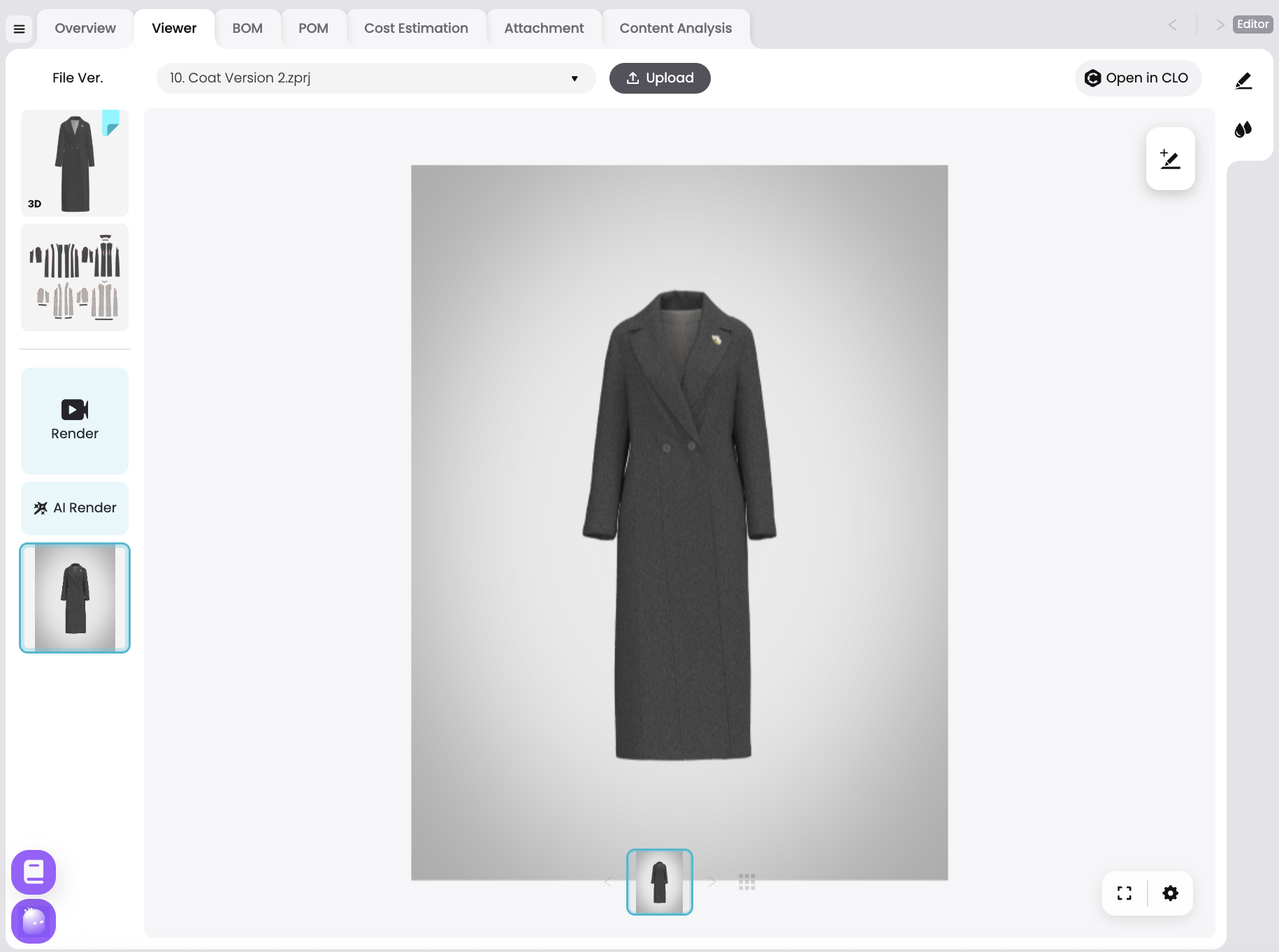

Render Viewer on the Content Page

• In New Content Page : Click the Render Thumbnail image on the Viewer Tab





• In Legacy Content Page : Click the Render Thumbnail image on the content page



• Share your feedback by creating Annotations or leaving Comments. Both options compatible with all viewer types (3D / 2D Pattern / Render).

  ▶ Create Annotation

Annotation on the Content Page

• In New Content Page

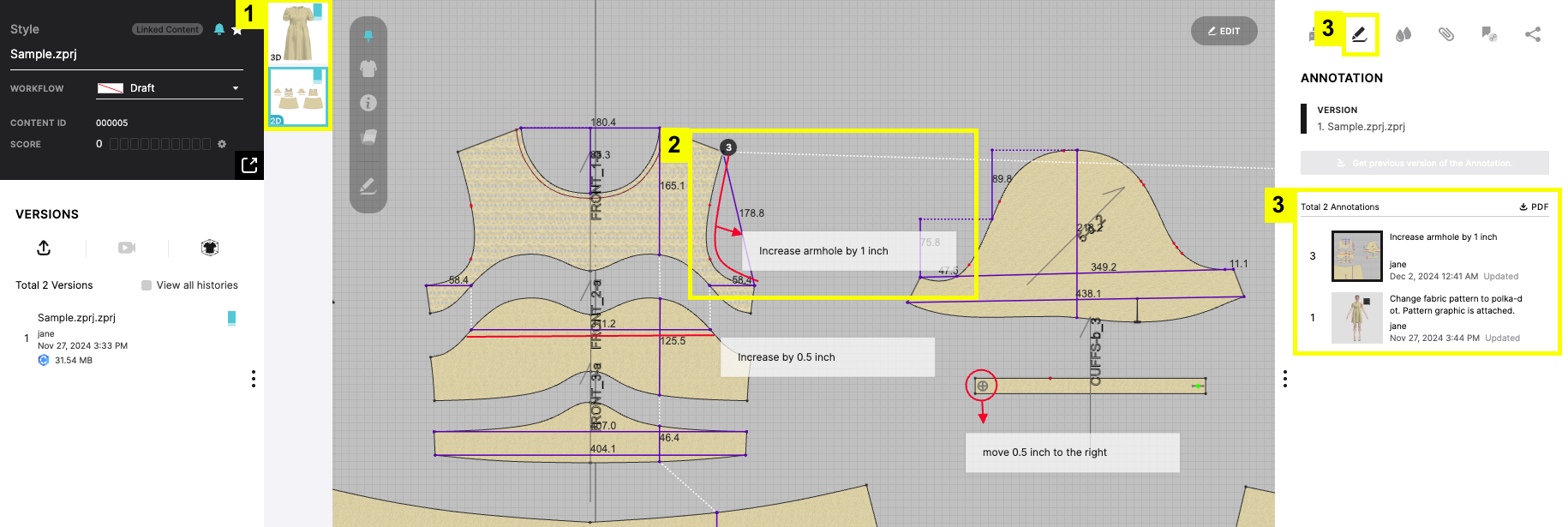

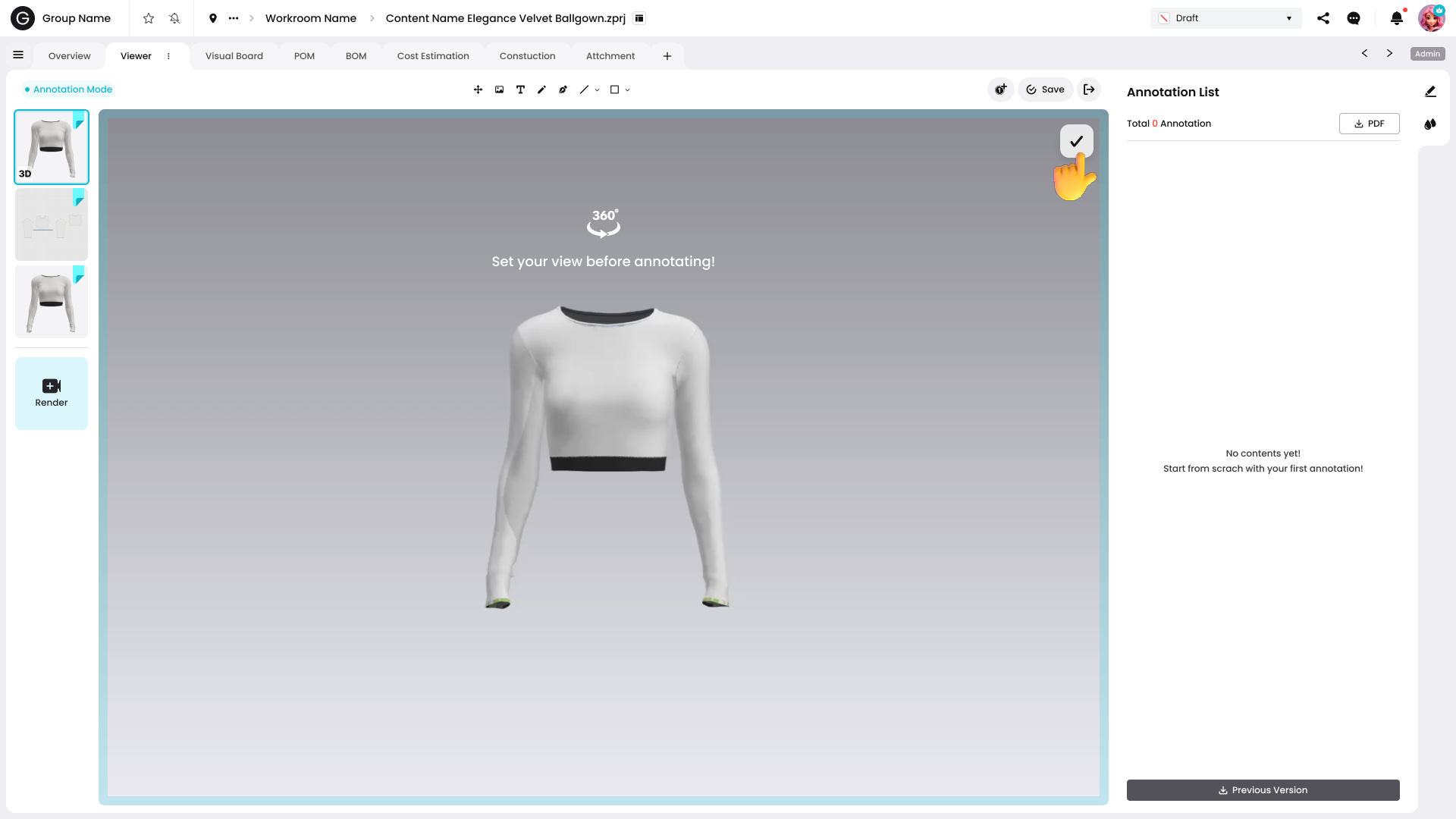

  Create an Annotation and Set the Viewpoint : Click the Annotation button at the top right of the Viewer tab. Before creating an annotation, set your desired viewpoint in the Viewer.





  Leave Annotations with. the Drawing & Editing Tools : Utilize the features in the toolbar to add annotations. Text and Pen tools are supported to provide a more advanced editing experience.

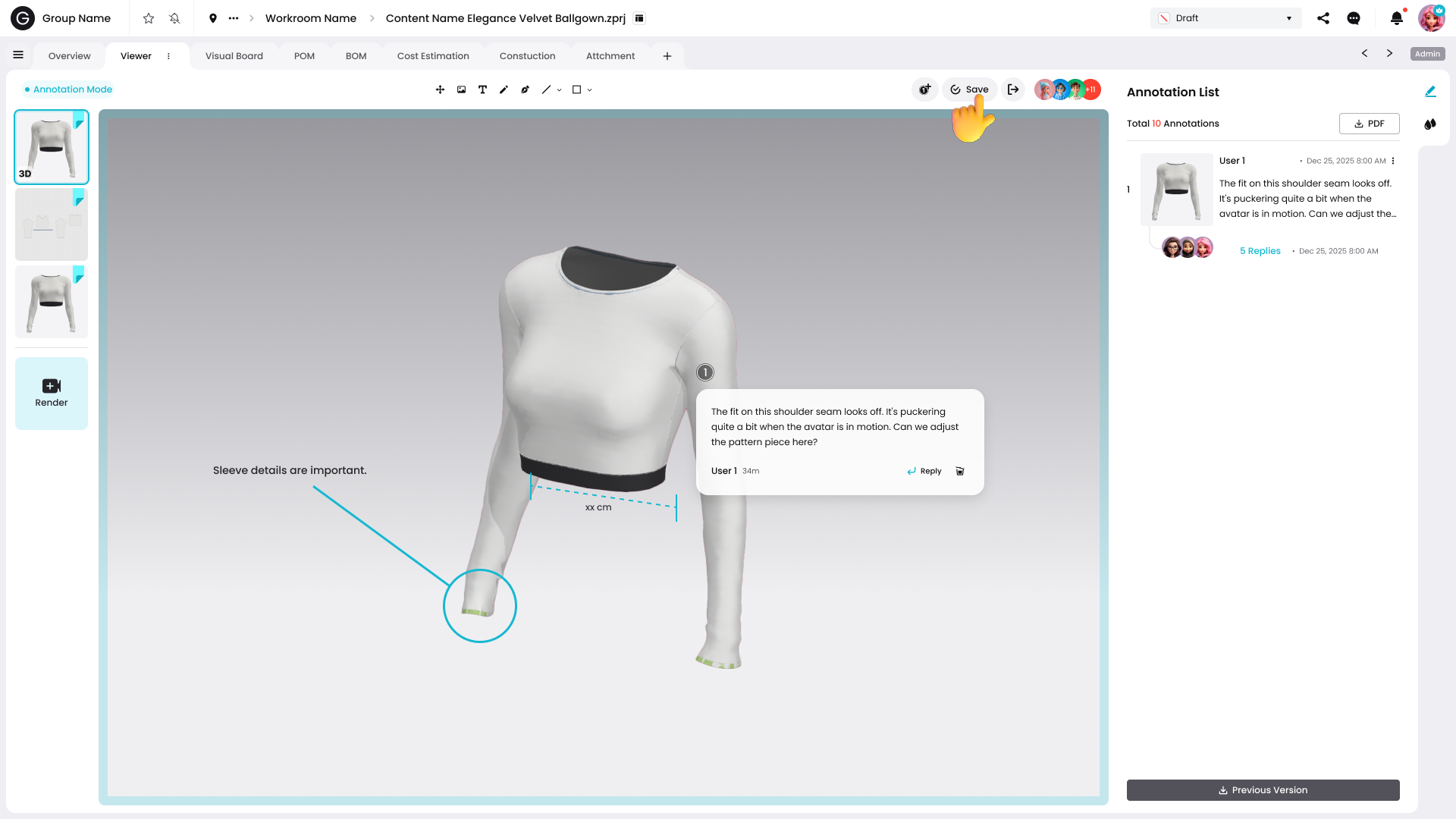

  Save or Add New Marker : Click the Save button to complete the annotation, or click Add New Marker to continue adding markers while creating annotations.

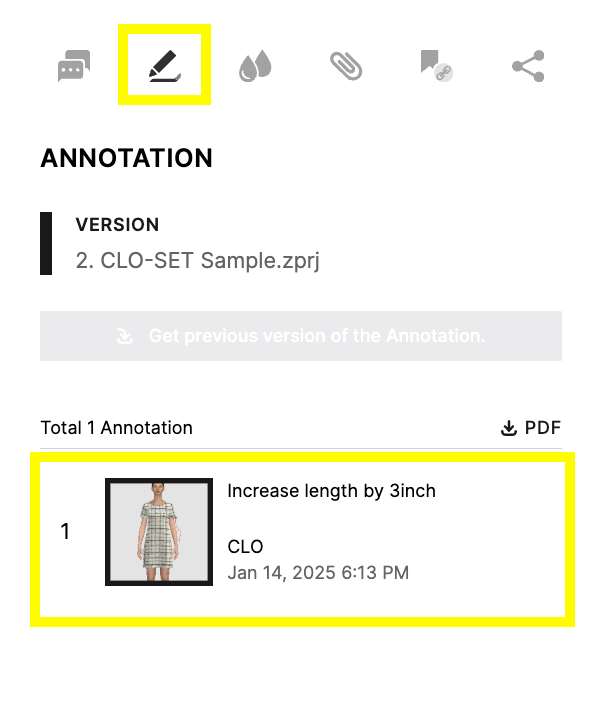

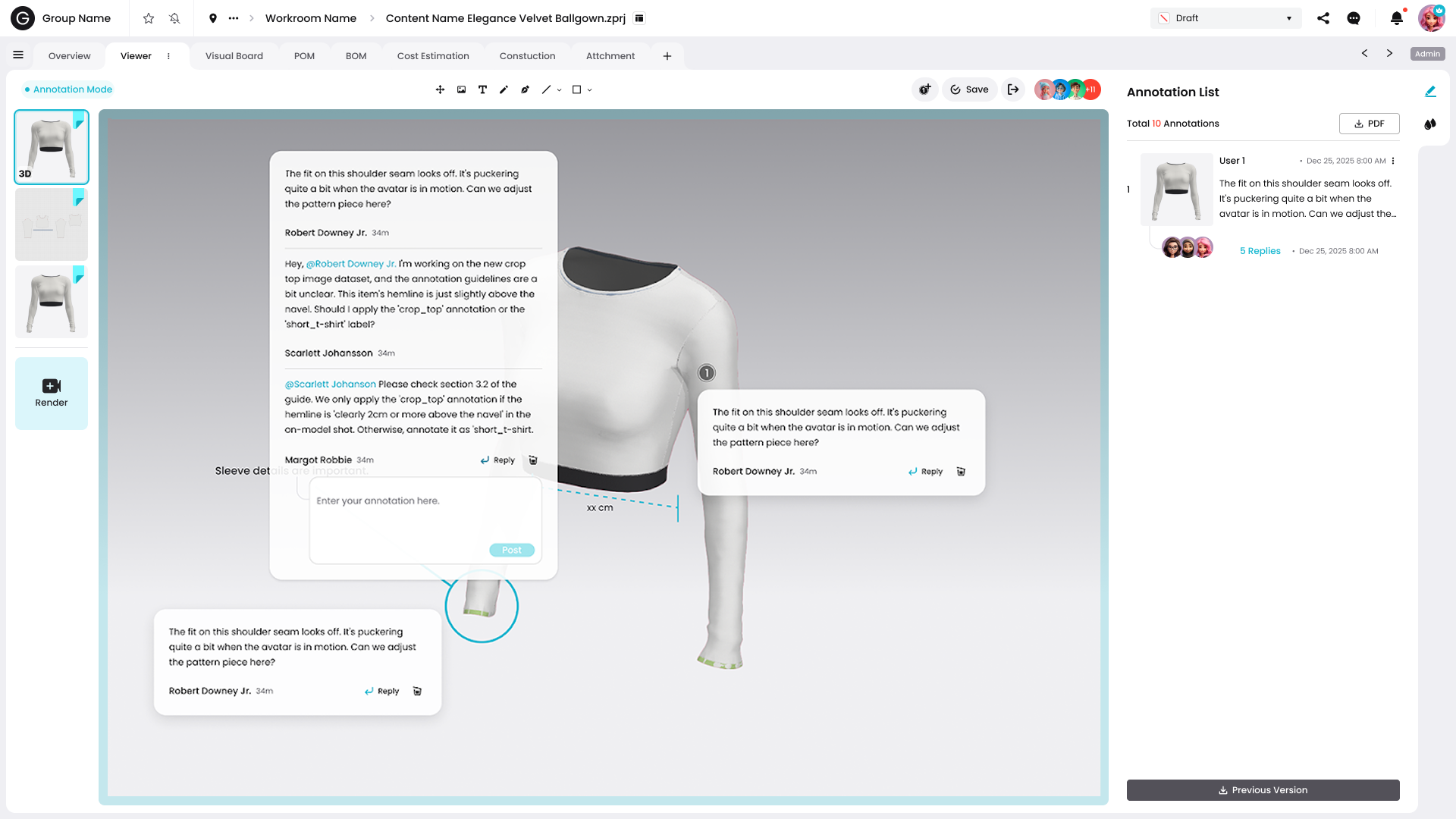

  View Annotation List : View all annotations for the content. Replies and Nested Replies are visible in the Annotation List.





• In Legacy Content Page

  Click on the Annotation icon () at the top right corner of the 3D Viewer or 2D Pattern Viewer

  Click 'Complete' to save the annotation

  Once saved, click the Annotation icon () on the right pane to view the list of Annotations





▶ Leave Comment

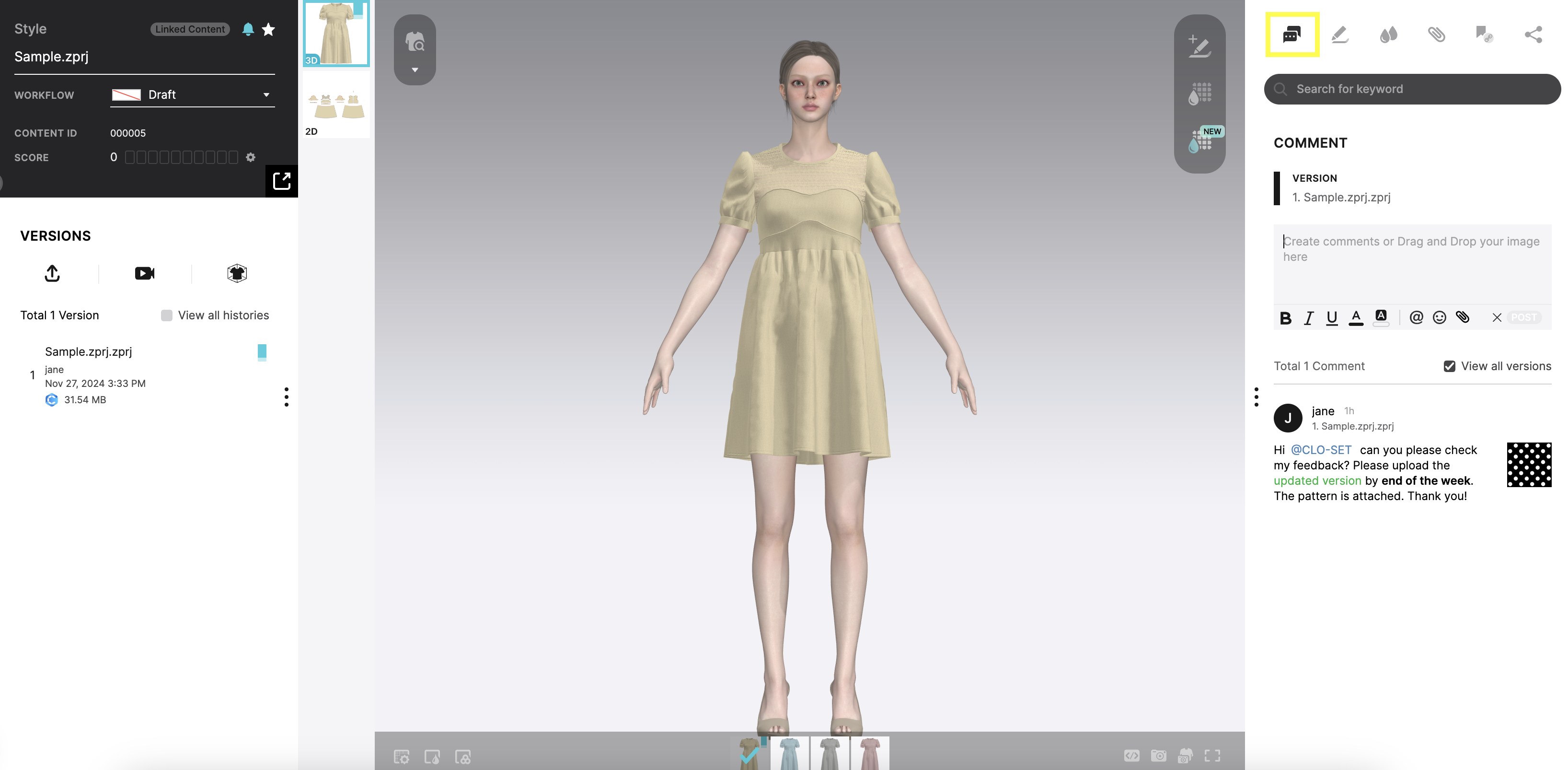

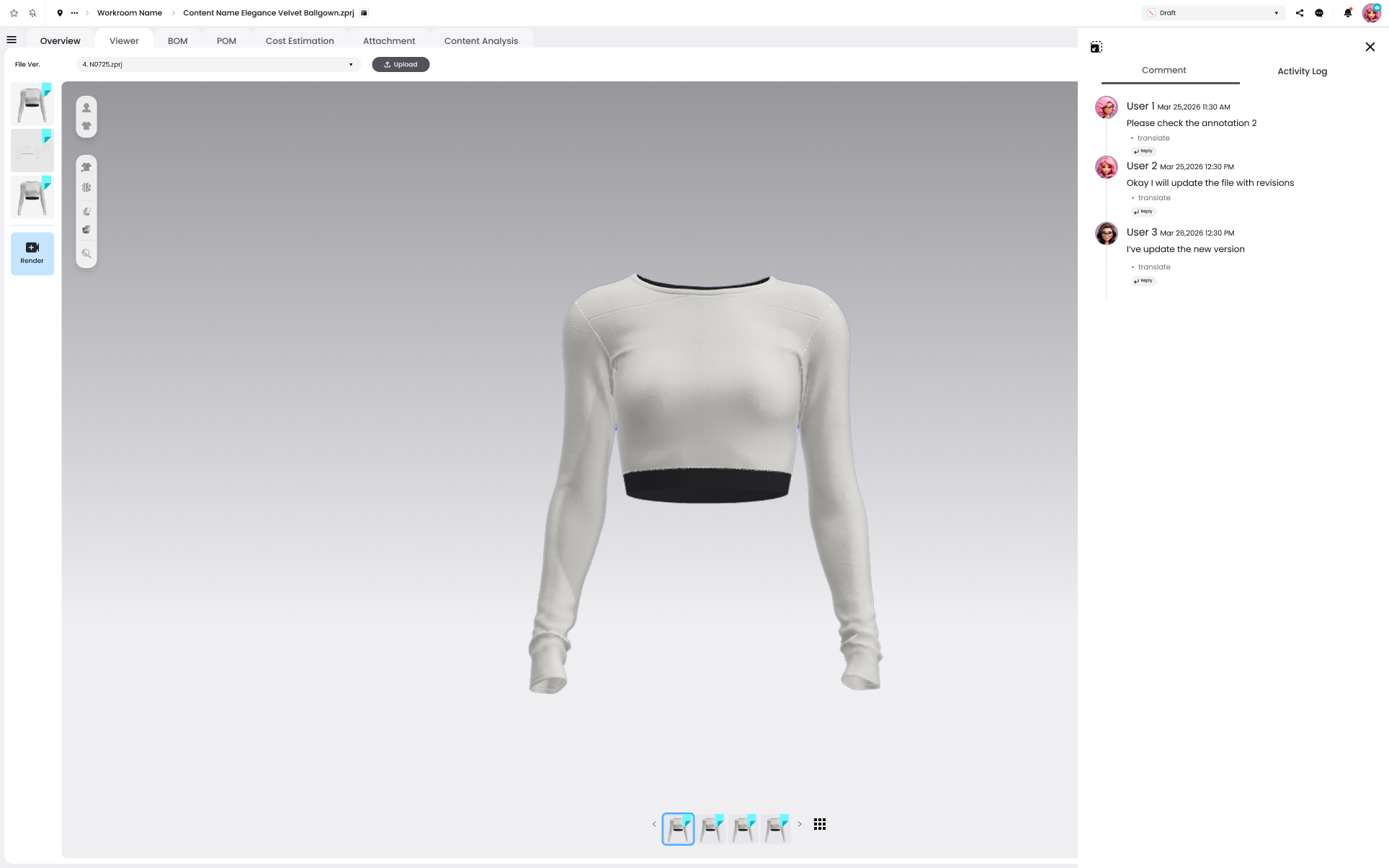

• In New Content Page : Click the Comment icon at the top right of the content page, enter your comment, and click Post. (type in comments, and tag teammates with "@" . You must first invite the teammate for tagging)

  The Comment feature has been expanded to the content level, allowing comments to be added while reviewing different tabs.

  An activity log is also available for review.
  (Note: The activity log is only accessible to users with Editor-level permissions or higher.)





• In Legacy Content Page : Click the Comment icon () from the right pane and type in comments, and tag teammates with "@" (You must first invite the teammate for tagging)



[For this option, recipient needs a CLO-SET account to view]

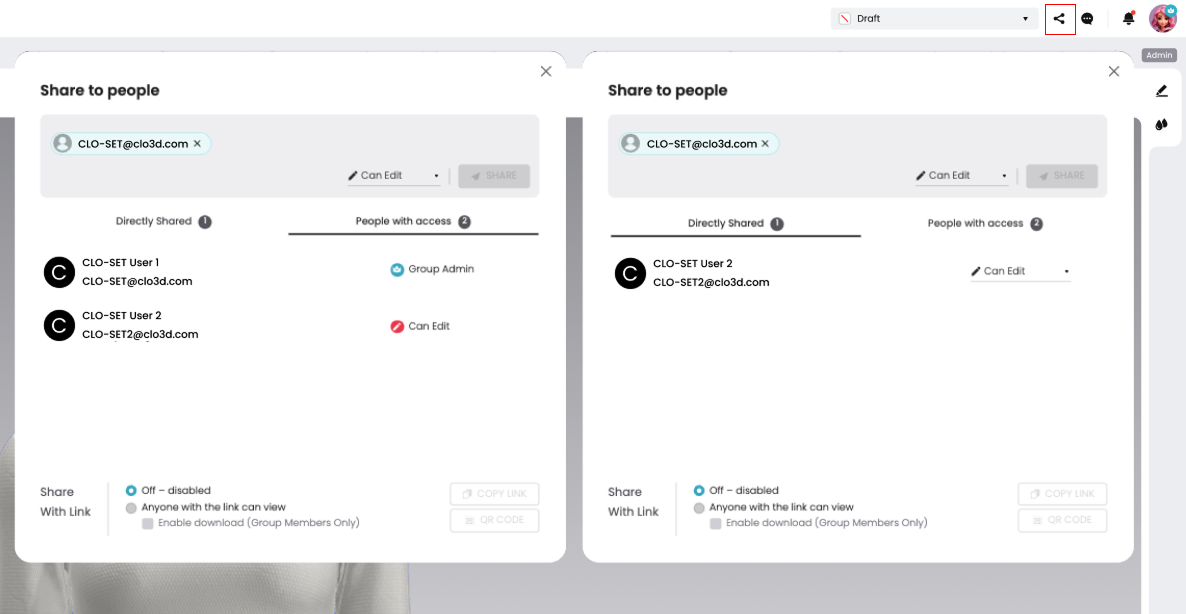

1. Enter the Content you want to share

2. Find the Share icon on the top-right corner

3. Enter the email of user (does not have to be registered in CLO-SET)

4. Select a permission (Editor or Viewer), and click 'Share'

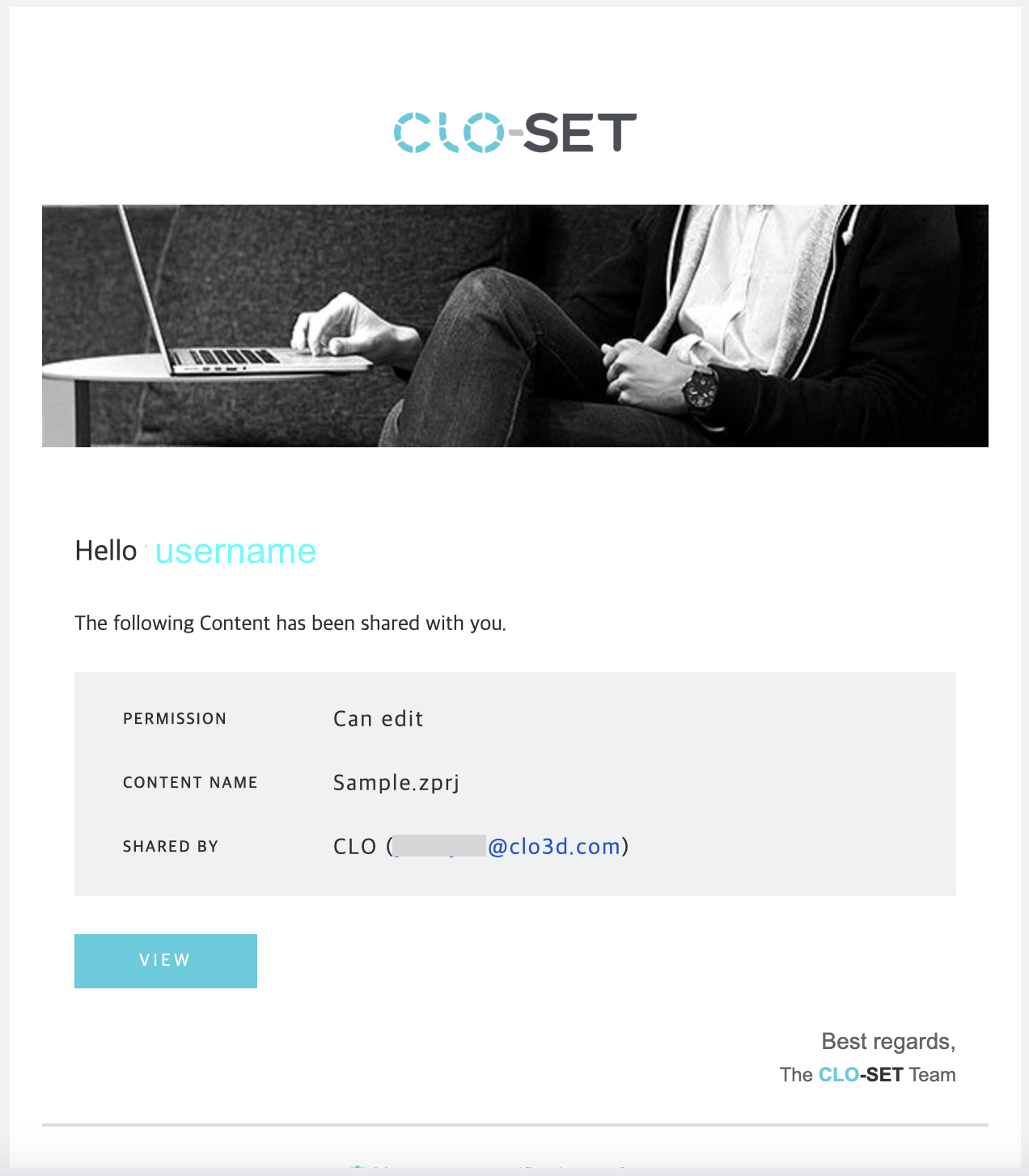

5. Invitee will receive a notification with link
