Permission: Admin, Collaborator, Editor

CLO Versions: 2024.2 and above

Updates

Learn about the latest update on the new CLO-SET Configurator.

1. Auto-generate Normal Map
2. Color Switch
3. New Configurator Guide

Details

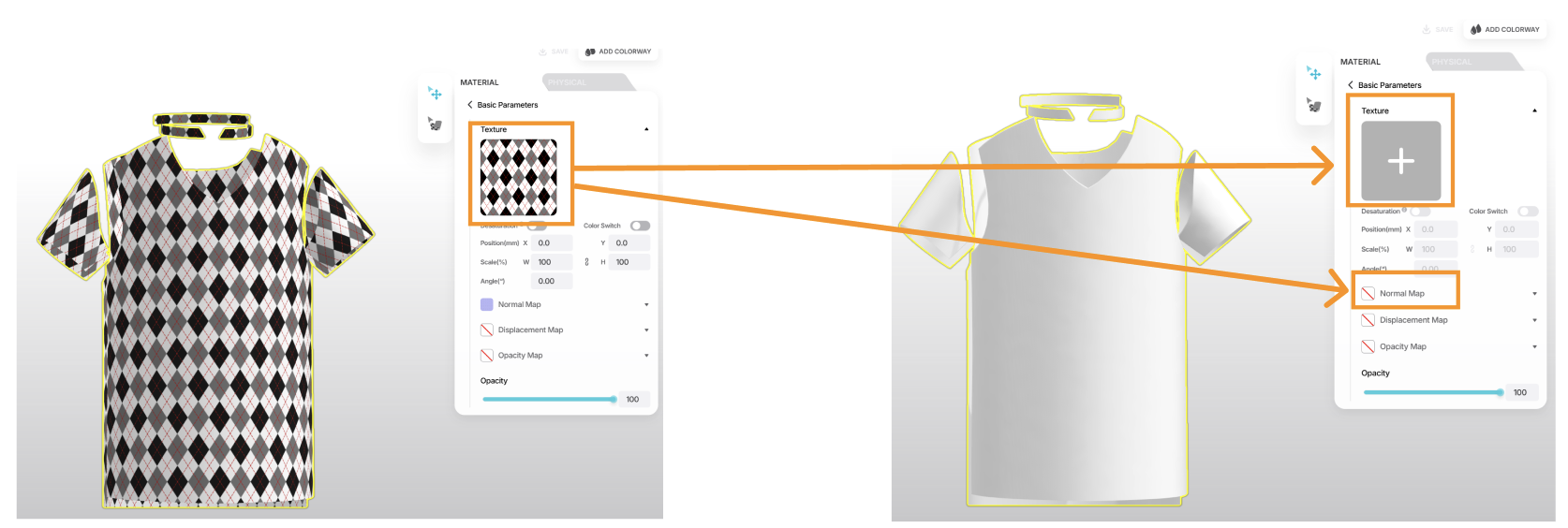

1) Auto-generate Normal Map

With this update, CLO-SET will auto-generate a Normal Map based on the Base Color Map for objects that have only the Base Color Map applied and no Normal Map available.

• Conditions: Normal Map will be generated ONLY when the selected object meets ALL of below
  • has Base Color Map
  • does NOT have normal map
  • user adjusts Normal Map Intensity to a non-zero value

▶

• Deleting the base color map of the object will also delete the normal map.

• The auto-generated normal maps will be deactivated when the Intensity is set back to 0.

2) Color Switch

Color Switch prepares the solid fabric for a smooth transition to the newly selected color, ensuring it is applied accurately and seamlessly.

•
  • Learn about the Color Switch feature in CLO 2024.2

• How To: Open the New Configurator, and select an object to start (not legacy configurator)
  • From the right pane, click 'Base Color Map' tab
  • Below the Base Color Map, you will find the 'Color Switch' option
  • Please note that you can ONLY use either Desaturation or Color Switch, not both. When one is turned off, the other can be activated
  • Once the 'Color Switch' is turned on explore new colorways by changing the Color or Opacity

• Compatibility
  • Color Switch and Desaturation can be used for all types of objects, except for button hole.
