📍 Learn how to use Render Preset feature to standardize the Rendering results within the team.

• What is Render Preset?
• Upload Render Preset in CLO-SET
• Using Render Preset
• Render Preset Properties created inCLO

📓 Details

• Render Preset helps standardize the Render Properties for a cohesive output generation

• Render Preset allows users to apply detailed Render Properties when Rendering in CLO-SET

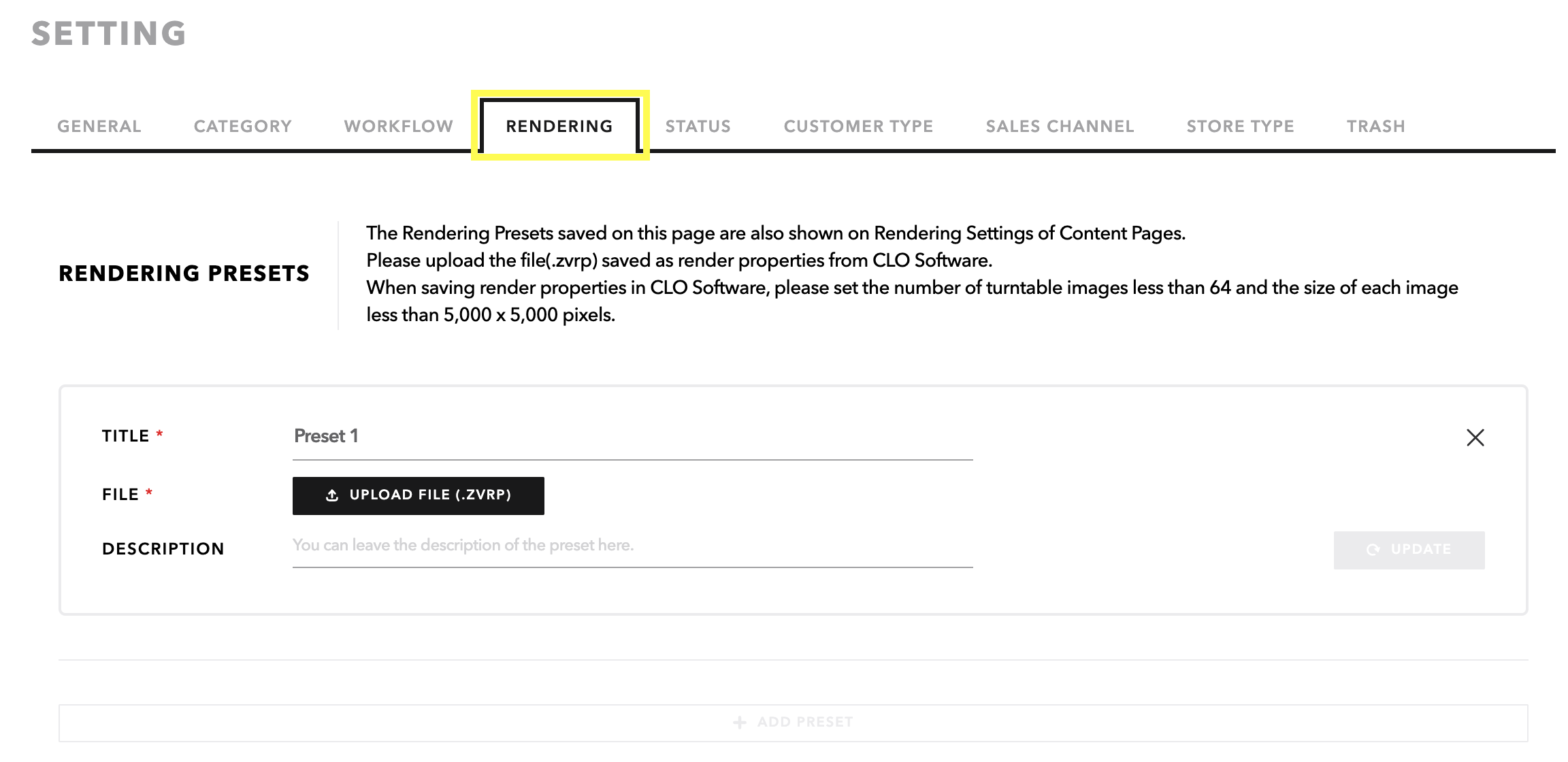

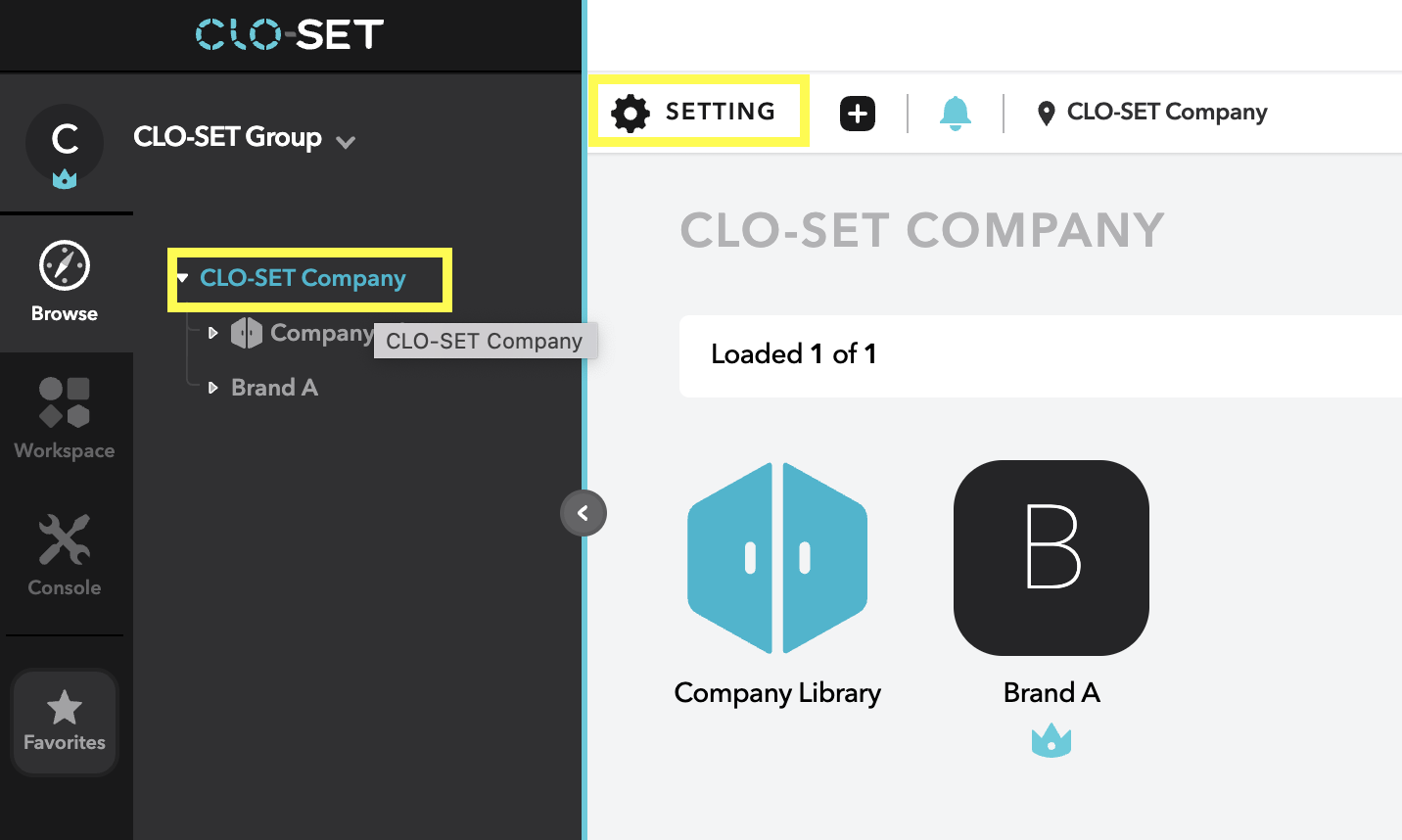

• From the left pane, click Browse > Company, then go to Settings > Rendering to Add/Edit/Delete Render Preset.

• Click Upload File to add a Render Preset.

• You can Add / Edit / Delete presets here.

• Up to 32 preset files can be uploaded.

  • Please note: Company Settings are accessible to Company Admin only

💡 Note – How to Create a Render Preset File (ZVRP) From CLO Software

Before uploading to CLO-SET, you need to create a ZVRP (Render Preset) file from CLO software.

►

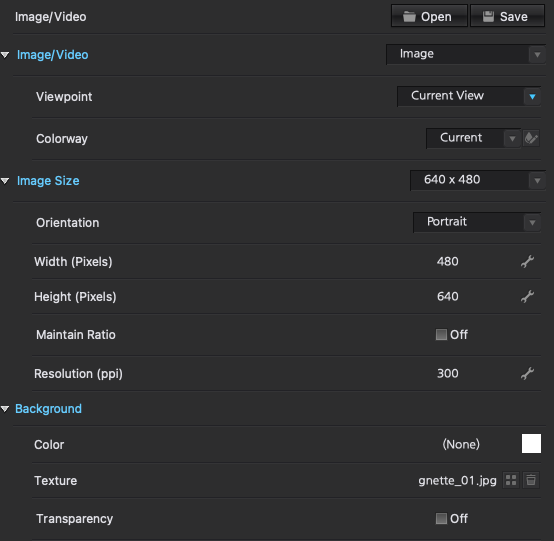

• On CLO3D software, adjust Render properties per your needs on the Property Editor

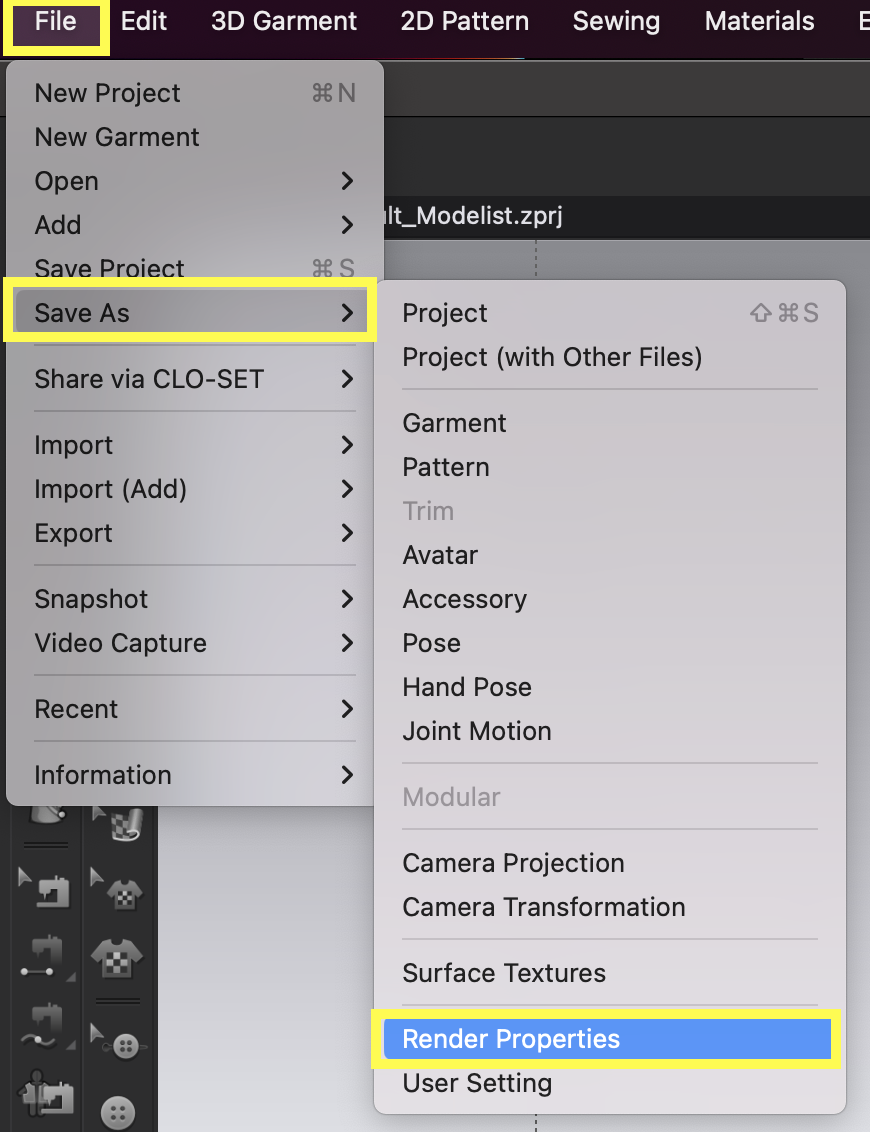

• Once you are done, click Save As > Render Properties to save as ZVRP file
• The saved ZVRP includes Image/Video, Camera, Light, and Render properties
• A few requirements for CLO-SET:
  • Image count for Turntable must be less than 64
  • Image size must be less than 5,000px
  • Animation type can not be rendered
  • *Please note: If you select the 'Current View' option from CLO3D, CLO-SET Render will be based on the last view each user sees on their CLO-SET 3D Viewer.  is used to design and create garments in 3D, while CONNECT is the marketplace for buying and selling avatars, garments, and digital assets.
    CLO-SET then brings these assets together into a collaborative workspace for managing, reviewing, sharing, and seamlessly carrying them through merchandising and production.

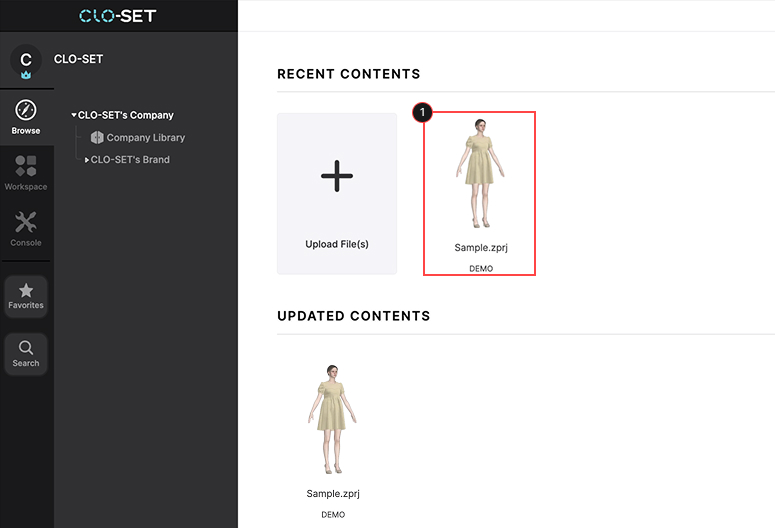

• From your Dashboard, click the Content to open the Content page, where you can view the 3D Viewer.

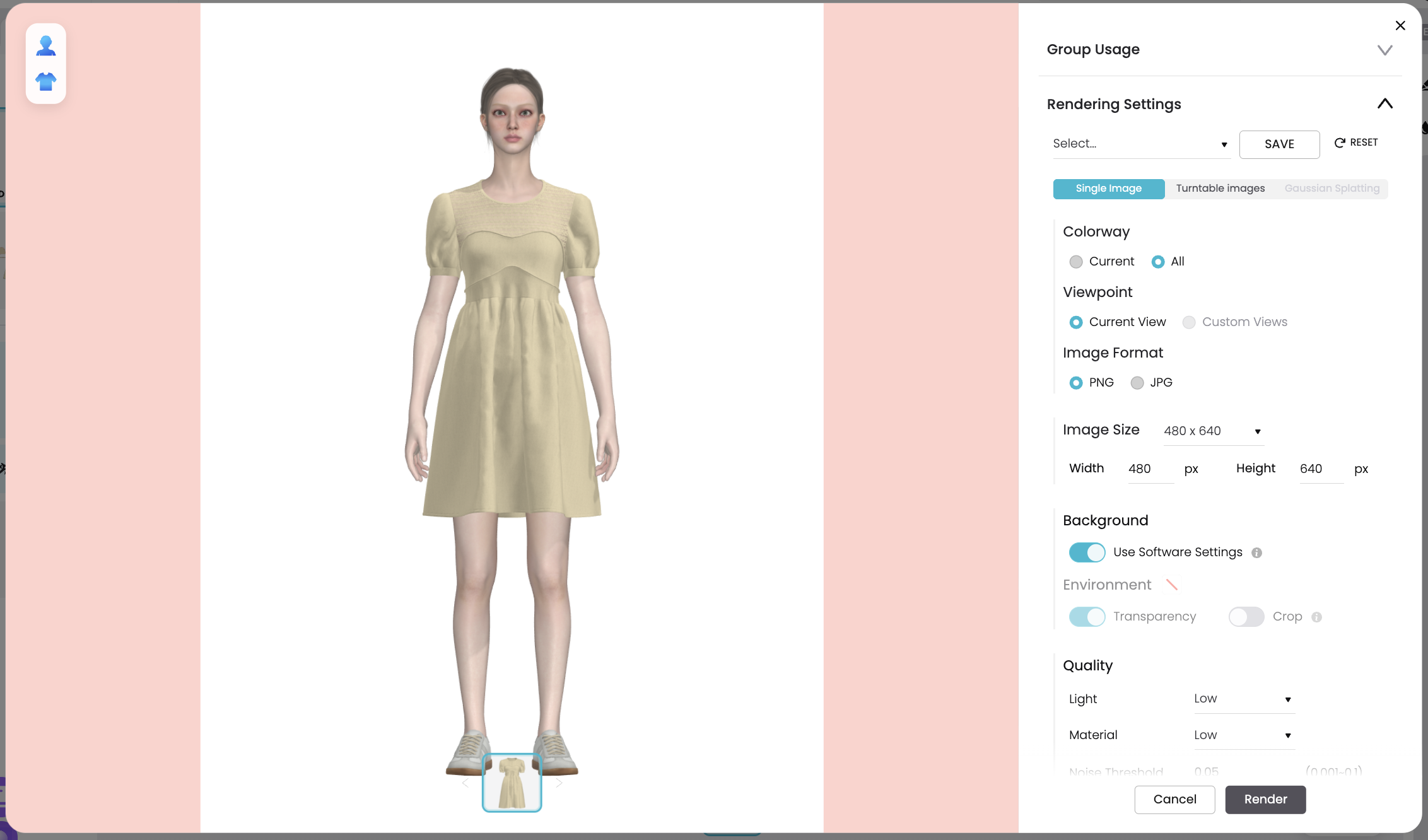

• Select the options as per needed, and click 'Render' to create Render (Learn more about Render Settings)

Render on the Content Page

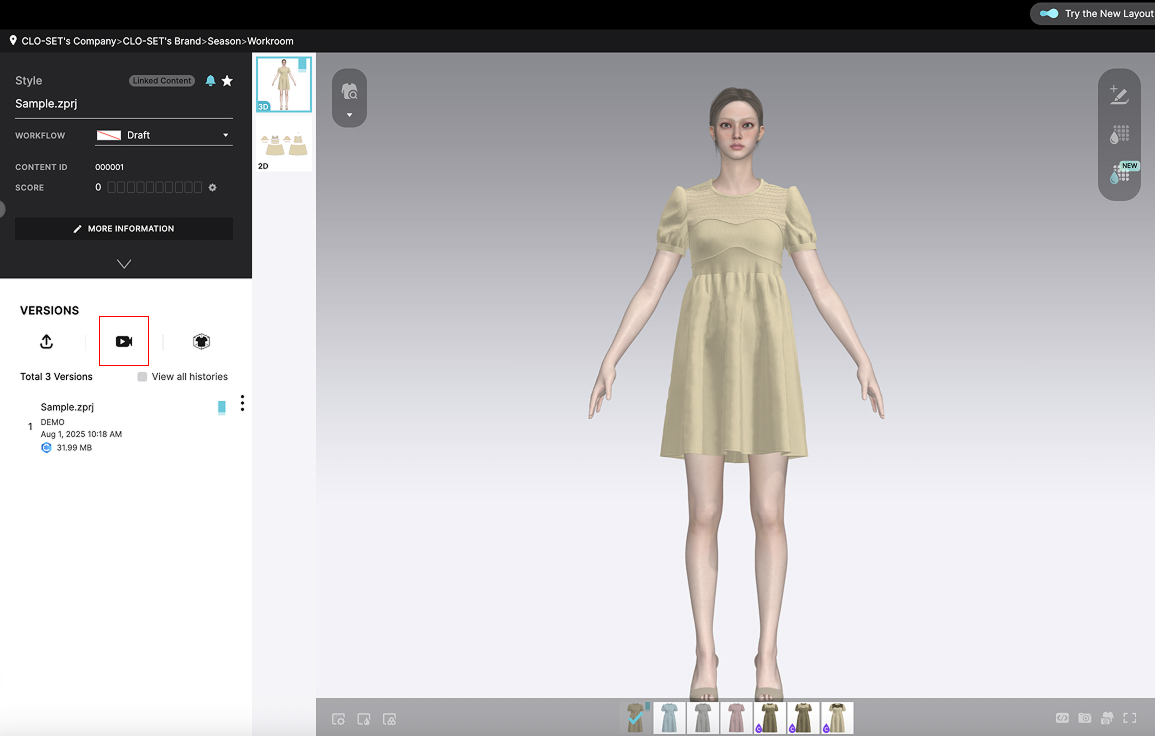

• In Legacy Content Page

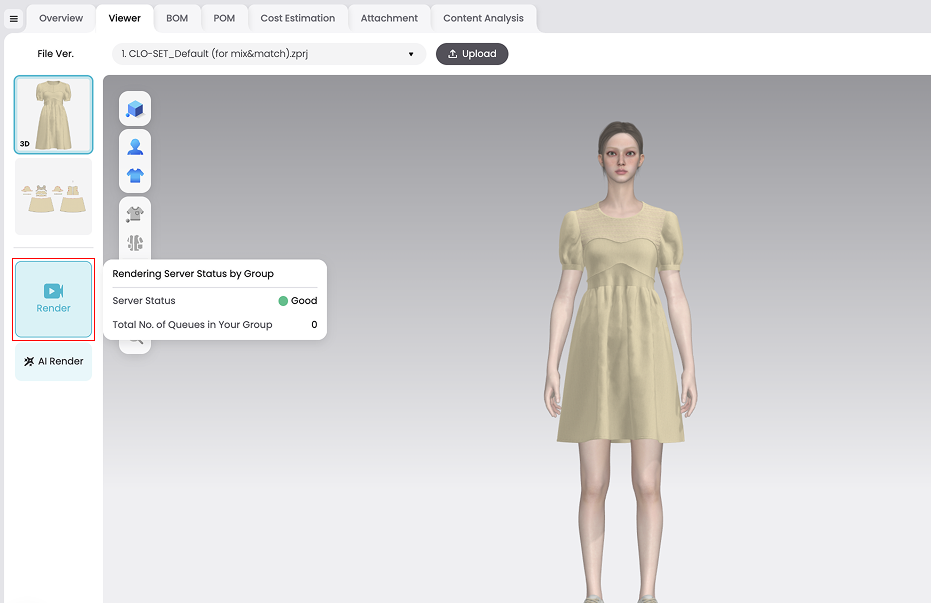

• In New Content Page

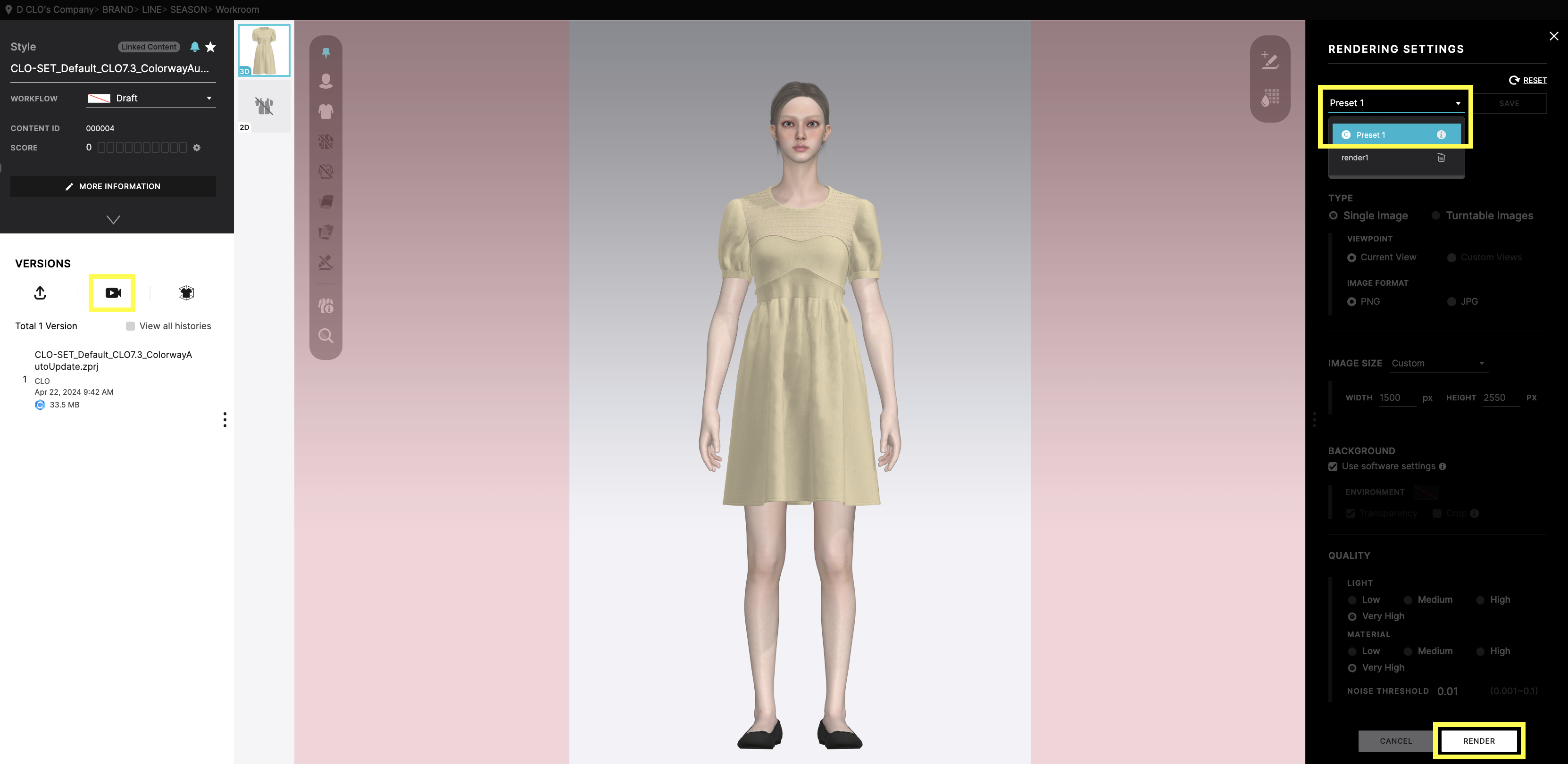

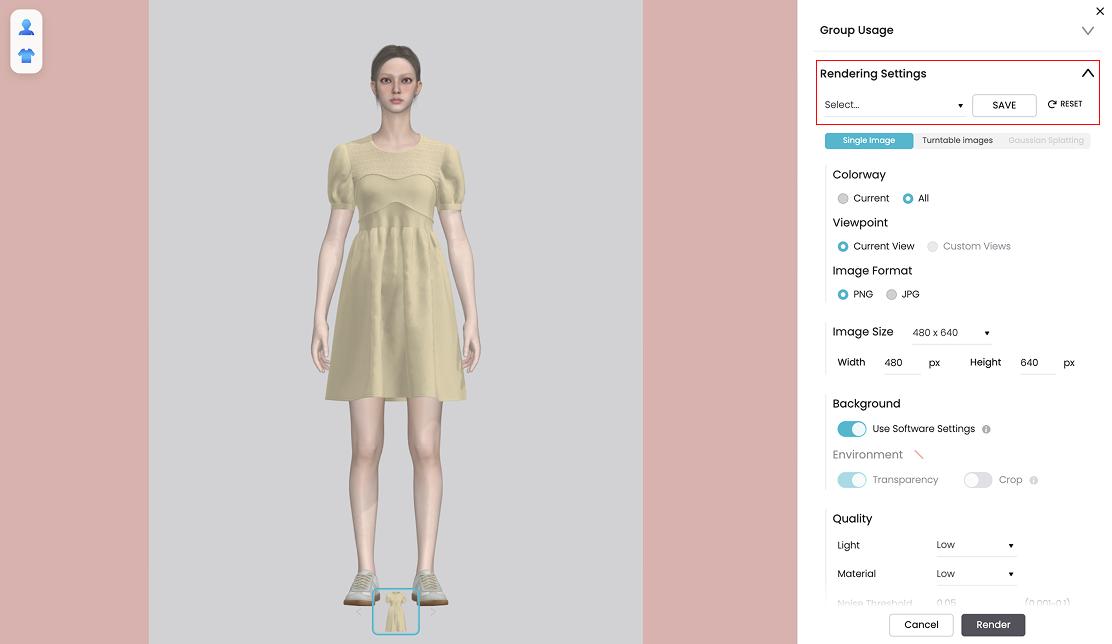

• On your Content Page, click on Render to select the Render Settings.
• On the drop-down menu, you will see the Company Preset (with icon)

Select Render Preset on the Content Page

• In Legacy Content Page

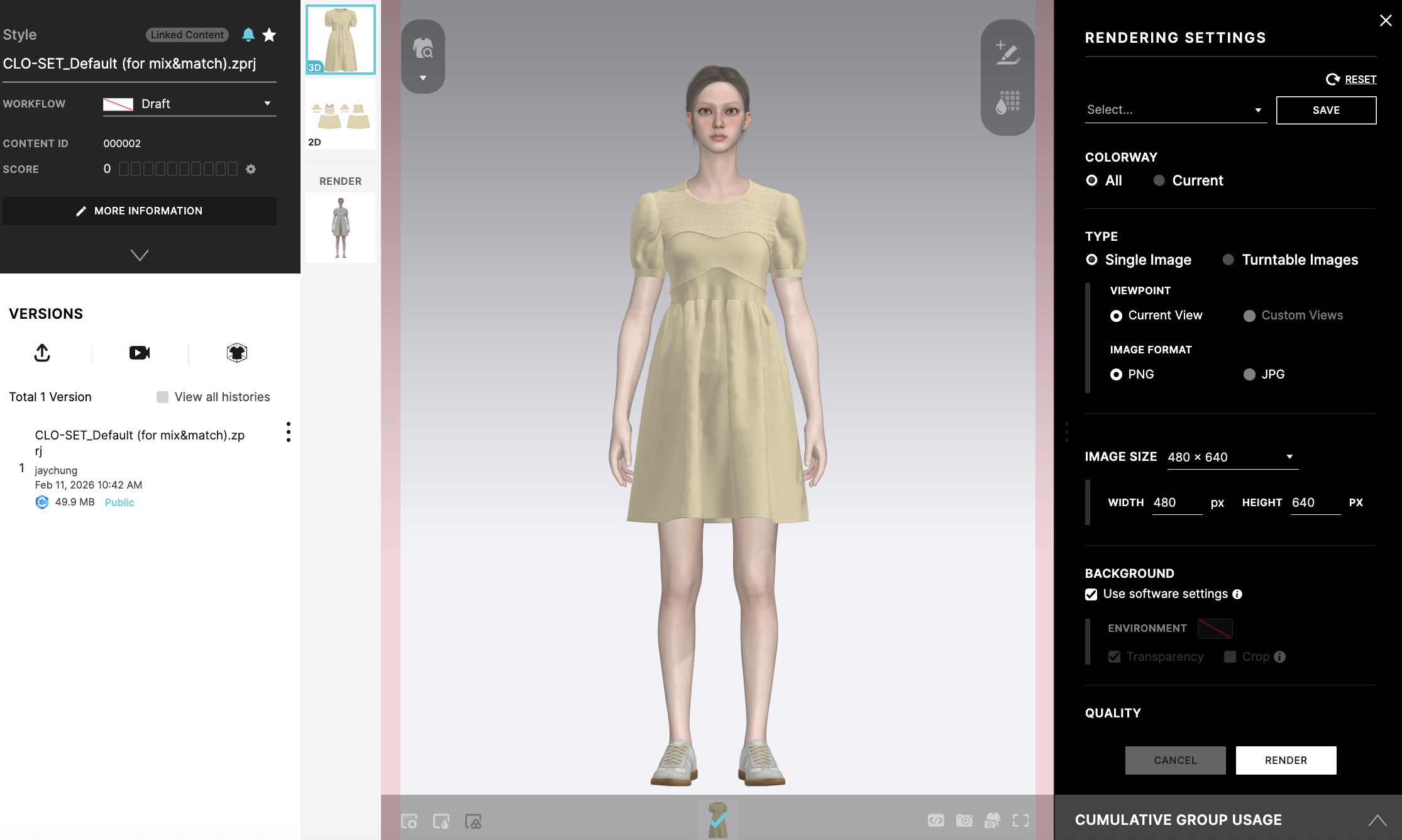

• In New Content Page



💡 Note

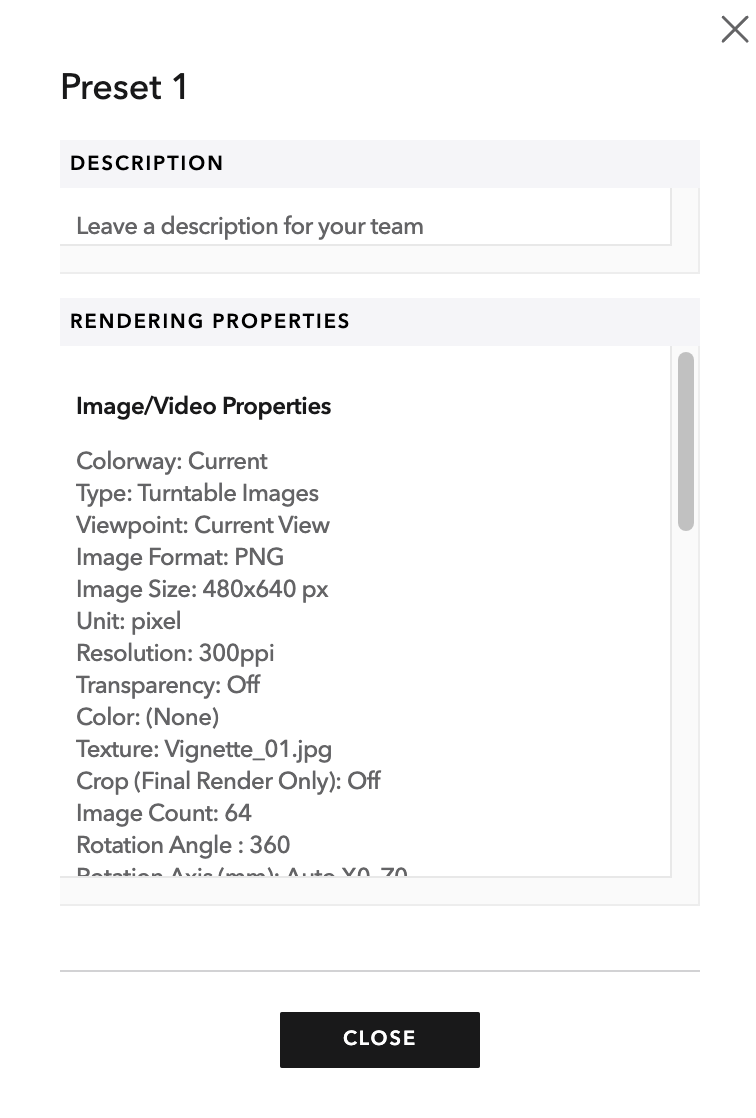

Once you select the Company's Render Preset option, you can not change the Render Settings. You may check the Property details by clicking on the 𝒊 icon of the preset.

►

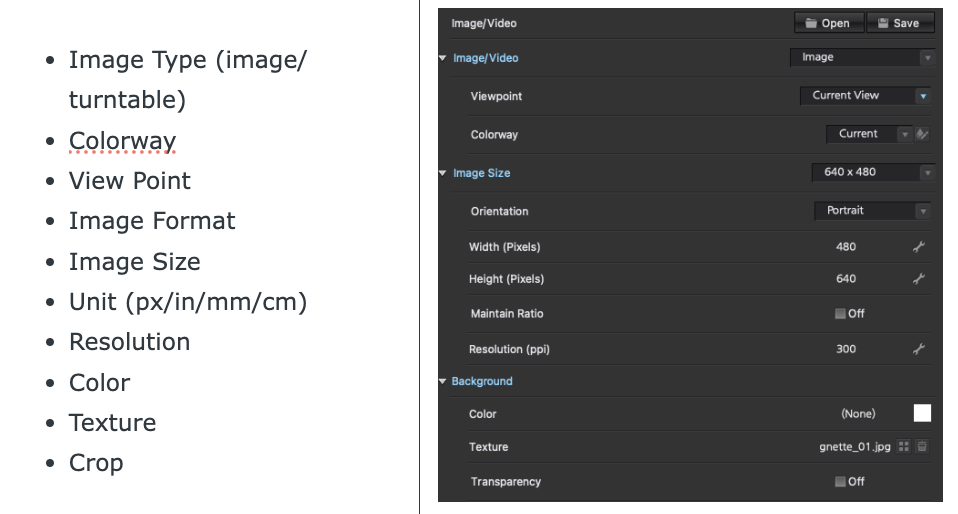

• To view the full list of properties saved in a ZVRP file from CLO, please visit Render Preset Guide
