Hello CLO-SET Users,
We're happy to announce a new feature, CLO-SET Plug-in for Bamboo Rose PLM.
You can now start to connect your content in CLO-SET to a content in PLM and have data be flow into your Bamboo Rose PLM.
Updates
Details
1) What is CLO-SET Plug-in?
CLO-SET Plug-in is a function that allows users to publish and sync CLO-SET Contents to PLM. The plug-in strives to provide seamless integration of data among CLO-SET, CLO, and PLM.
As part of our very first release, CLO-SET Plug-in publishes the following information.
- 3D project file (.zprj)
- Thumbnail for PLM Style
- Publish Render Images
- Colorway Information
2) How to use CLO-SET Plug-in?
1. Set-Up

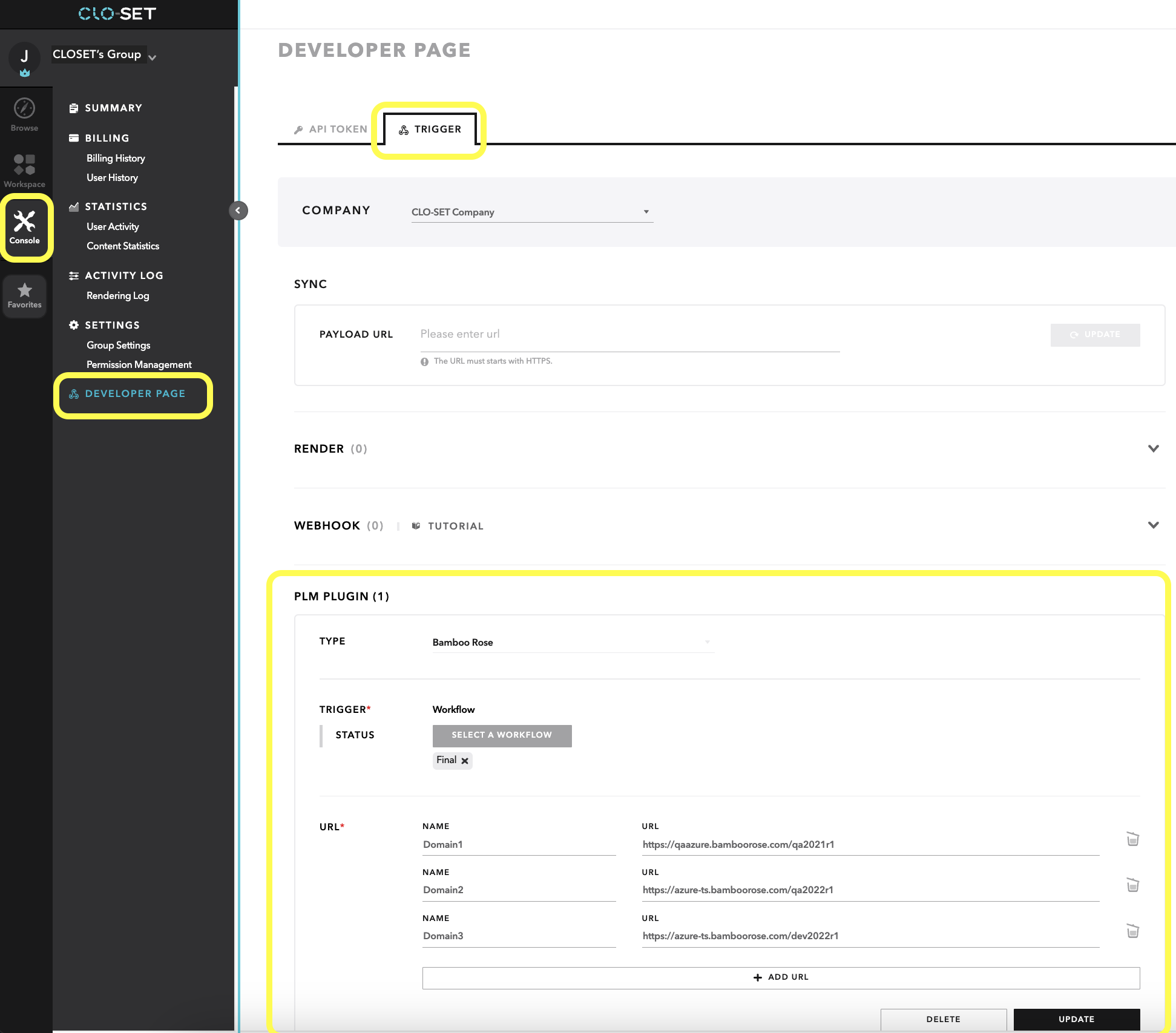

1. Go to Admin Console > Developer Page > Trigger from Admin Console.
The configuration is only available from Admin Console, which means Group Admin or Group Operator can set it up.

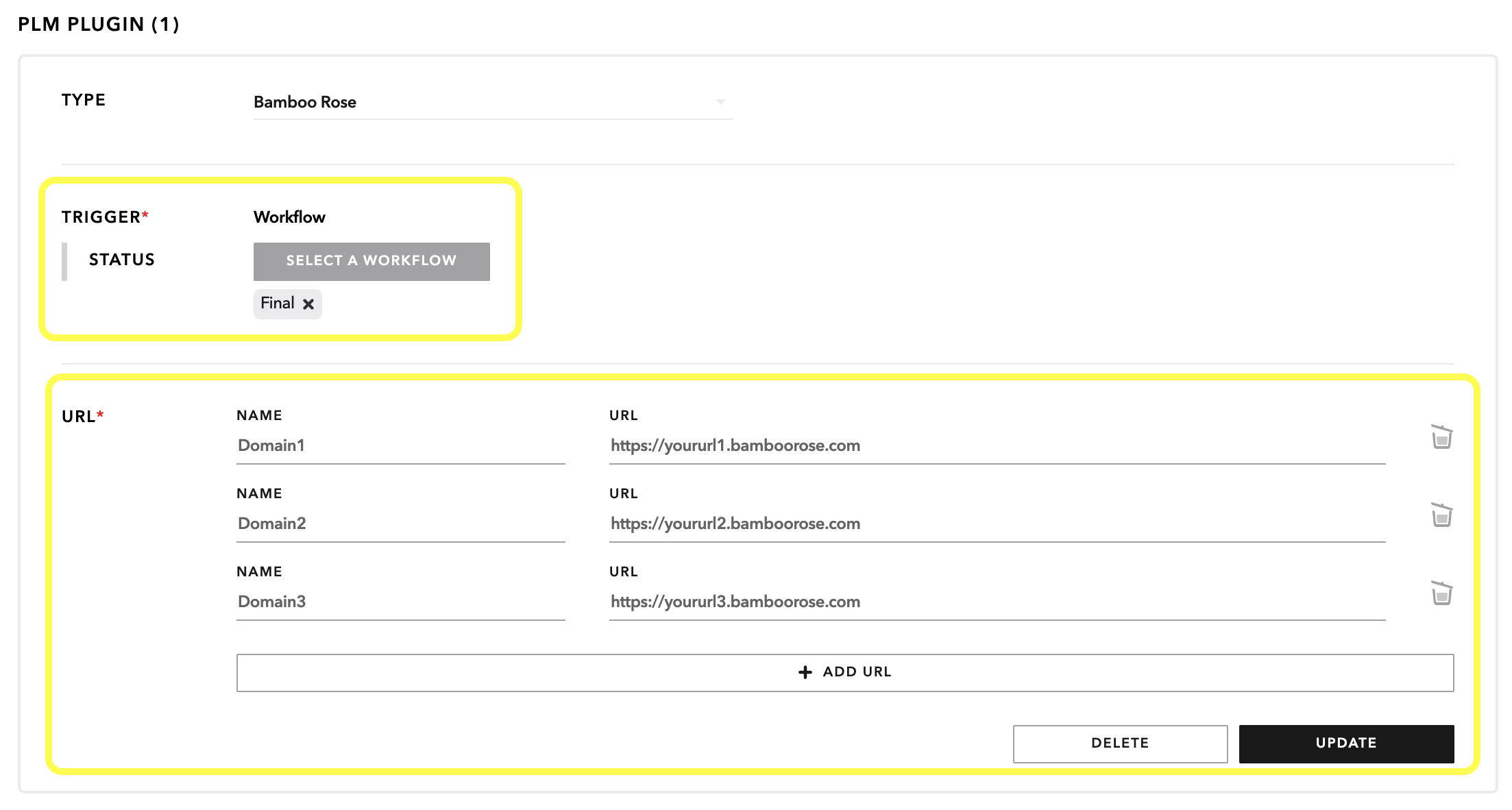

2. Select the COMPANY you would like to Configure the PLM Plug-in.
3. Select the Workflow you would like the plug-in to be enabled.
2. Use
4. Content Page
Then, for the Content under the COMPANY selected, when the workflow of the Content is at the specific workflow configured from step 3., Export to PLM option will appear.
*Currently, only .zprj can be exported to PLM.

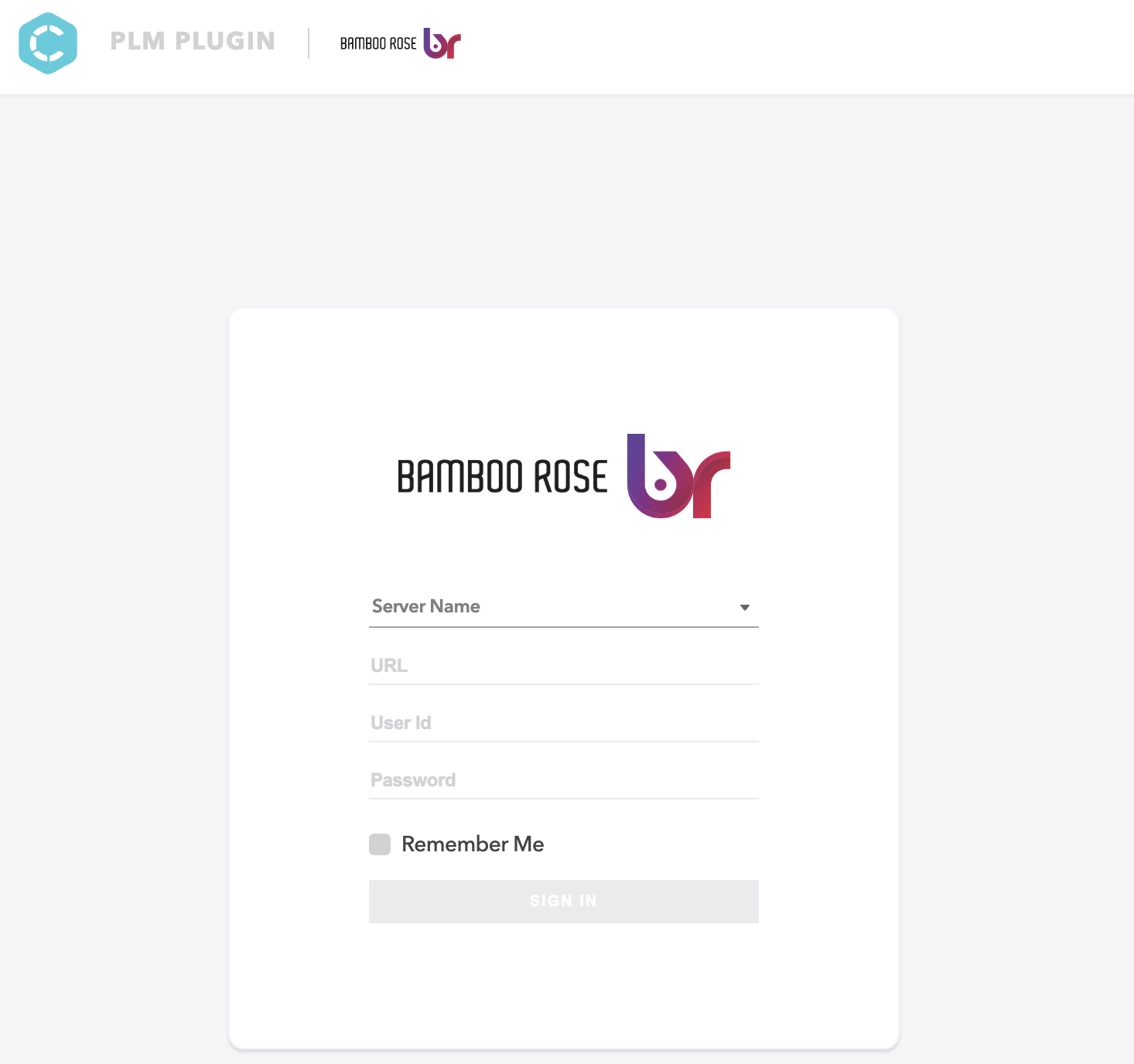

5. Plug-in log-in Page
Then, Log-in to Bamboo Rose PLM.

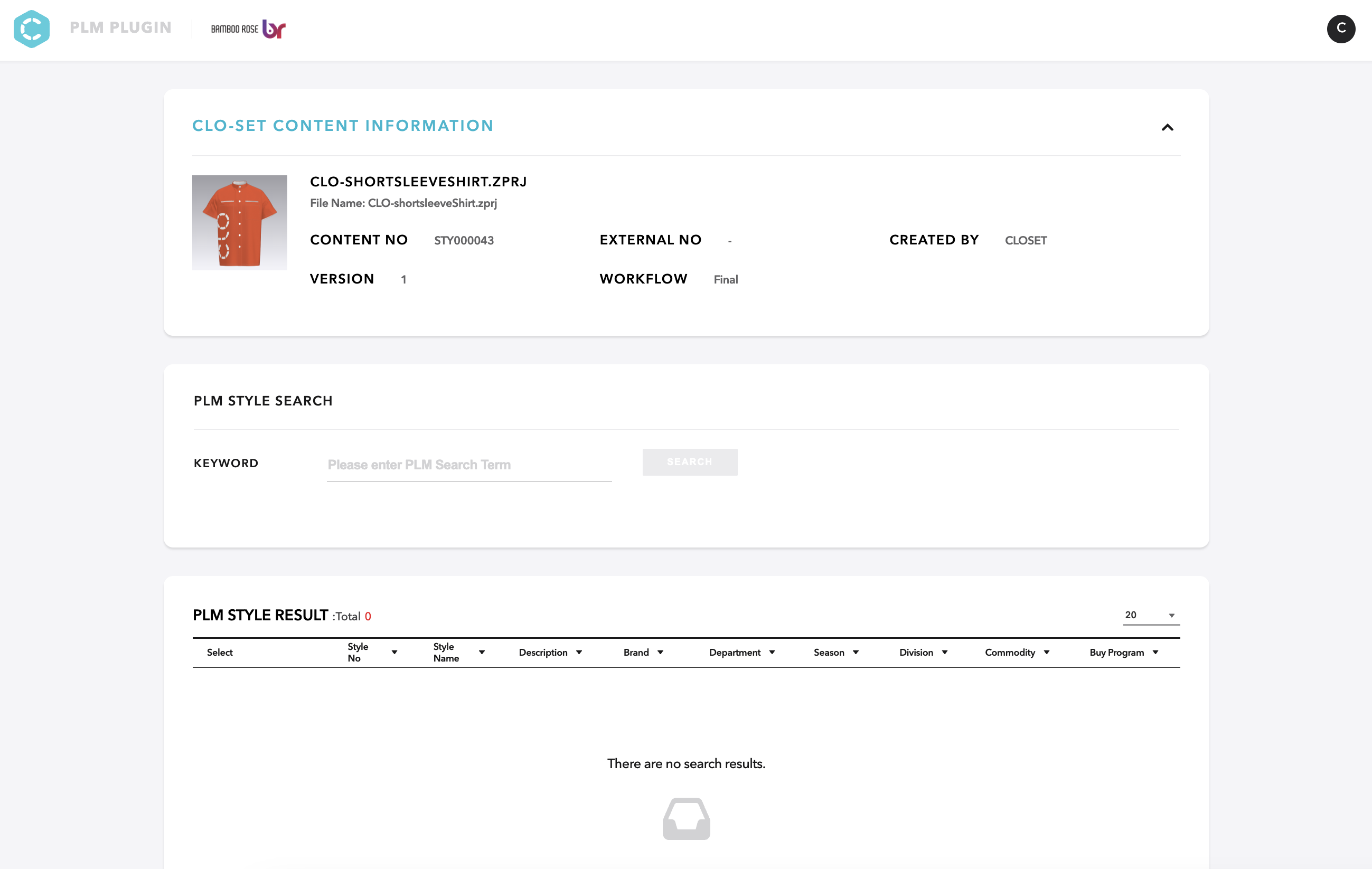

6. Plug-in Search Page
You will then be directed to the Search Page. Here, you can use PLM Search terms as Keywords to find the PLM Style.

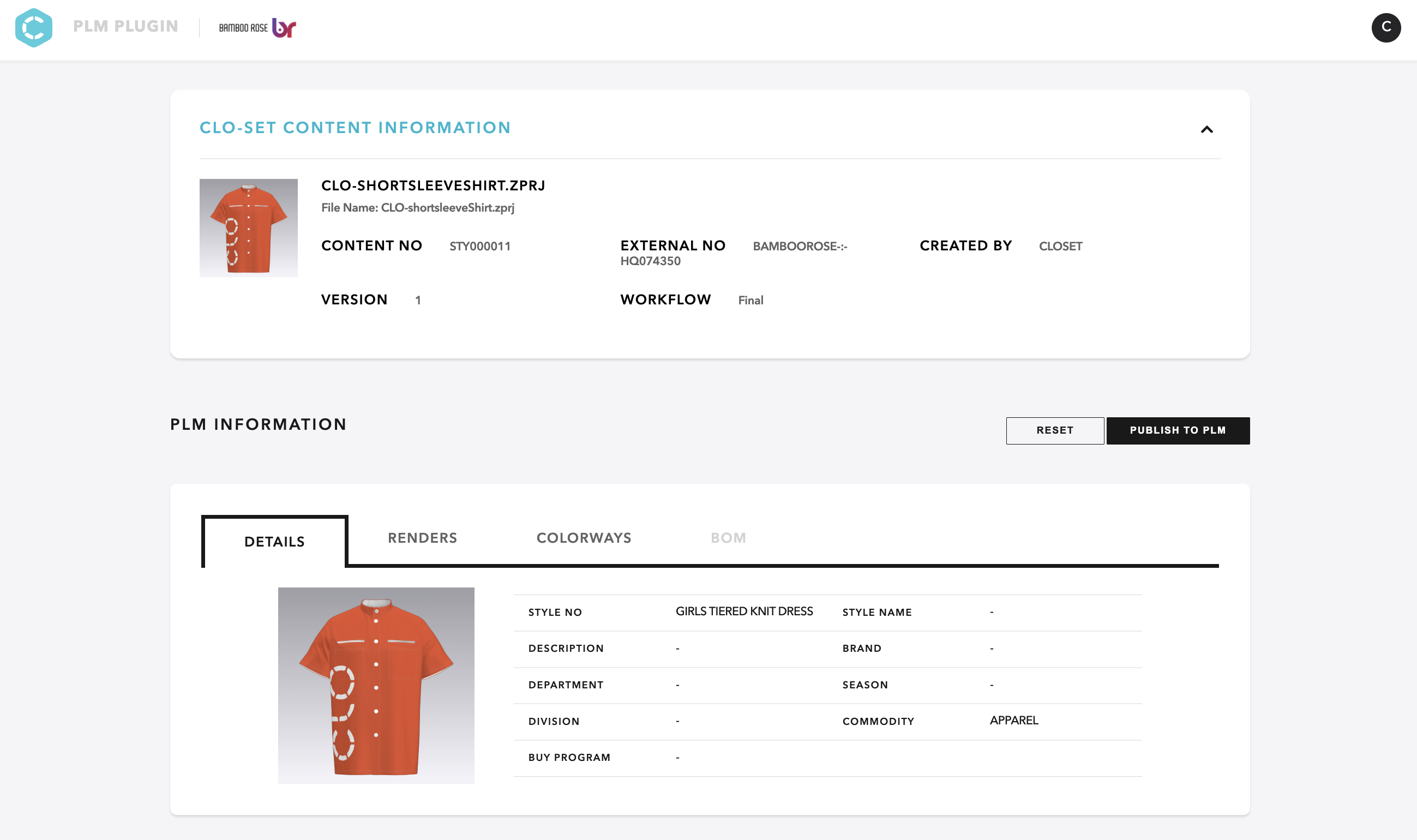

7. Plug-in Detail Page
Once PLM Style is selected, then you will be directed to PLM Detail page.
There are three enabled Tabs - Details, Renders, Colorways.
Renders from CLO-SET can be selected to be published to PLM.

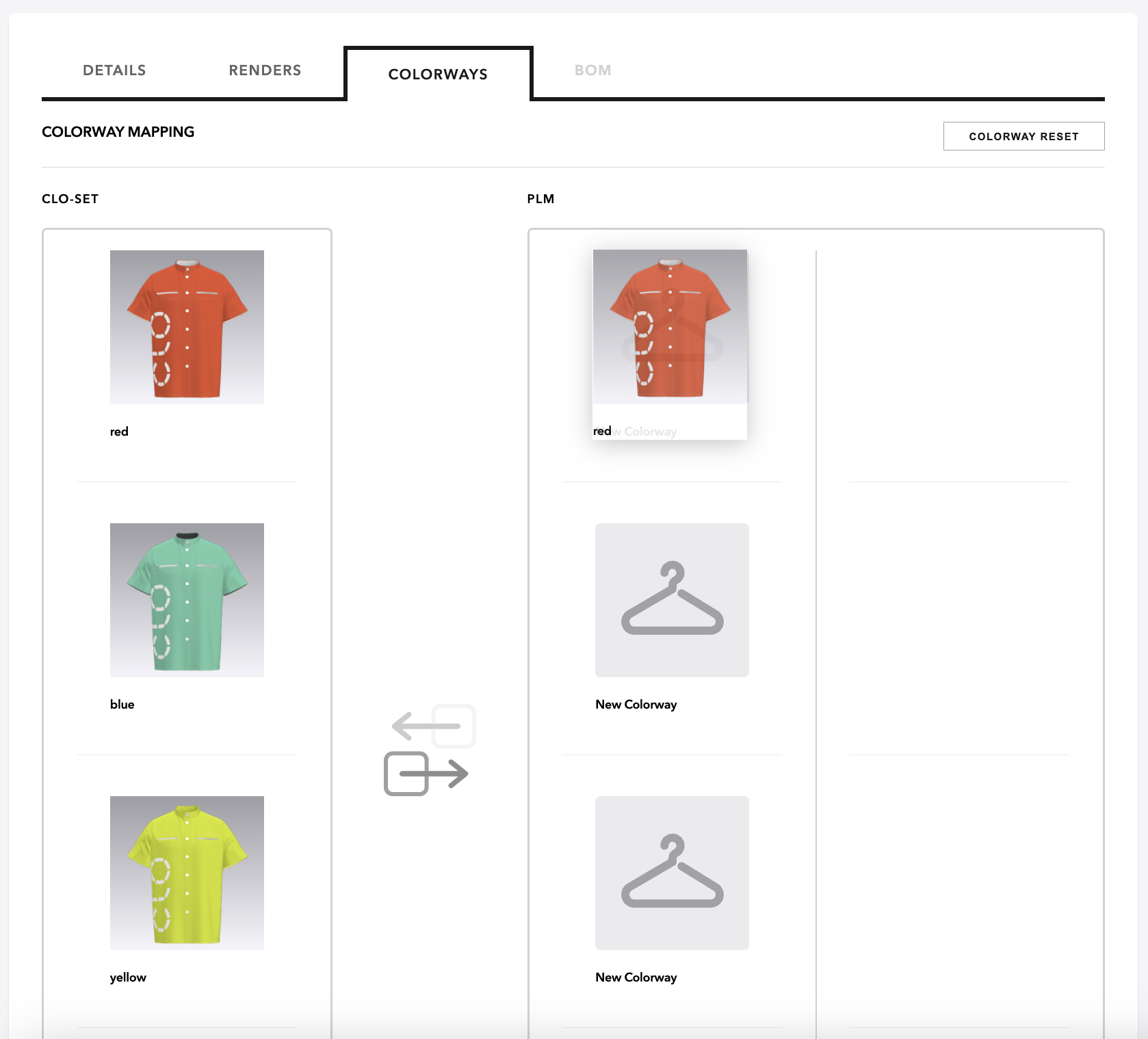

Colorways from CLO-SET can be created and published to PLM.
3) What is the roadmap for CLO-SET Plug-In?
We are looking forward to covering more and more scenarios of use cases.
And, although we are starting with Bamboo Rose, we plan to expand to other PLMs in the industry.
For the detailed User Guide and in-depth discussion of use of CLO-SET Plug-In, please contact hello@clo-set.com
