Updates
With this update, you can manually enter measurement data for content that currently has none to create a POM.

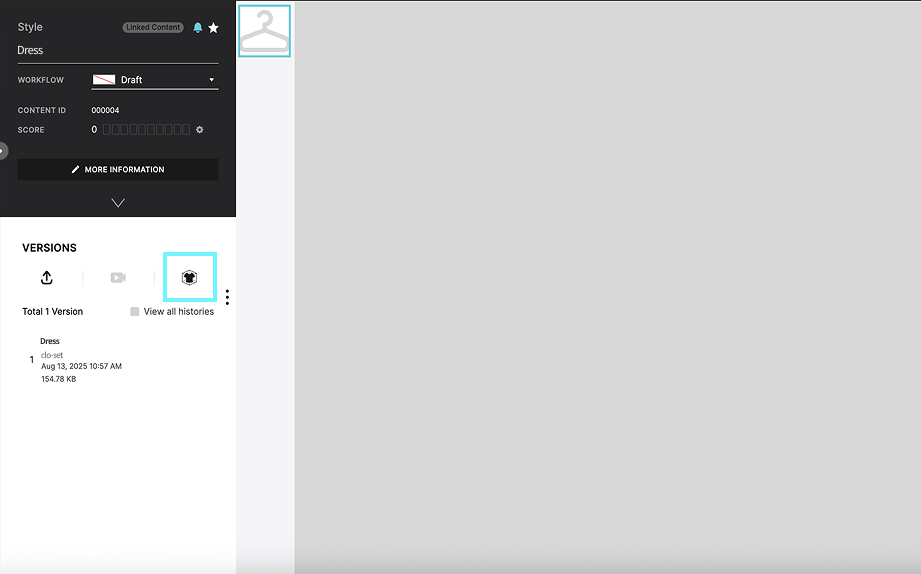

1) When the Content is Blank

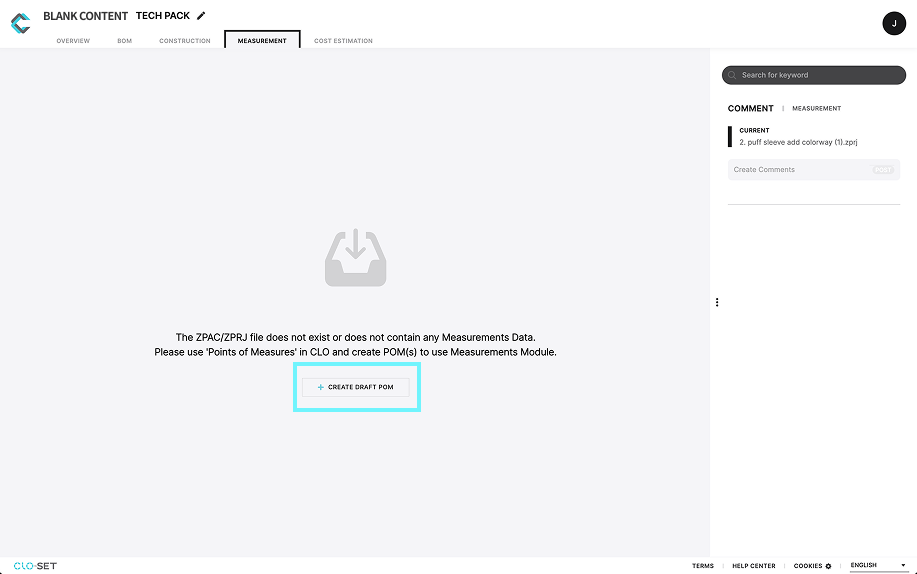

In WTP → Measurement tab, a guide message appears: “Create Draft POM.”
- Click the button to generate a Measurement Table.
- Click the button to generate more Rows and Columns.
Double-click each column to enter data: POM, Description, HTMComment, Tolerance, Target.

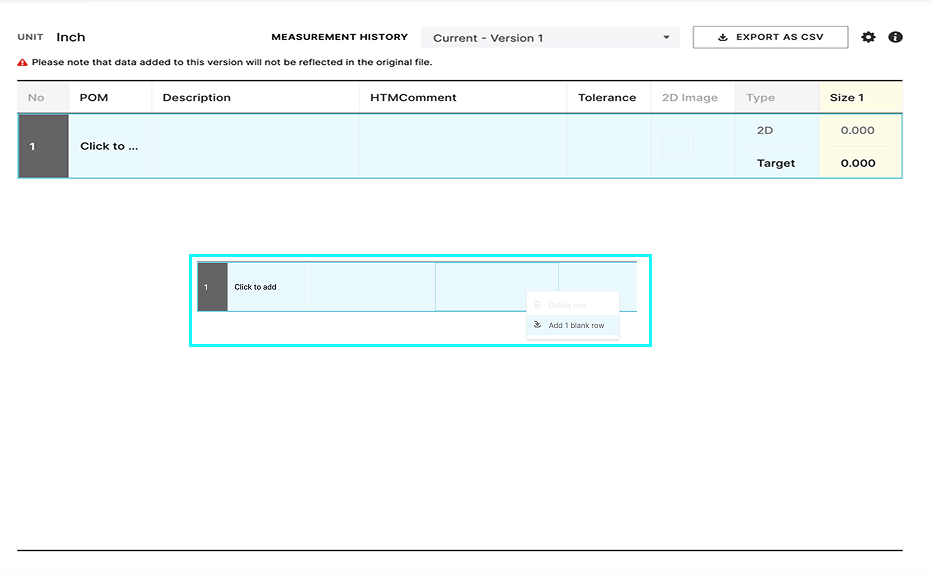

Right-click a row to open the context menu and Add Row / Delete Row.
Right-click a Size column to open the context menu and Add Column / Set Base / Delete Column.
Note: For blank content, the 3D viewer is not available.

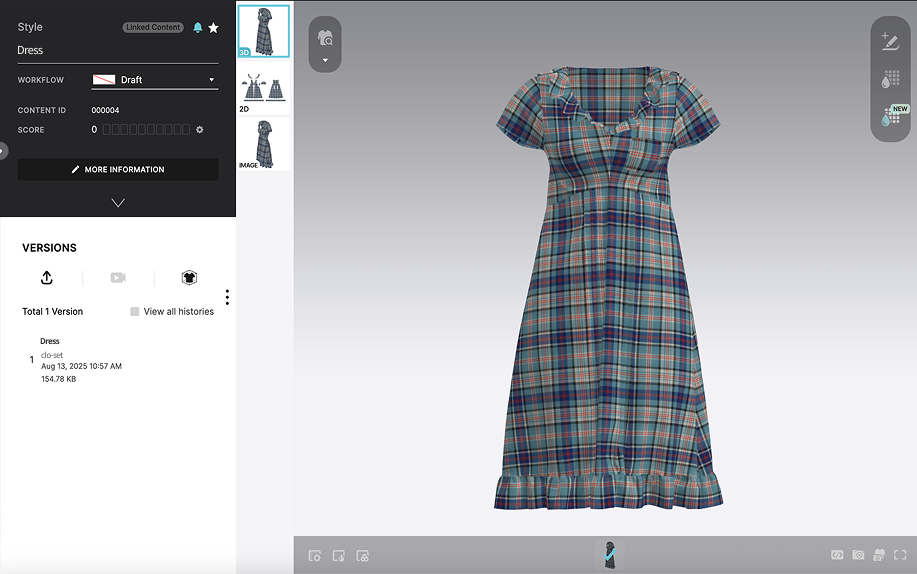

2) When the 3D file has no Measurement Data
In WTP → Measurement tab, the guide message “Create Draft POM” appears.
Click the button to generate a Measurement Table.
Double-click each column to enter data: POM, Description, HTMComment, Tolerance, Target.
💡 Note

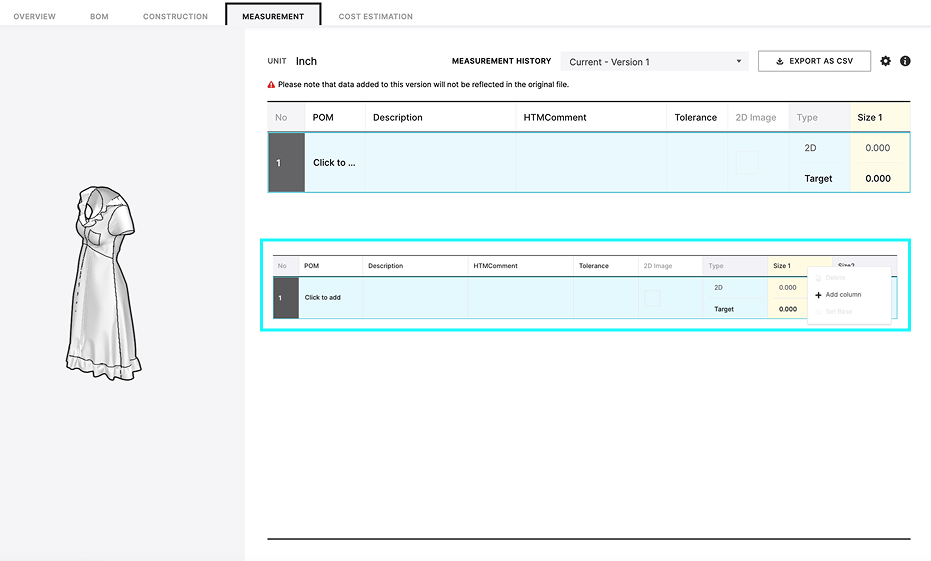

* If the file is a 3D file, the 3D viewer appears on the left.
* Right-click a row to open the context menu and Add Row / Delete Row.
* Right-click a size column to open the context menu and Add Size Column / Set Base for the size column (base for grading)
* Click Export as CSV in the upper right corner to download the file.

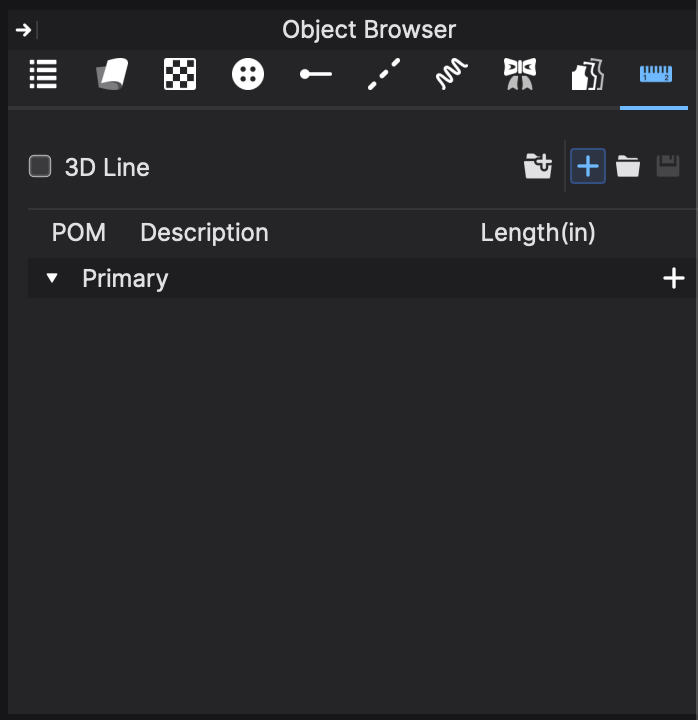

Once the POM creation is complete, you can upload the csv file and to import the POM data from the Object Browser in CLO software.
Currently, CLO3D can only read in the POM and Description data. The Length data is not yet reflected into CLO3D.
3) Version update policy
Version updates follow the same rules as the BOM table:
The update is based on the latest WTP file.
Items added in the previous version are carried over to the new version.
Carried-over items are listed at the bottom of the table.
Duplicate entries cannot be automatically distinguished.
After the version update, editing the previous version is disabled.
