📍 Review your 3D designs in CLO-SET

📓 Details

•3D Viewer

1. From your Workroom or Dashboard, click the Content to enter

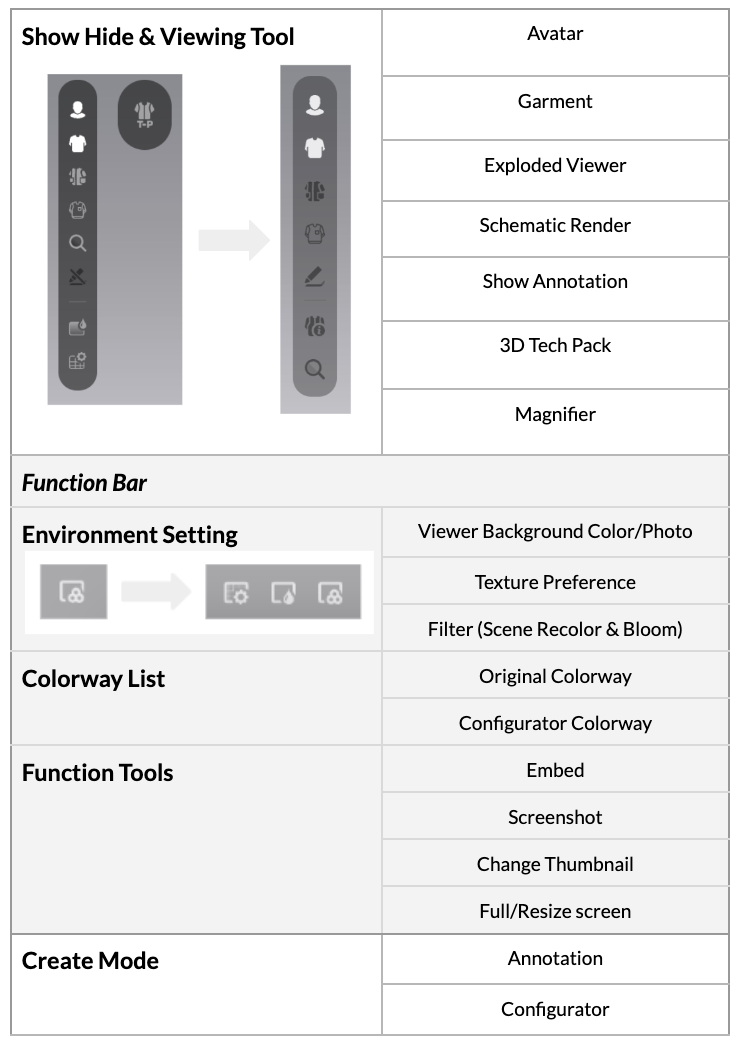

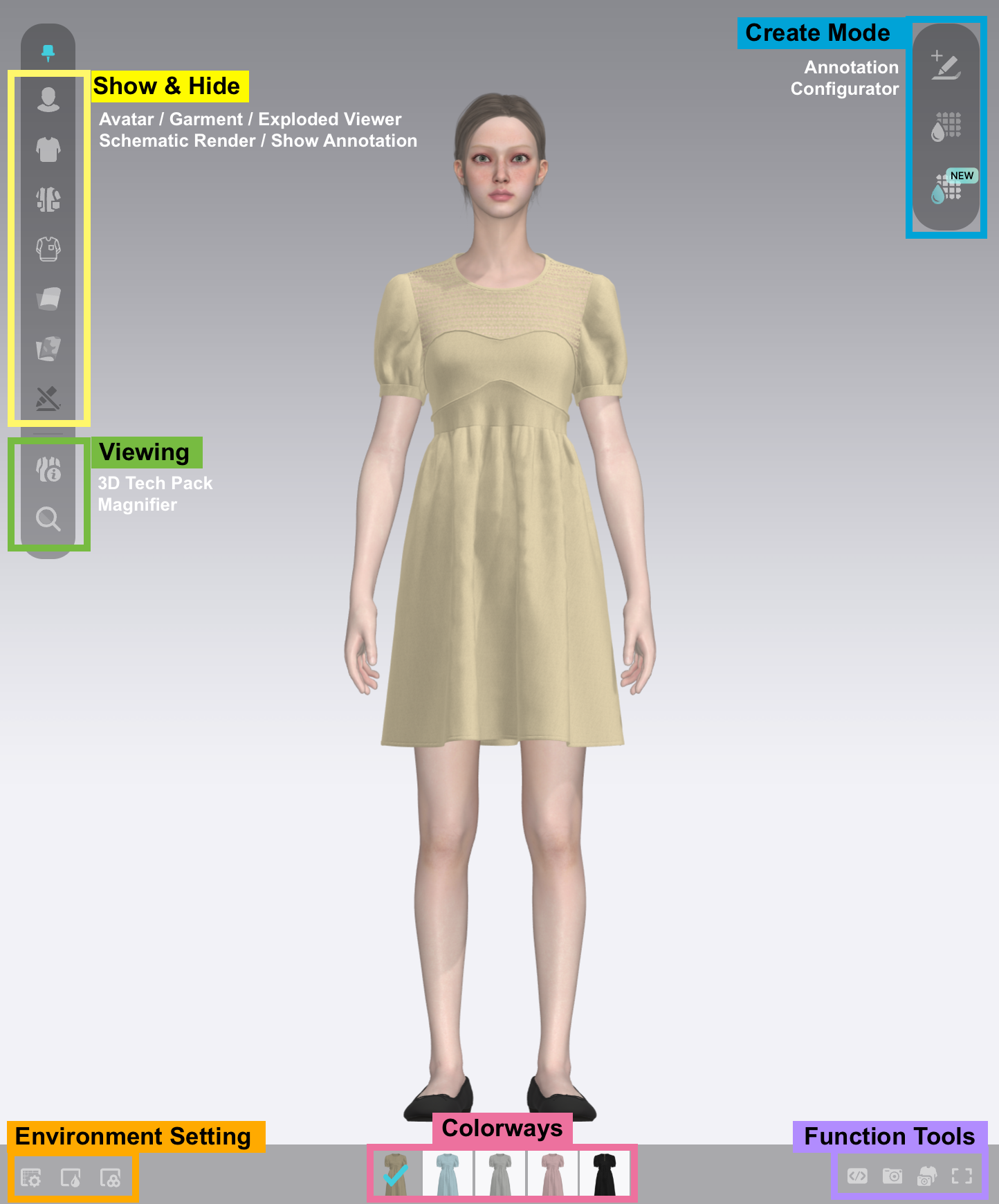

2. Click the viewing tools, function bars, and create mode to review and explore the design

3. Rotate the garment, or zoom in & out to view the design in detail

Mouse / Keyboard		3D Viewer
Roll up/down the Cursor		Zoom in / Zoom out
Hold down the cursor wheel and drag		Pan 3D View
Hold down the right click and drag		Rotate 3D View

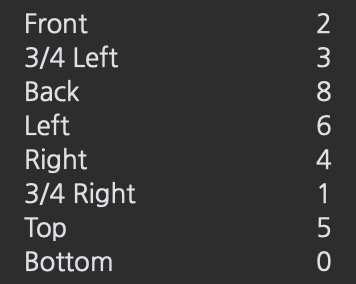

Number keys	🔢

*For details on Mac Navigation, please find the attached PDF file

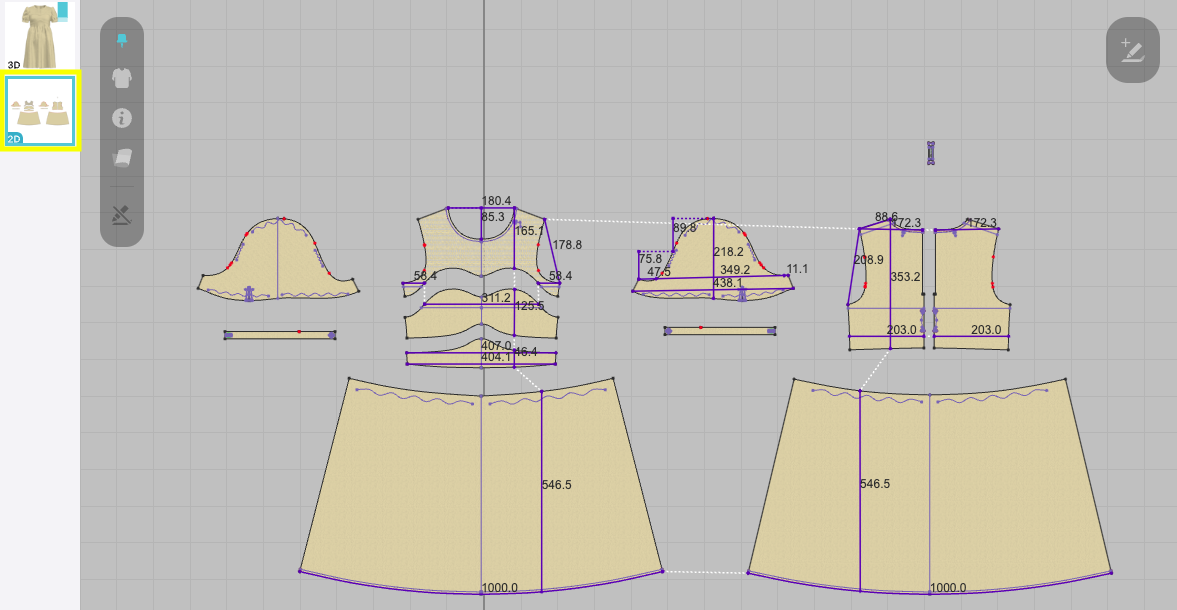

•2D Pattern Viewer

1. On the Content page, click the '2D' thumbnail button to begin

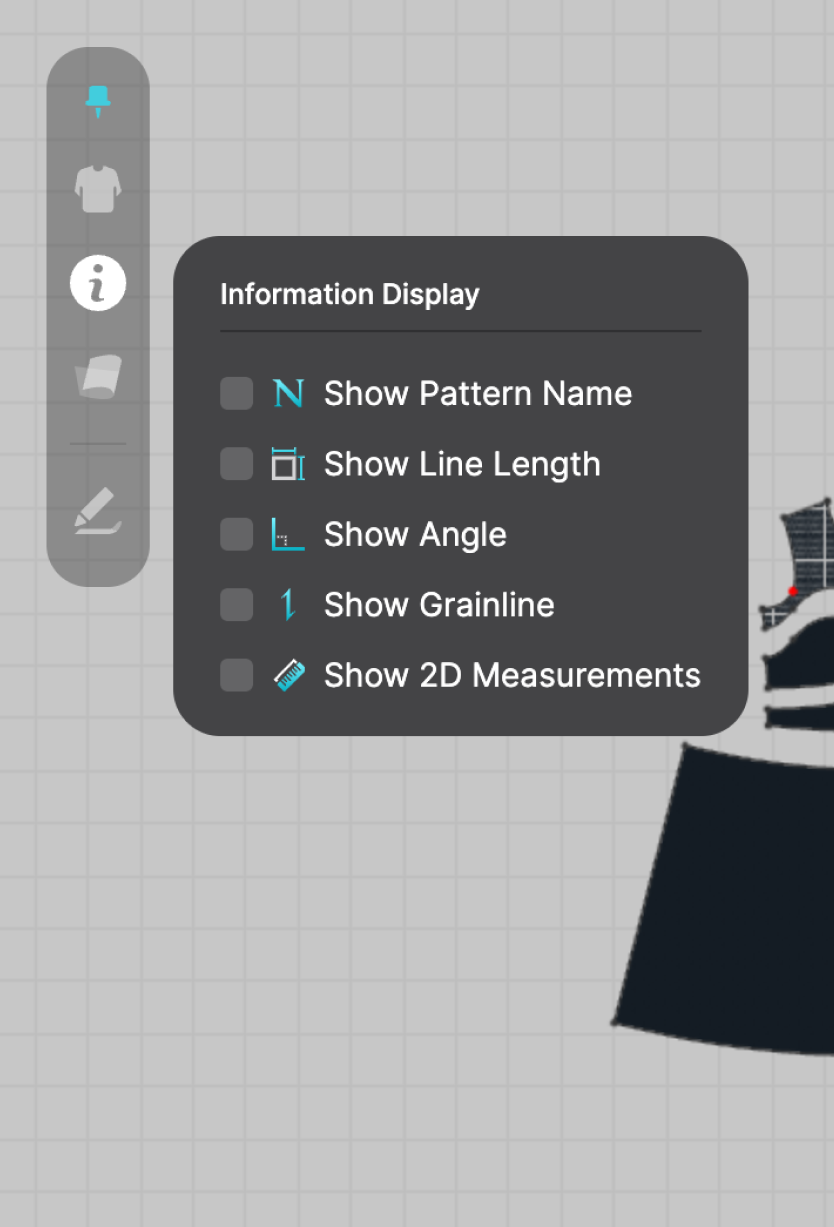

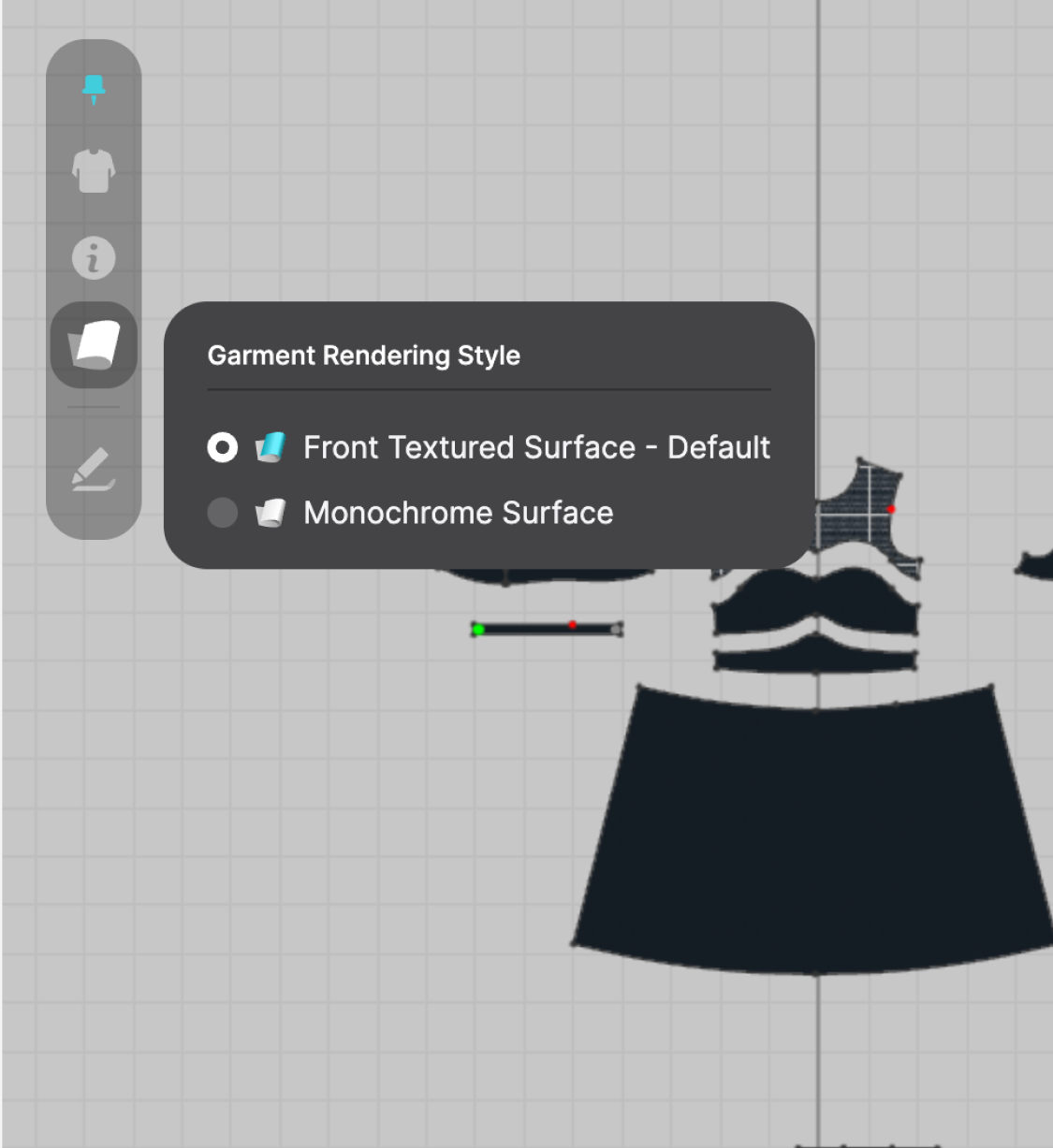

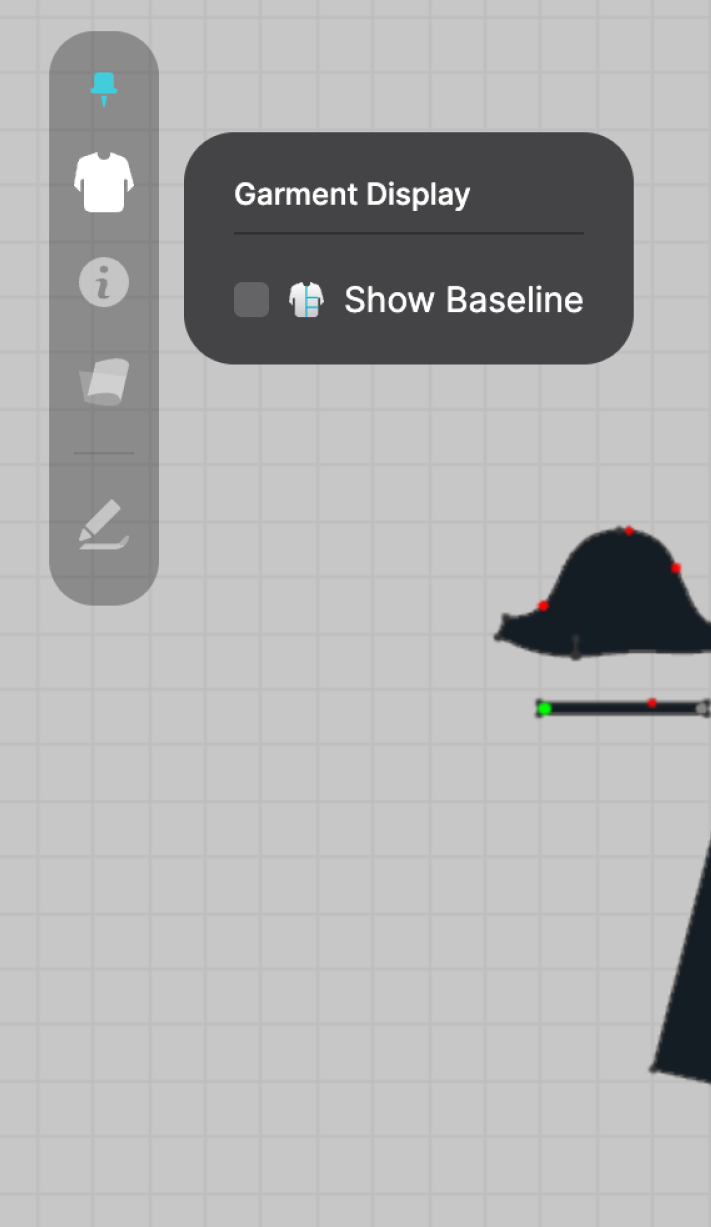

2. On the Viewer, find the display toolbar to control the view

3. Pan or zoom in & out to view the 2D patterns in detail

Mouse / Keyboard

3D Viewer

Roll up/down the Cursor

Zoom in / Zoom out

1) Wheel Click + Move Mouse

2) Alt (Option) + Left Mouse Button + Move Mouse

Pan 2D Pattern View

•Render Viewer

For Contents that have been Rendered in CLO-SET, you can review the Render online.
On the content page, click the Render viewer from the viewer list to enter
Click the Colorways at the bottom to switch the view

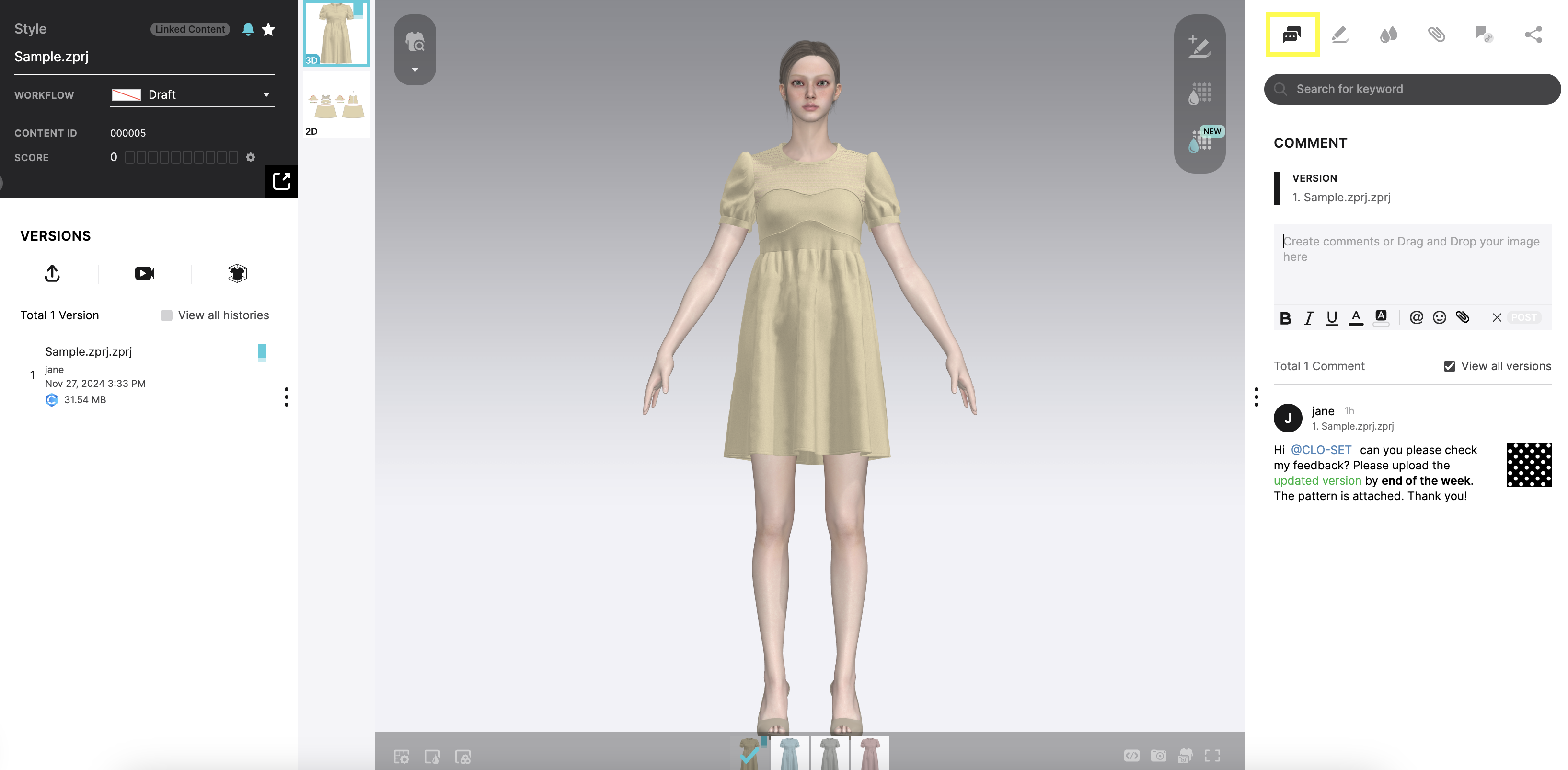

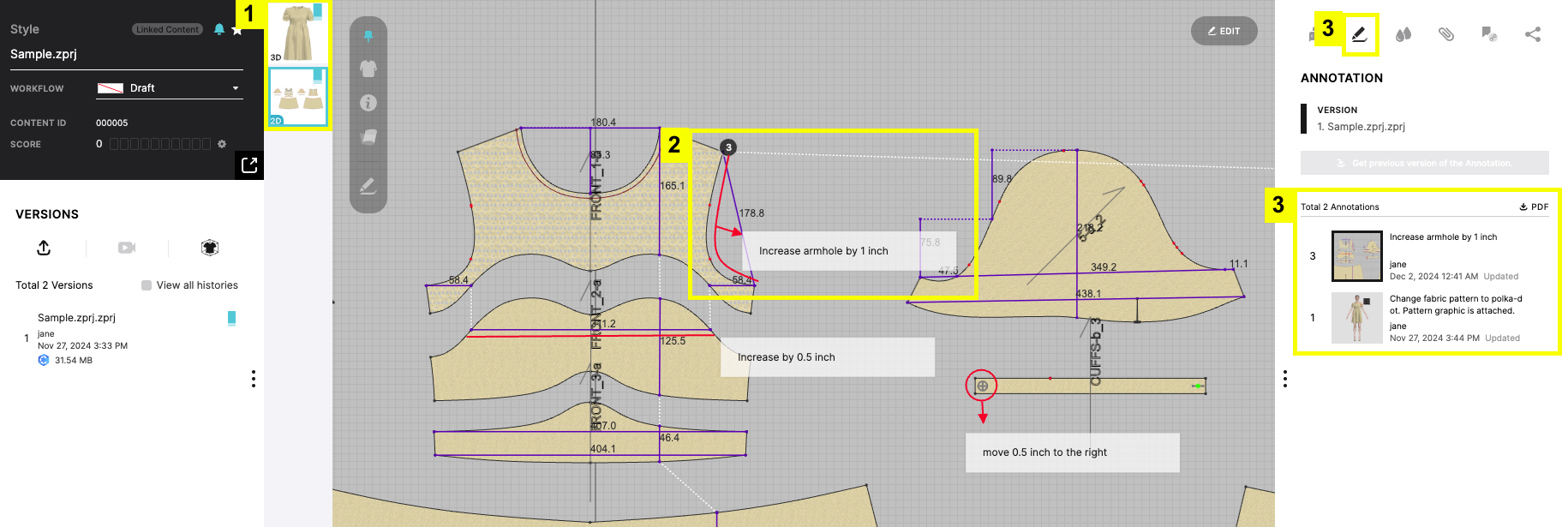

• Share Feedback (Annotation / Comment)

Share your feedback by creating Annotations or leaving Comments. Both options compatible with all viewer types (3D / 2D Pattern / Render).

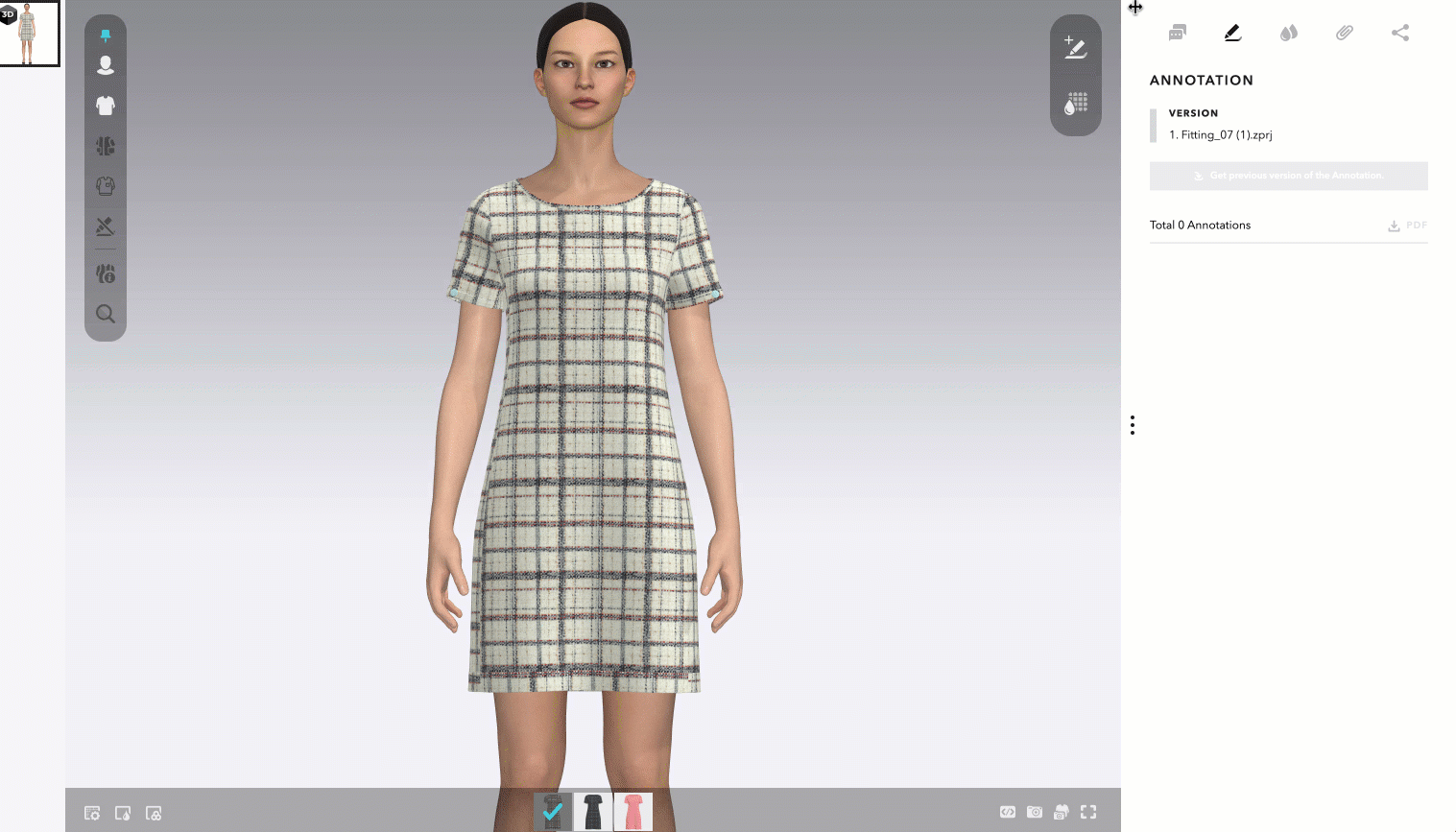

Click on the Annotation icon () at the top right corner of the 3D Viewer or 2D Pattern Viewer
Click 'Complete' to save the annotation

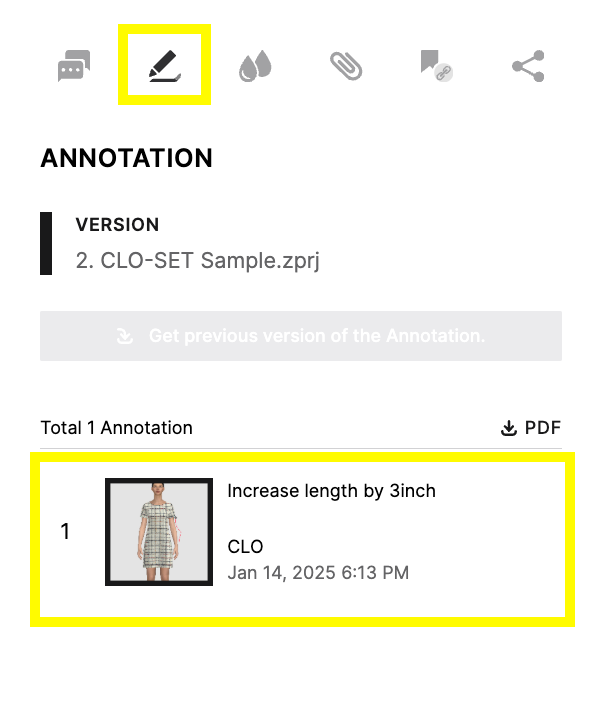

Once saved, click the Annotation icon () on the right pane to view the list of Annotations
