📍 Learn how to use Render Preset feature to standardize the Rendering results within the team.

• What is Render Preset?
• Upload Render Preset
• Using Render Preset
• Property List

📓 Details

• Render Preset helps standardize the Render Properties for a cohesive output generation

• Render Preset allows users to apply detailed Render Properties when Rendering in CLO-SET

1) Save as ZVRP in CLO3D

• To start using the new Render Preset feature in CLO-SET, you will need a ZVRP file.

►

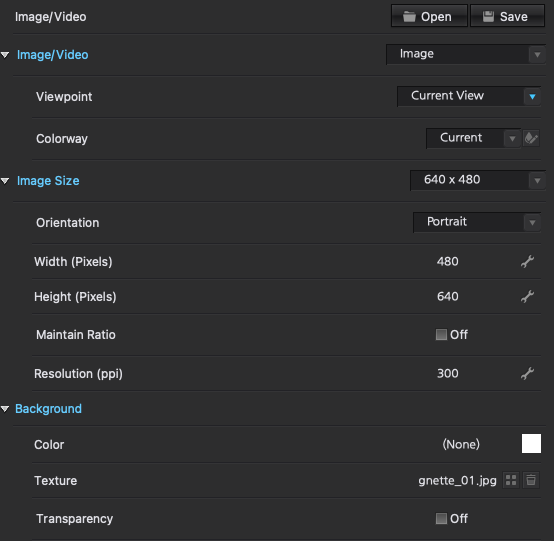

• On CLO3D software, adjust Render properties per your needs on the Property Editor

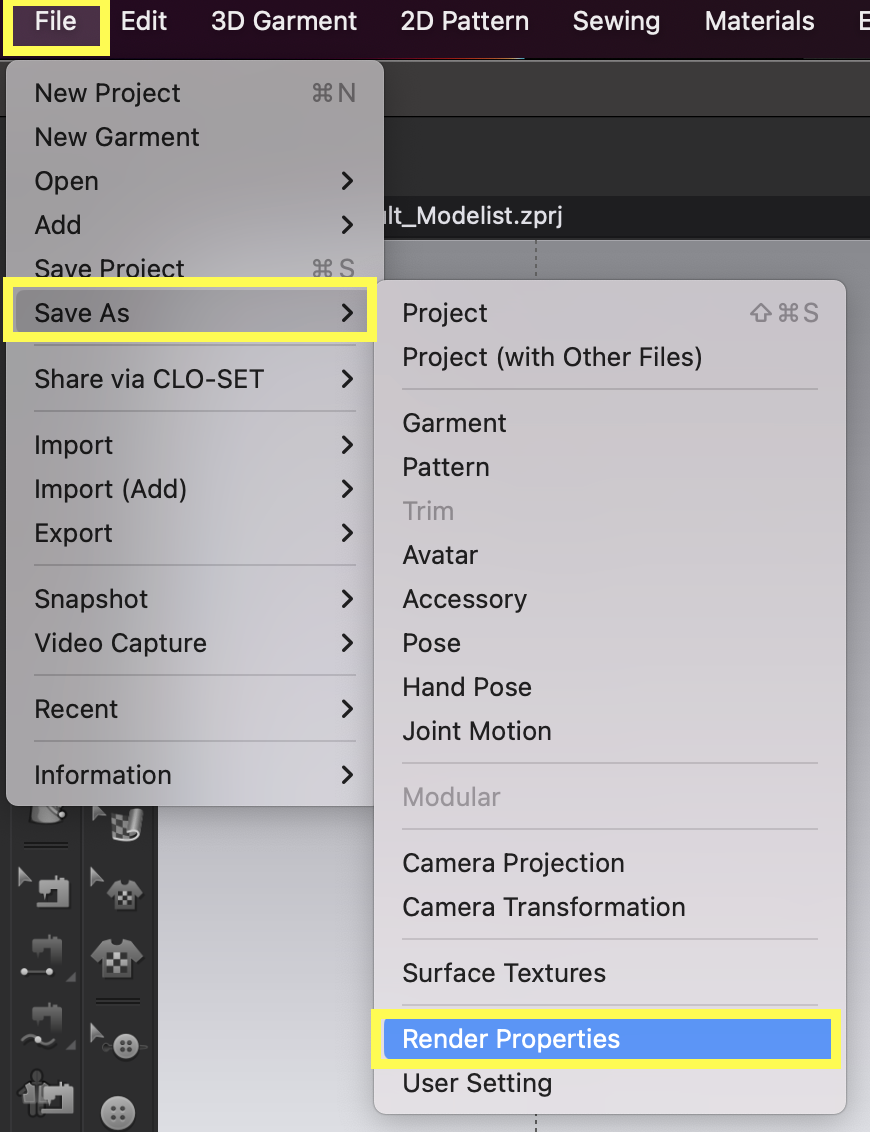

• Once you are done, click Save As > Render Properties to save as ZVRP file

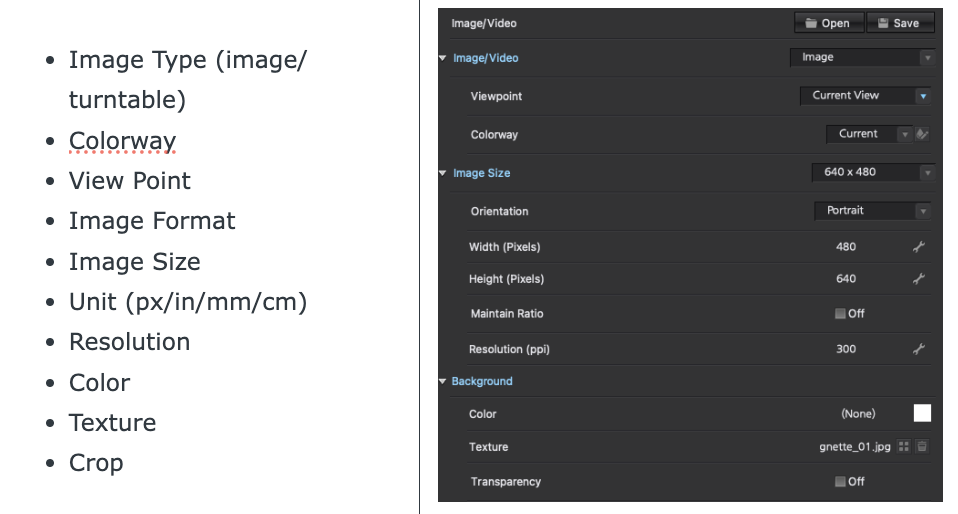

• The saved ZVRP includes Image/Video, Camera, Light, and Render properties
• A few requirements for CLO-SET:
  • Image count for Turntable must be less than 64
  • Image size must be less than 5,000px
  • Animation type can not be rendered
  • *Please note: If you select the 'Current View' option from CLO3D, CLO-SET Render will be based on the last view each user sees on their CLO-SET 3D Viewer.

2)Upload Render Preset in CLO-SET

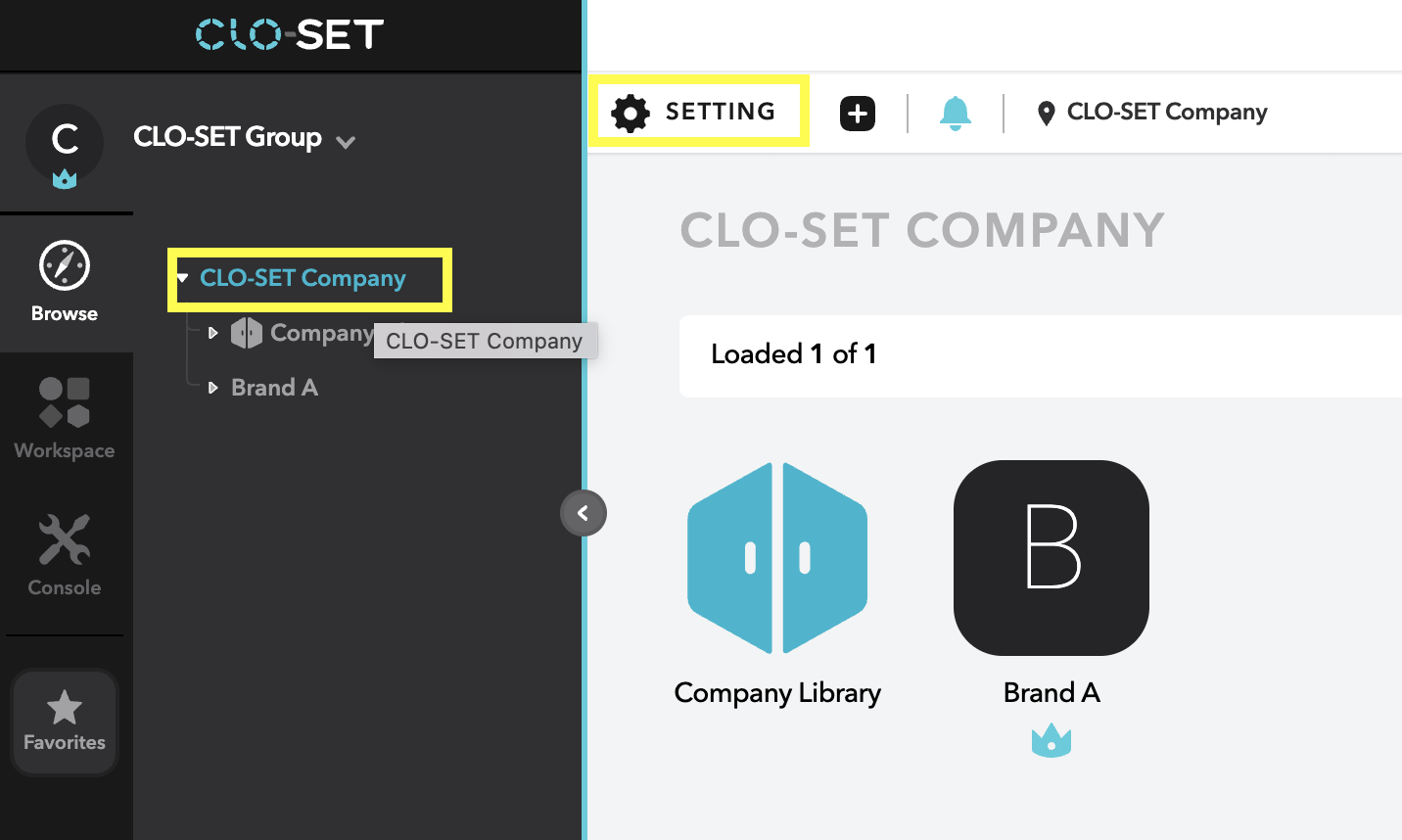

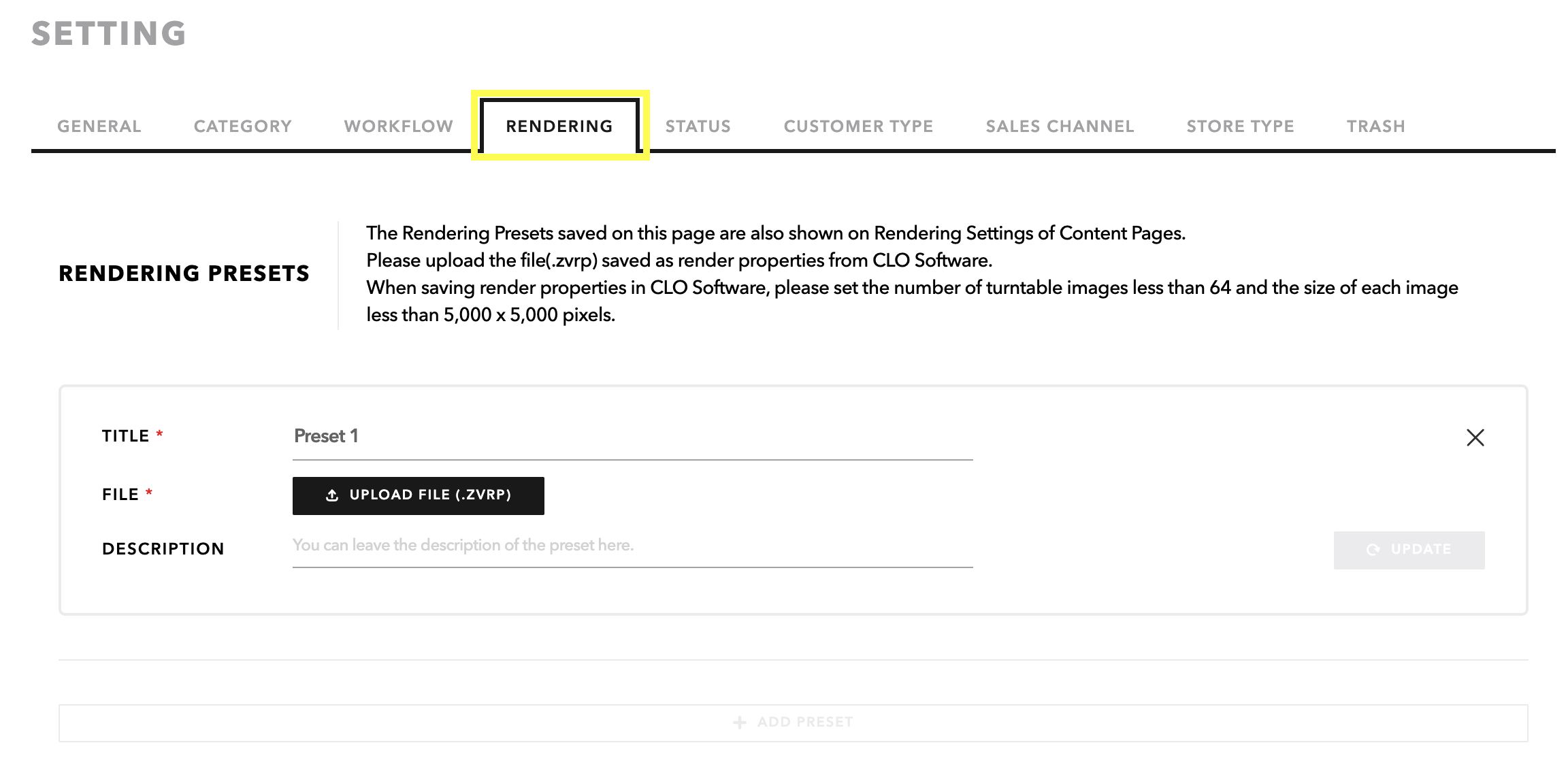

• Click on your Company > 'Settings' > 'Rendering' to Add/Edit/Delete Render Preset.
  • Please note: Company Settings are accessible to Company Admin only
• Click on 'Upload File' to add a Render Preset. You may add up to 32 files.

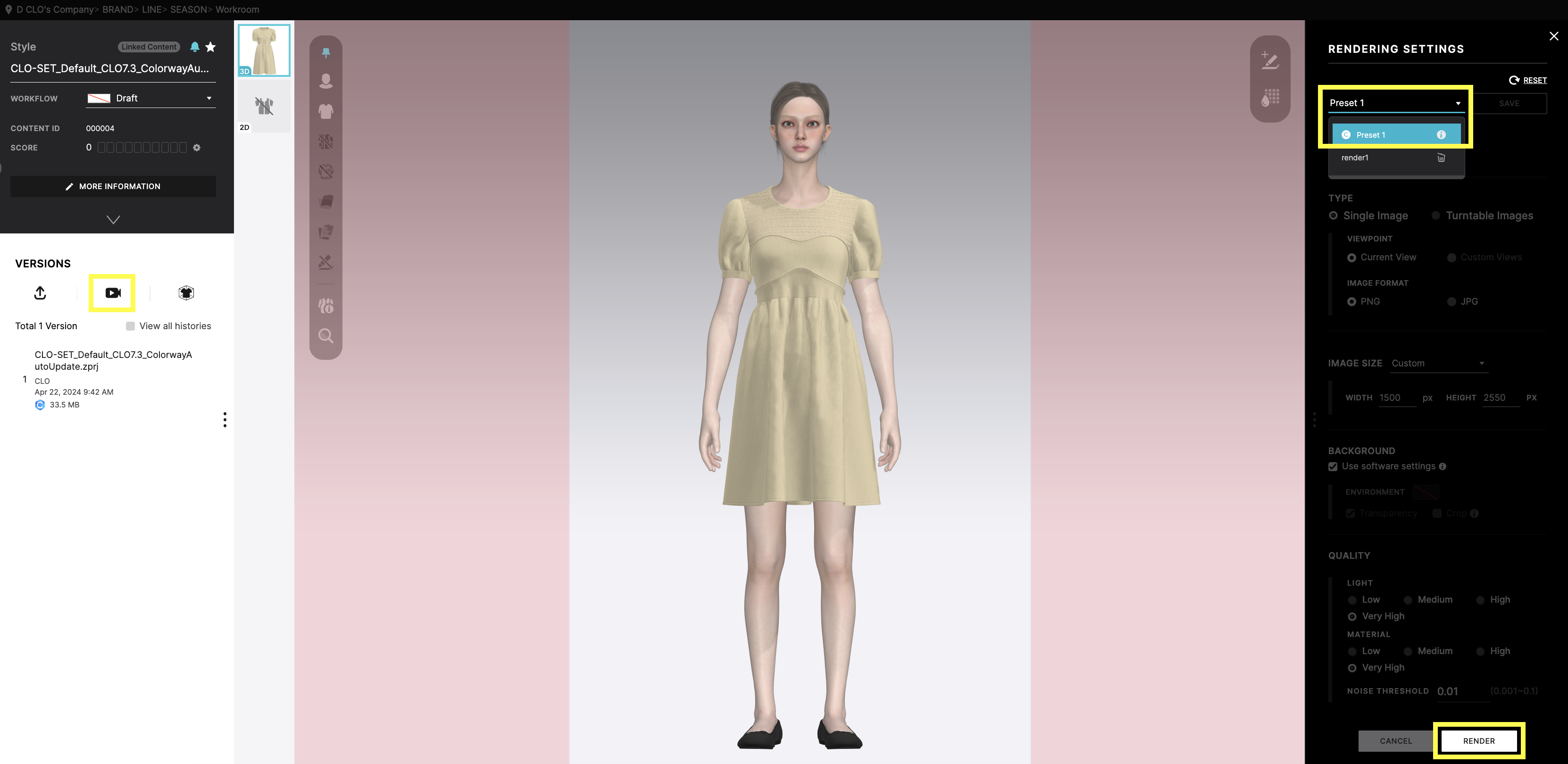

• On your Content Page, click on Render to select the Render Settings.
• On the drop-down menu, you will see the Company Preset (with  icon)

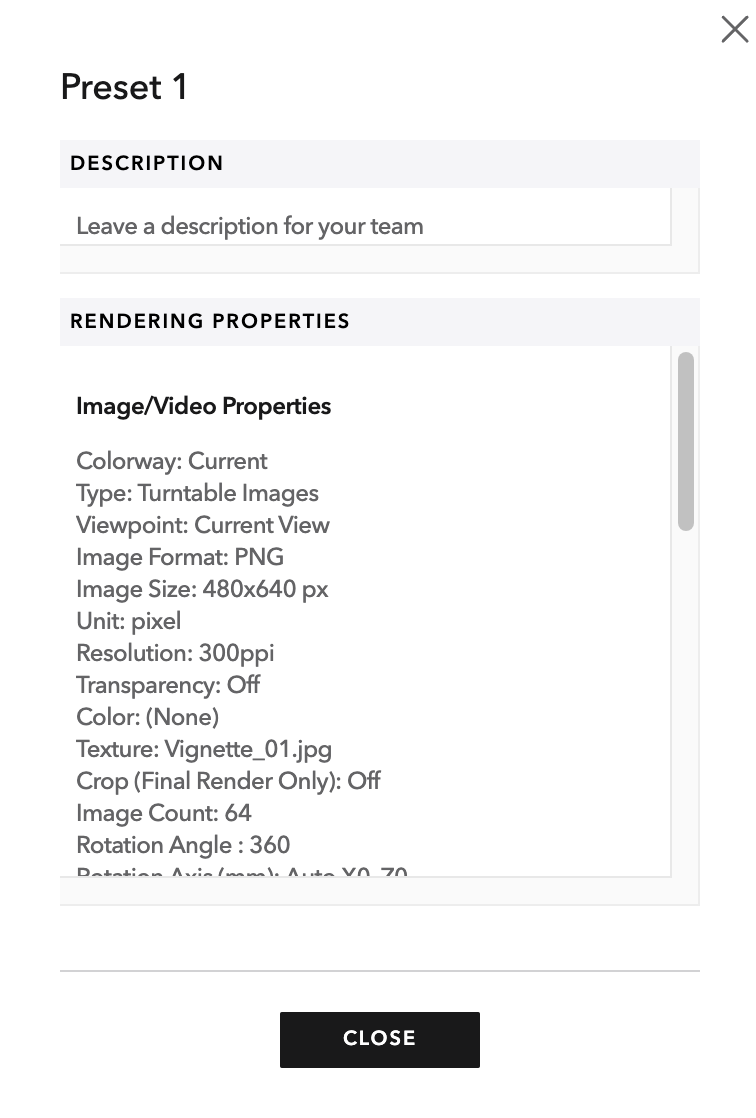

• Once you select the Company's Render Preset option, you can not change the Render Settings. You may check the Property details by clicking on the 𝒊 icon.

• To view the full list of properties saved in a ZVRP file, please visit Render Preset Guide
