Content: Compatible with Contents uploaded on or after Apr 28th, 2025. Please re-upload older files.
Updates
With this update, you can now move, scale, or rotate Graphics online, real-time.
Details
1) Graphic Editor: How To
-

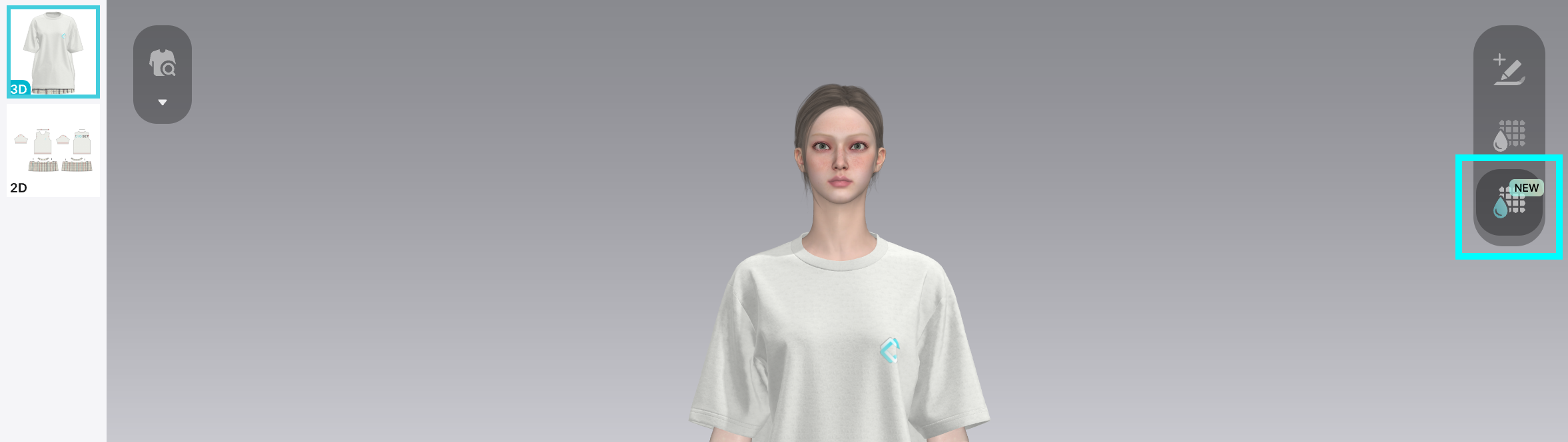

Enter: from Content Page, click on the 'New Configurator' button on the right toolbar.
- Note: New Configurator is compatible with .zprj/.zpac files saved on CLO 2024.1.244 or above

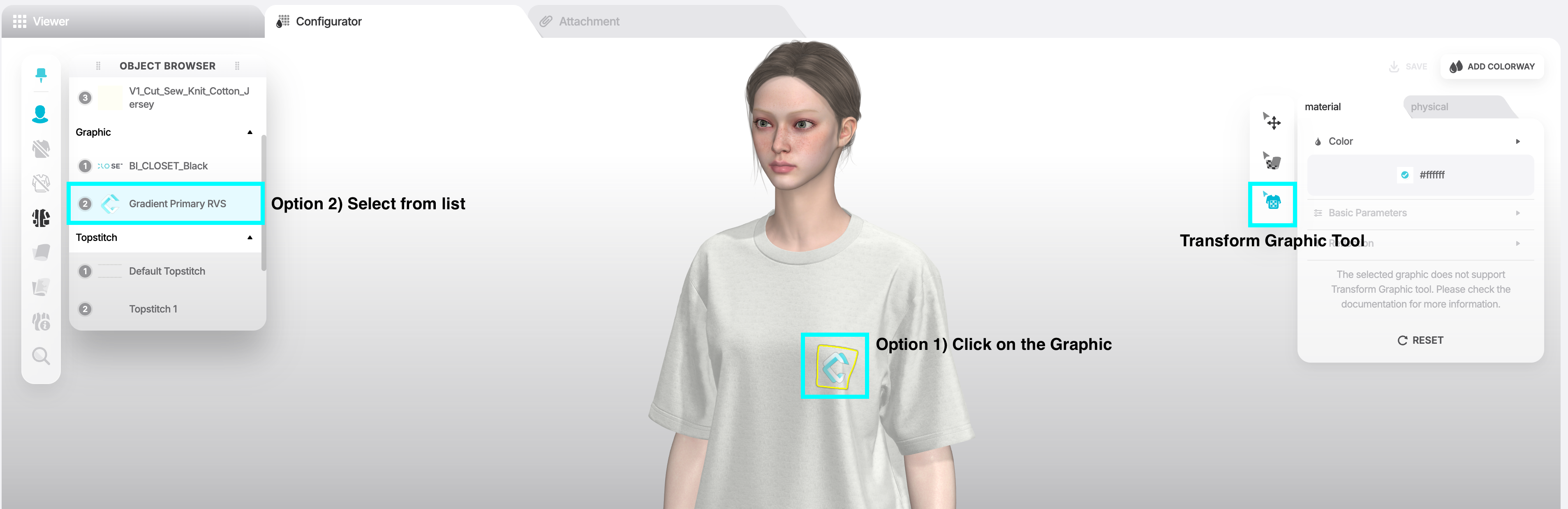

- Select: Click on the graphic directly, or select the graphic from the object browser.

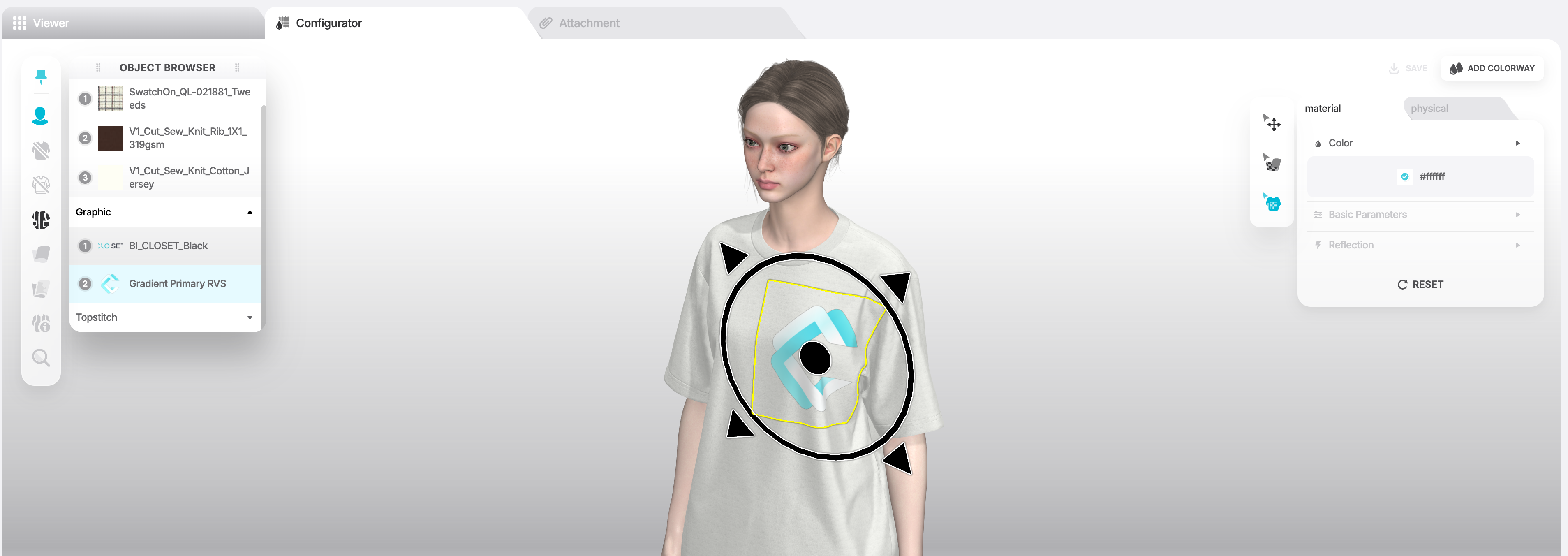

- Edit: Click and drag the Gizmo to adjust the Graphic:
-
- Triangle ▲ - Uniform scale, adjust width & length in fixed ratio
- Outer Circle ⦿ - Rotate the angle of graphic
- Inner Circle • - Changes the position of graphic
-

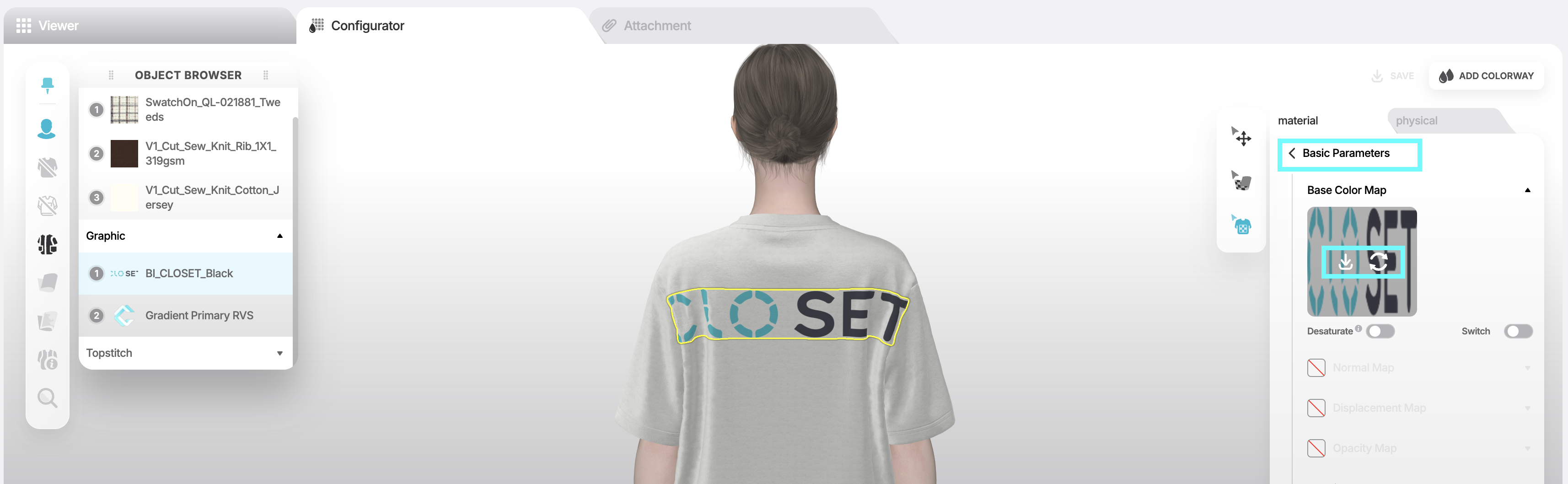

Change: Select the graphic and click 'Basic Parameters' from the right pane.
- Download: download the graphic file currently in use
- Change: upload a new graphic to replace current graphic
2) Graphic Requirements

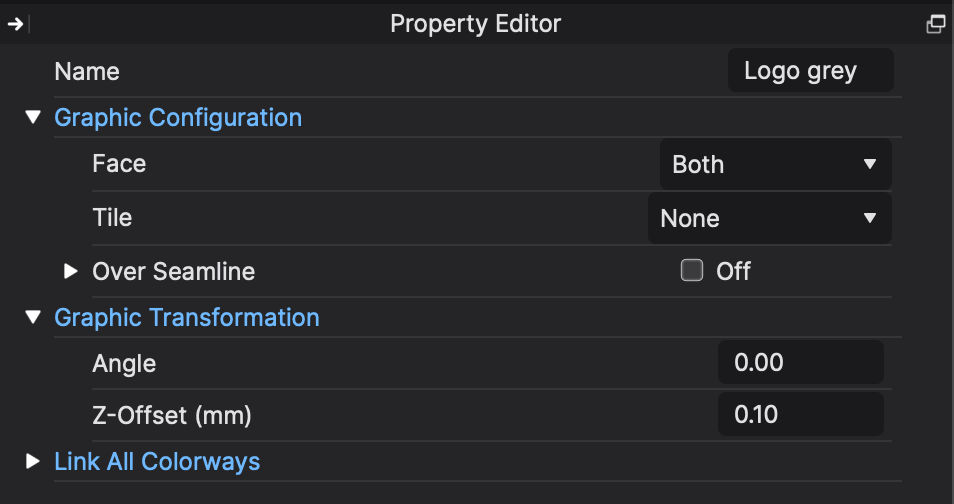

Graphic properties must meet below requirements to use CLO-SET Graphic Editor:
- Tile = None
- Over Seamline = Off

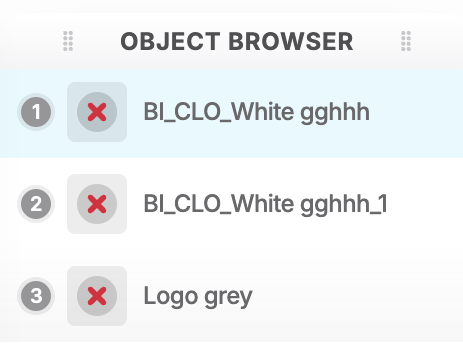

If not met, Graphics will be marked ❌ from the object browser, and you can only adjust the Color of the graphic in CLO-SET. Please make changes on the .zprj/.zpac file from CLO3D software.

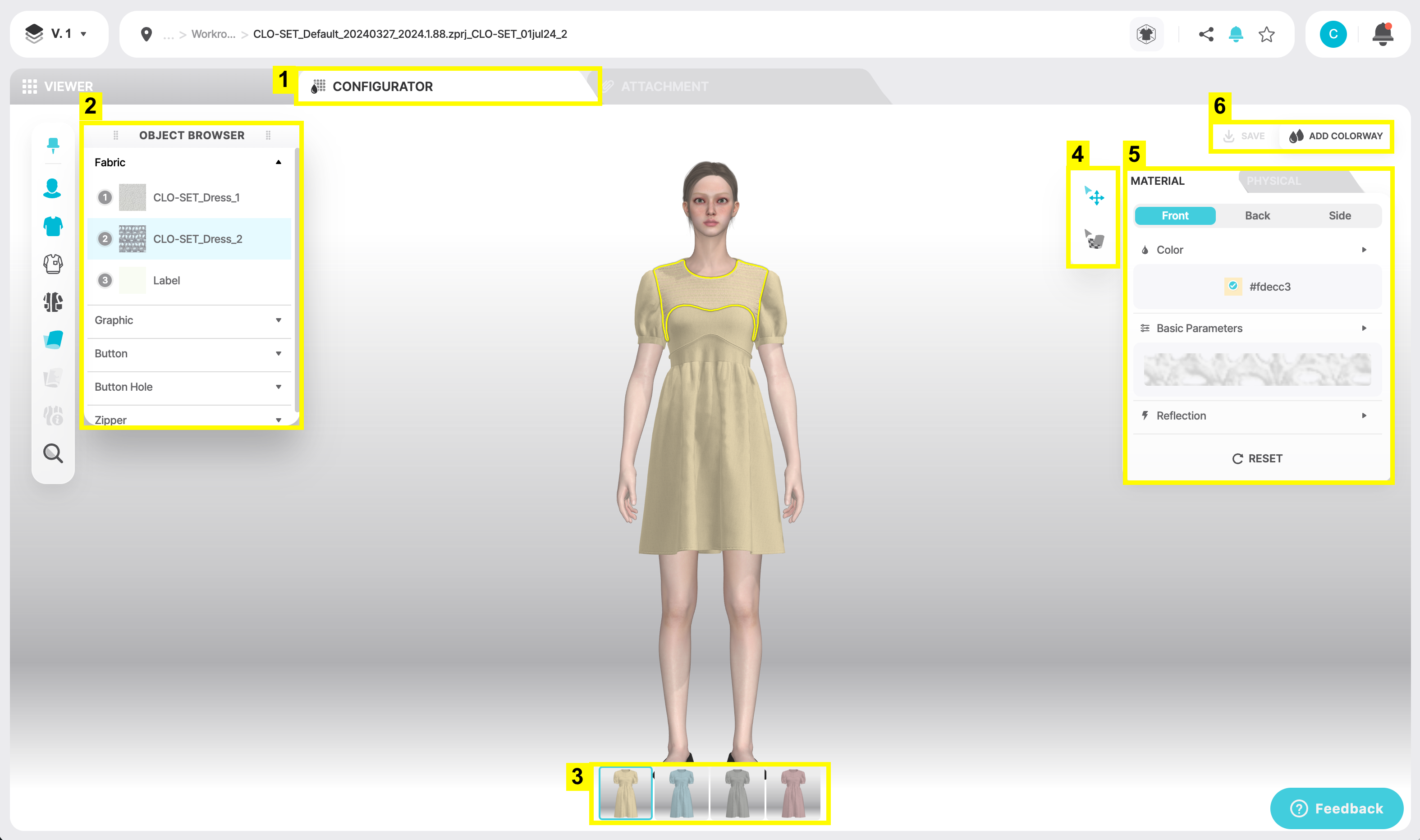

3) New Configurator Guide
Graphic Editor is just one part of the CLO-SET New Configurator. Learn about the full potential.
