📝 List of Contents

📍 Understand various types of Tech Packs available in CLO-SET

• Web Tech Pack
• Excel Tech Pack

📓 Details

CLO-SET Web Tech Pack is an online tech pack generated from your 3D garment data. Review, edit, and communicate with the team online, for a streamlined workflow

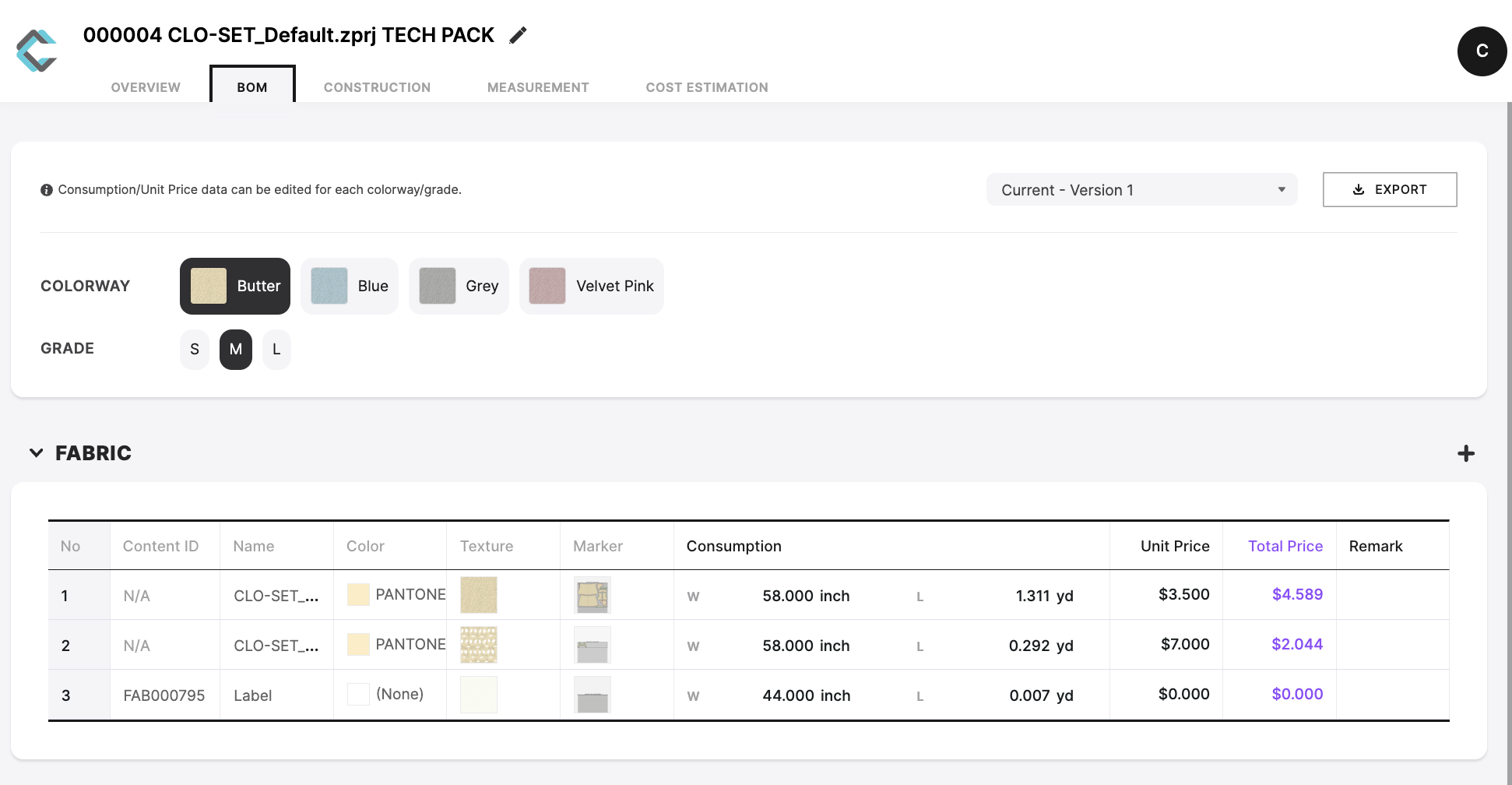

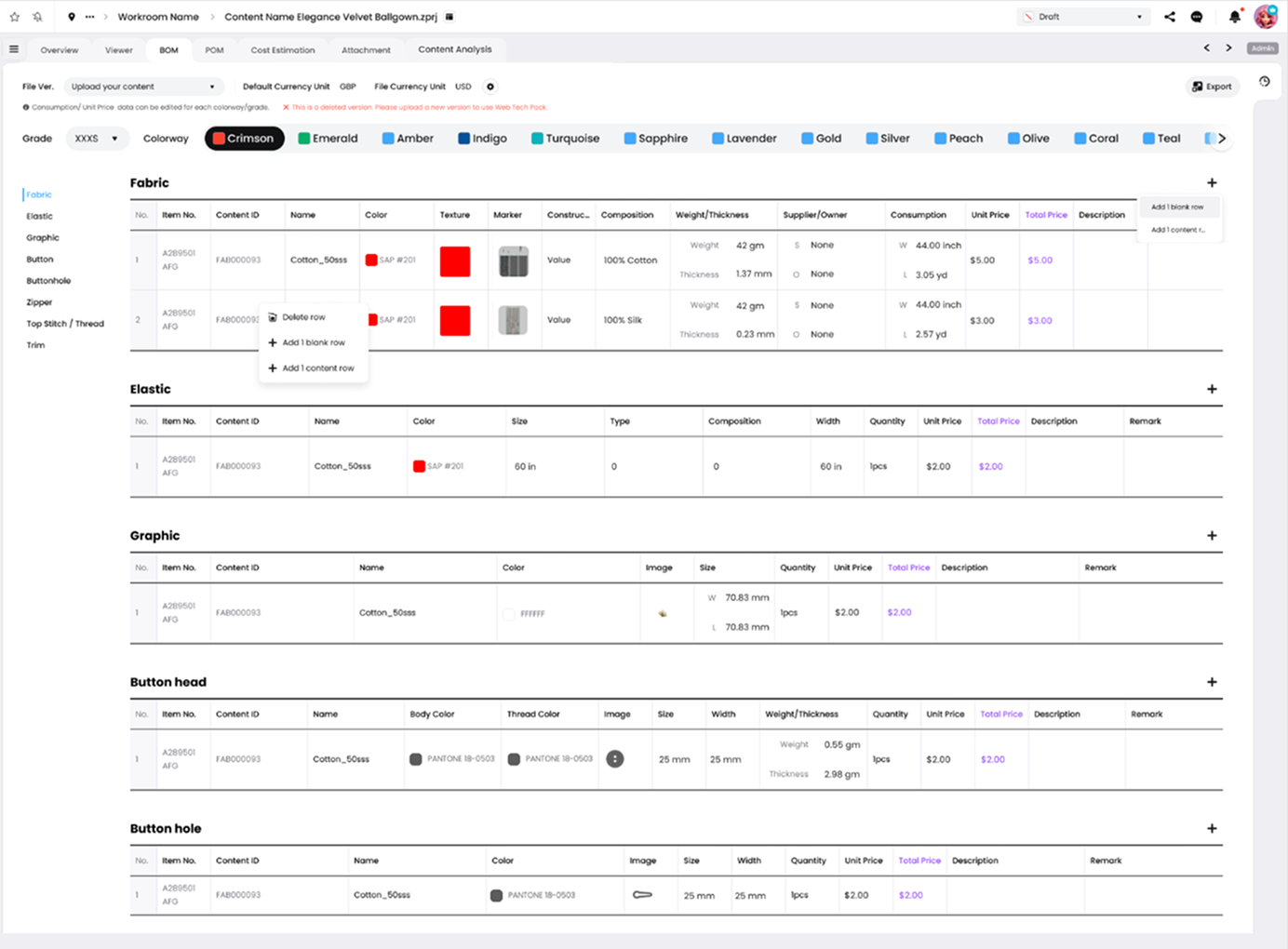

• Bill of Materials & Cost Estimation
  • Manage BOM and estimated cost data, per each colorway & grading

💡 Note

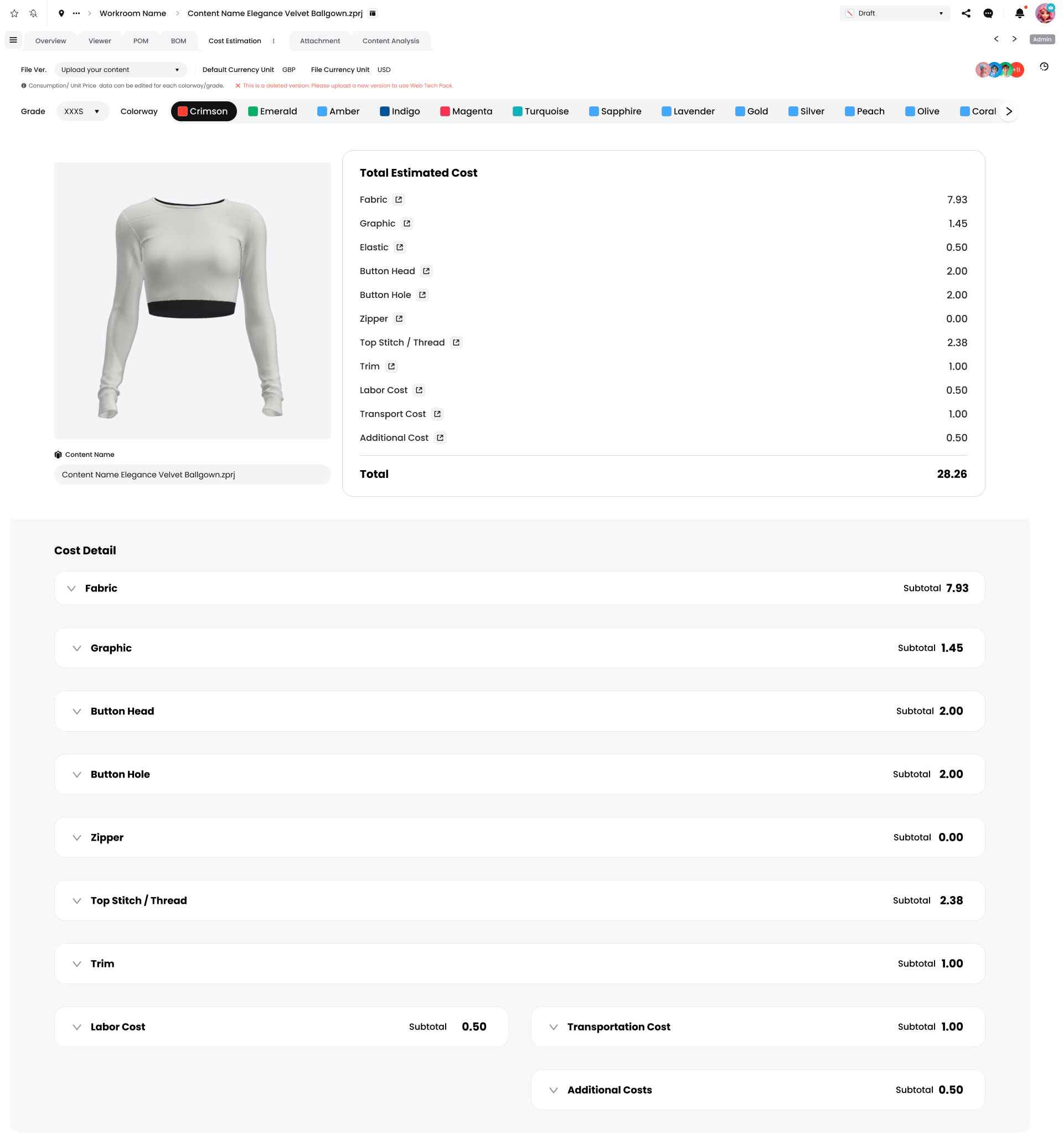

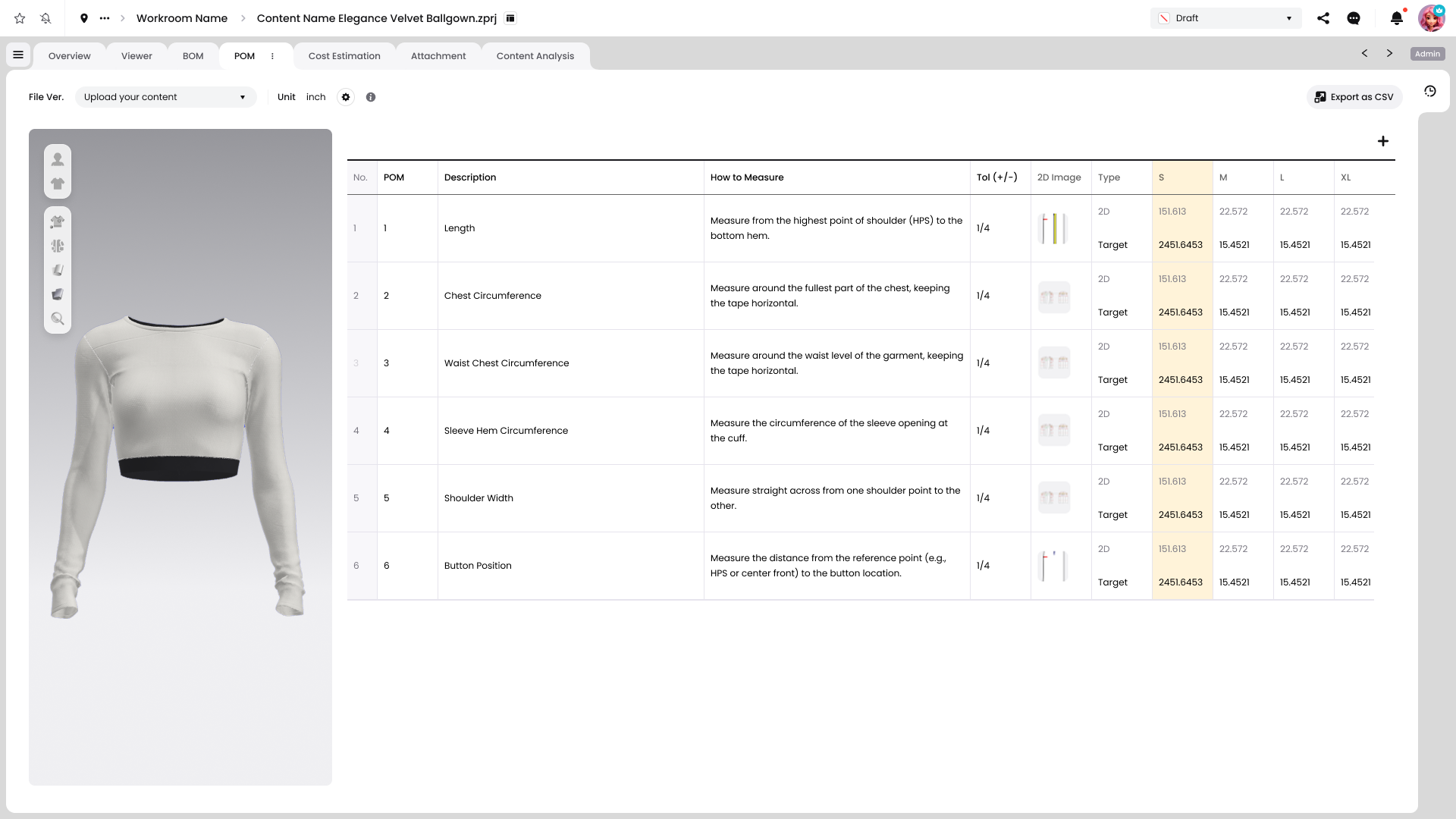

BOM / POM / Cost Estimation Information can be viewed directly on the New Content Page without navigating to a separate page.

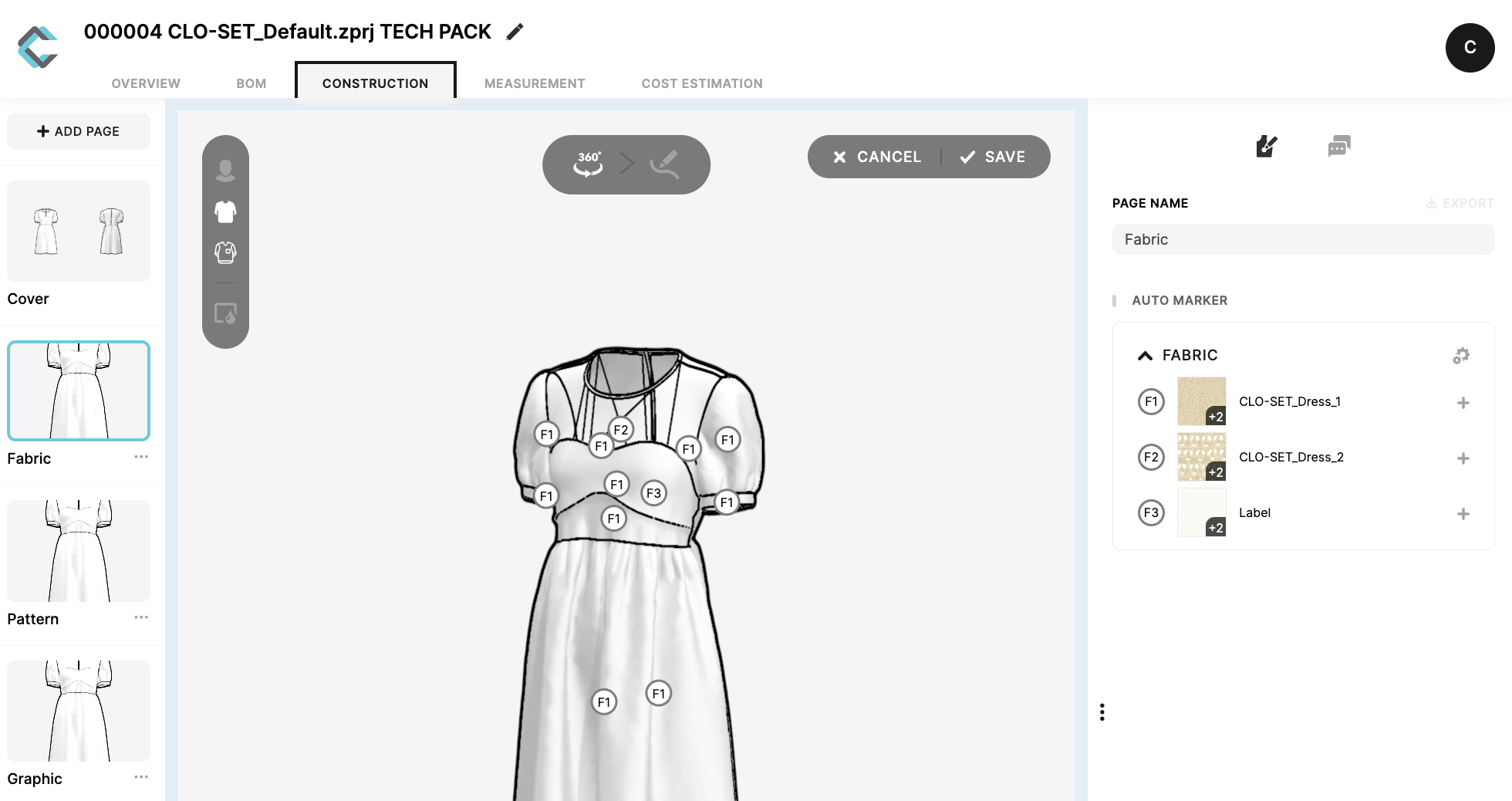

• Construction & Measurement (will be added to the New Content Page in a future update)
  • Review design details and make annotations, record target measurements for the broader team. Share the view to keep everyone up-to-date

• CLO-SET Excel Tech Pack is an auto-generated Excel document, based on the 3d design file.
• While Excel TP provides a detailed information of the design, editing and communication shall be done externally (outside CLO-SET), using the Excel file itself or other external channels.
• Excel Tech Pack is available per every zprj/zpac Versions uploaded
• Below are the examples of information to be found on Excel Tech Pack

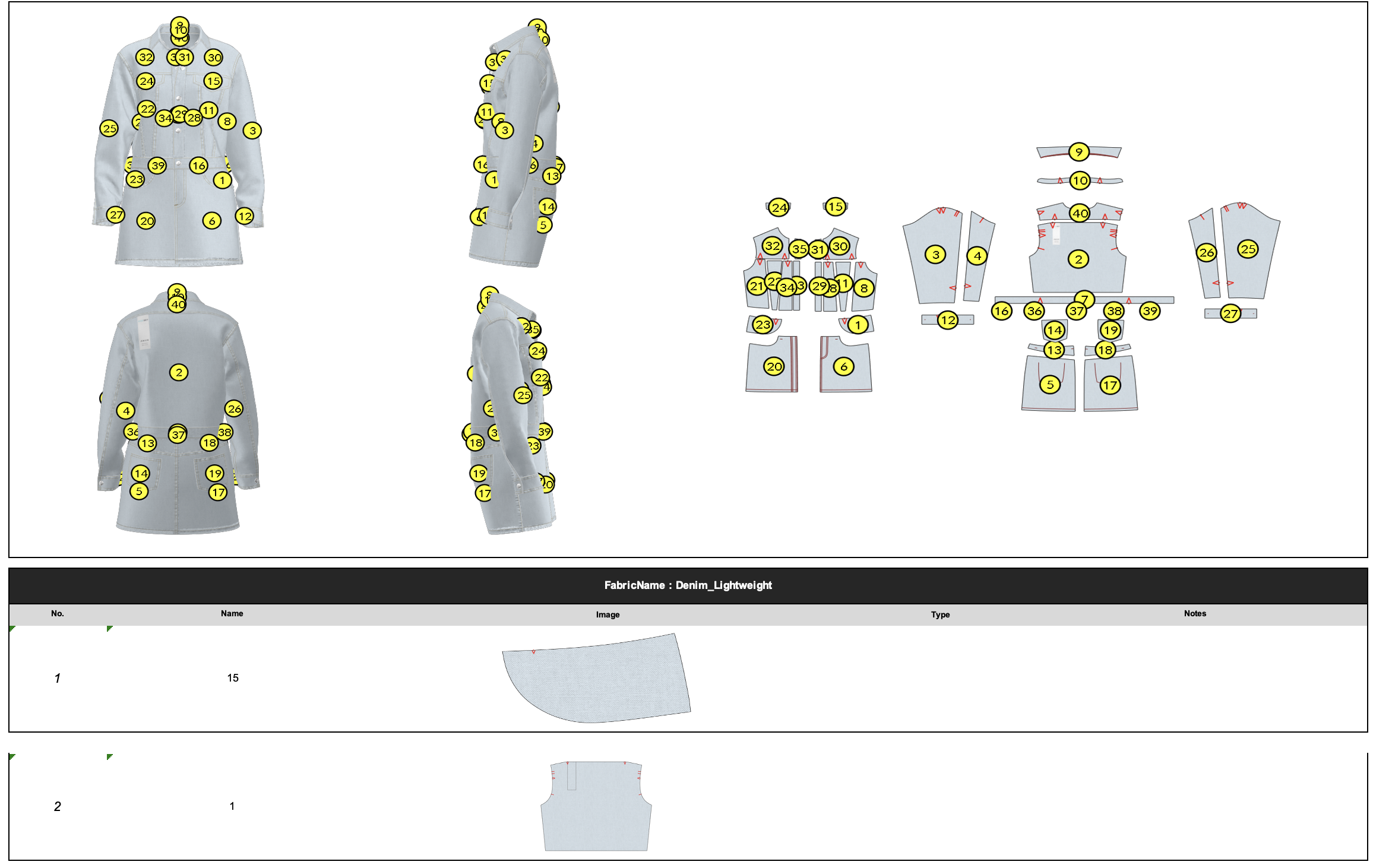

  • EX) Cutter's Must

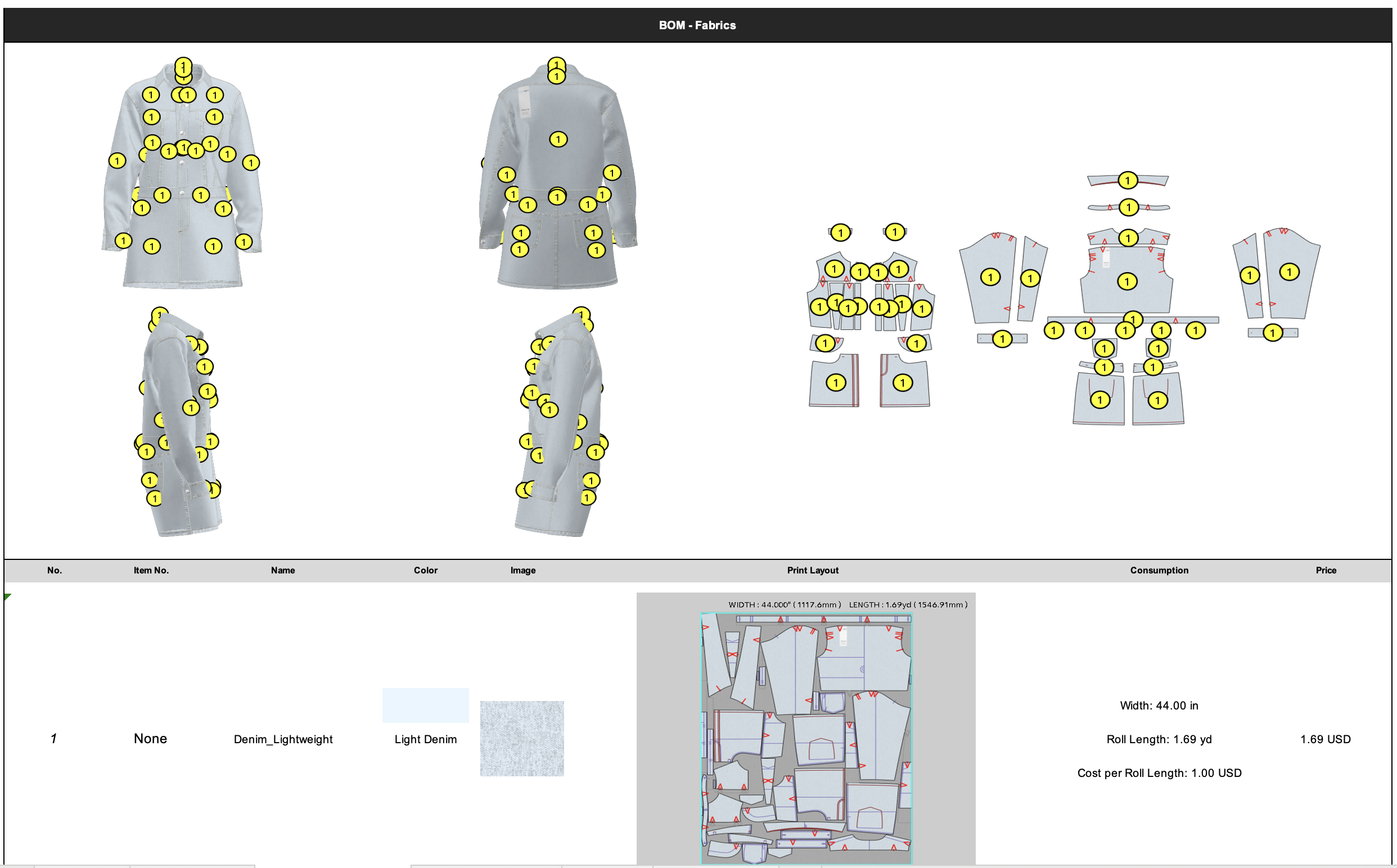

• EX) Bill of Materials

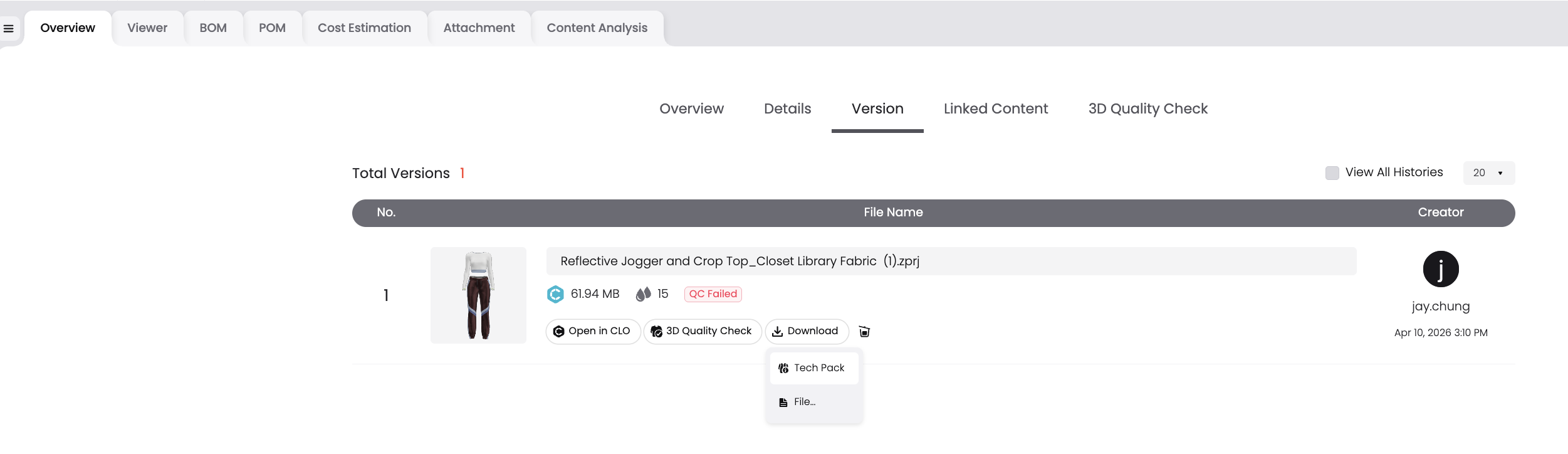

• The Excel Techpack can be downloaded by clicking the Download button in the Version tab under the Overview menu.
