📝 List of Contents
📍 Understand various types of Tech Packs available in CLO-SET
- Web Tech Pack
- Excel Tech Pack
📓 Details
| • Web Tech Pack |
| CLO-SET Web Tech Pack is an online tech pack generated from your 3D garment data. Review, edit, and communicate with the team online, for a streamlined workflow |
-
Bill of Materials & Cost Estimation
- Manage BOM and estimated cost data, per each colorway & grading
-

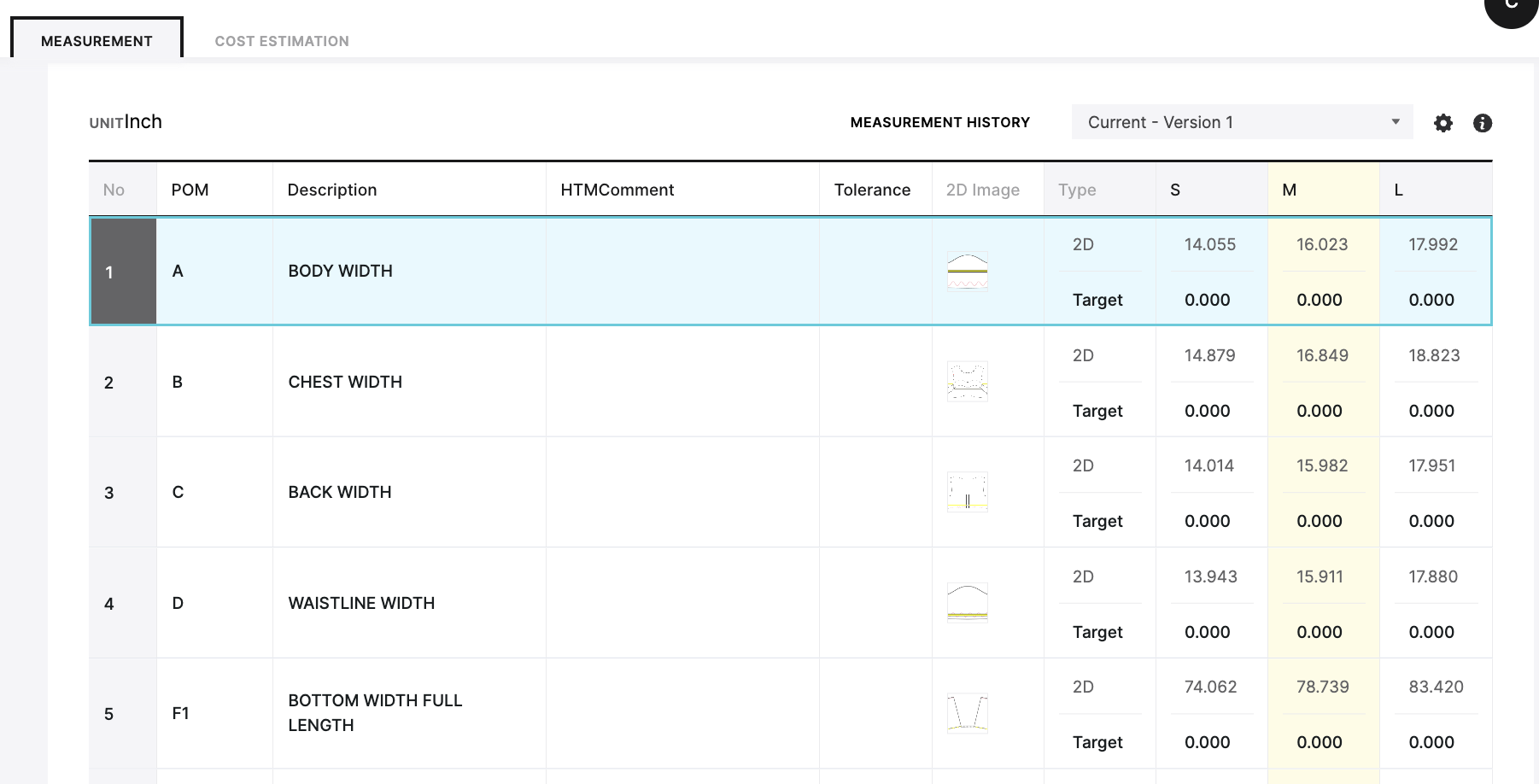

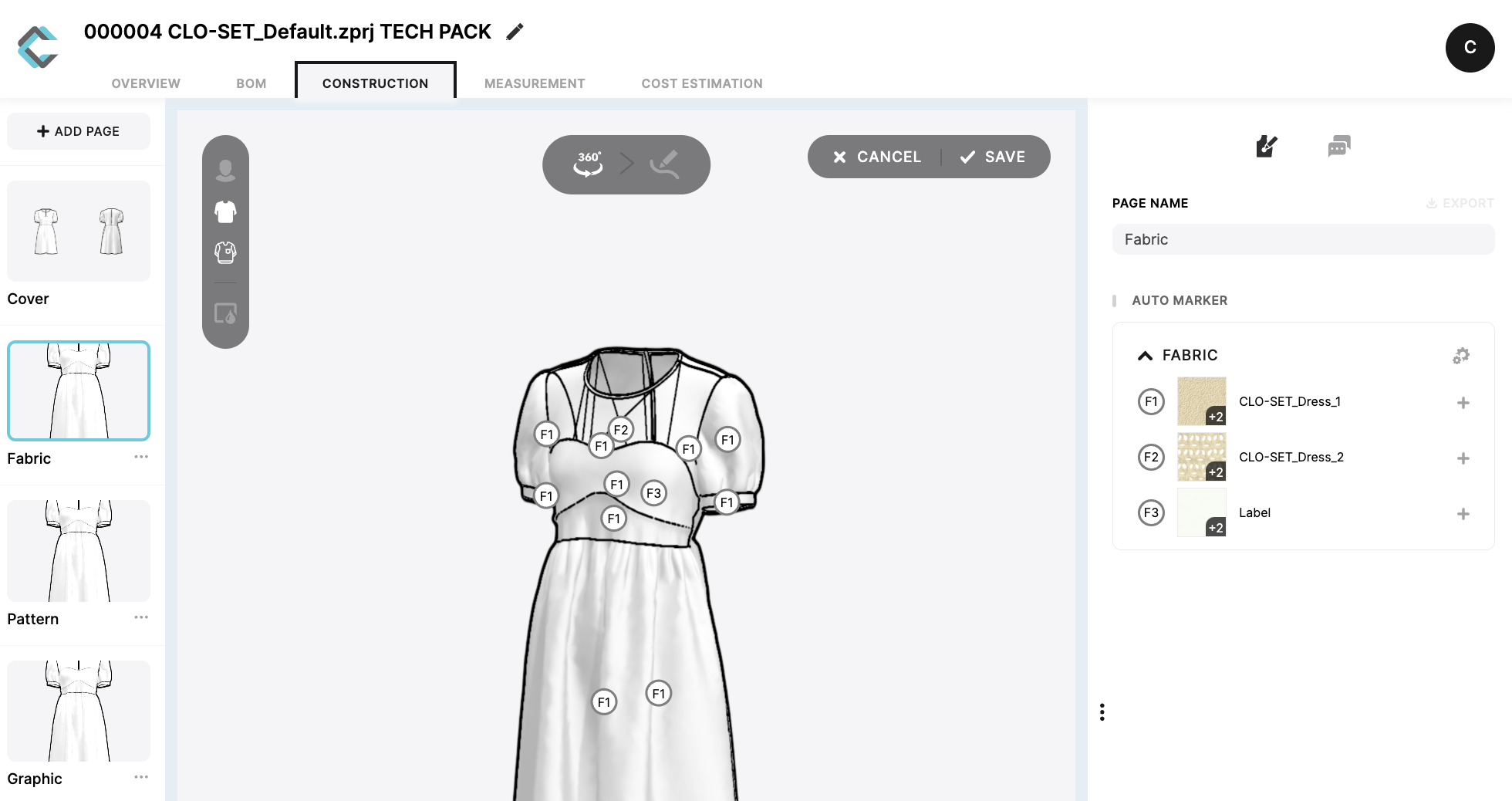

Construction & Measurement
- Review design details and make annotations, record target measurements for the broader team. Share the view to keep everyone up-to-date
| • Excel Tech Pack |
- CLO-SET Excel Tech Pack is an auto-generated Excel document, based on the 3d design file.
- While Excel TP provides a detailed information of the design, editing and communication shall be done externally (outside CLO-SET), using the Excel file itself or other external channels.
- Excel Tech Pack is available per every zprj/zpac Versions uploaded
- Below are the examples of information to be found on Excel Tech Pack

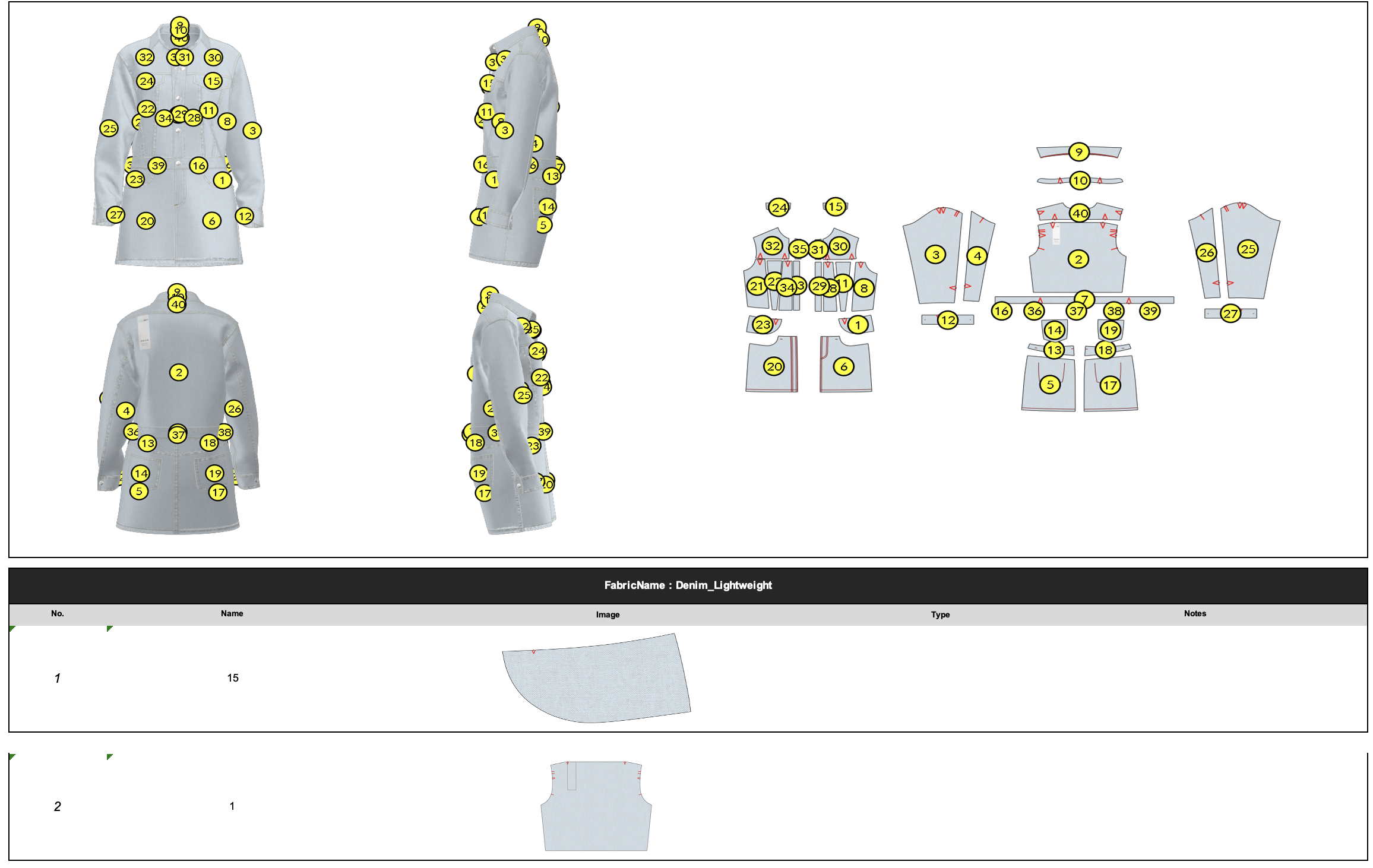

- EX) Cutter's Must
-

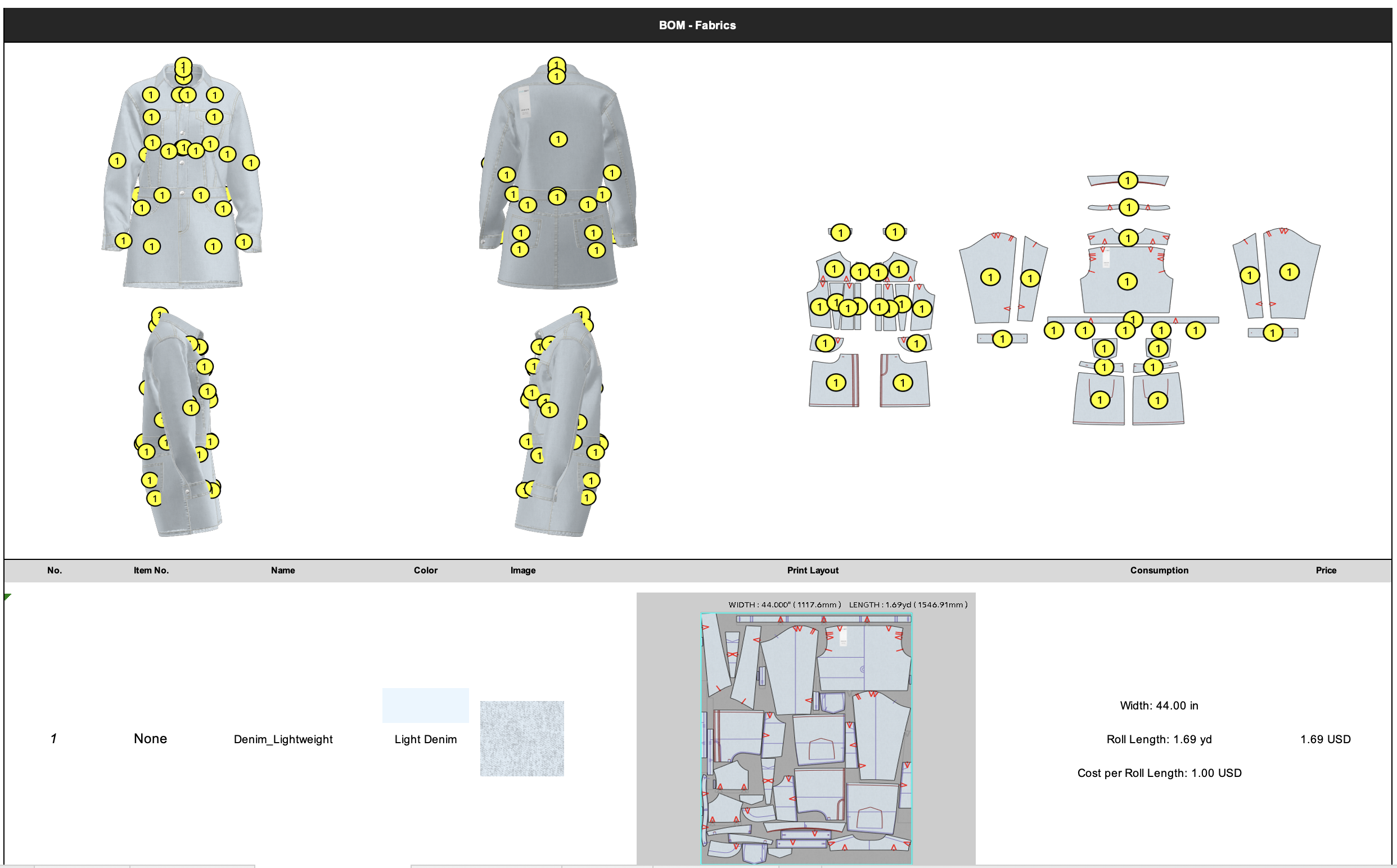

- EX) Bill of Materials
