📝 List of Contents

📍 Start communicating real-time on the auto-generated Web Tech Pack.

Upload design
Web Tech Pack - Tabs
Share & Export
Web Tech Pack Full Guide

📓 Details

CLO-SET Web Tech Pack integrates your everyday tech pack with 3D Contents. Let us bring all the data from your 3D file into an auto-generated Tech Pack. Enjoy a tech pack that is always up-to-date.

• Upload design (zprj /zpac)

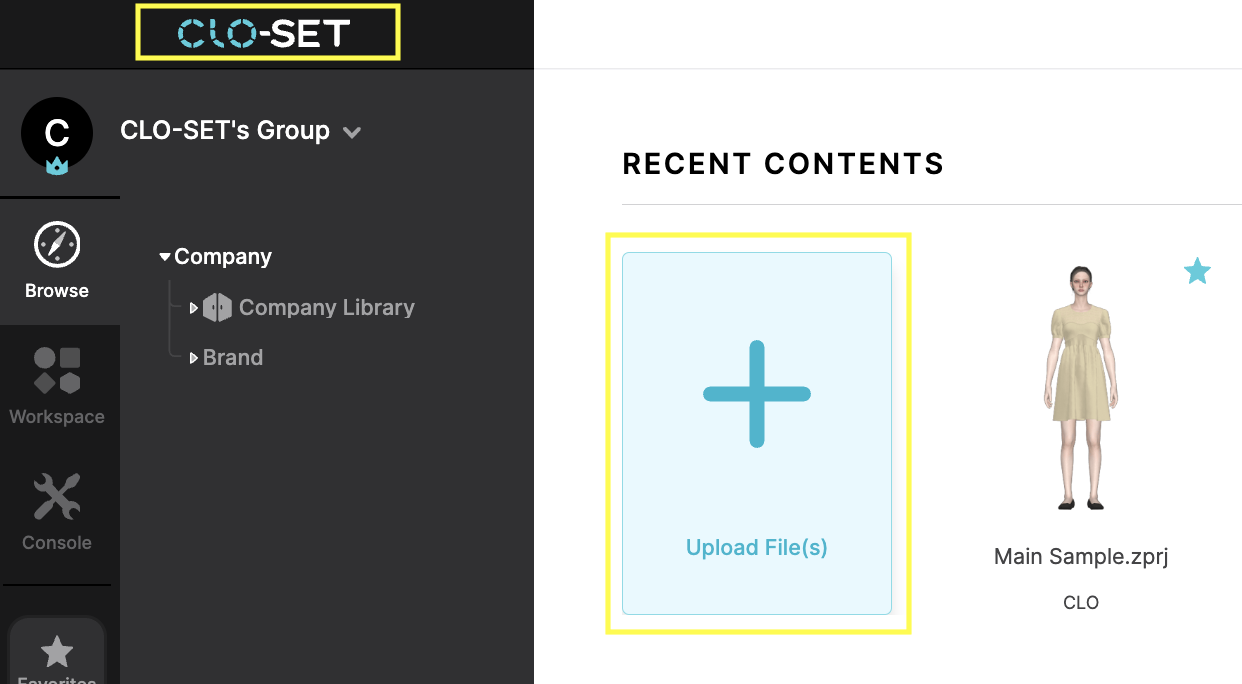

Enter Dashboard, and click the '+' button to start
- For more details on uploading/downloading, visit this article

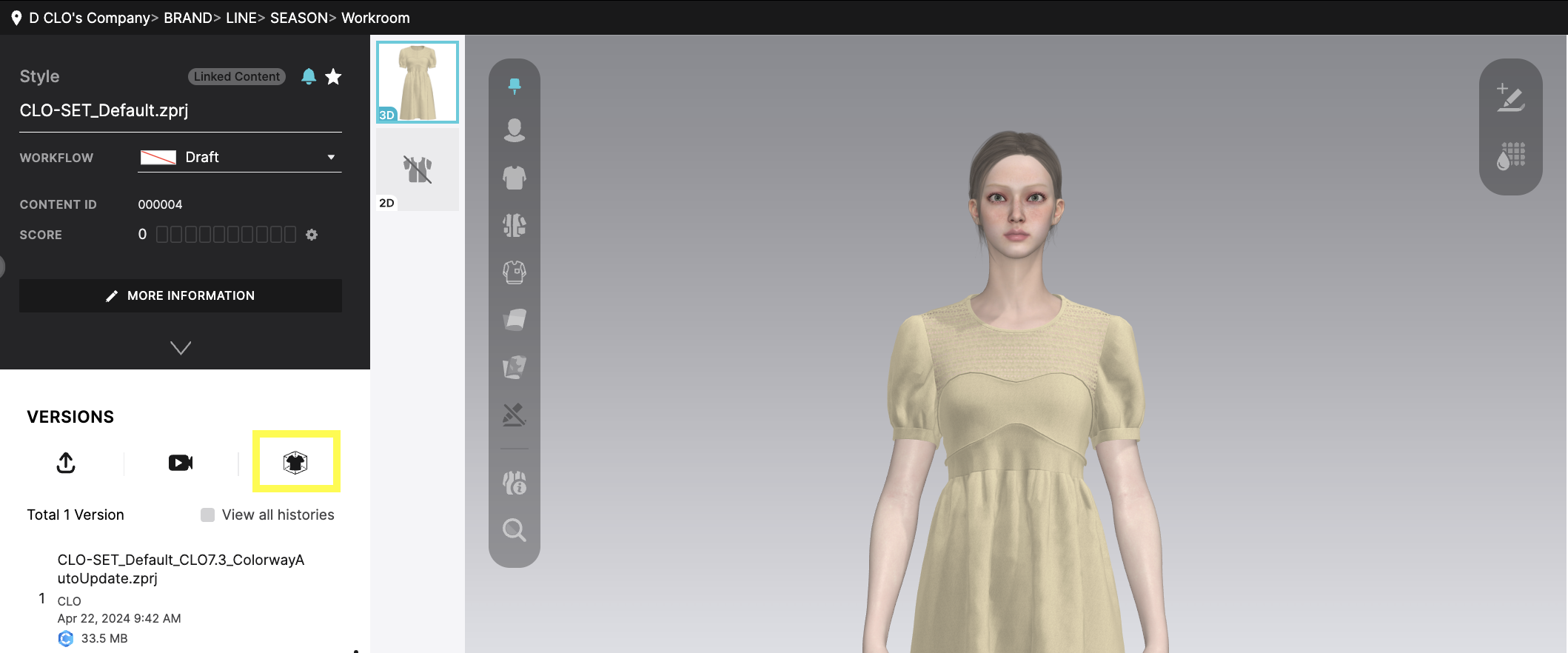

Enter the Content Page, and click Web Tech Pack icon

A new tab will open. Switch between tabs to review & edit. Find more on the following guide

• Web Tech Pack - Tabs

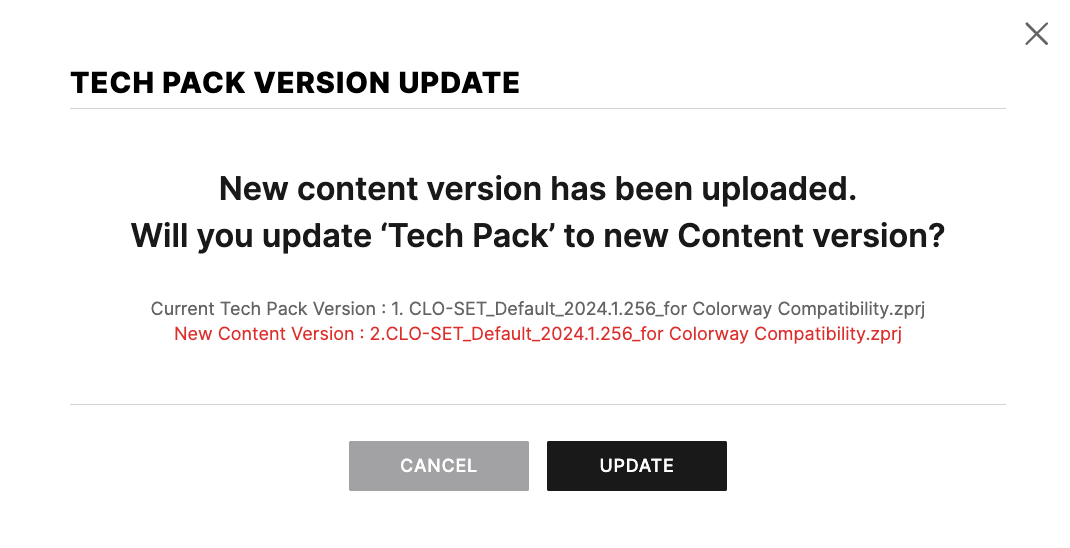

*Important: Web Tech Pack is created per Content Version (zprj/zpac only), and selecting 'update' will create a new version of Web Tech Pack. You can switch between versions on the WTP page.

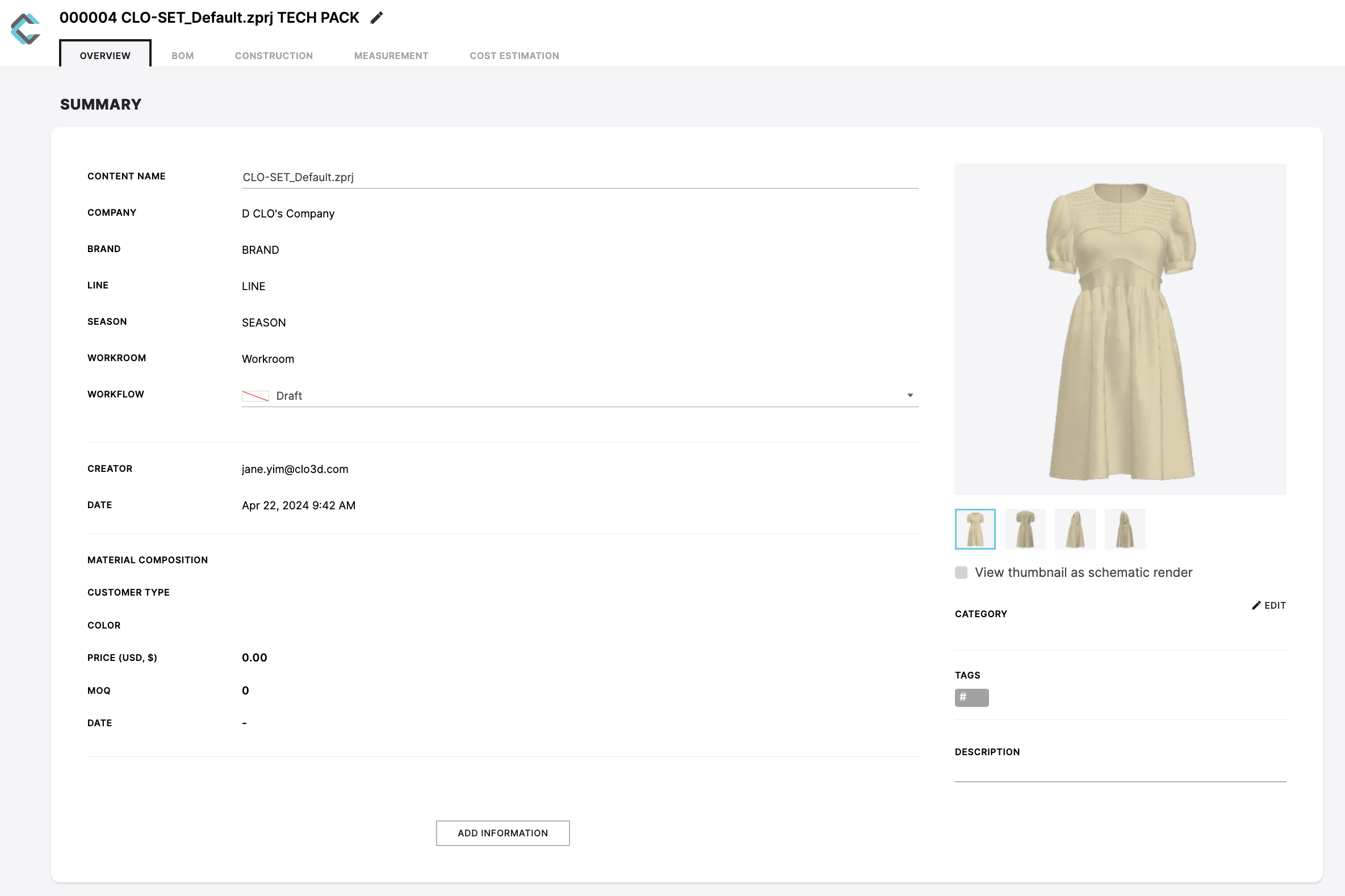

▶ Overview

Overview tab provides basic information of the uploaded file. Find content information summary and mark the schedule to keep everyone on the same page
Information is auto-filled based on Content Information

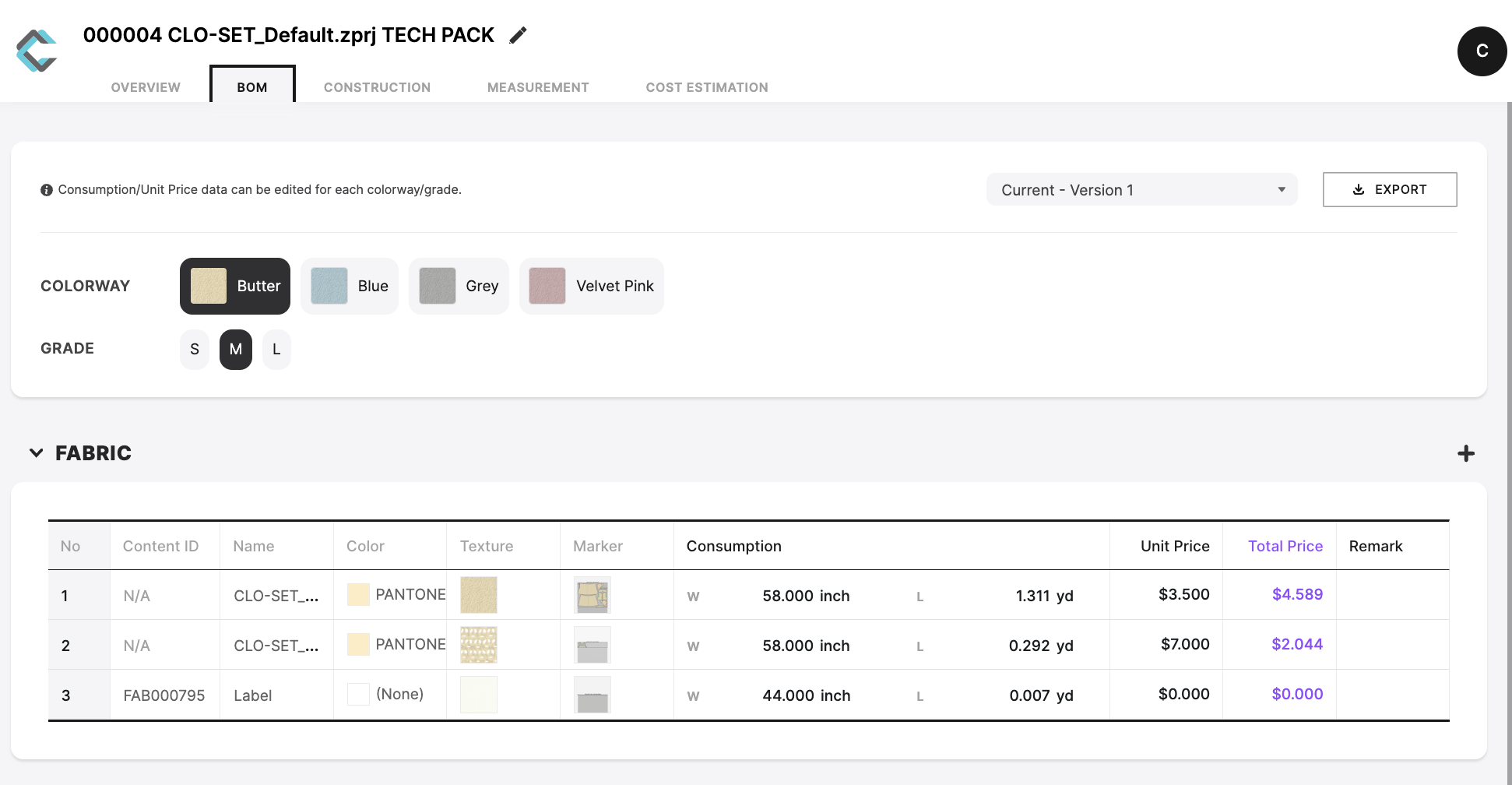

▶ BOM

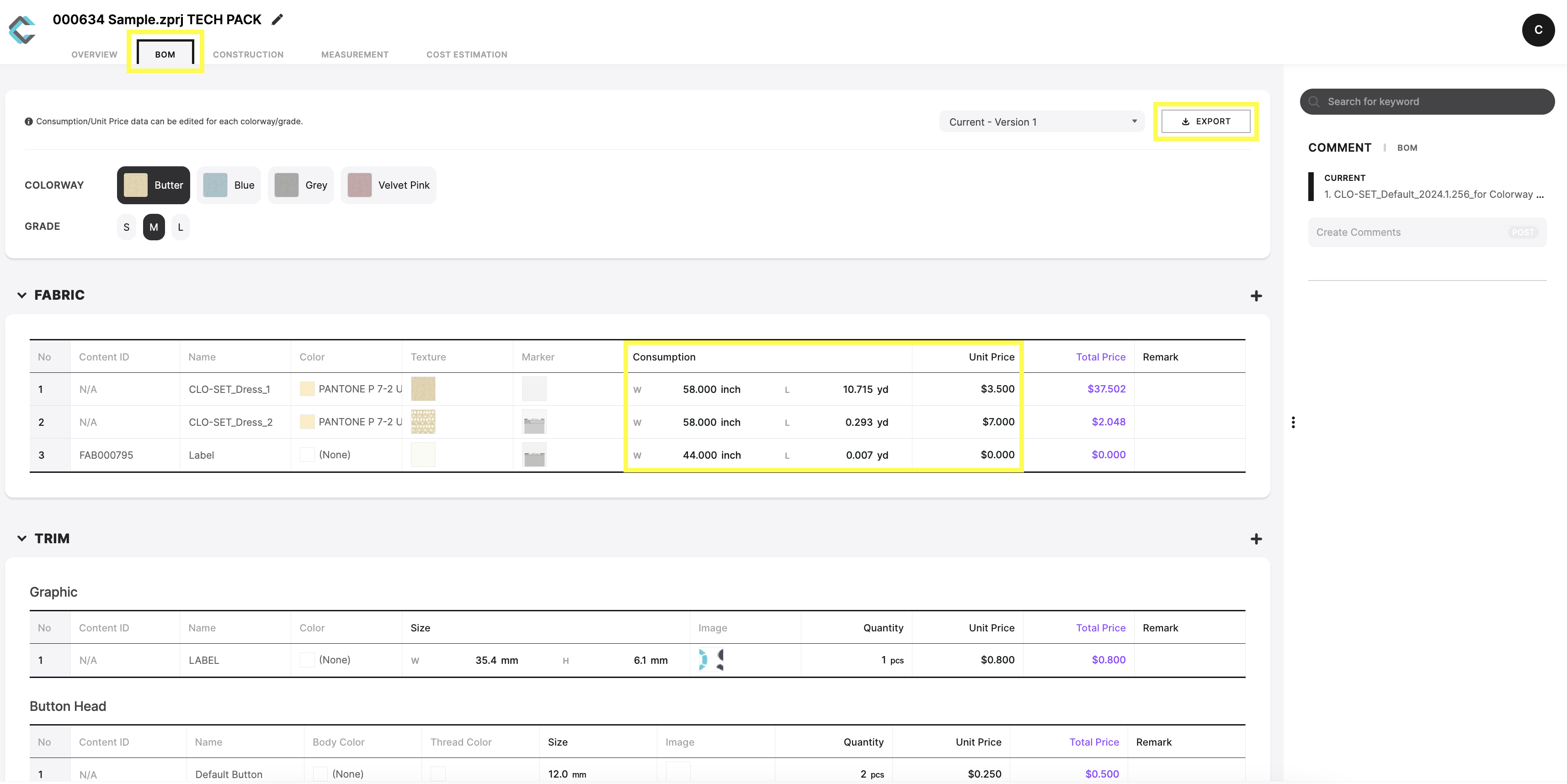

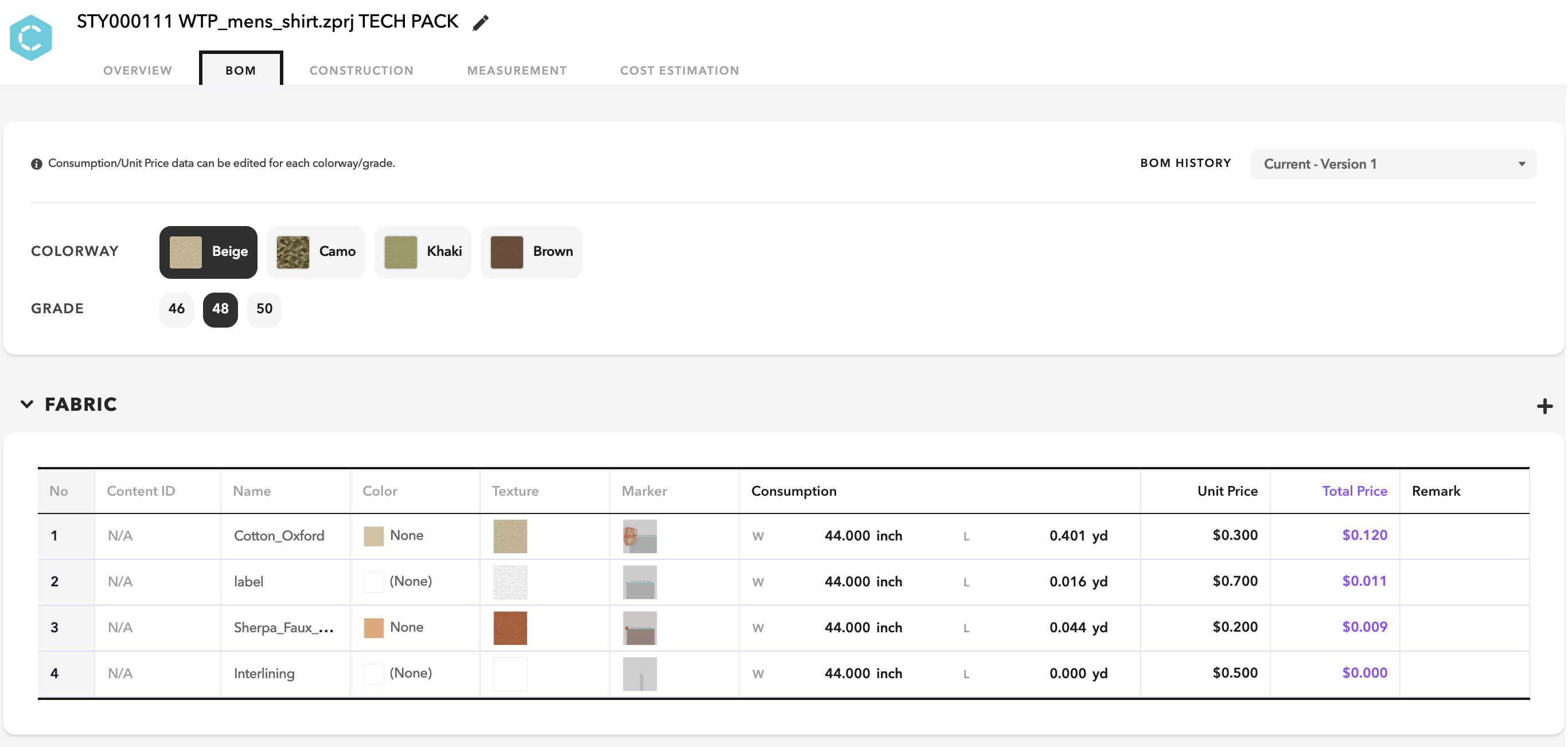

BOM is auto-filled based on the 3D data of the .zprj/.zpac file
- Double-click the field to make edits. Information is managed per Colorway-Grade combination
- Add Trim information by clicking 'add' at the bottom of the page
- Click the 'Export' button on the top right corner to download an Excel file

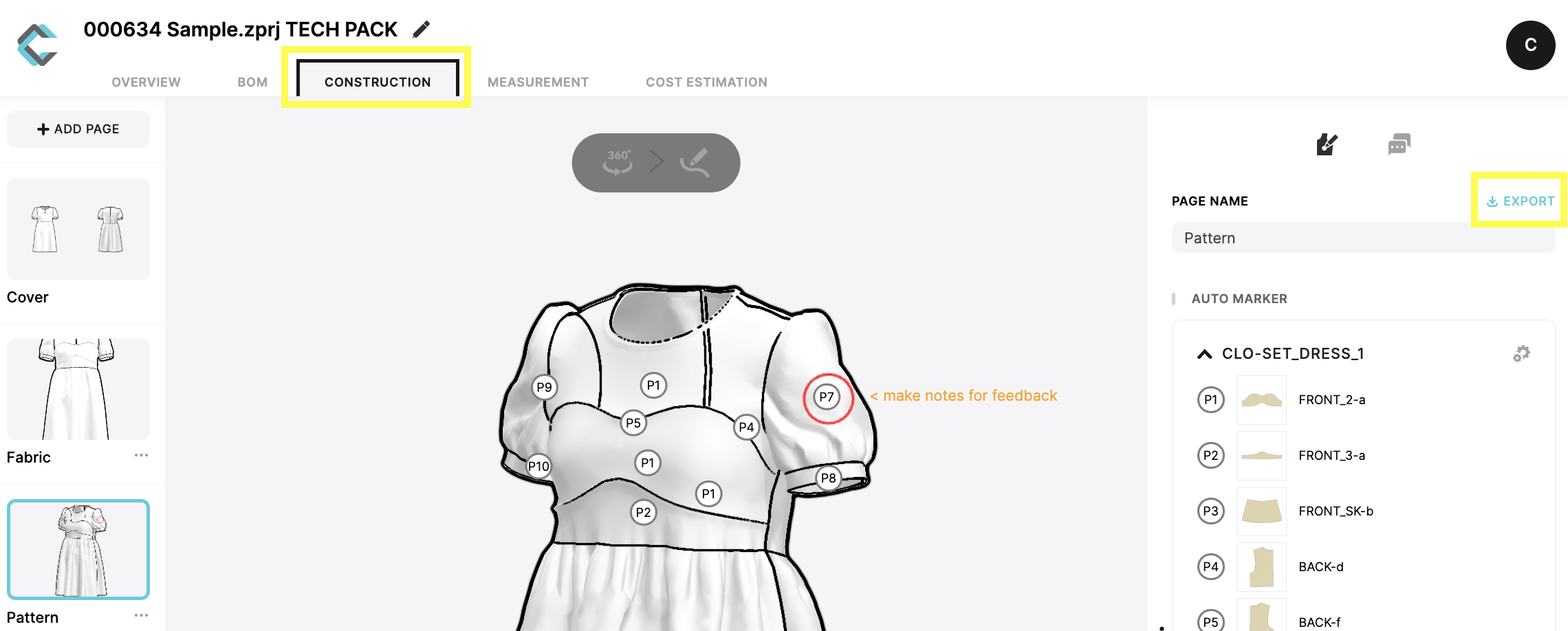

▶ Construction

Review the construction of the design, and create Annotations for feedback

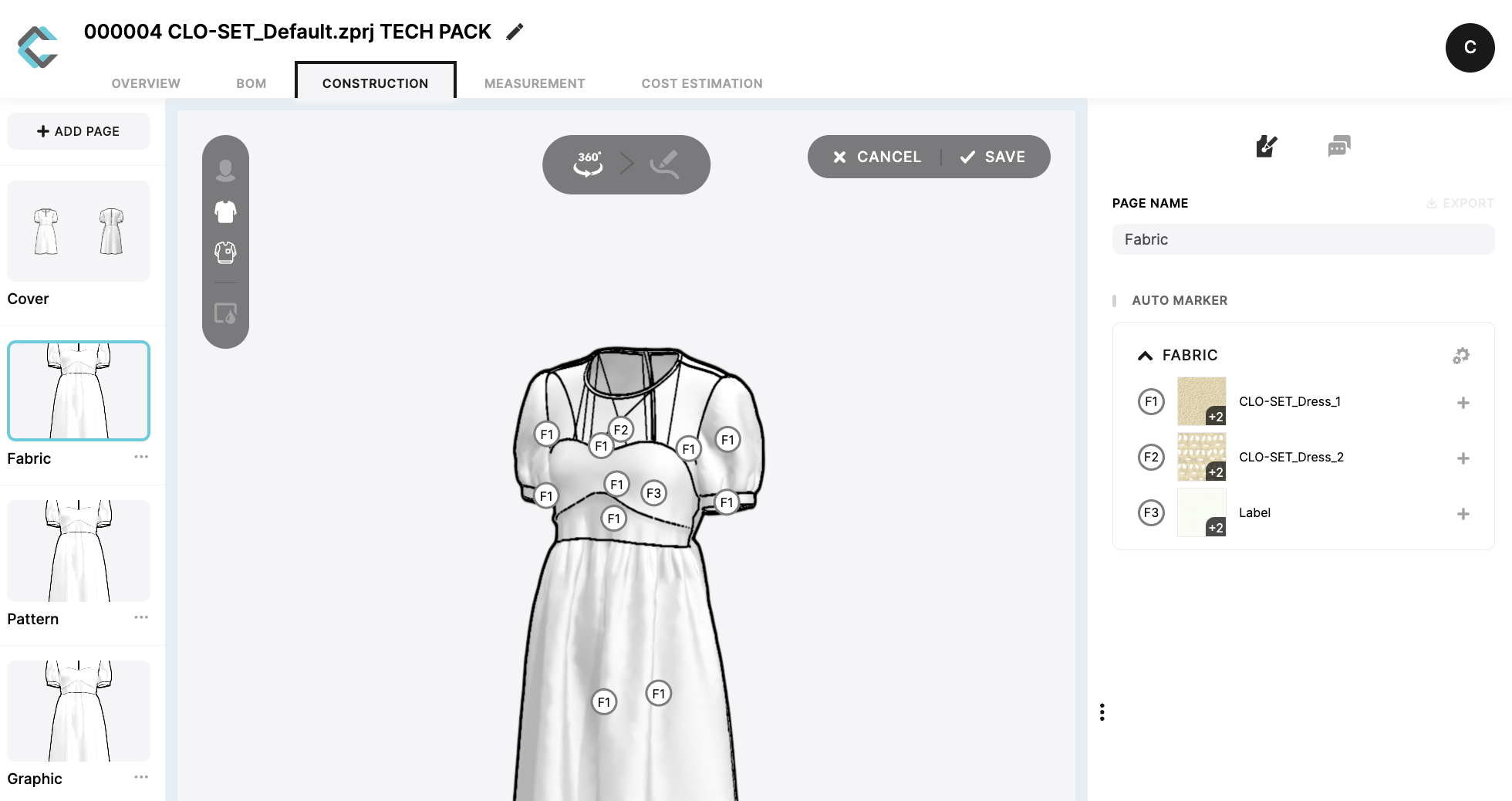

For each page, automatic markers will be generated. Click the thumbnail image to view the detail

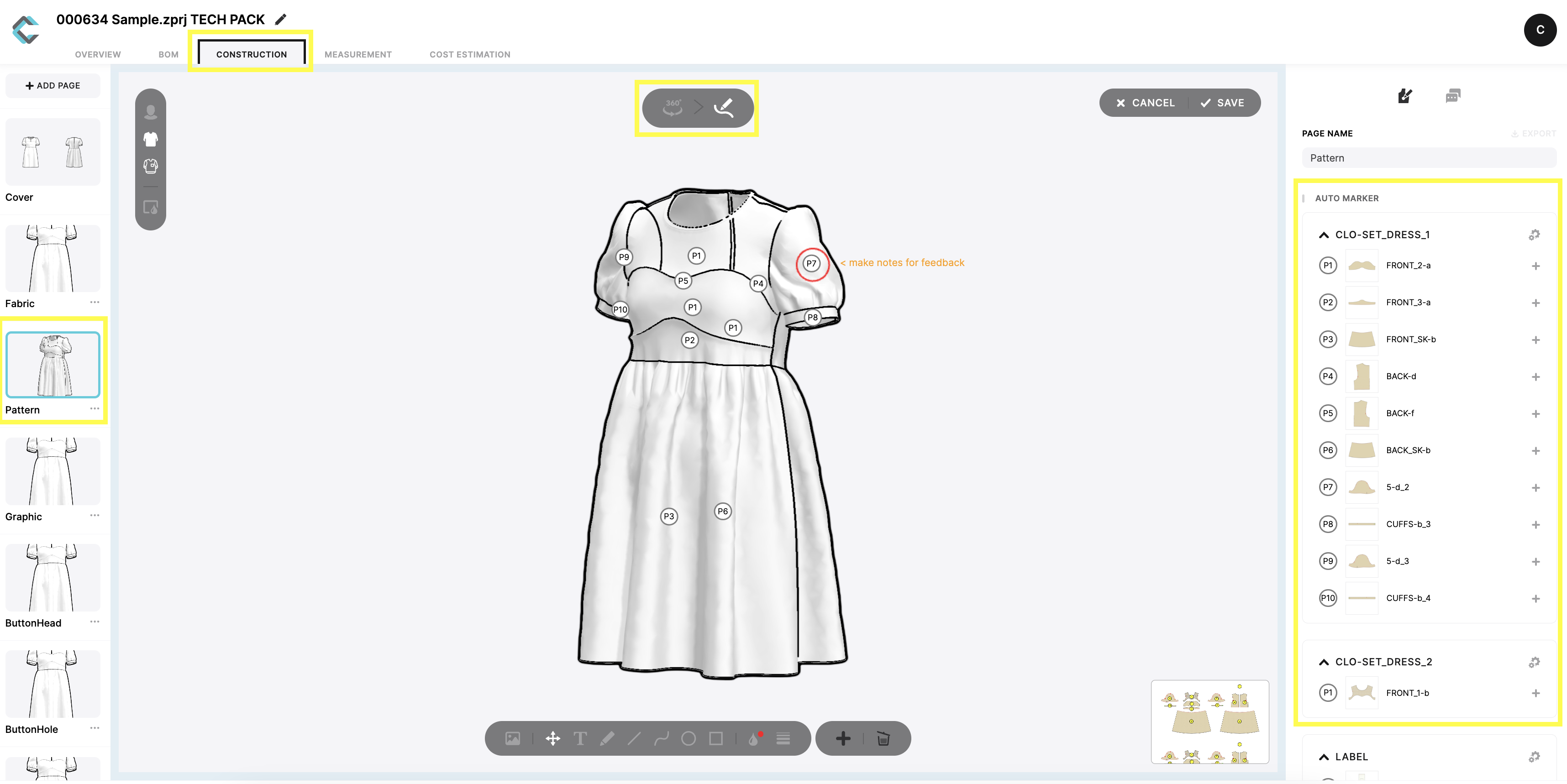

For patterns, the 2D pattern view will be displayed at the bottom right corner
Create Comments and tag the team for faster communication

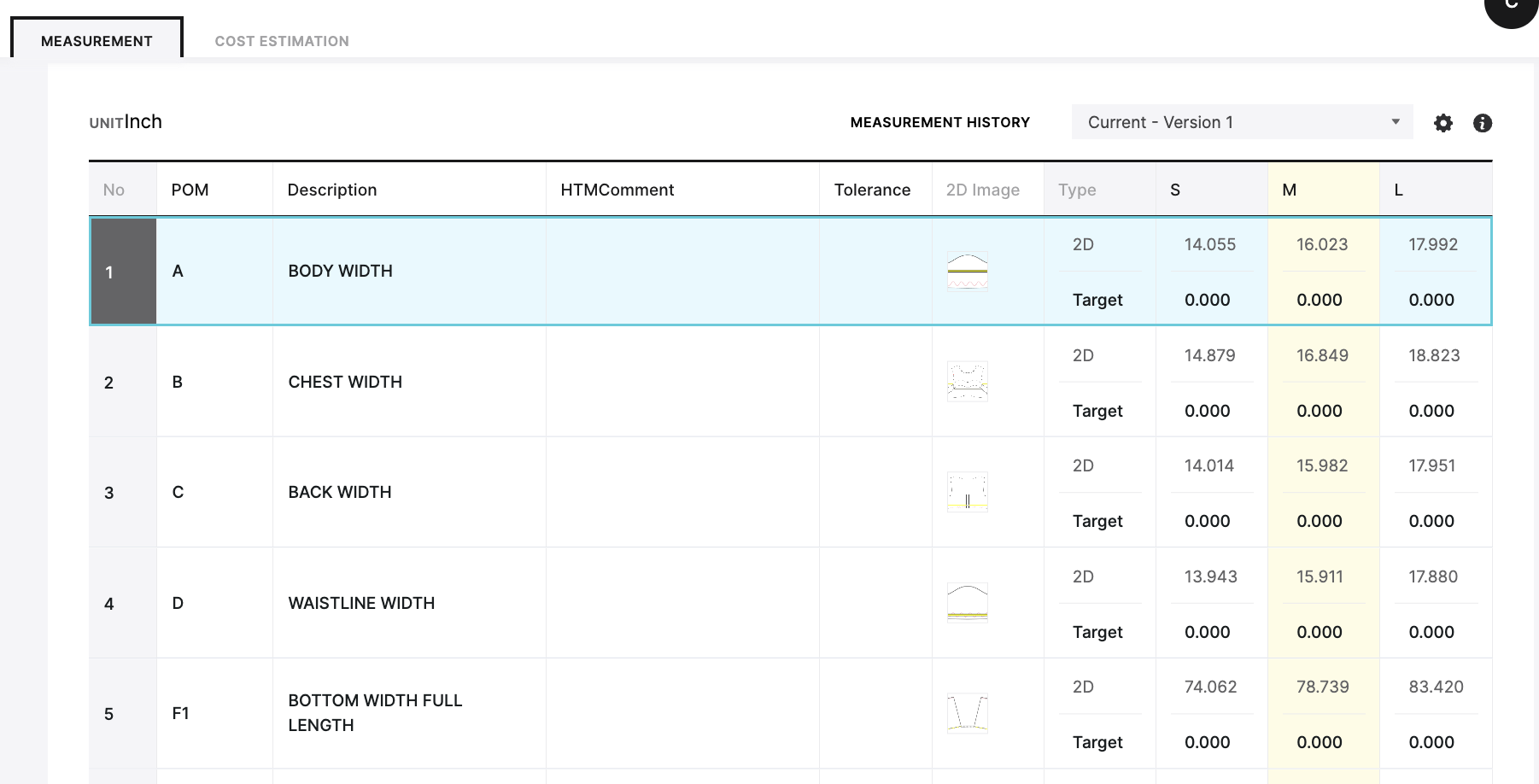

▶ Measurement

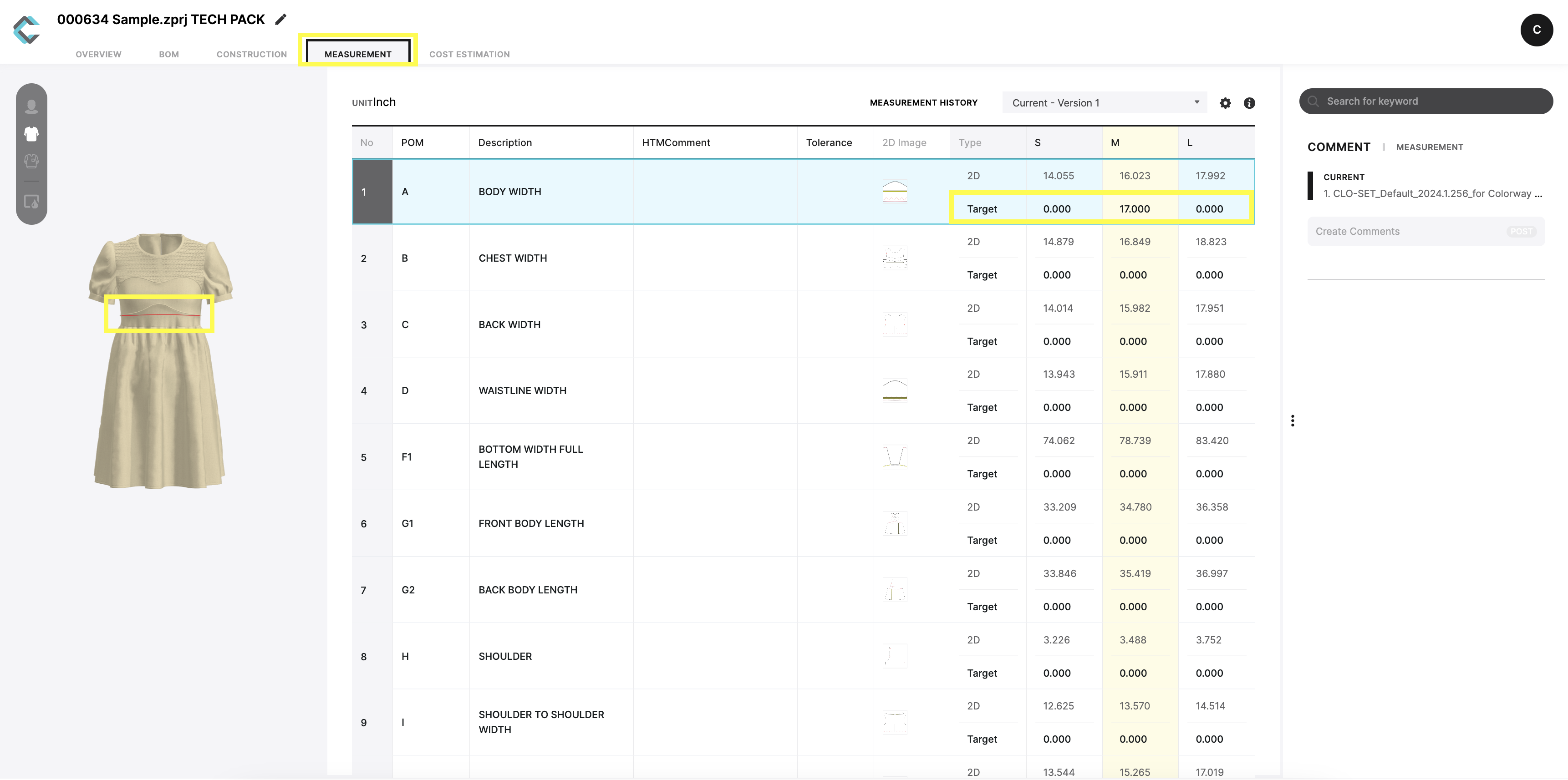

Measurement information is auto-filled based on the POM data of the .zprj/.zpac file
On Web Tech Pack, users can mark the Target measurement for each POM field
Selected POM will be displayed in red on the garment in the left pane

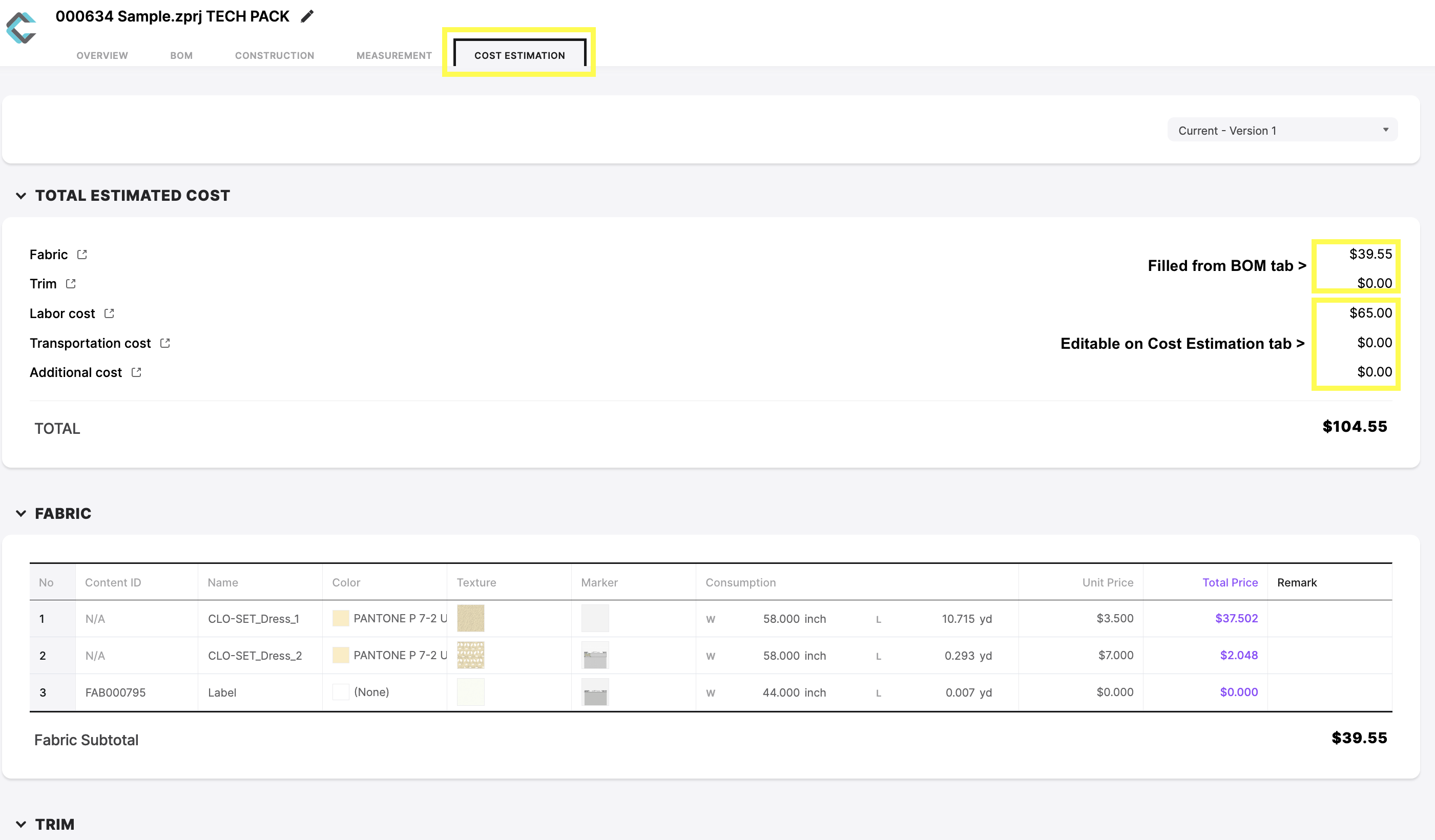

▶ Cost Estimation

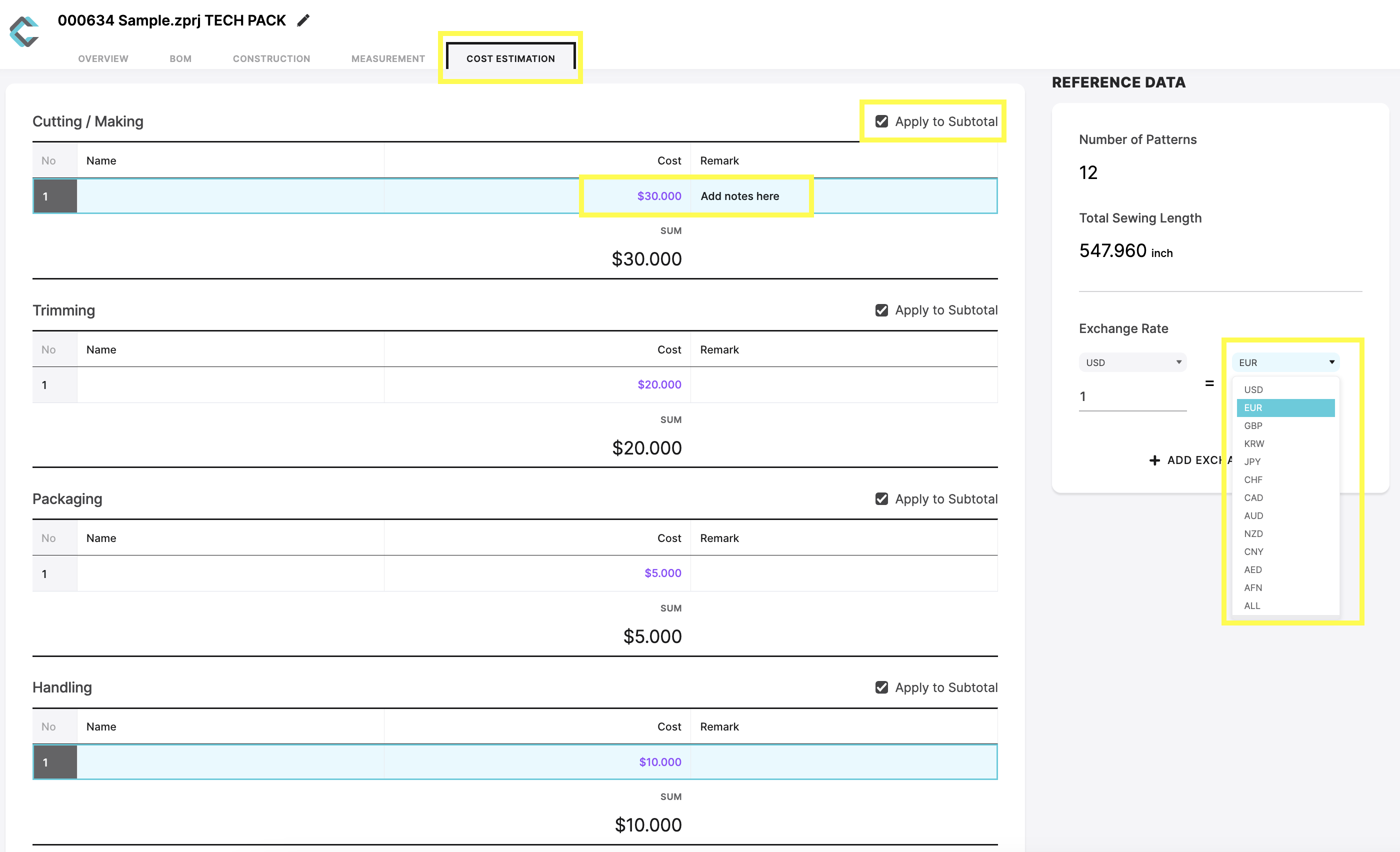

Cost Estimation tab displays the estimated total cost for the design
- Fabric and Trim costs are pulled from BOM tab
- Add labor/transportation cost information at the bottom of the tab, and click 'apply to subtotal' to apply the changes made to the list at the top of the page
- Add exchange rates for the broader team to refer to

• Share & Export

Share the Content with other users, to allow access to the Web Tech Pack

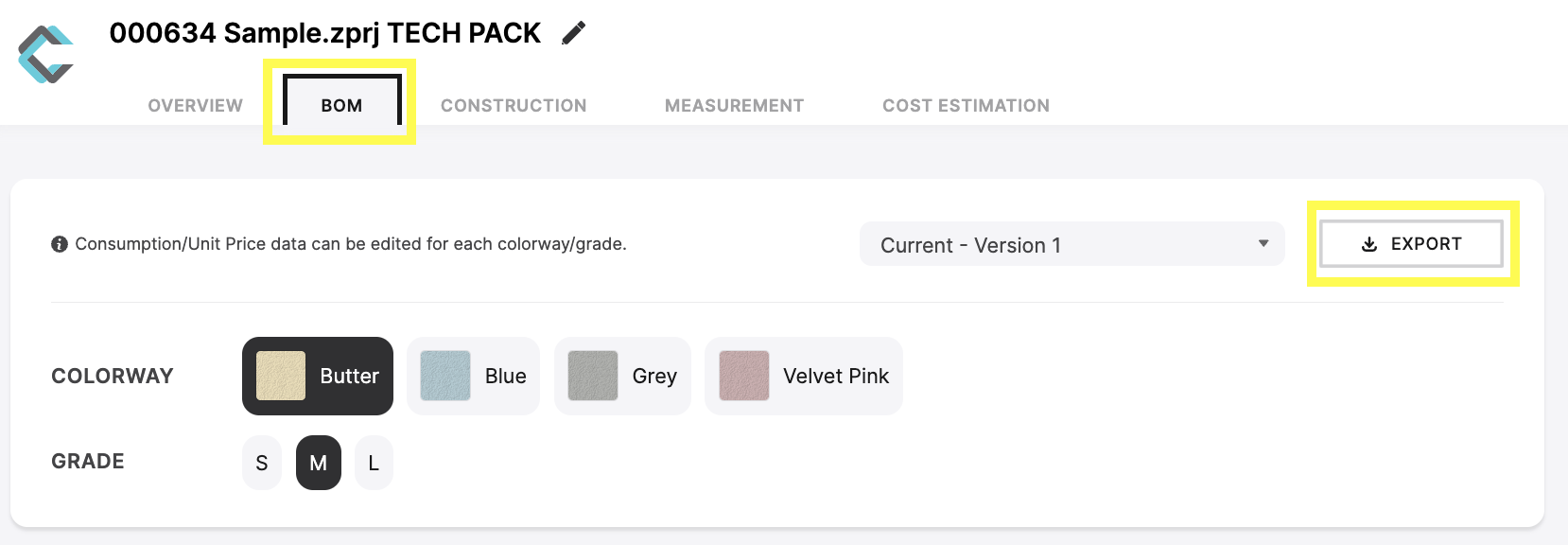

Exporting is available on BOM & Construction tab
- Exporting BOM will generate an Excel file
- Exporting Construction will generate a PDF file
