Objective

3d tech pack.png 3D Techpack is the function to check Tech pack in 3D Viewer by clicking the mceclip1.png icon . Users can directly check the tech pack in 3D Viewer.







  1. How-to
  2. Tech Pack Document



Details

1) How-to

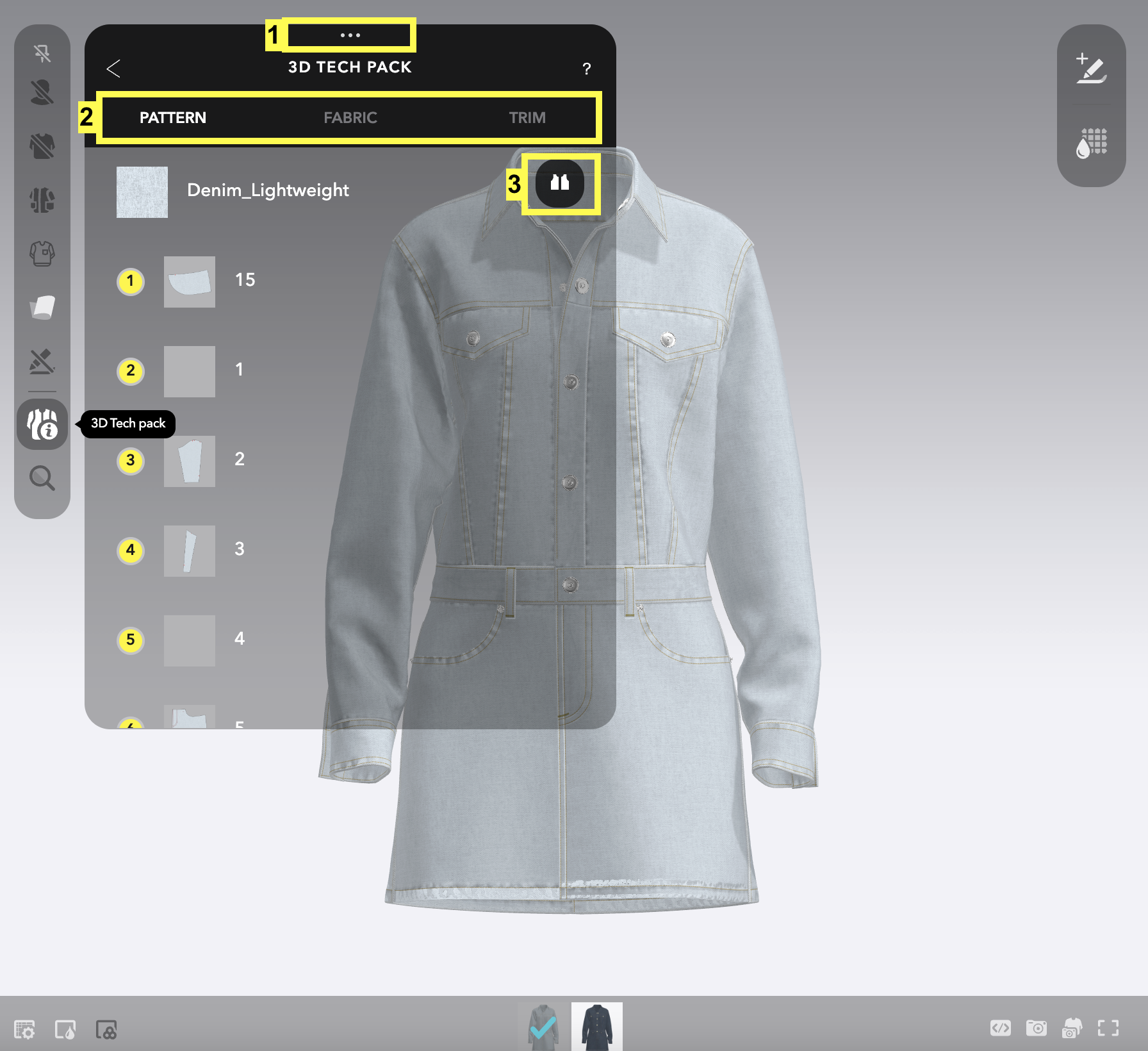

Screenshot 2023-07-28 at 5.43.00 PM.png

1. Move Widget: Users can move the position of the widget.

2. Material Placement: Users can check the placement of each category of ‘PATTERN’, ‘FABRIC’, and ‘TRIM’.

3. Material Layout: Users can check the layout of each category of ‘PATTERN’, ‘FABRIC’, and ‘TRIM’.

Note : 3D Tech Pack viewing option is available only on the legacy Content Page.



2) Tech Pack Document

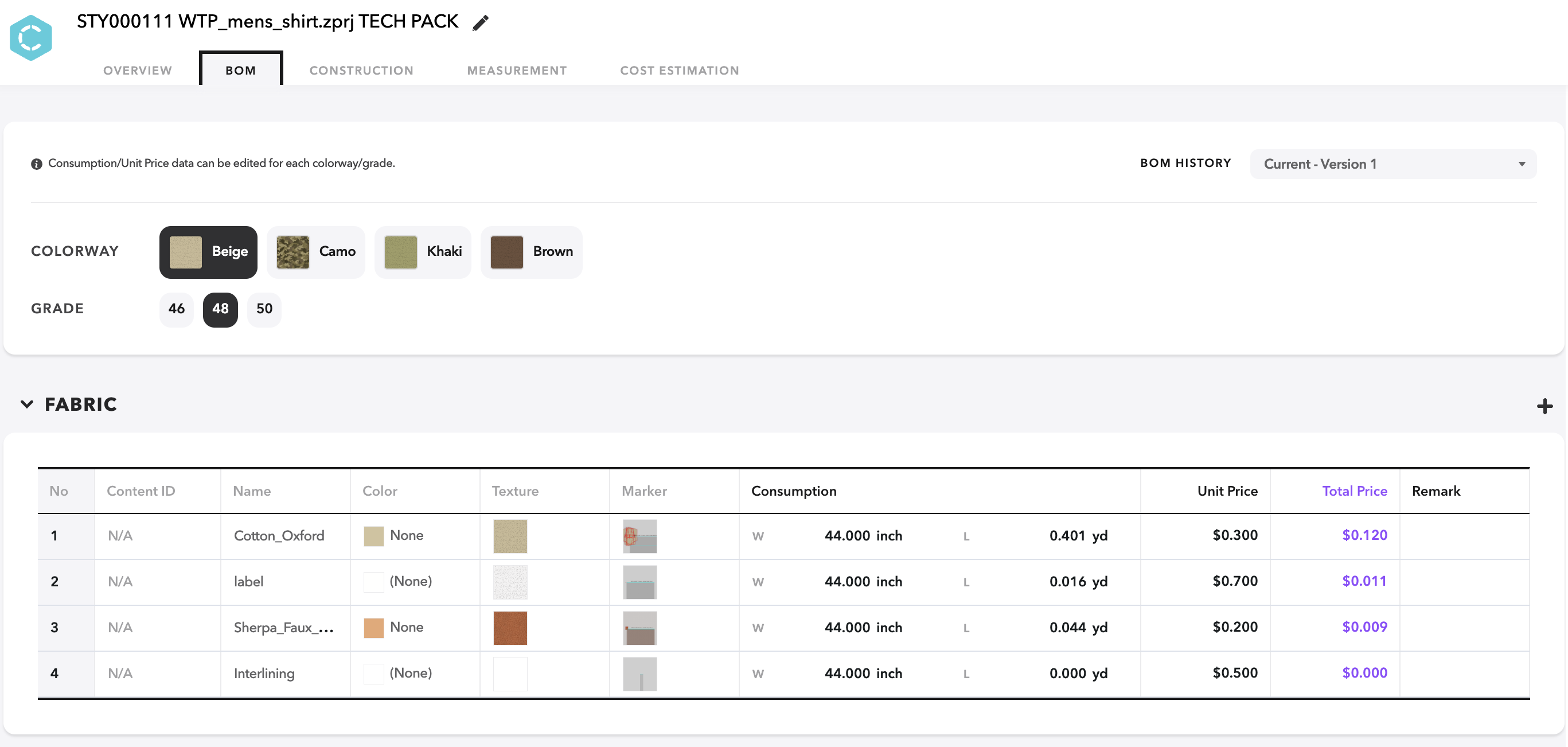

CLO-SET provides auto-generated Tech Pack to bring the 3D data all the way to production. Check out the below articles to learn more:

Screenshot 2023-07-21 at 2.46.38 PM.png



Note : BOM, POM, and Cost Estimation information are organized into tabs on the new Content Page.

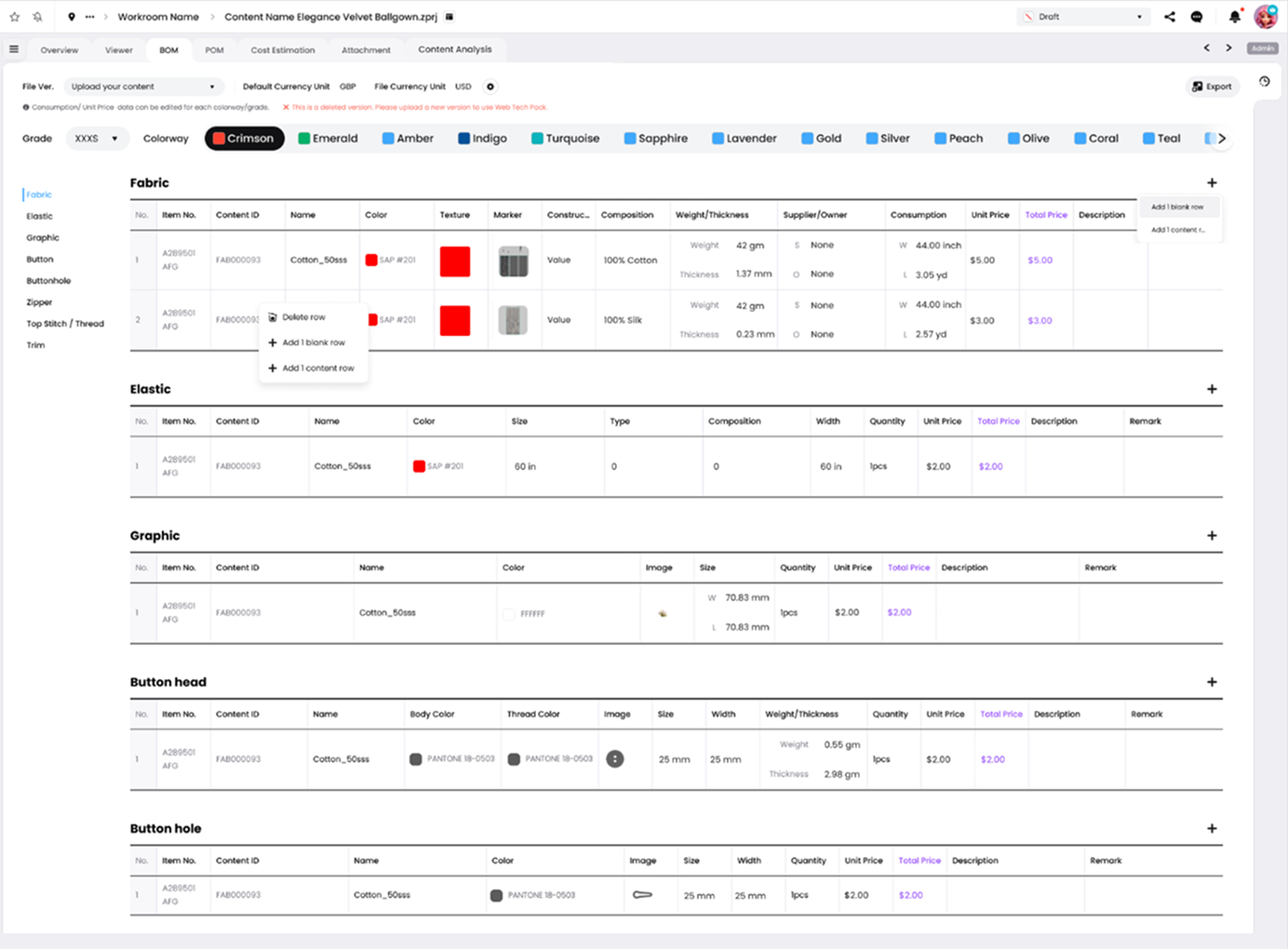

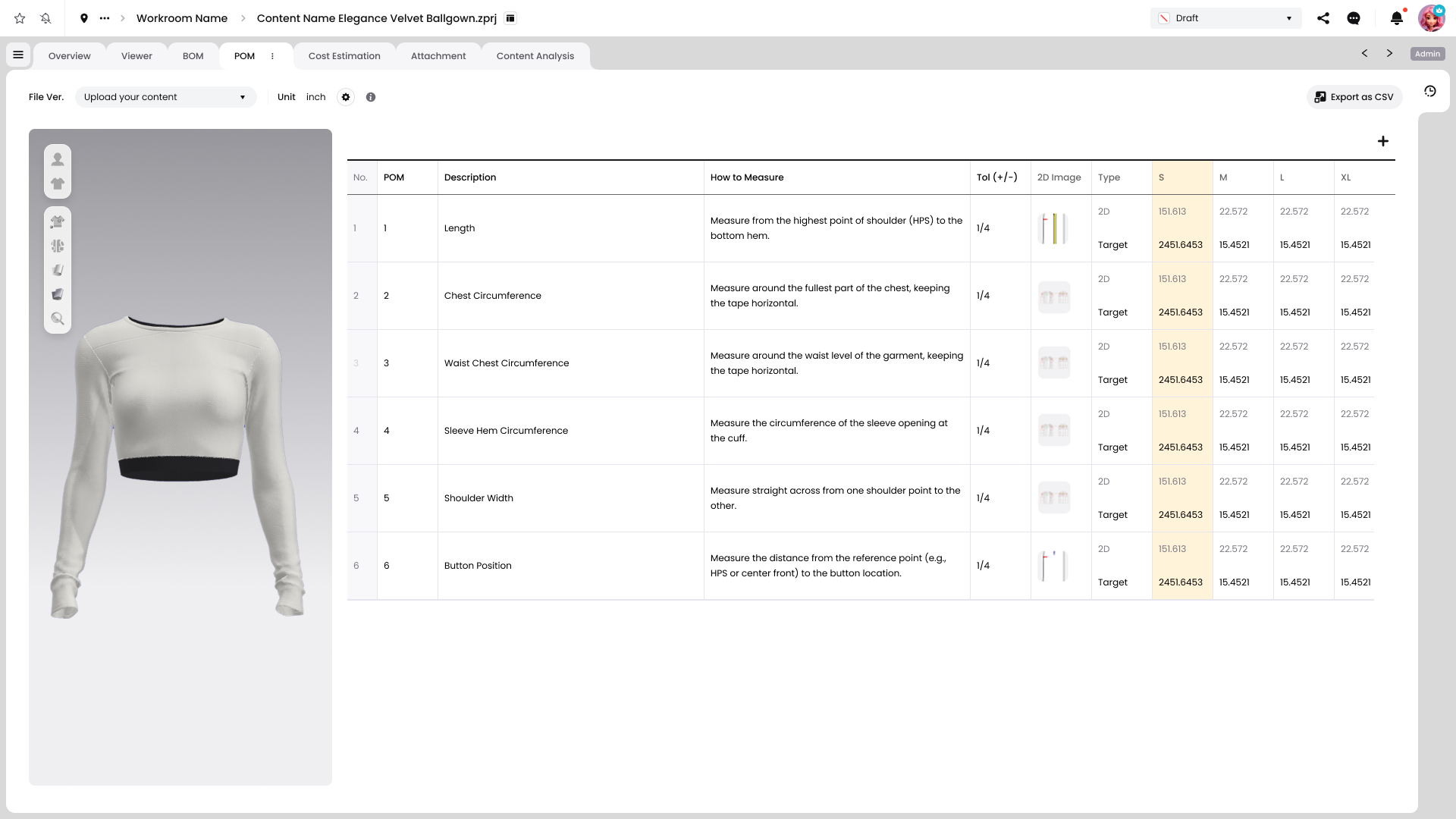

[BOM / POM]

BOM and POM information for garment content can be viewed directly on the Content Page without navigating to a separate page.

Even without a 3D file, BOM and POM can be created and managed as drafts.

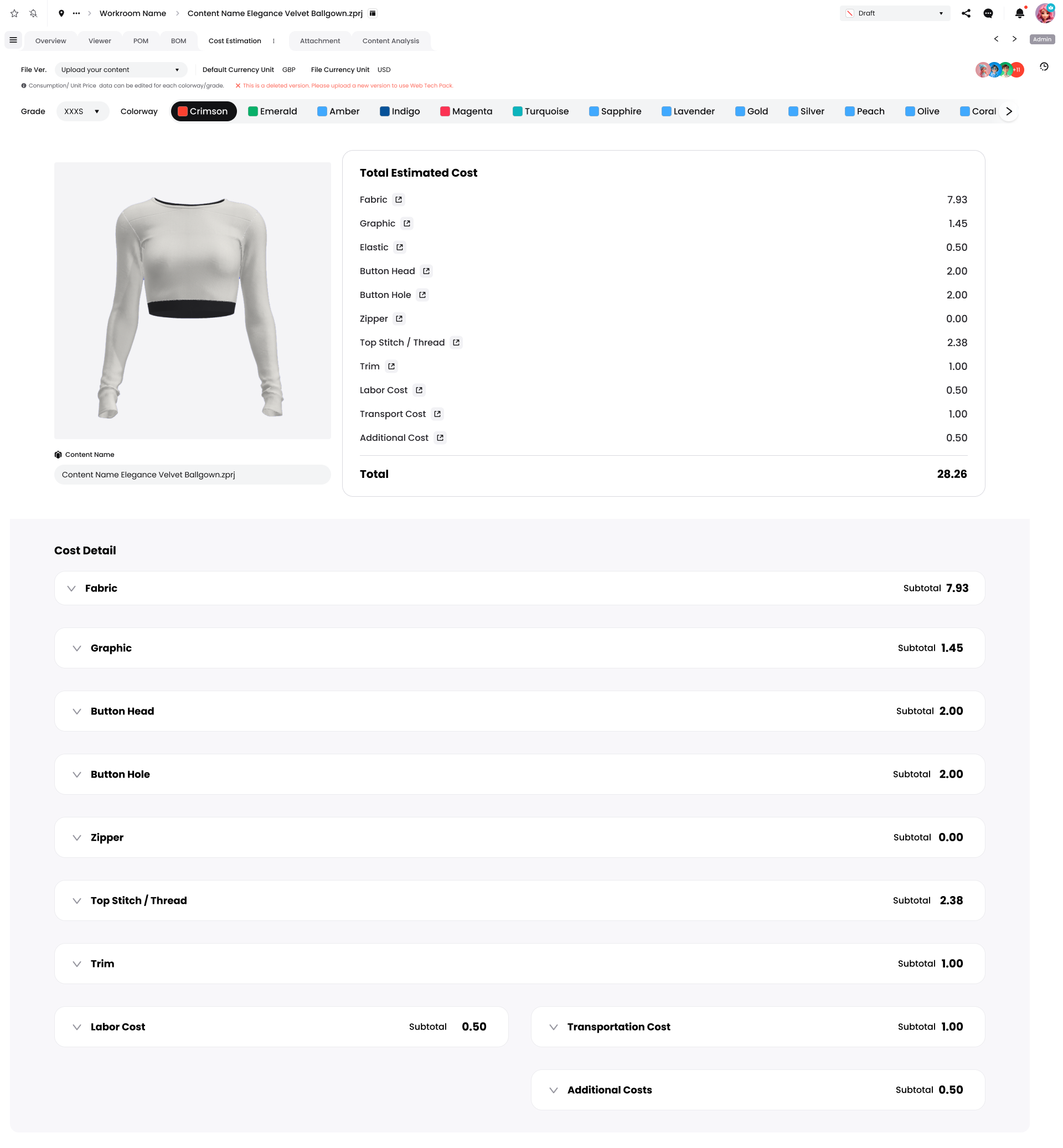

[Cost Estimation]

Cost estimation information for garment content can be viewed directly on the Content Page without navigating to a separate page.
