Objective

CLO-SET Web Tech Pack integrates your everyday tech pack with 3D Contents. Let us bring all the data from your 3D file into an auto-generated Tech Pack. Enjoy a tech pack that is always up-to-date.

On the Measurement tab, you can view the POM information for 2D, 3D, and set Target information.

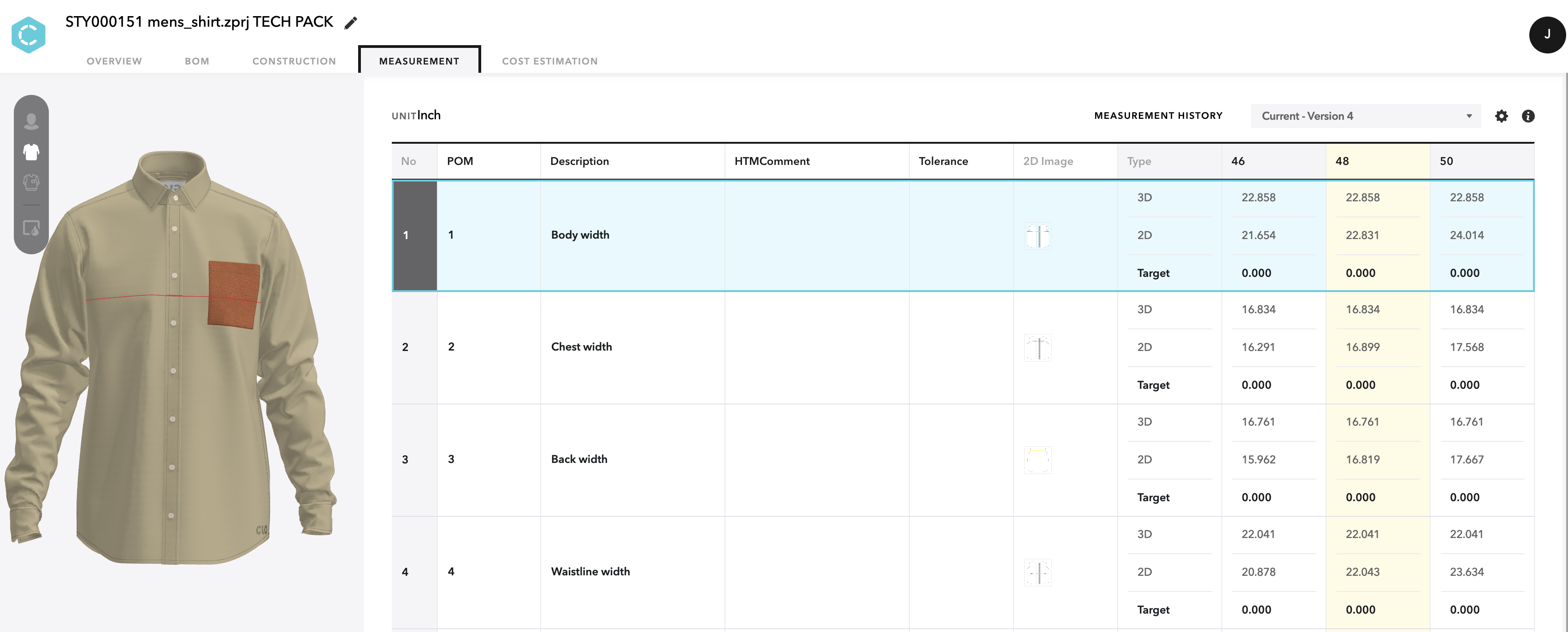

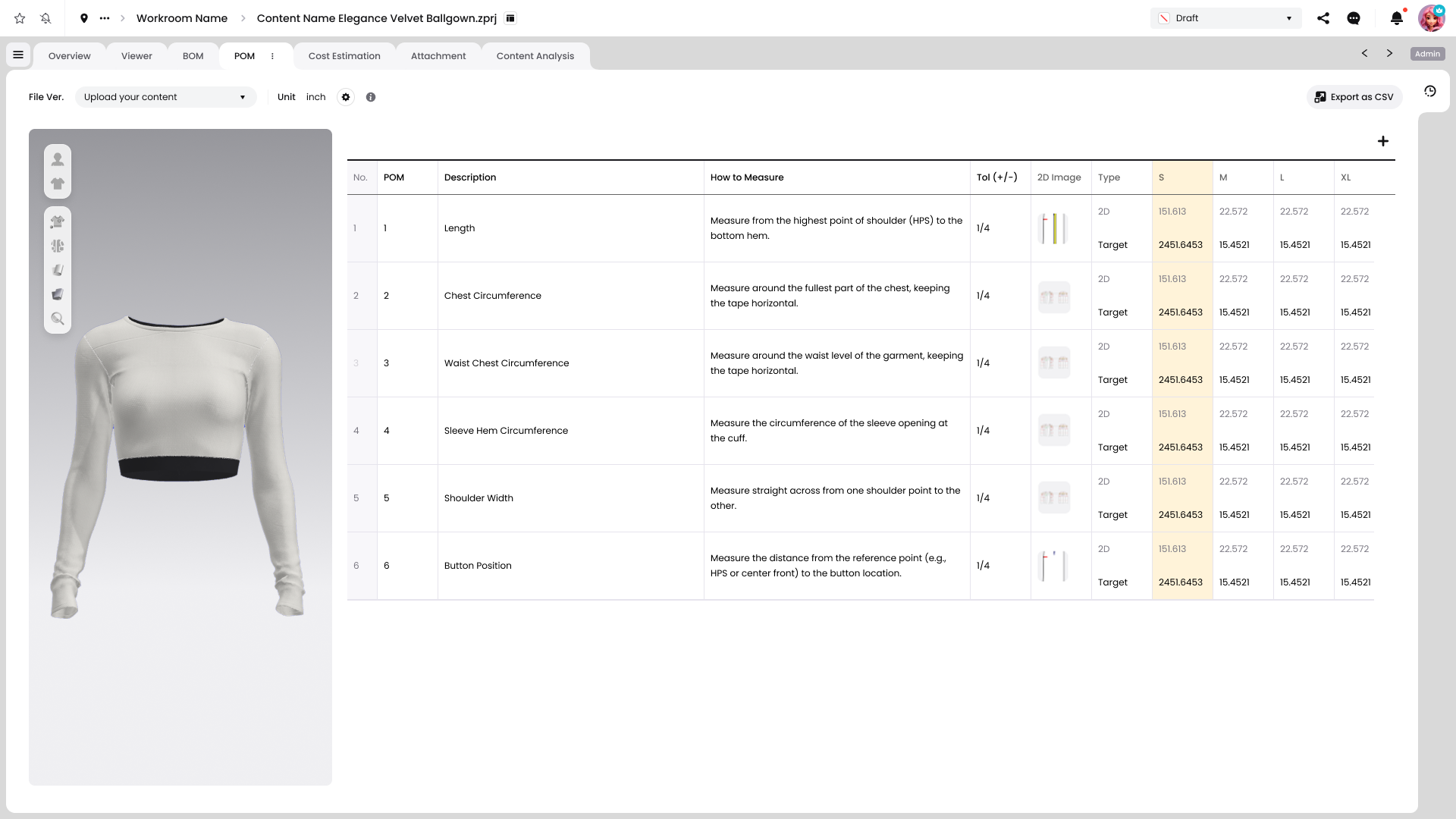

[New Content Page - POM]

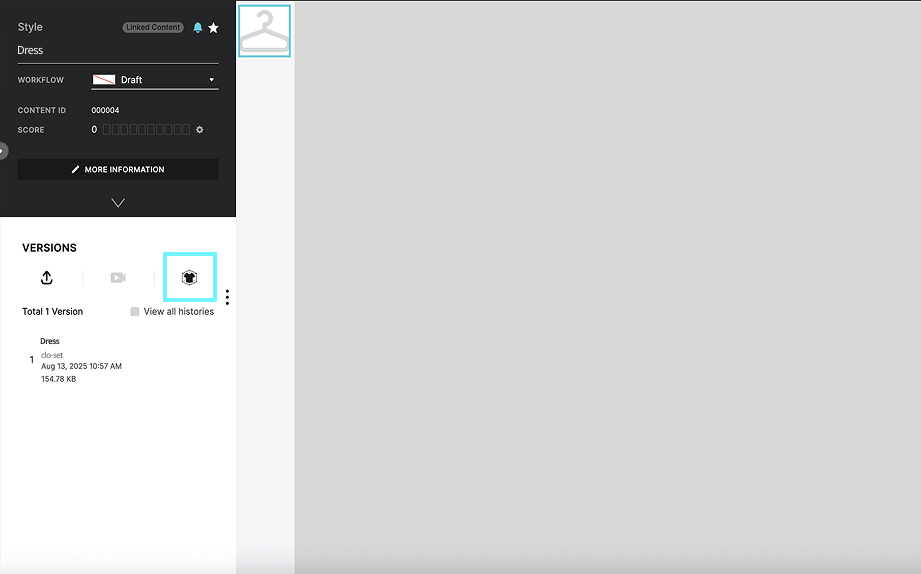

[Legacy Content Page / WTP- Measurement]

1. POM Information
2. 3D Viewer
3. Setting
4. Version
5. Create Blank POM

Details

1) POM Information

POM info shown on WTP is from the data stored in your 3D file from CLO 3D.

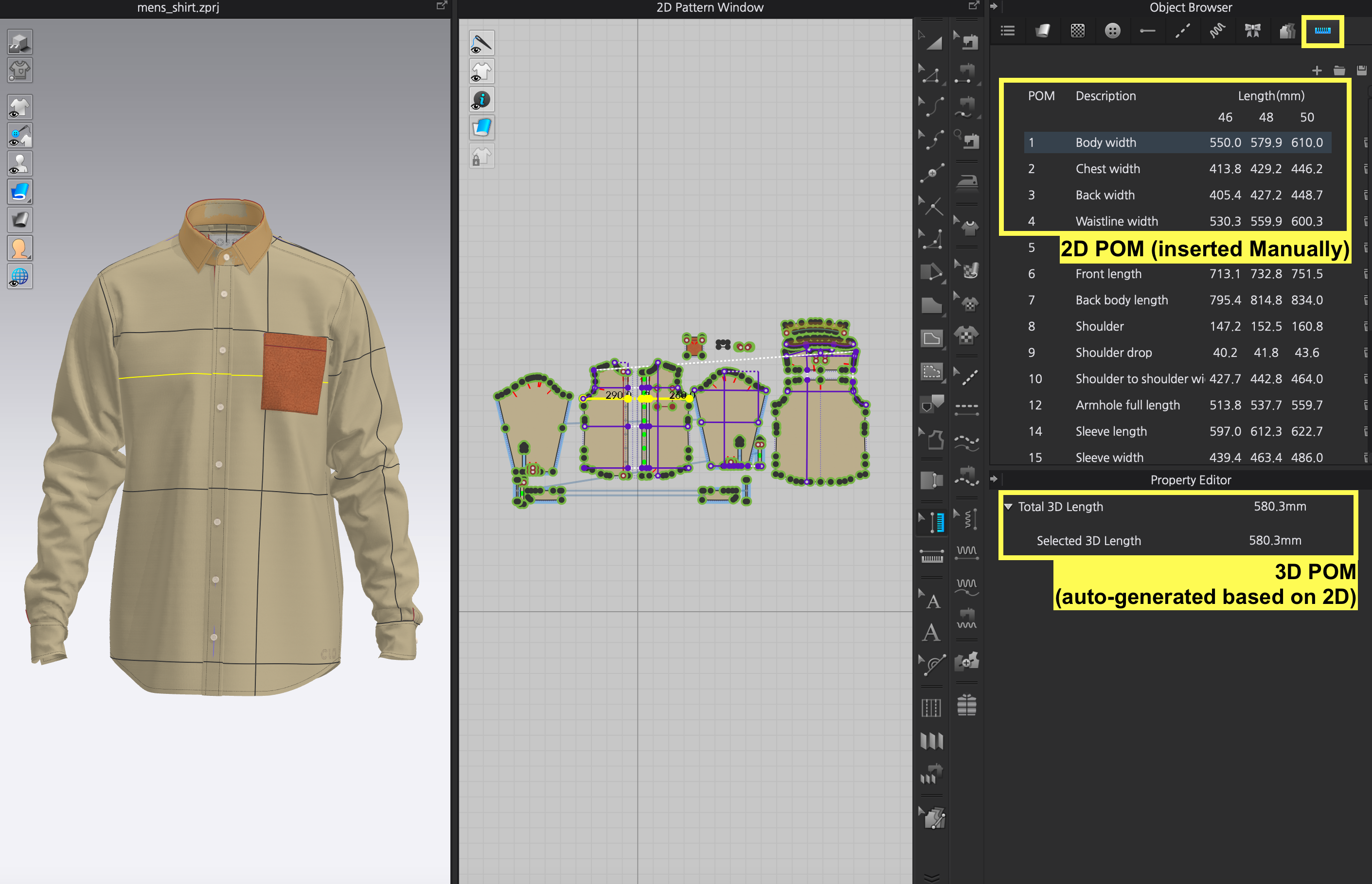

• Create POM Measurement in CLO3D. Once you create 2D POM, 3D POM will be auto-generated.

•  How to create POM
•  Edit POM
•  POM List
•  Grading/Base Size

• Once you upload the .zprj / .zpac file, CLO-SET will import this data to WTP-Measurement.
• You can add Target Measurement guidelines of Tolerance and HTM Comment and collaborate with partners to make the garment fit the designer's purposes and standards.

2) 3D Viewer

View your garment in 3D on the left pane. Select viewing option from the Tool Bar:  Turn Avatar on/off Turn Garment on/off Schematic Render Background Color Selected POM from the table will be highlighted on the 3D Viewer in red line

3) Setting

• Click on icon on the top right corner to manage Measurement Preferences.

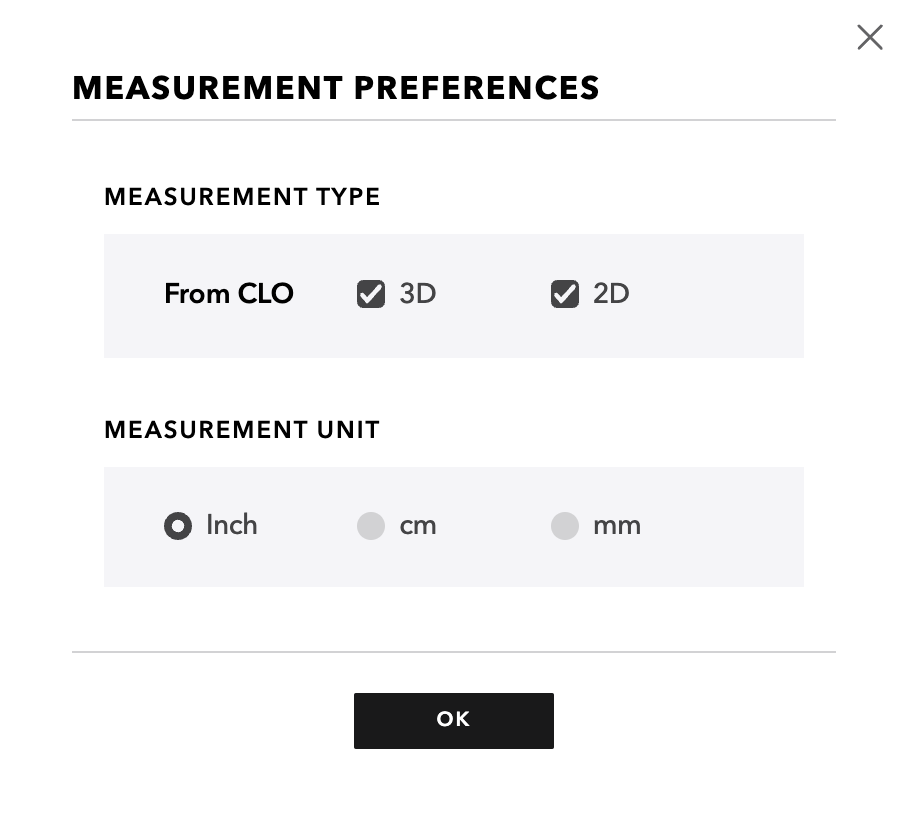

Select Measurement Type you want to view. Both the 2D/3D POM data is exported from your .zprj / .zpac file Select Measurement Unit: Inch / cm / mm

4) Version

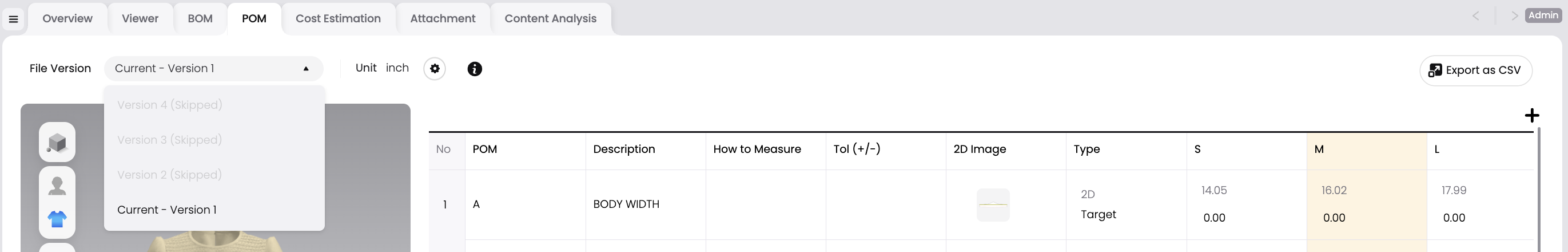

When you upload a new version of the Content, information on Measurement tab is also updated. To view the older Version, you may select from the drop-down menu.

[New Content Page]

[Legacy POM of WTP]

5) Create Blank POM

1) When the content is blank

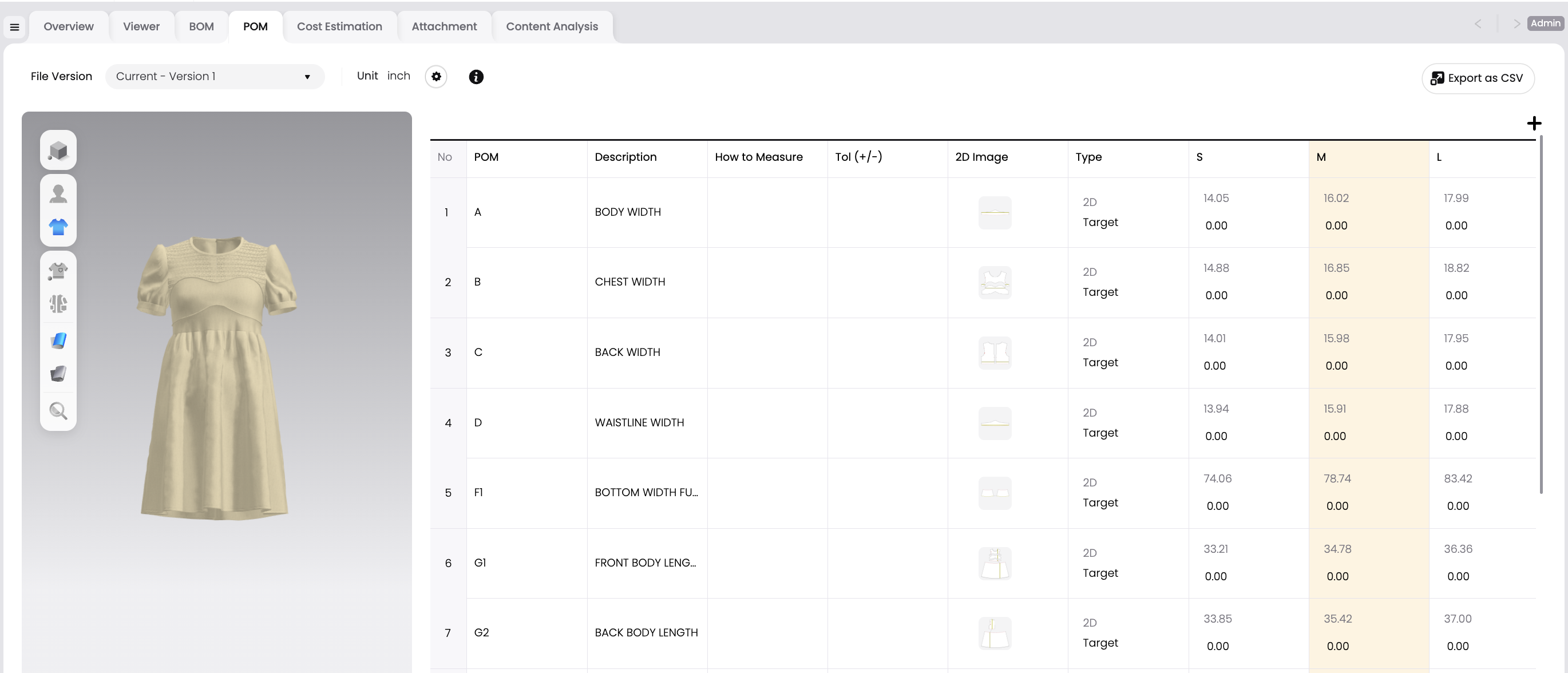

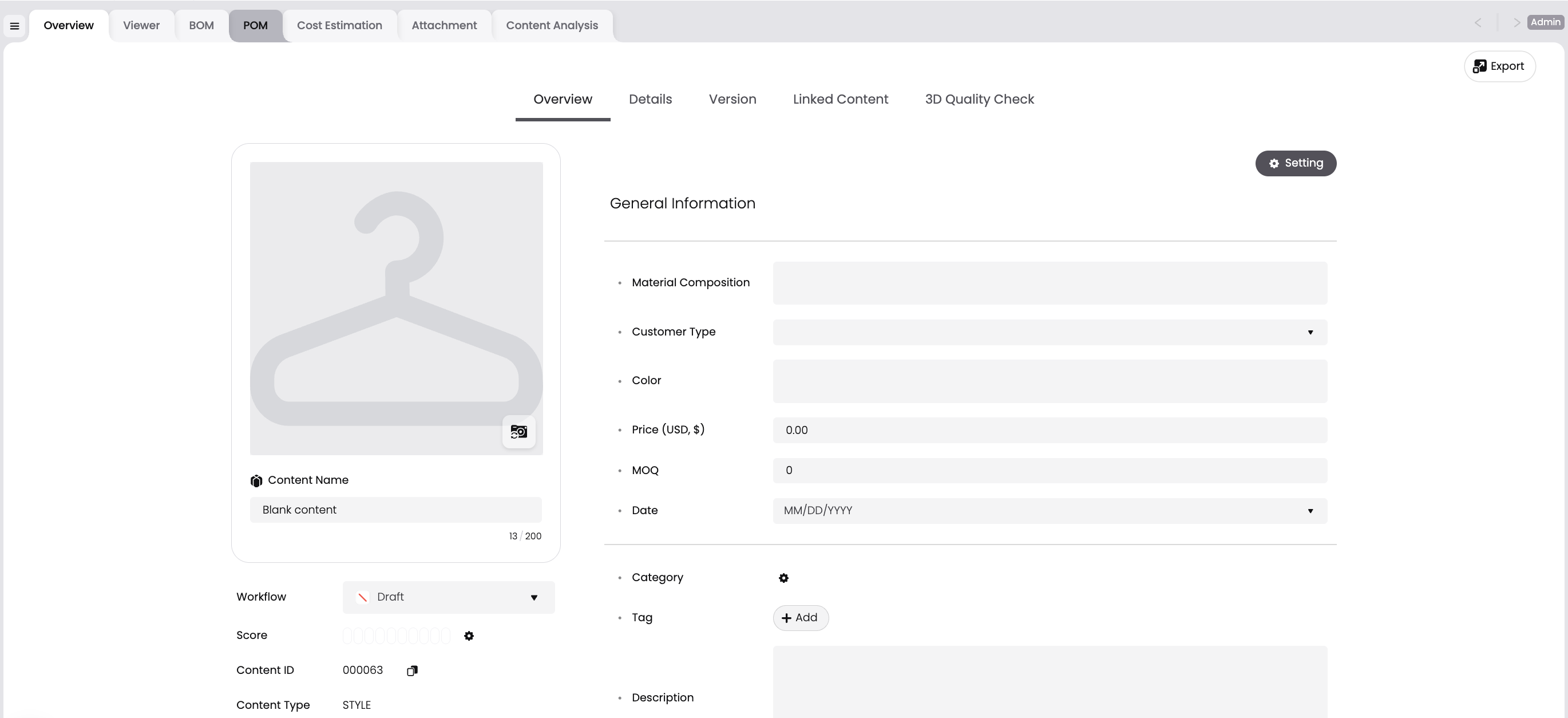

• In WTP → Measurement tab, a guide message appears: “Create Draft POM.” (Click POM tab in the new content page)


• Click the button to generate a blank Measurement Table.

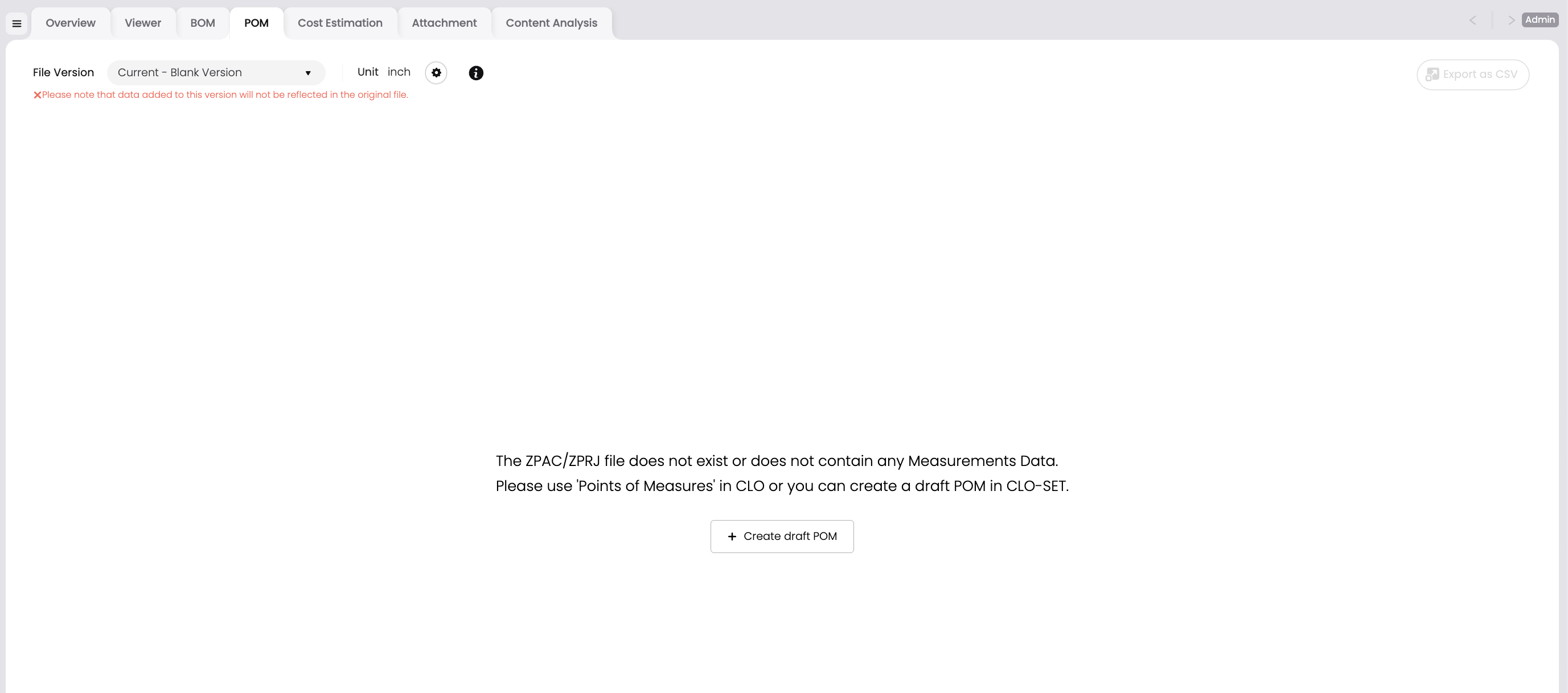

  [New Content Page]

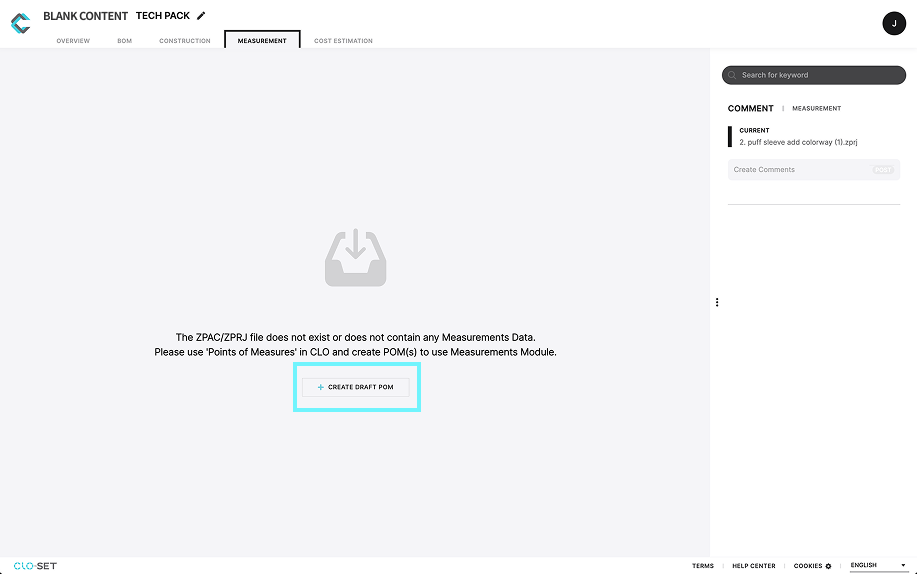

  [Legacy POM of WTP]

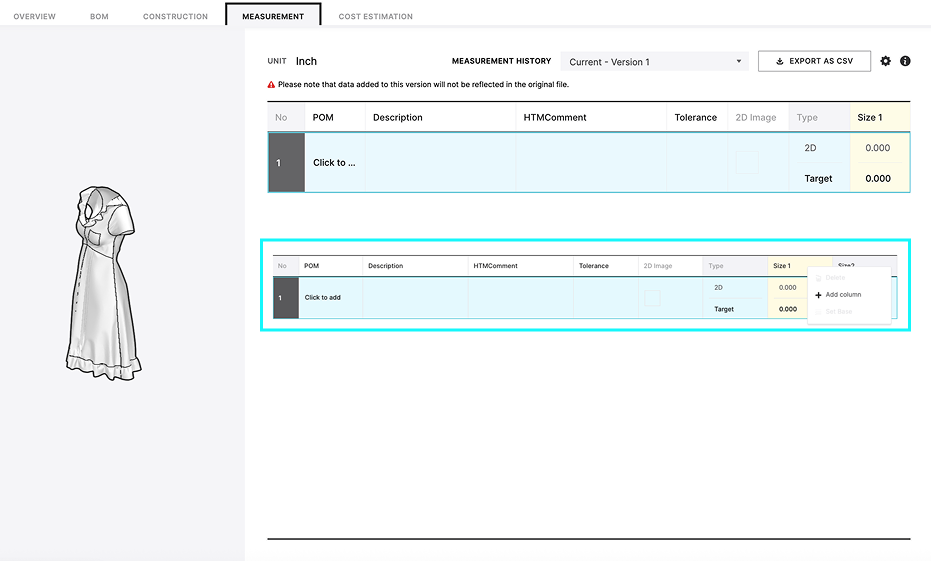

• Click the button to generate a blank Measurement Table.

• Double-click each column to enter data: POM, Description, HTMComment, Tolerance, Target.

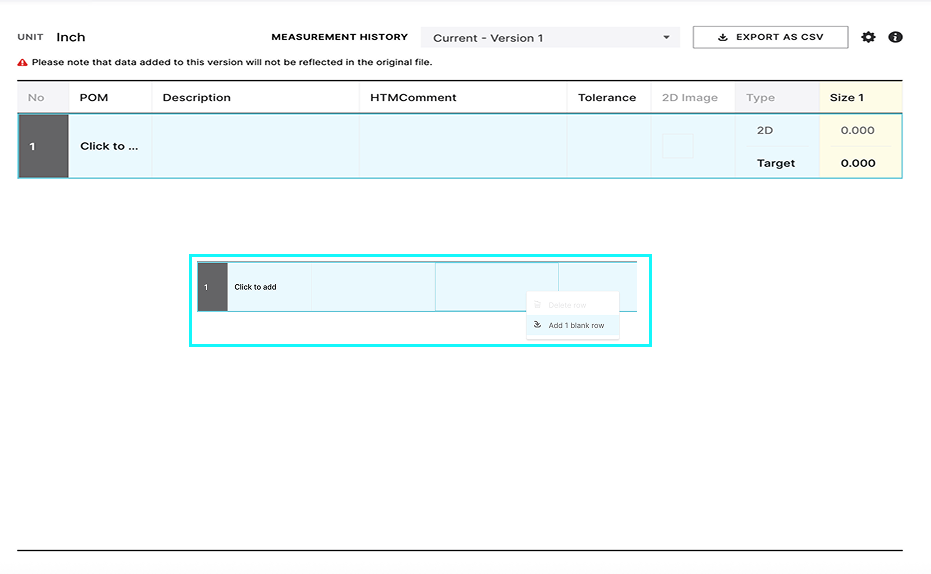

• Right-click a row to open the context menu and Add Row / Delete Row.

• Right-click a Size column to open the context menu and Add Column / Set Base / Delete Column.

• Note: For blank content, the 3D viewer is not available.

2) When the content has no Measurement Data

• Click the button to generate a Measurement Table.

• Double-click each column to enter data: POM, Description, HTMComment, Tolerance, Target.* If the file is a 3D file, the 3D viewer appears on the left.

  * Right-click a row to open the context menu and Add Row / Delete Row.

  * Right-click a size column to open the context menu and Add Size Column / Set Base for the size column (base for grading)

3) Version update policy

Version updates follow the same rules as the BOM table:

• The update is based on the latest WTP file.

• Items added in the previous version are carried over to the new version.

• Carried-over items are listed at the bottom of the table.

• Duplicate entries cannot be automatically distinguished.

• After the version update, editing the previous version is disabled.

💡 Notes

POM (Measurement) information for garment content can be view directly on the content page without navigating to a separate web tech pack from the legacy content page.
