Permission:  Admin   Collaborator   Editor

Objective

CLO-SET Web Tech Pack integrates your everyday tech pack with 3D Contents. Let us bring all the data from your 3D file into an auto-generated Tech Pack. Enjoy a tech pack that is always up-to-date.

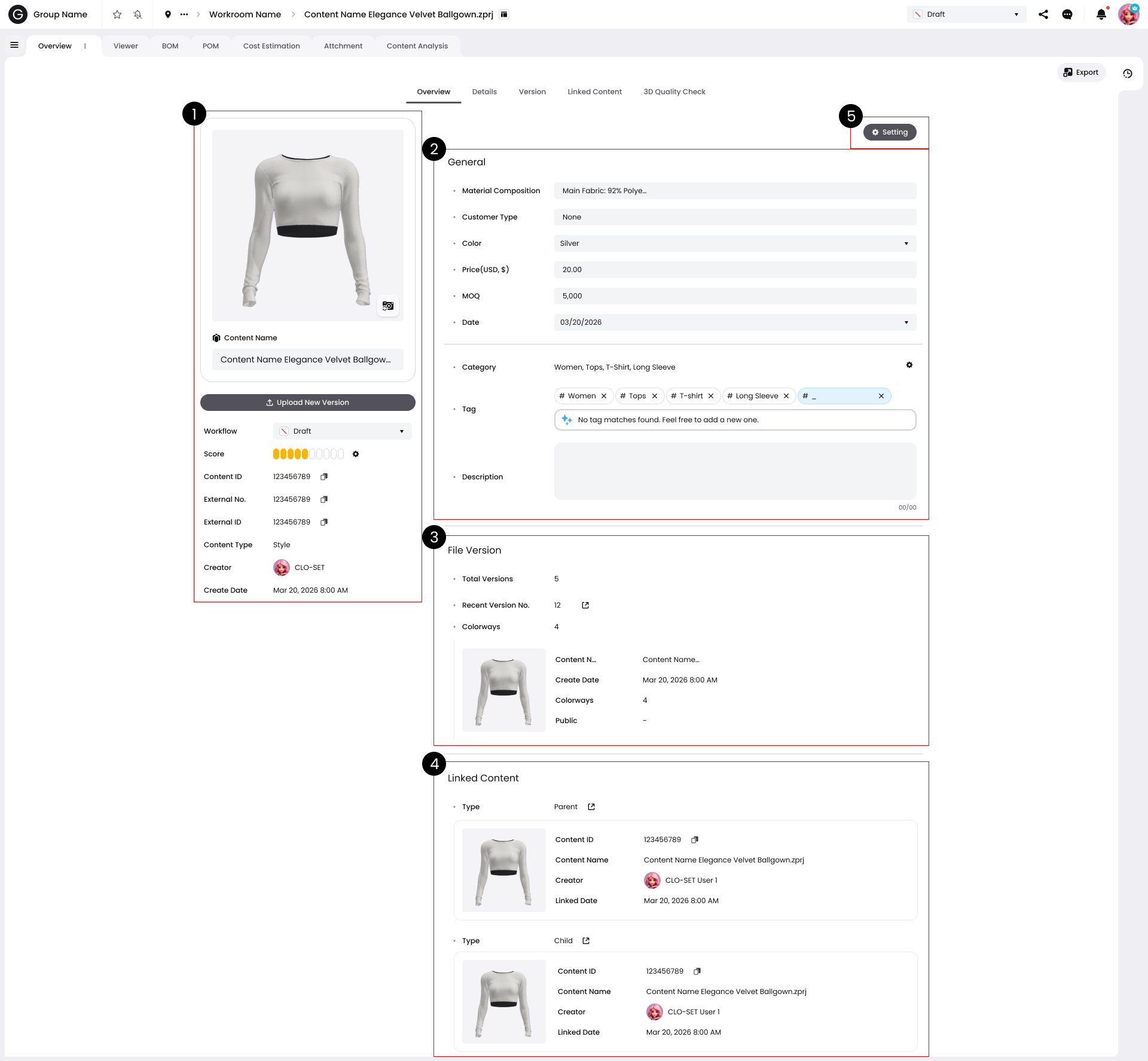

'Overview' allows you to check the overall info of the 3D Content & manage the production schedule

1. Summary
   • Which fields are editable?
2. Schedule
3. Requirement & Permission
4. WTP General Guide

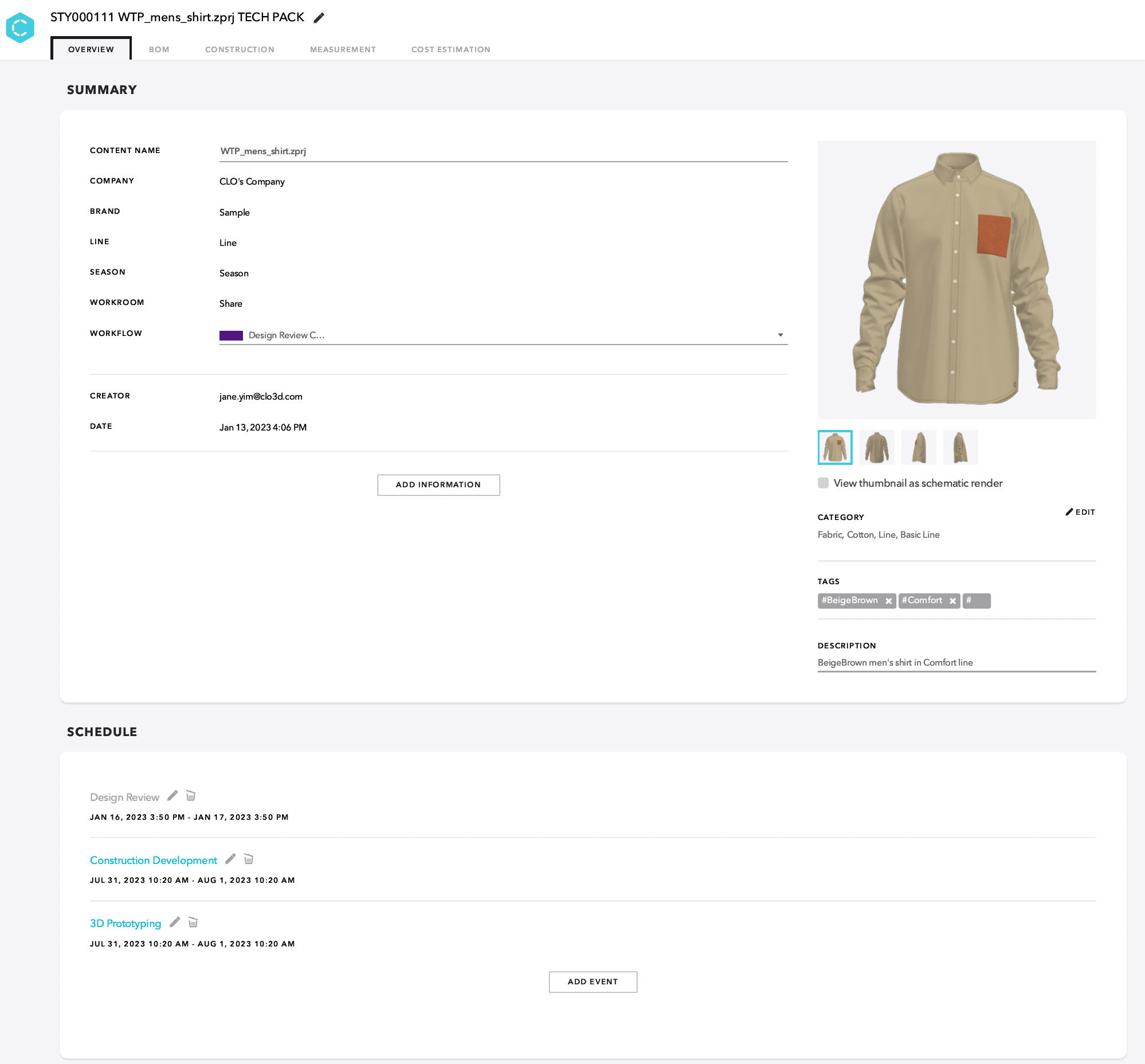

1) Summary

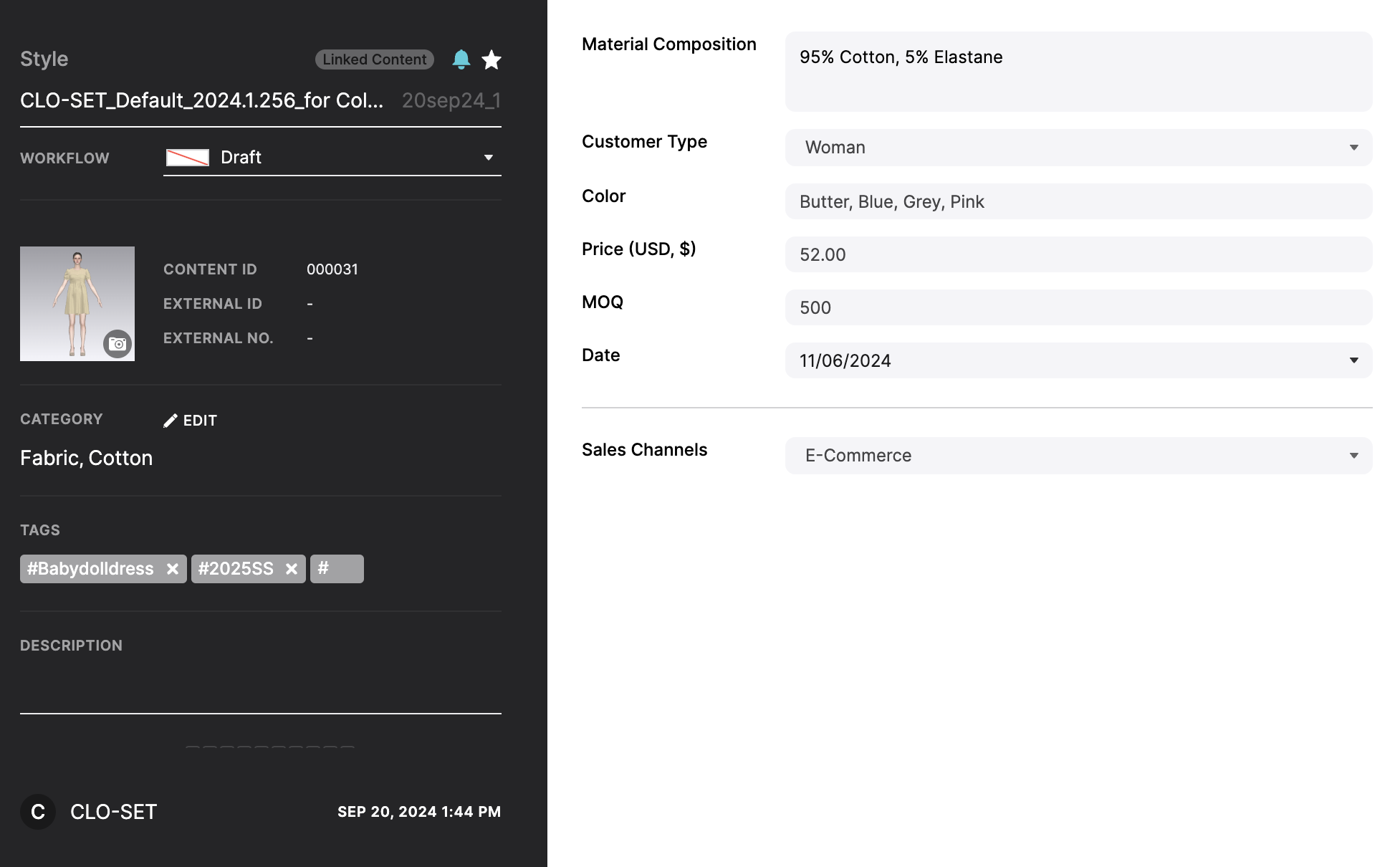

Information on the Summary tab is synched with the Style info tab on your Content page, including the Custom Information Fields

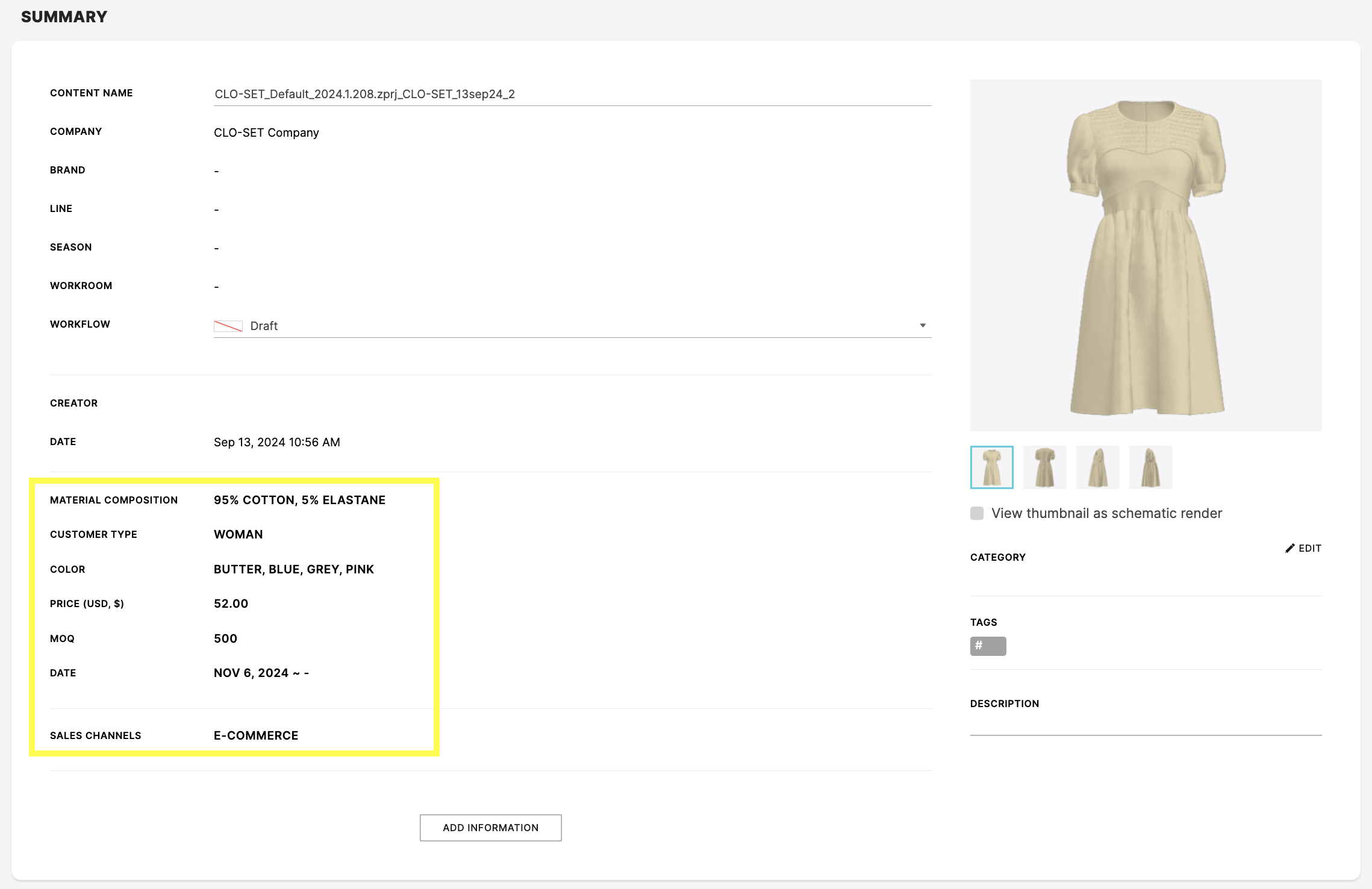

Manage and edit details, and create additional fields by clicking 'ADD INFORMATION' button.

*The additional information tab will not be reflected back on the Content Page.

►

• Which Fields are Editable?

  • Content Name
  • Company / Brand / Season / Line / Workroom
  • Workflow
  • Creator/Created Date
  • Thumbnail
  • Tags
  • Category
  • Description
  • Custom Information Fields

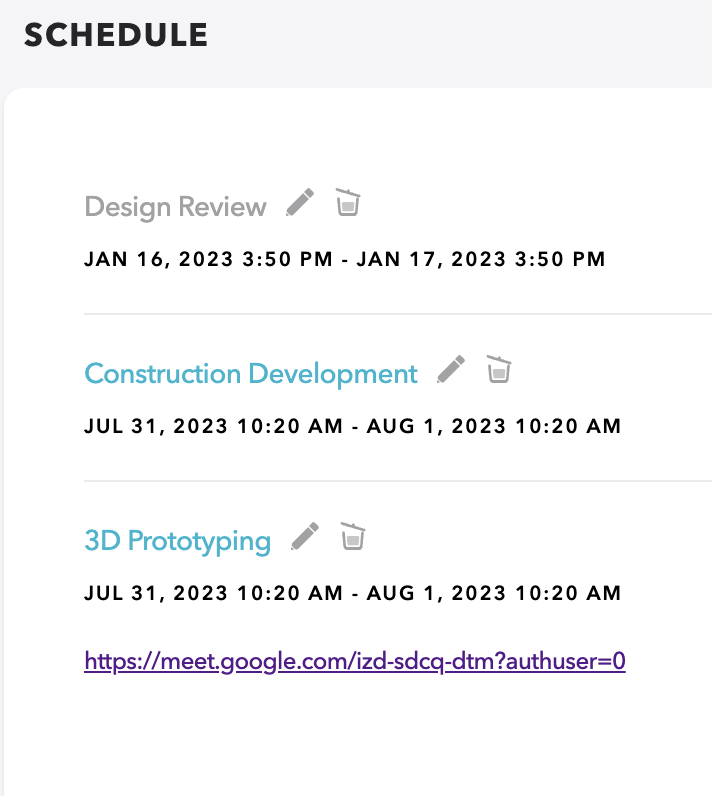

2) Schedule

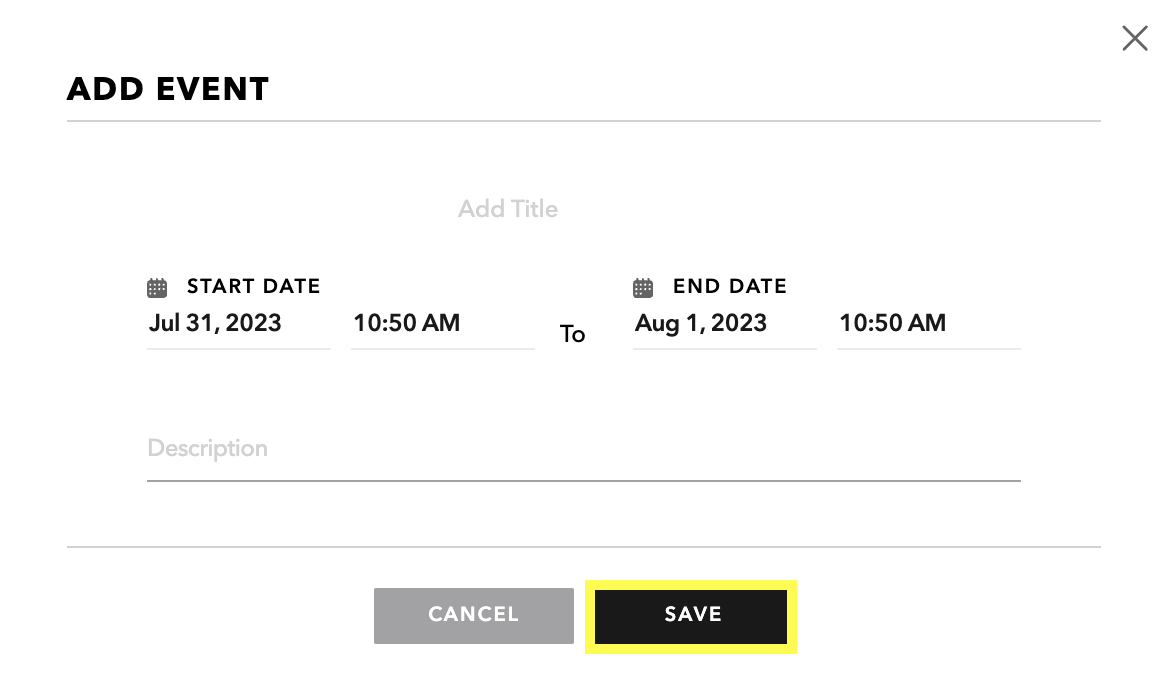

Add Schedule and Meeting links for each style to track the production schedule & timeline.

1. Create Schedule and timeline for each phase
2. Share meeting links or external links on the Schedule tab for the team

3) Requirement & Permission

• Content Type: for a WTP to be created, the Content Type must be 'Style'
  • if the 1st version uploaded is a zpac/zprj file, then the Content Type will automatically update to 'Style'
  • if the Content Type is NOT 'Style', then Web Tech Pack will not be activated even if the last version uploaded is a zpac/zprj file.
  • if the Content Type is 'Styl'e but the uploaded version is NOT a zpac/zprj file (ex. blank content, jpeg, fab, etc), then Web Tech Pack will be activated but it will not be able to load any data.
• Access the Tech Pack page by clicking the (Web Tech Pack) button from Content page
• You must have Admin / Collaborator / Editor permission to view the Web Tech Pack

*For Image files:

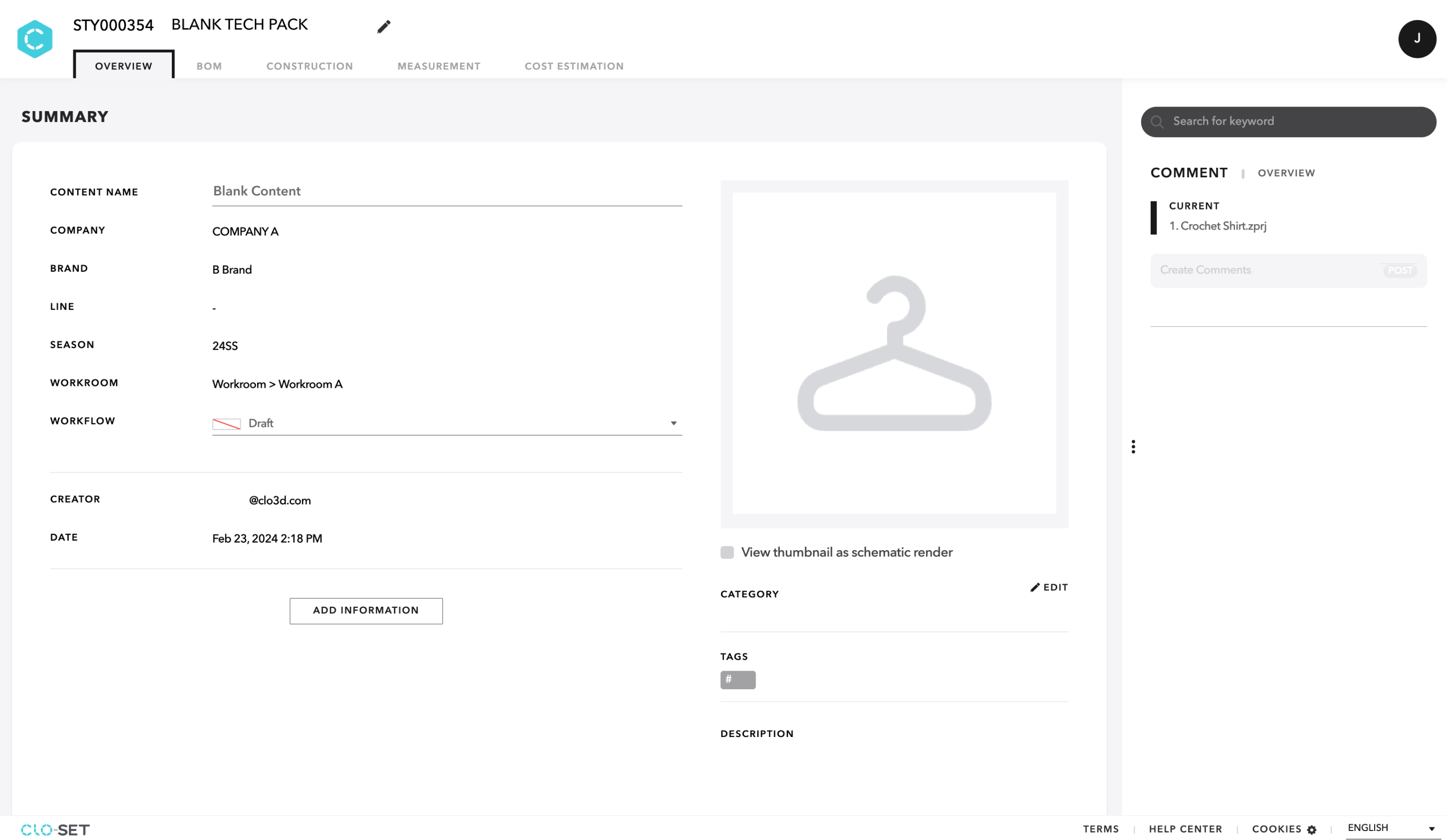

*For Blank Contents:
