Objective

web tech pack.pngCLO-SET Web Tech Pack integrates your everyday tech pack with 3D Contents. Let us bring all the data from your 3D file into an auto-generated Tech Pack. Enjoy a tech pack that is always up-to-date.

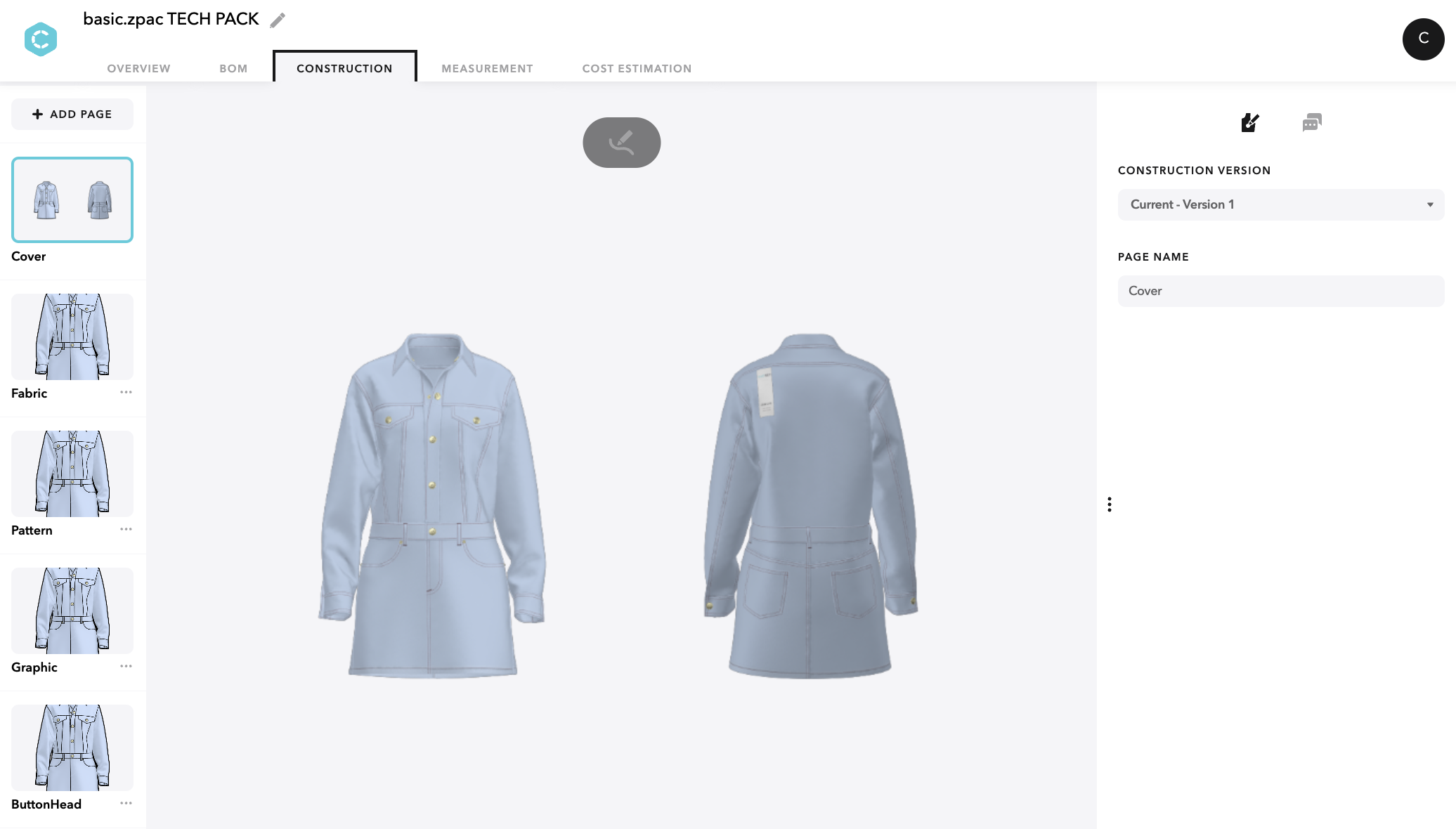

The Construction tab displays auto-generated markers and allows construction annotation for all Content Types that have been pre-set in CLO3D. CLO-SET Construction is integrated with all the materials, trims, and even sewing methods of the 3D garment made in CLO3D.
* Construction is currently supported only in the Web Tech Pack of the legacy Content Page and will be added to the New Content Page in a future update.

  • Data Sync from CLO3D BOM
  • Flexible modification, addition, and deletion of markers and their position
  • Easy-to-use annotation tools for texts and drawings
  • Availability of version updates as well as history tracking
  • Communicate with your partners, Share ideas, and Make final decisions for your outfits.



2. How-To

Permission

  •
    • Admins: able to Edit and Delete others’ comments and annotations
    • Collaborators and Editors: able to Edit and Delete mine only

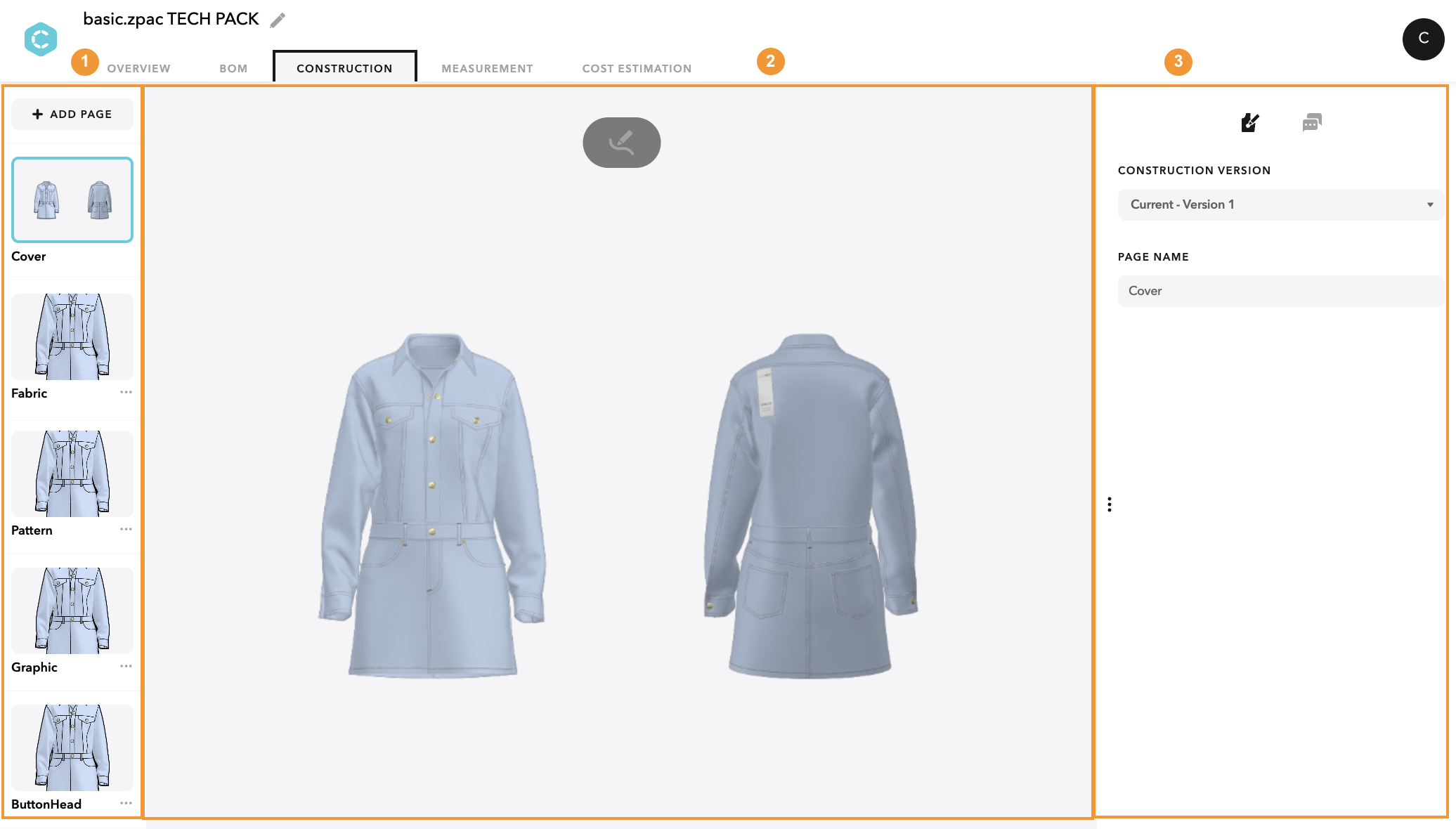

Screen_Shot_2022-08-17_at_10.54.09_AM.pngContent Type Panel

Add Pages for new Content Type

  1. Click the AddPageIcon.pngbutton.

  2. Select a Content Type

Reorder Pages

  1. Drag and Drop the Page as you would like.

  2. Cover cannot be reordered.

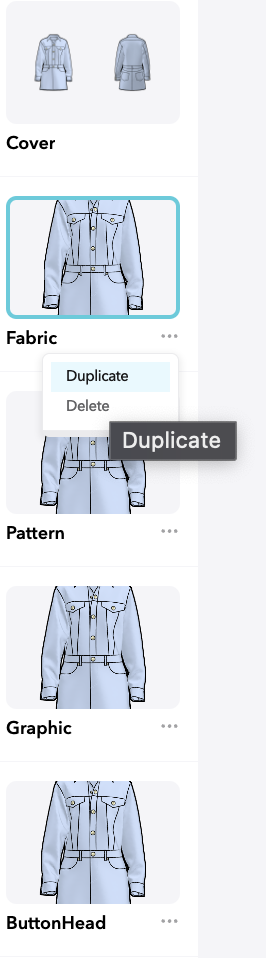

Delete & Duplicate

Click on the dotdotdot.png and Duplicate or Delete as you wish.



Screen_Shot_2022-08-17_at_10.53.49_AM.pngConstruction Viewer  &Screen_Shot_2022-08-17_at_10.54.56_AM.pngConstruction/Comment Panel

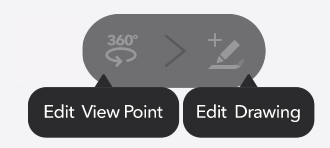

To Edit View Point, click on the left icon to zoom in and zoom out and turn the camera with right click.

  • Rotation
  • Zoom In/Out
  • Camera Point
  • Keyboard Shortcuts


To Edit Drawing, click on the right icon to make annotation drawings and add or delete markers. Please refer to the details of each feature from the left side of the Annotation Tool Bar.


  • pic.png  Attach Image - After clicking on the viewer window, the File Directory will appear.
  • move.png  Click - You can move and adjust around other annotations that you have already created.
  • input_text.png  Input Text
  • pen.png  Pen
  • straightline.png  Straight Line
  • curvedLine.png  Curved Line
  • oneArrow.png  One-sided Arrow
  • circle.png  Circle
  • square.png  Square
  • penColor.png  Toolpen Color
  • thickness.png  Toolpen Thickness

markerToolBar.png You can Add and Delete markers from the tool bar on the bottom of the 3D Viewer Window.



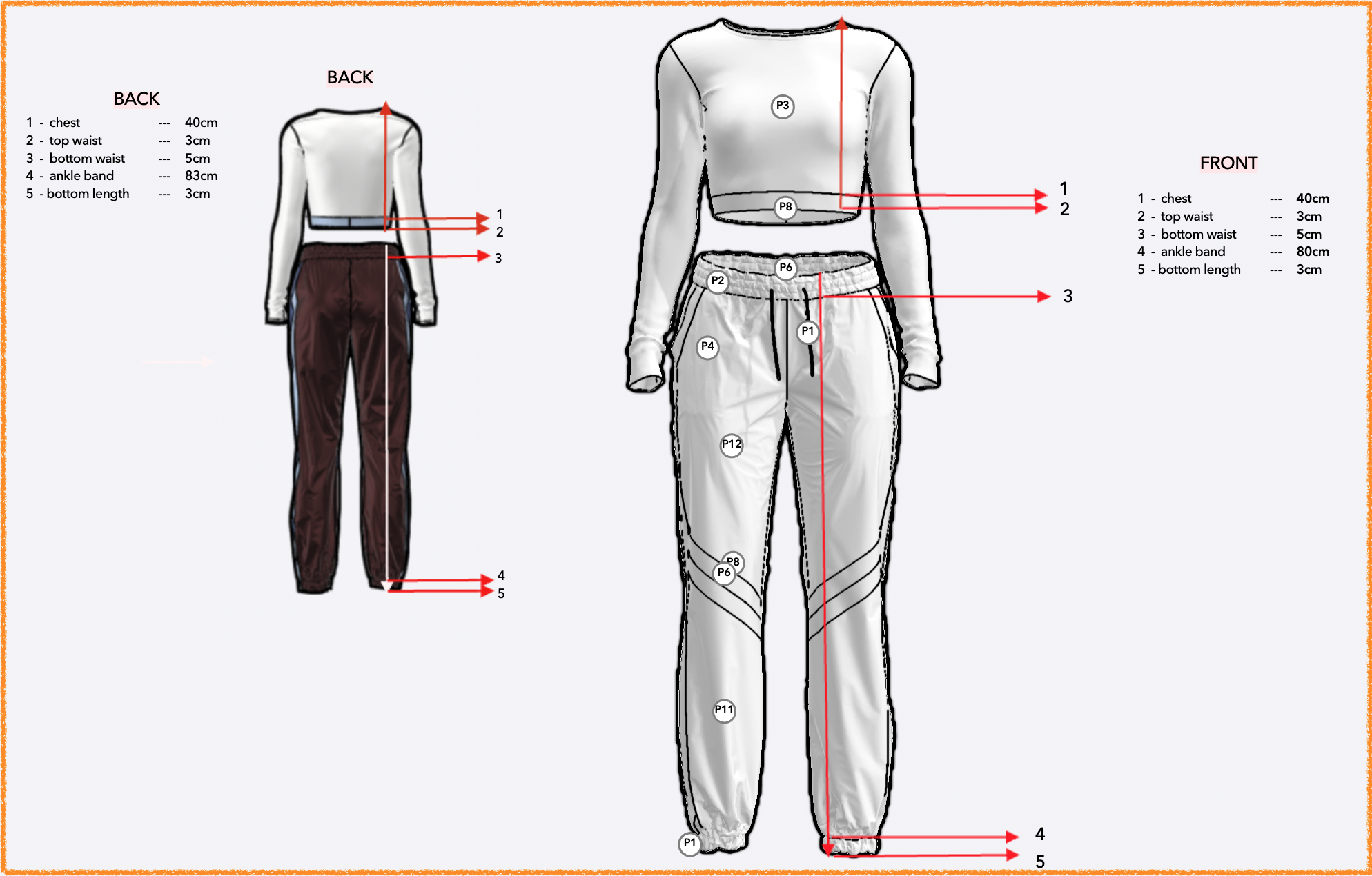

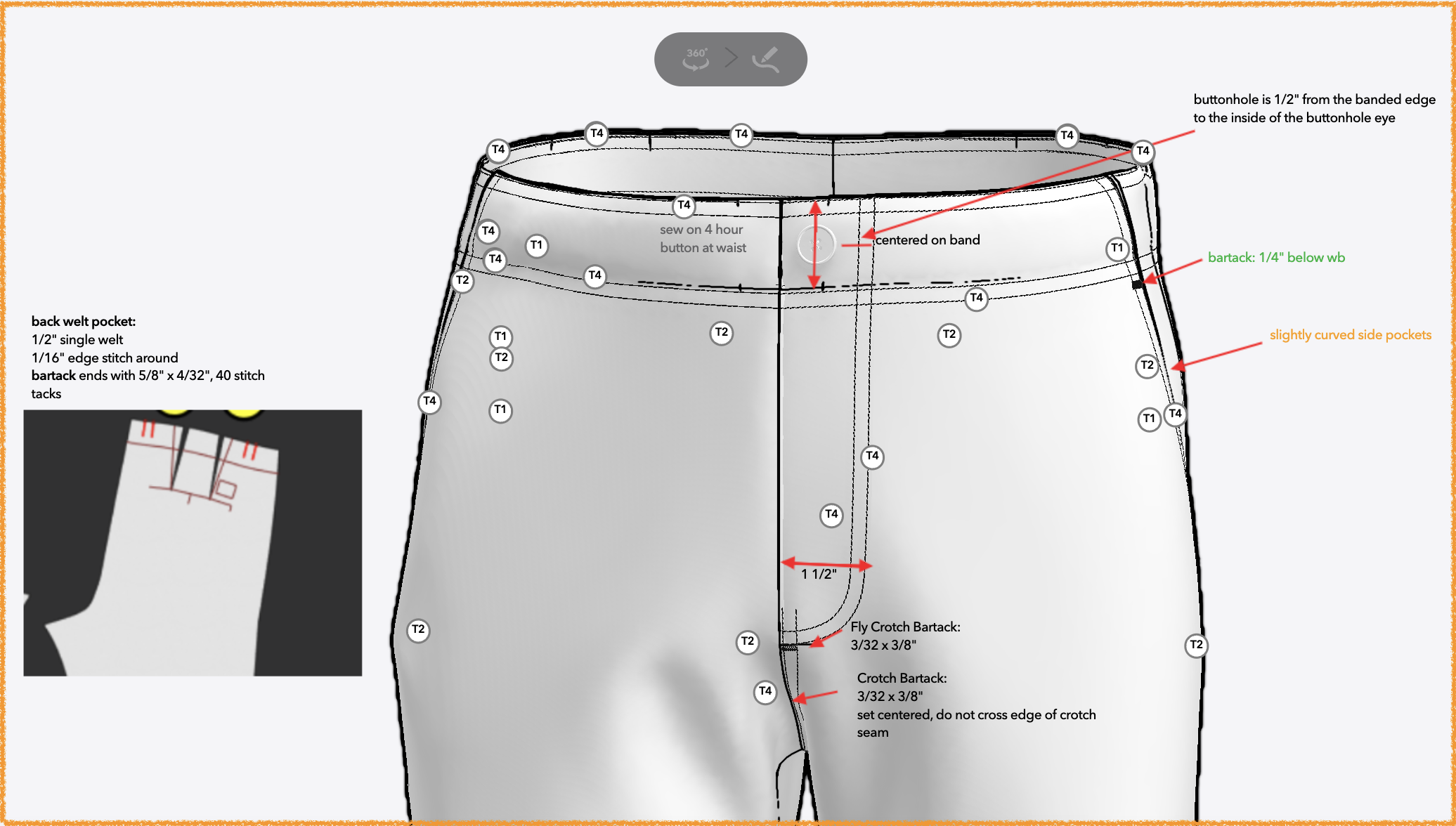

Examples






3. Page Types

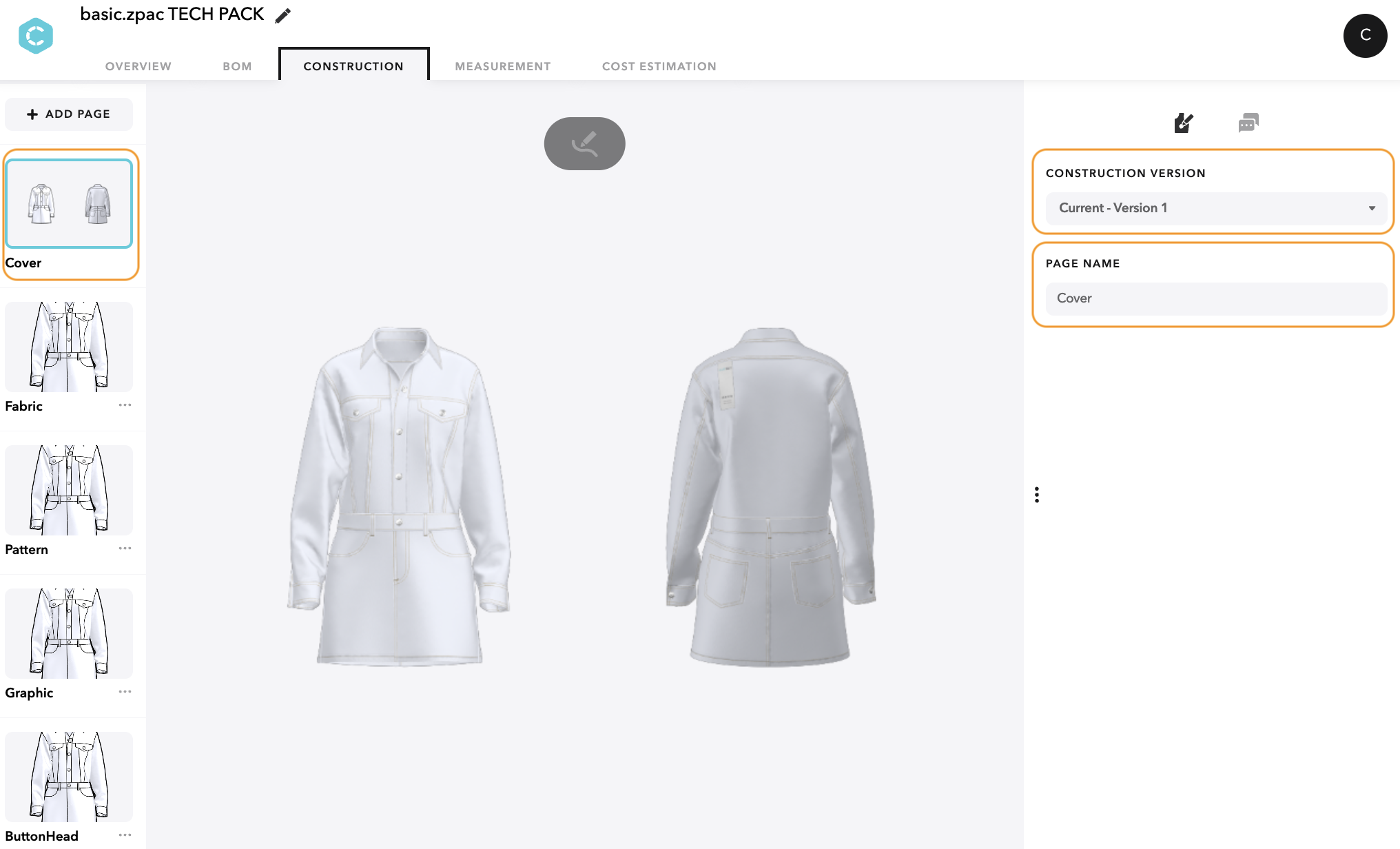

  1. Cover Page
    • Viewer panel shows the ‘front’ and the ‘back’ images that are generated when saving the garment as Zpac and Zprj
    • Construction Version shows the list of history versions as well as the Current Version.
    • Page Name is named default as Cover, and it can be modified.

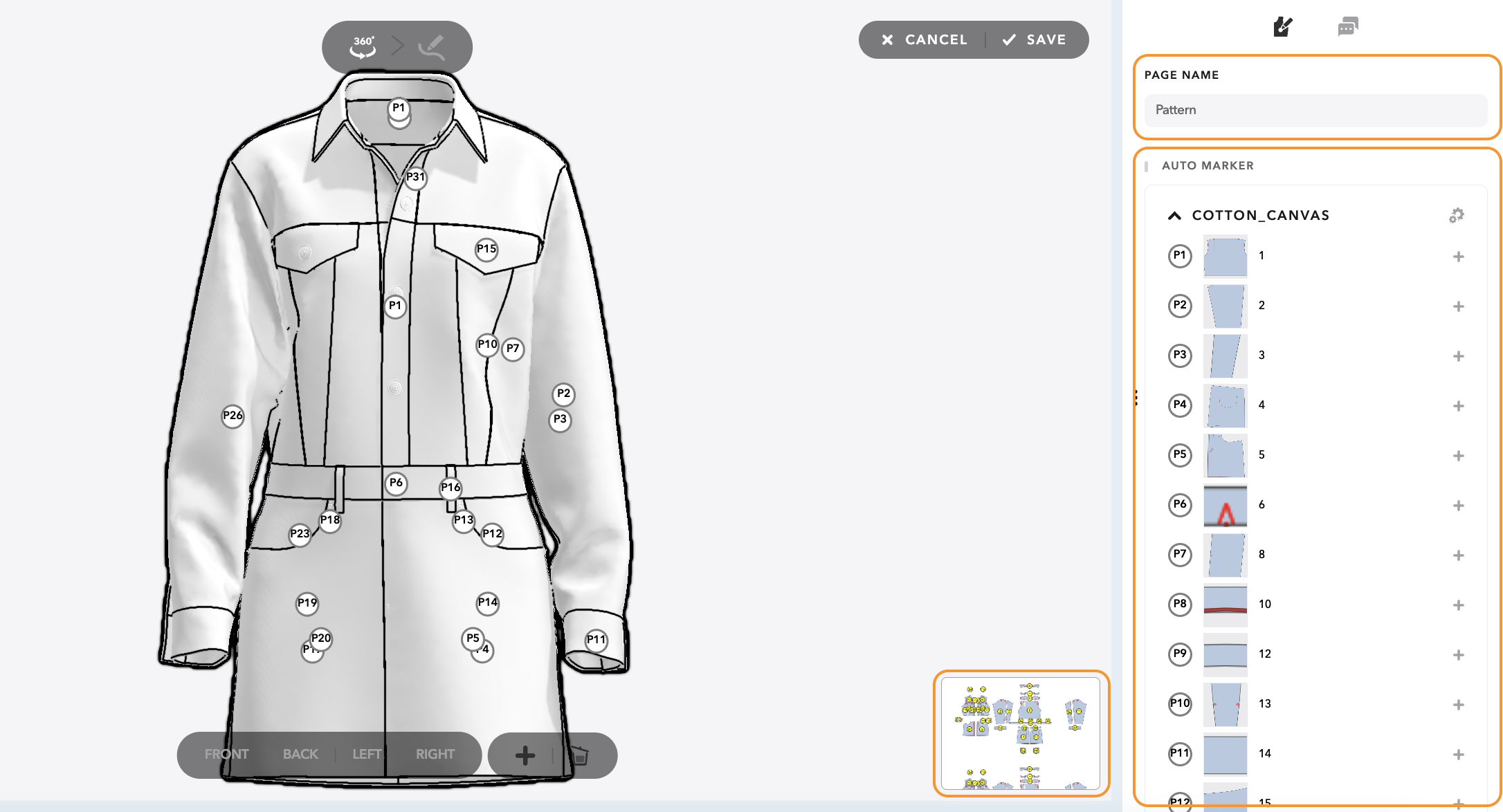

  2. Pattern Page

    • Page Name is named default as Pattern, and it can be modified.
    • The markers of Pattern start from P1, using the ‘P’ prefix from Pattern.
    • The Pattern Panel displays the parts of the Patterns used for each Fabric from CLO3D as shown in the Object Browser of CLO3D.
      • The order of the Pattern list is identical to the order of the Pattern from CLO3D.
    • The construction markers of Pattern cannot be added or deleted.
    • On the bottom right corner of the viewer window, there is a Pattern Layout, which can be clicked to view.

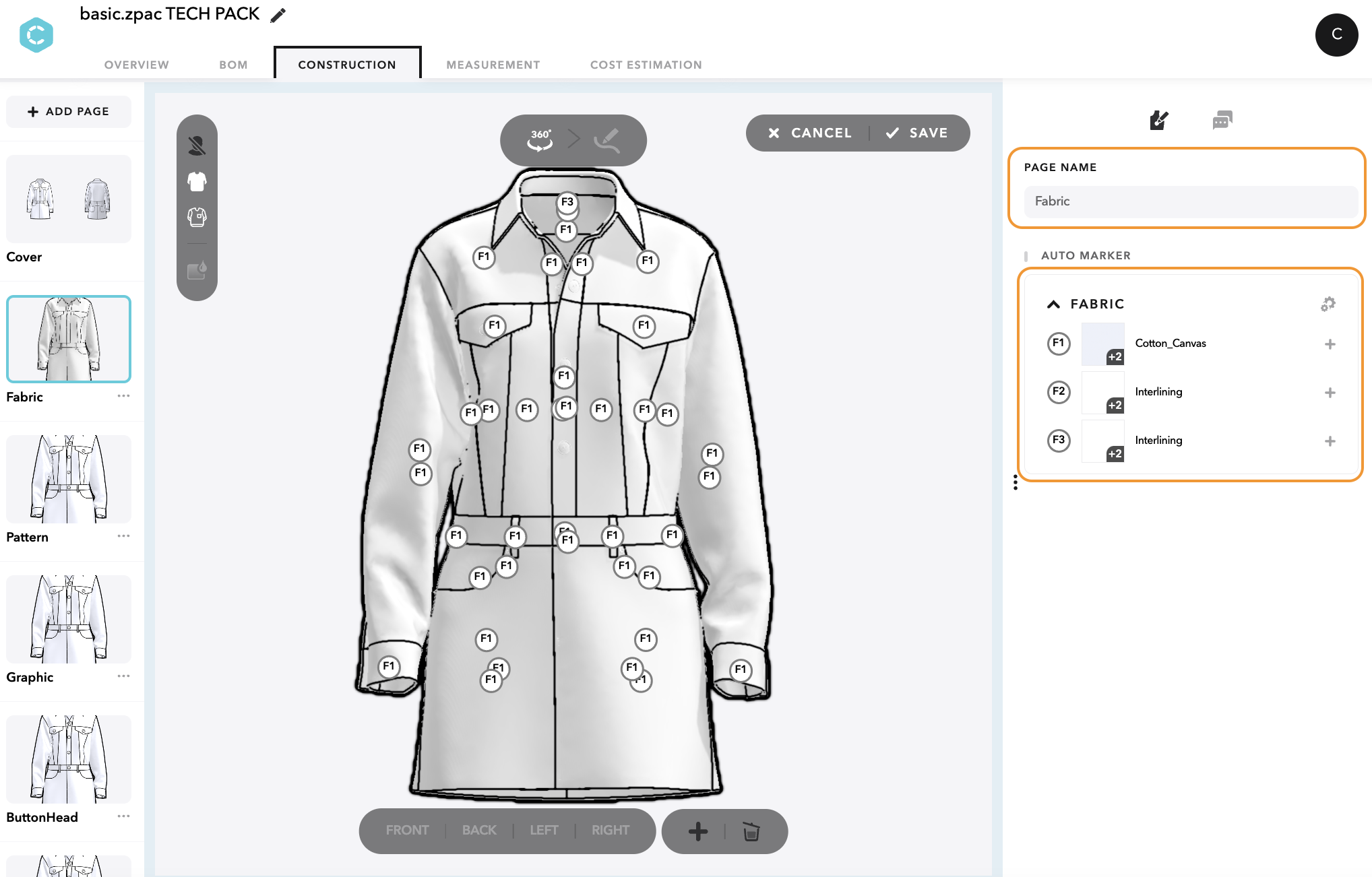

  3. Fabric Page
    • Page Name is named default as Fabric, and it can be modified.
    • The markers of Fabric start from F1, using the ‘F’ prefix from Fabric.
    • The Fabric Panel displays the names of the Fabric used from CLO3D as shown in the Object Browser of CLO3D.
      • The order of the Fabric list is identical to the order of the Fabric from CLO3D.
  4. Graphic Page

    • Page Name is named default as Graphic, and it can be modified.
    • The markers of Graphic start from G1, using the ‘G’ prefix from Graphic.
    • The Graphic Panel displays the names of the Graphic used from CLO3D as shown in the Object Browser of CLO3D.
      • The order of the Graphic list is identical to the order of the Graphic from CLO3D.

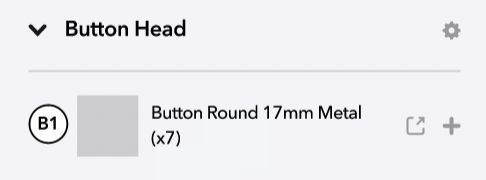

  5. Button Head Page
    • Page Name is named default as Button Head, and it can be modified.
    • The markers of Button Head start from B1, using the ‘B’ prefix from Button Head.
    • The Button Head Panel displays the names of the Button Head used from CLO3D as shown in the Object Browser of CLO3D.
      • The order of the Button Head list is identical to the order of the Button Head from CLO3D.
    • The count of Button Head is shown inside the parenthesis.

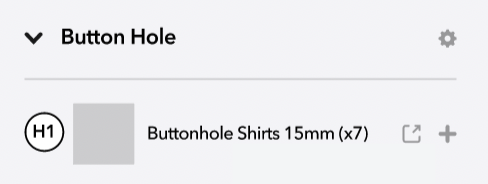

  6. Button Hole Page
    • Page Name is named default as Button Hole, and it can be modified.
    • The markers of Button Hole start from H1, using the ‘H’ prefix from Button Hole.
    • The Button Hole Panel displays the names of the Button Hole used from CLO3D as shown in the Object Browser of CLO3D.
      • The order of the Button Hole list is identical to the order of the Button Hole from CLO3D.
    • The count of Button Hole is shown inside the parenthesis.
  7. Zipper Page
    • Page Name is named default as Zipper, and it can be modified.
    • The markers of Zipper start from Z1, using the ‘Z’ prefix from Zipper.
    • The Zipper Panel displays the names of the Zipper used from CLO3D as shown in the Object Browser of CLO3D.
      • The order of the Zipper list is identical to the order of the Zipper from CLO3D.
    • All parts of Zippers such as Zipper Puller, Zipper Slider, Zipper Teeth, Top Stopper, and Bottom Stopper, are shown in the Zipper Content Page.
  8. Topstitch Page
    • Page Name is named default as Topstitch, and it can be modified.
    • The markers of Topstitch start from T1, using the ‘T’ prefix from Topstitch.
    • The Topstitch Panel displays the names of the Zipper used from CLO3D as shown in the Object Browser of CLO3D.
      • The order of the Zipper list is identical to the order of the Zipper from CLO3D.
  9. Etc. Page
    • Page Name is named default as Etc., and it can be modified.
    • The markers of Etc. start from E1, using the ‘E’ prefix from Etc.
    • The Etc. Panel displays the names of the Etc. items used from CLO3D, such as trm. obj, fbx, dae, glb, and others.
  10. Blank Page
    • Page Name is named default as New Page, and it can be modified.
    • Markers are not created in Blank Page.
    • This Page is for flexible usage of annotations.



4. Construction Versions

  • Web Tech Pack is created for each individual content in CLO-SET.
  • Web Tech Pack data is based on the Version Updates.
  • The data shown in Construction is the data of the ‘Current’ Version’s zpac, or zprj file.
  • The versions that have been ‘Version Updated’ on WTP are shown in Construction.
    • For example, ContentA has 5 versions. And, Version 1, 3, 5 has only been Version Updated in WTP, then the Construction also only shows Version 1, 3, 5.
  • Editing can only be done in the ‘Current Version’. The past versions are View Only.
