Permission: Admin  Collaborator  Editor

Objective

Download the auto-generated Tech Pack in Excel format.

1. Excel TechPack Format
2. Downloading Excel TechPack

Details

1) Excel TechPack Format

Find details on the list of information included in Excel TechPack. Check out the sample .xlsx attachment at the bottom of this article.

*please note that the Excel TechPack is only available for .zprj and .zpac files

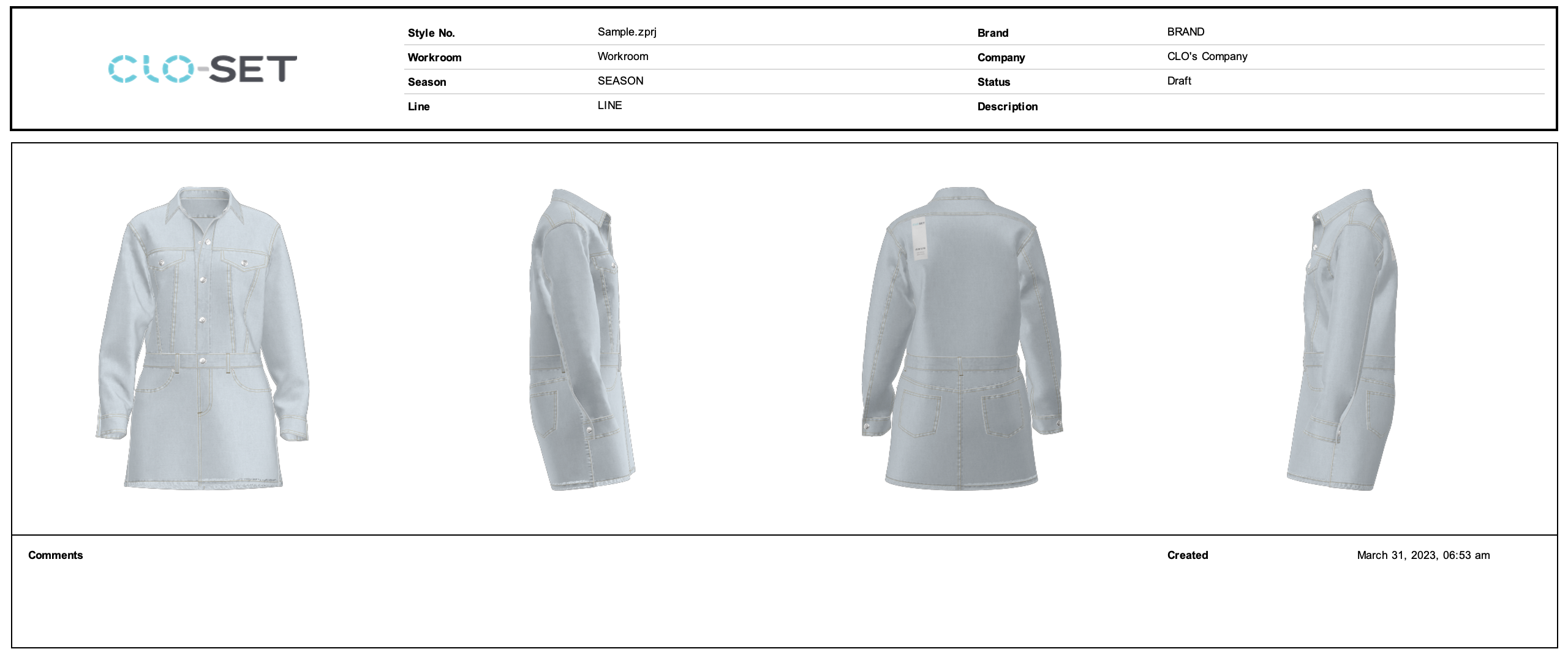

• Overview
  • Style No. / Company / Brand / Line / Season / Workroom / Status / Description from CLO-SET page

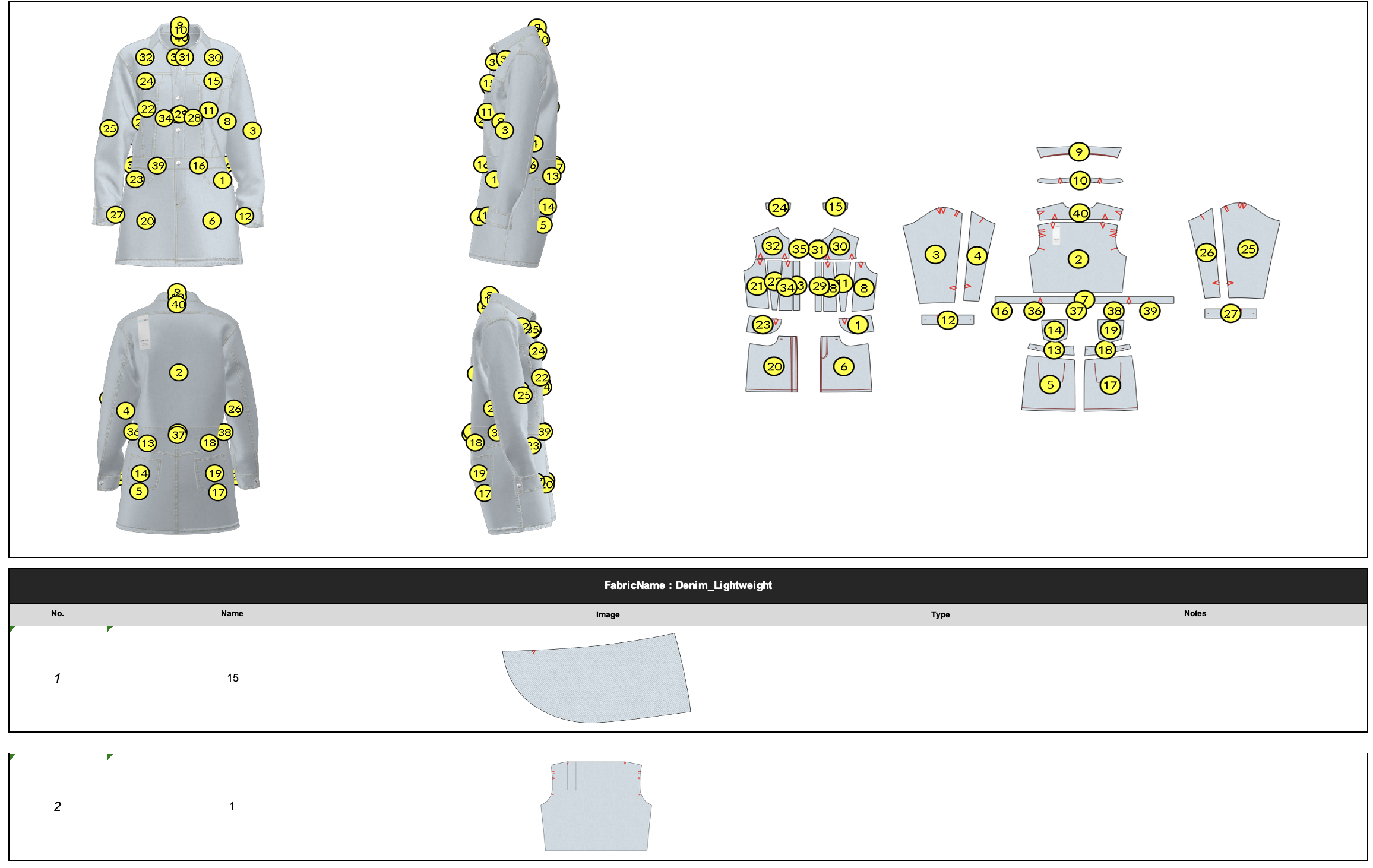

• Cutter's Must

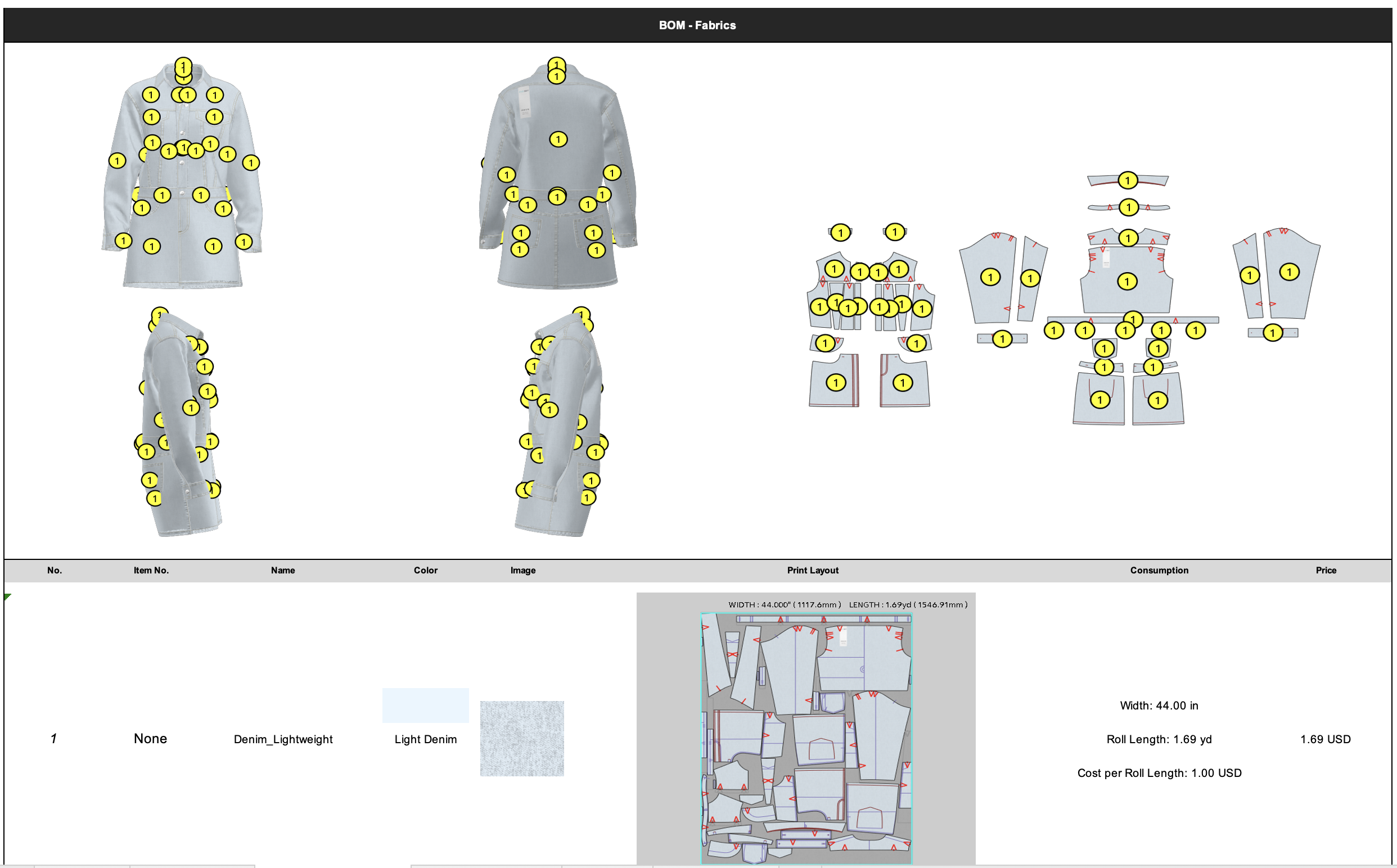

• BOM by Colorway
  • BOM for Fabric and Trims. Provided for each Colorway

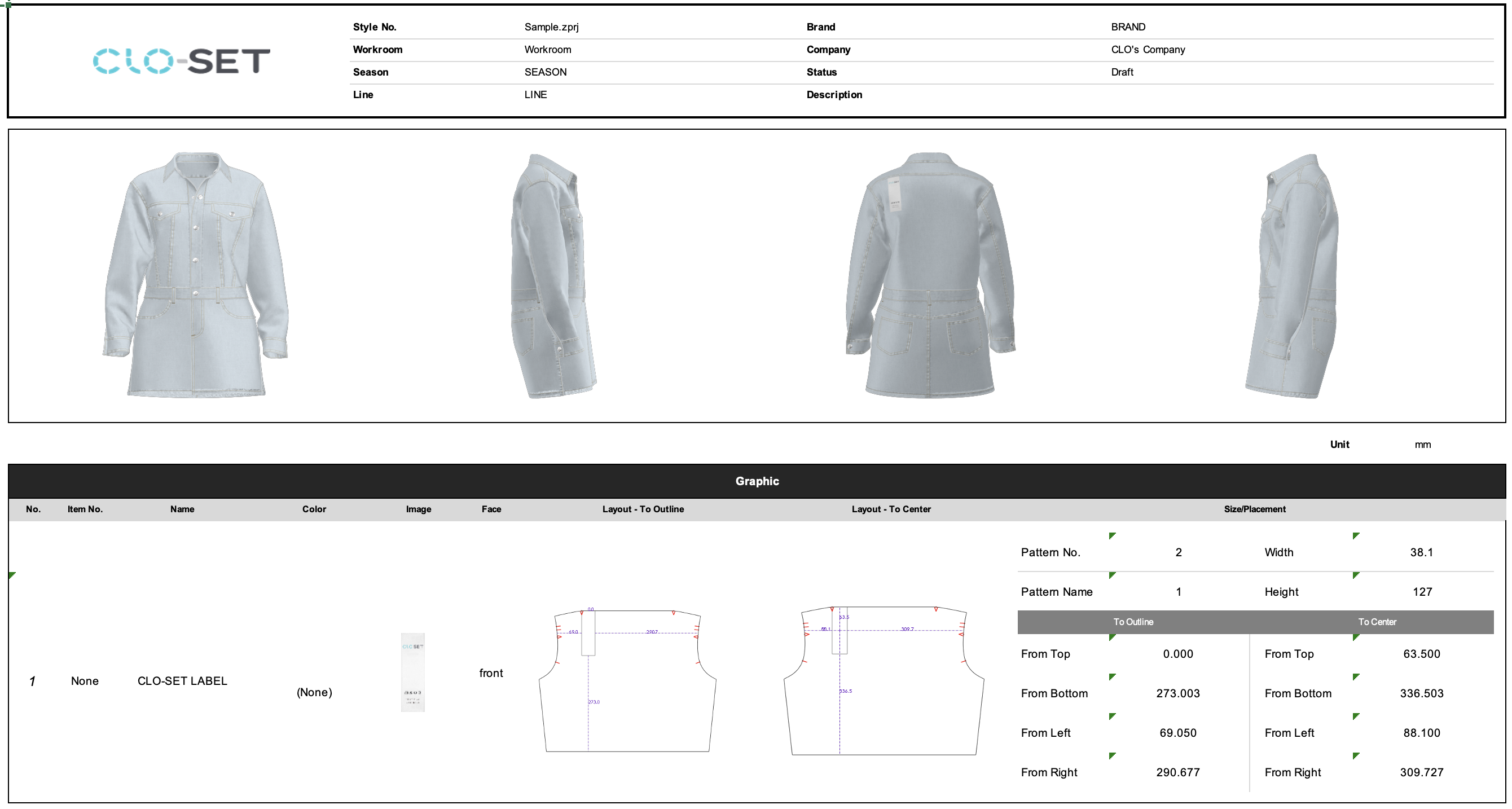

• Graphic

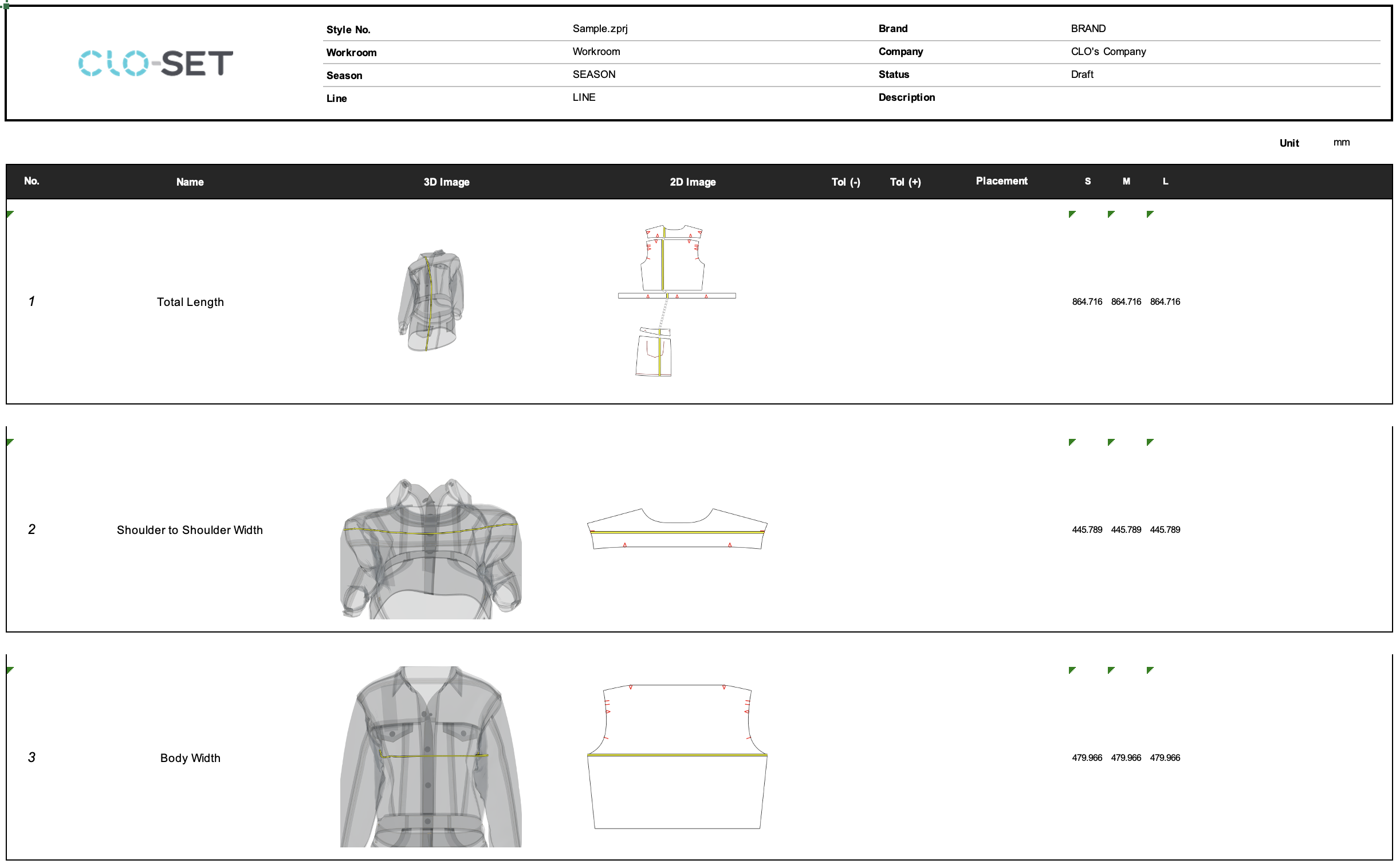

• Measurement
  • POM information from your 3D file

2) Downloading Excel TechPack

In the New Content Page

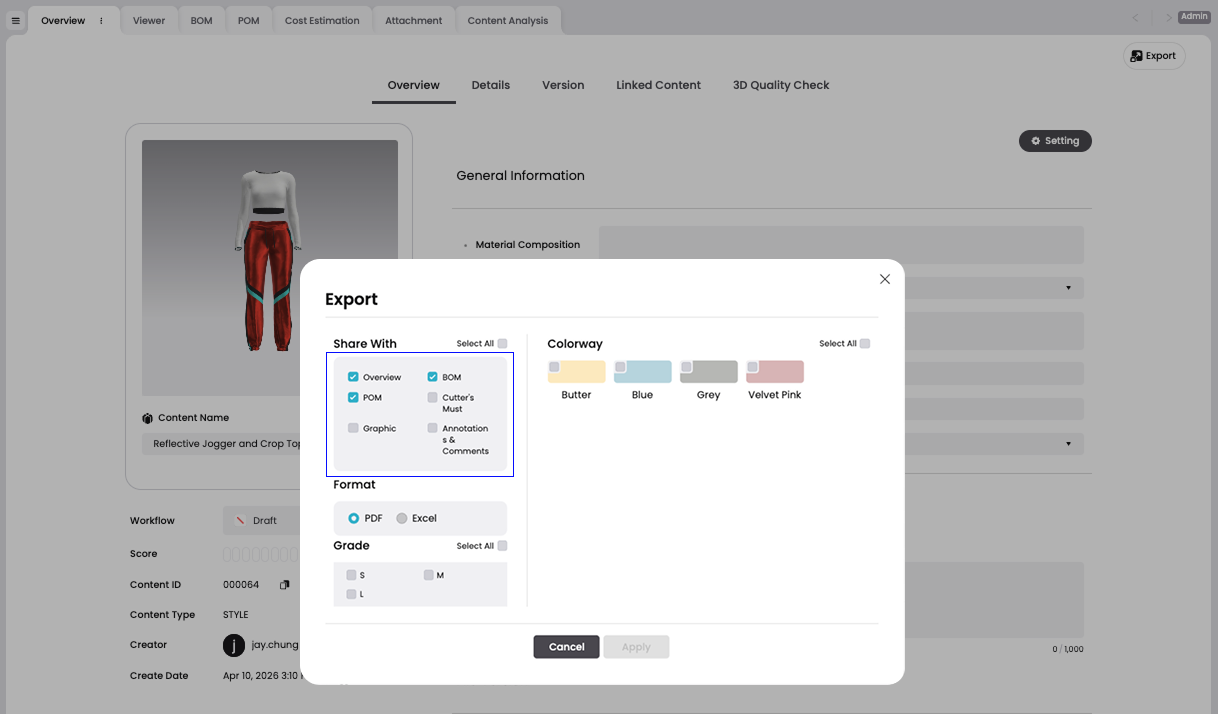

• Click the Export button in the upper-right corner of the Overview tab. You can then select Overview, BOM, POM, Cutter's Must, Graphic, and Annotation & Comments, and download the selected information as either an Excel file or a PDF.

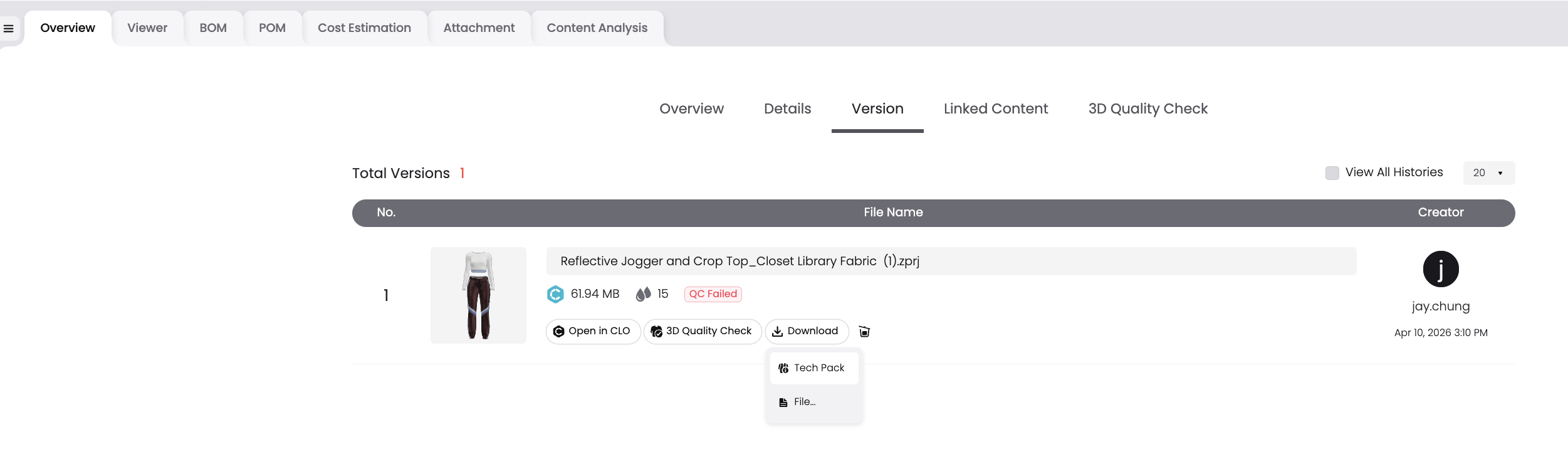

• The Excel Techpack can also be downloaded by clicking the Download button in the Version tab under the Overview menu in the New Content Page.



In the Legacy Content Page

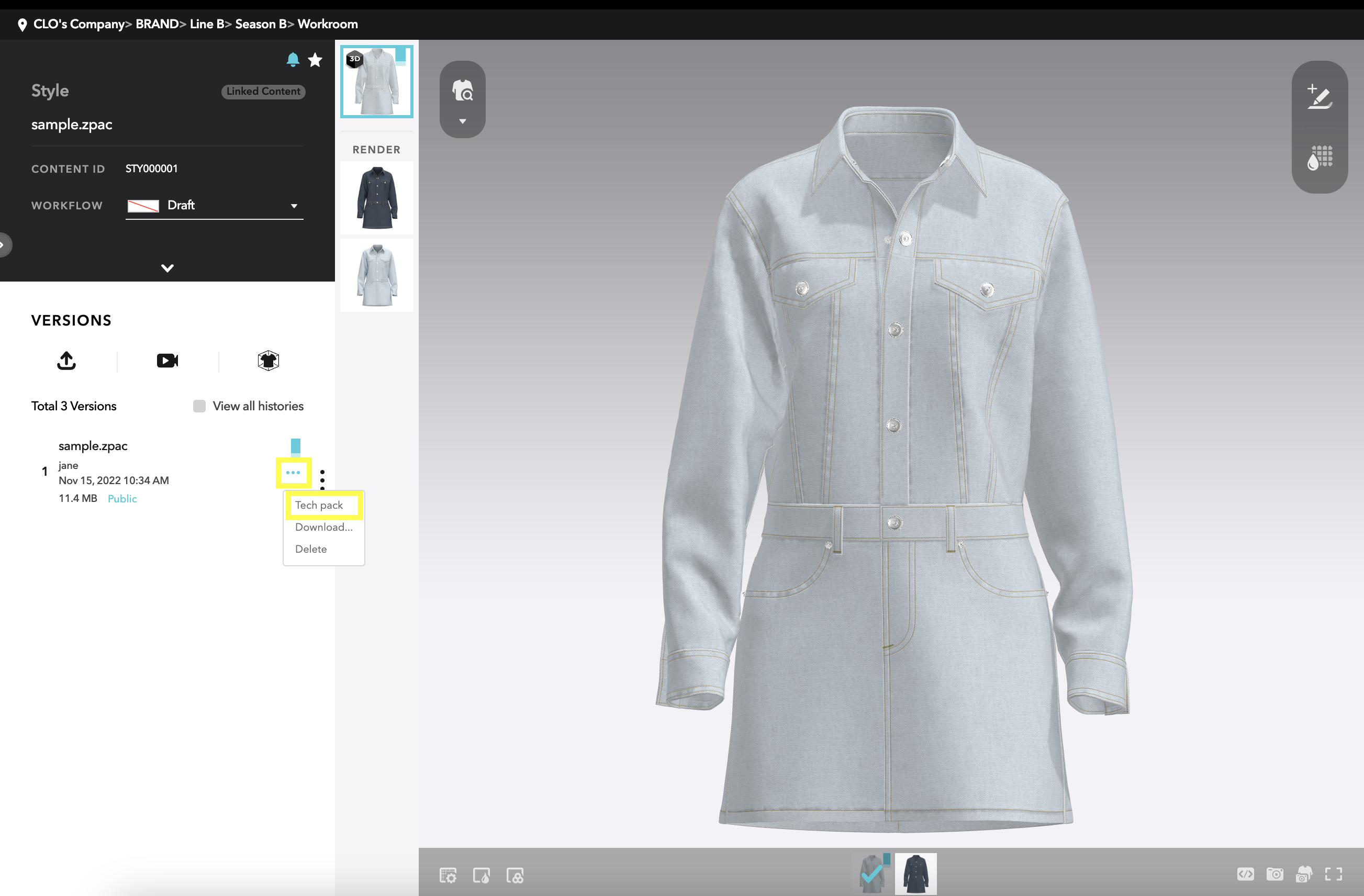

• Hover over the Version to find the ••• sign, and click on 'Tech Pack' to download the Excel file.

  Excel Tech Pack is downloadable per Content Version (for zprj/zpac files only)

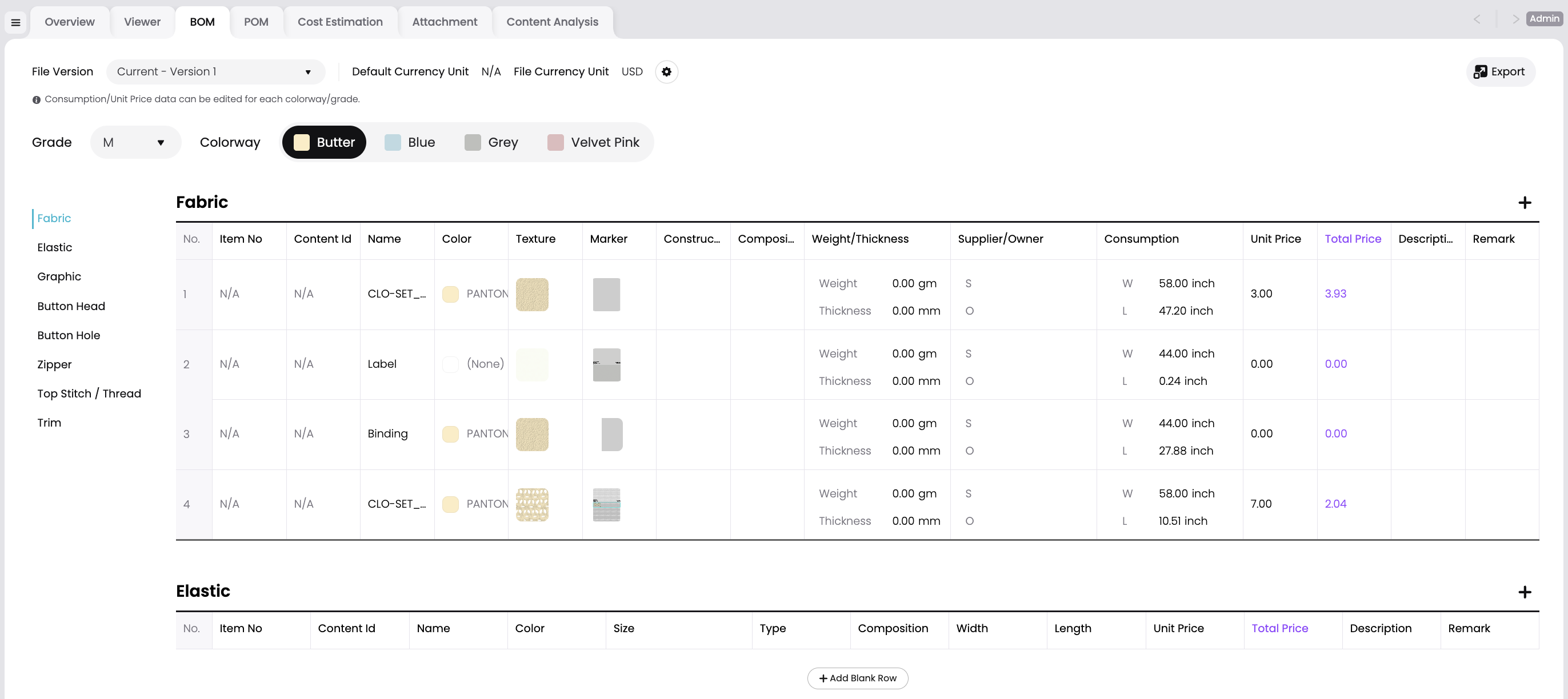

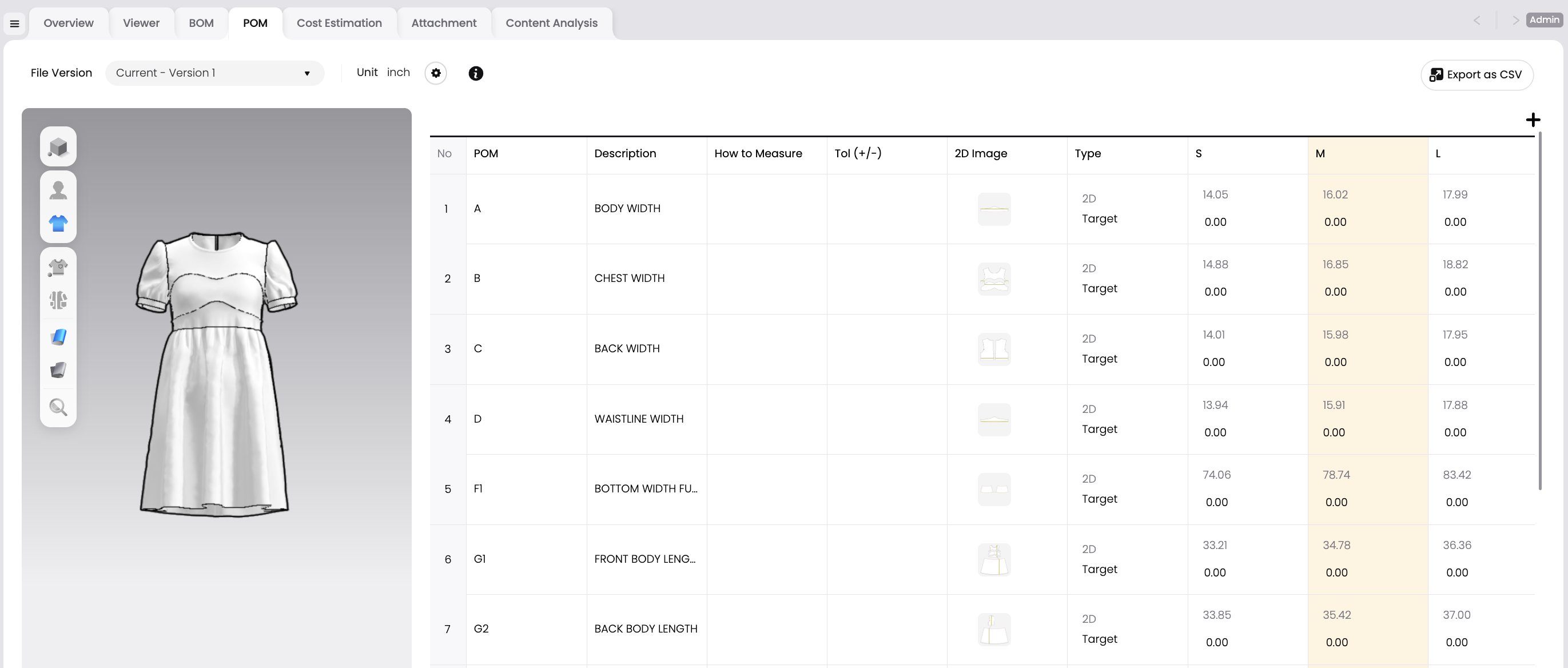

Note : You can also download Tech Pack data by clicking Export at the top right of the BOM and POM tabs on the new Content Page.
